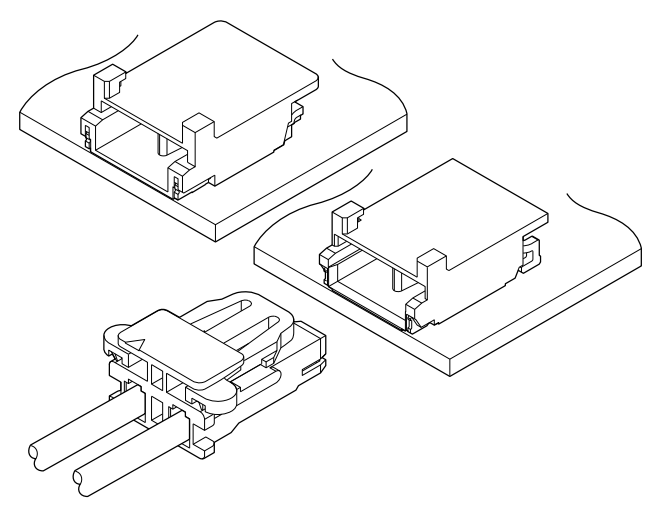

JST BD Connector, 3.5mm Pitch, Wire to Board Type

The JST BD Connector is a reliable wire-to-wire connector designed for applications requiring high withstand voltage, such as powering LCD (Liquid Crystal Display) backlights. This connector features a secure locking mechanism that ensures a firm and vibration-resistant connection, enhancing safety and stability in demanding environments. With its high withstand voltage capability, it effectively supports the stringent requirements of power supply systems while maintaining a low-profile design for space-constrained installations. The BD Connector’s compact form factor is paired with excellent compatibility, making it a versatile choice for various electronic applications requiring durability and efficient performance.

Specificatios

• Connector type: Wire to Board, Disconnectable Crimp style
• Connector pitch: 3.5mm
• Current rating: 1.0A AC, DC (AWG #24)
• Voltage rating: 1,400V AC, DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/10mΩ max, After environmental testing/20mΩ max.
• Insulation resistance: 1,000MΩ min.
• Withstanding voltage: 3,000V AC/minute
• Applicable wire: AWG #28 to #24

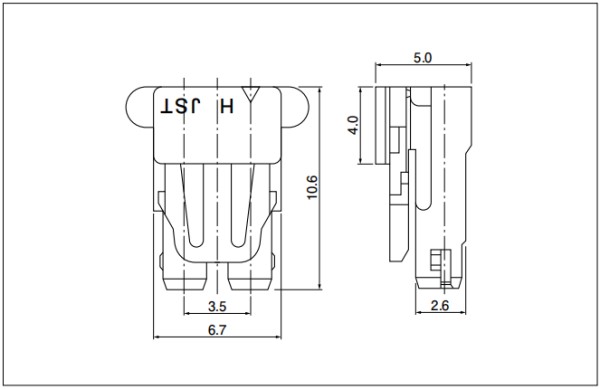

Housing

Specs:

• No. of Circuits: 2
• Model No.: BDMR-02VS-2
• Q'ty/reel: 1000pcs
• Materials and Finish: PA 66, UL94V-0, natural (white)
• RoHS Compliance

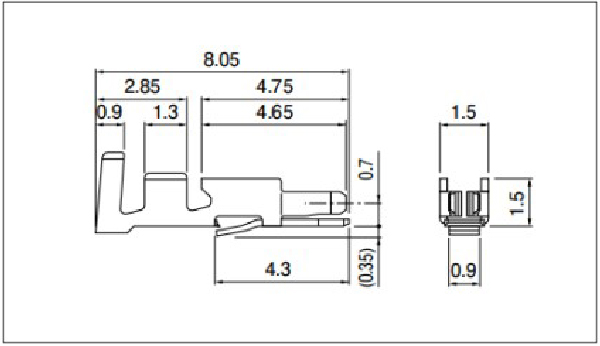

Terminal

Spcs:

• Model No.: SBHS-002T-P0.5A
• Applicable Wire: 0.08 - 0.22mm² (24 - 28AWG)
• Insolations O.D. (mm): 0.9 - 1.7
• Q'ty/reel: 10000pcs
• Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
• RoHS compliance

Header

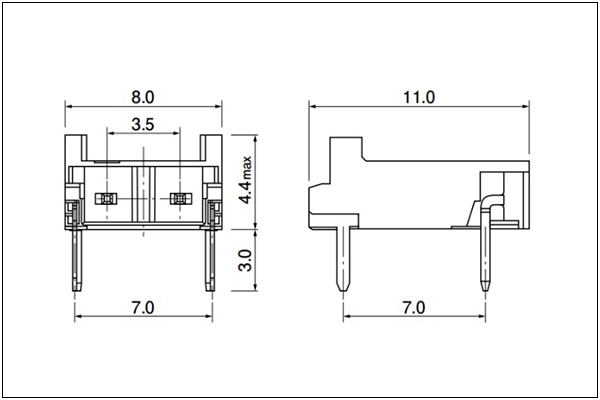

Through-hole Type

Specs:

• No. of Circuits: 2
• Model No.: S02-BDS-3-B
• Q'ty/reel: 1000pcs
• Materials and Finish:
  • Press pin: Brass, Copper-undercoated, tin-plated (reflow treatment)
  • Wafer: Heat resisting resin, UL94V-0, natural (ivory)
  • Solder tab: Brass, Copper-undercoated, tin-plated (reflow treatment)
• RoHS Compliance

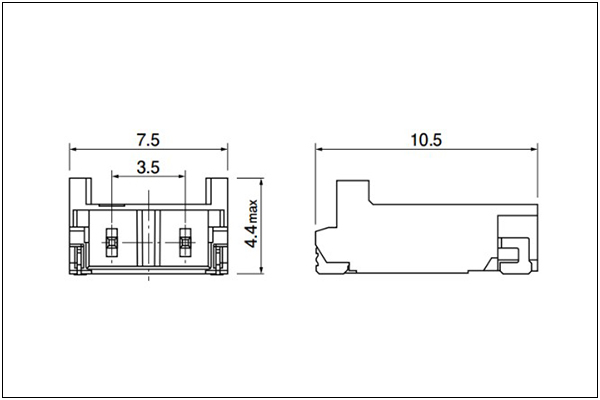

SMT Type

Specs:

• No. of Circuits: 2
• Model No.: SM02-BDS-3-TB
• Q'ty/reel: 1000pcs
• Materials and Finish:
  • Post: Brass, Copper-undercoated, tin-plated (reflow treatment)
  • Wafer: Heat resisting resin, UL94V-0, natural (ivory)
  • Solder tab: Brass, Copper-undercoated, tin-plated (reflow treatment)
• RoHS Compliance
• This product displays (LF)(SN) on a label.
• The product listed above is supplied on embossed tape.

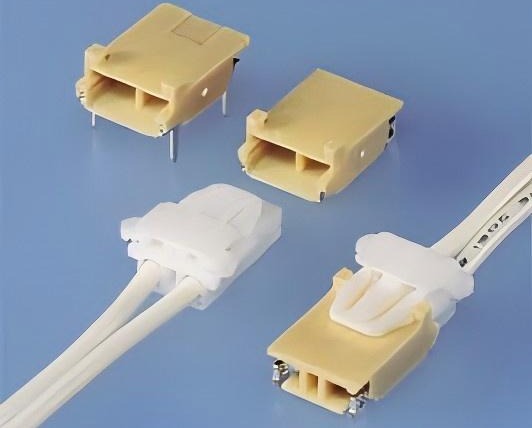

Support Custom Wiring Harness Assembly

• Connector: 2pin
• Wire gauge: 28 - 24AWG
• Wire length: as long as your needs
• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
• Custom type:
  • wire to wire
  • wire to tinned end
  • wire to open end
  • wire to any suitable connectors
• Minimum Order: 100 pieces per order.
