JST BHL Connector

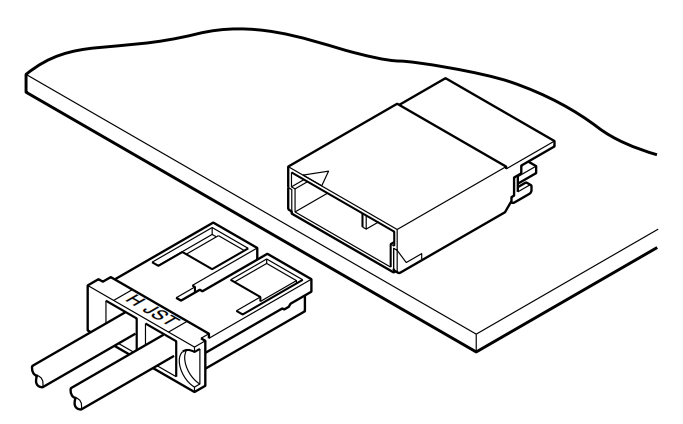

The JST BHL Connector is a compact wire-to-board connector specifically designed for LCD backlight power supply applications. It offers a smaller board footprint compared to the BHS connector while providing superior space efficiency. With a mounting height reduced by 13%, the BHL achieves a slim profile of just 2.8 mm, making it ideal for compact device designs. Its design incorporates a contact lance mechanism that securely locks the contacts into the housing, enhancing voltage withstand performance. Additionally, the BHL features a mis-insertion prevention system with reverse-insertion ribs on both sides of the housing and a robust locking mechanism to protect against accidental disconnection caused by vibrations or external shocks.

Specifications

• Connector type: Wire to Board, Disconnectable Crimp style
• Connector pitch: 2.3mm
• Current rating: 1.0 A　AC/DC (AWG #24)
• Voltage rating: 1,400 V　AC/DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 m Ω max, After environmental tests/ 20 m Ω max.
• Insulation resistance: 1,000 M Ω min.
• Withstanding voltage: 3,800 VAC/minute
• Applicable wire: Conductor/ AWG #28 to #24, Insulation O. D./ 0.9 to 1.7 mm

Housing

Notes:

• No. of circuits: 2

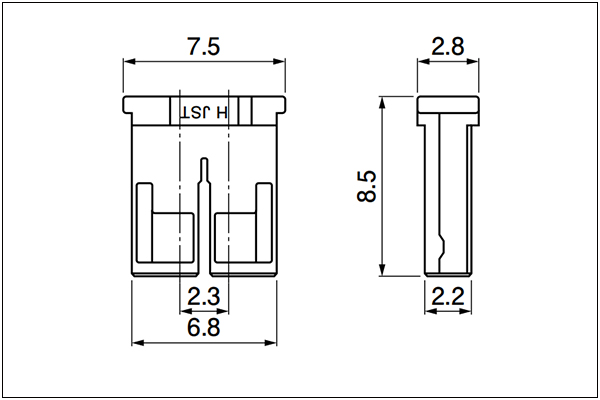

• Model Number: BHLR-02VS
• Q'ty/bag: 1000pcs
• Material and Finish: Thermoplastic resin, UL94V-0, natural (white)
• RoHS2 Compliance

Terminal

Notes:

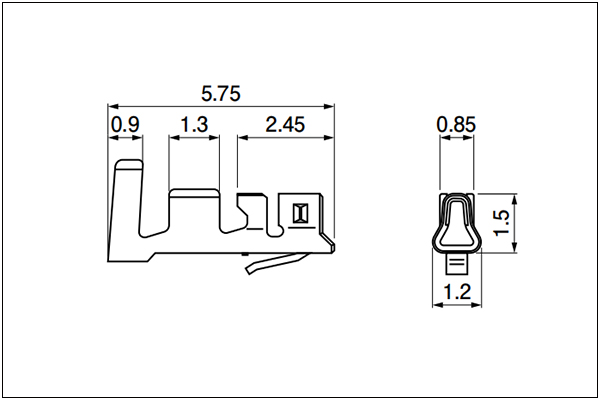

• Model Number: SBHL-002T-P0.5
• Suitable Wire Gauge: 0.08 - 0.22mm² (28 - 24AWG)
• Insulation O.D. (mm):  0.9 - 1.7
• Qty/Reel: 10000pcs
• Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
• RoHS2 compliance

Header

Notes:

• No. of circuits: 2

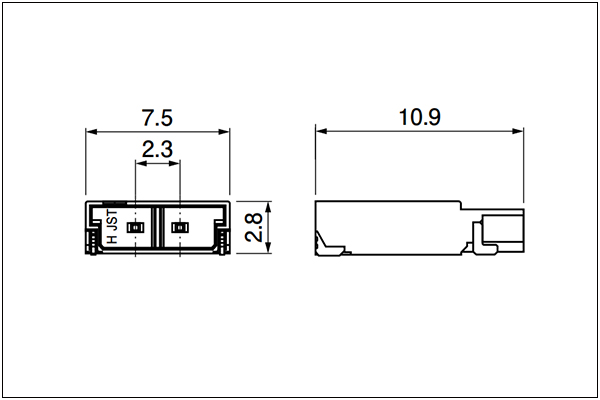

• Model Number: SM02B-BHLS-1-TB
• Q'ty/bag: 1500pcs
• Material and Finish:
  • Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
  • Wafer: Heat resisting resin, UL94V-0, natural (ivory)
  • Solder tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
• RoHS2 Compliance
• This product displays (LF)(SN) on a label.
• The product listed above is supplied on embossed-tape.

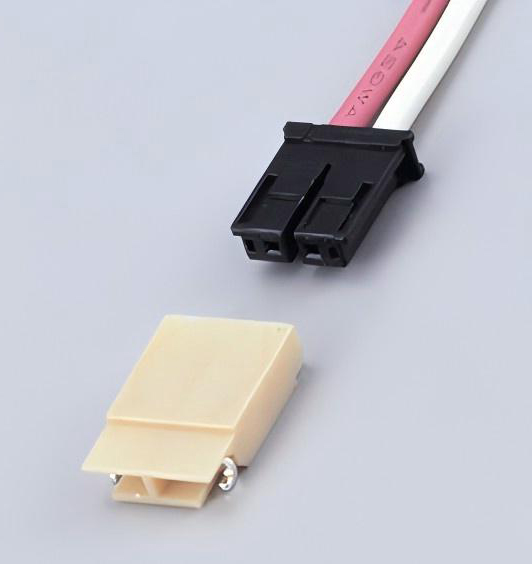

Support Custom Wiring Harness Assembly

• Connector: 2pin
• Wire gauge: 28 - 24AWG
• Wire length: as long as your needs
• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
• Custom type:
  • wire to wire
  • wire to tinned end
  • wire to open end
  • wire to any suitable connectors
• Minimum Order: 100 pieces per order.
