JST BHM Connector, Wire to Wire, Custom Wire Assembly

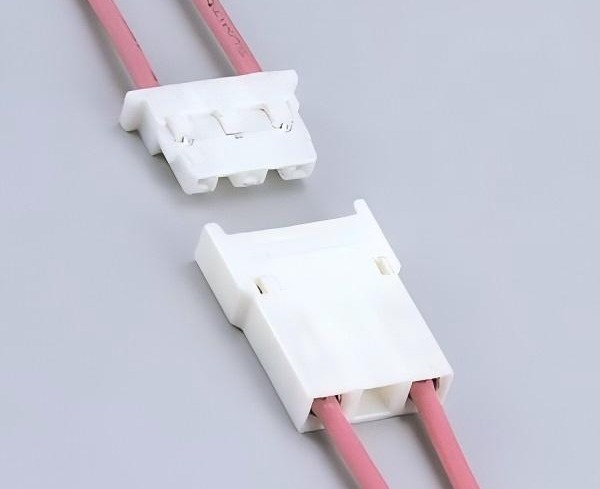

JST BHM Connector, Wire to Wire
The JST BHM Wire-to-Wire Connector is a high-performance solution designed for applications requiring a slim and reliable connection. With a remarkably thin profile of just 3.7mm, it is particularly well-suited for modern LCD displays, where space constraints are critical. This connector is ideal for relay connections between the backlight and power supply, ensuring efficient and stable electrical performance. Featuring a boxed-shaped shrouded housing, the BHM connector provides enhanced durability and protection against external forces. Its polarization design prevents mismating, ensuring secure and accurate connections. The free-hanging configuration allows flexible installation, while the contact locking lance mechanism enhances retention strength, minimizing the risk of accidental disconnection. Additionally, it is engineered to accommodate high-voltage wires, making it suitable for demanding power applications. Designed to mate seamlessly with the BH connector, the BHM series offers a dependable and space-saving interconnect solution for various electronic and display-related applications.
Specifications
- Connector type: Wire-to-Wire connectors/Crimp style and Mating style
- Connector pitch: 4.0mm
- Current rating: 1.0 A AC/DC（AWG #22）
- Voltage rating: 600 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: There shall be no breakdown or flashover while applying 1,800 VAC for one minute.
- Applicable wire range: Conductor size/ AWG #28 to AWG #22
- Insulation O.D./ φ1.6 mm to φ2.4 mm
Receptacle Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | ||
| A | B | C | |||
| 3 | BHMR-03V | 8 | 11.8 | 13.1 | 1000 |
| 4 | BHMR-04V | 12 | 15.8 | 17.1 | 1000 |
Material and Surface finish, etc.: PA 66, natural (white)
Terminal
Spcs:
- Model No.: SBHM-001T-P0.5
- Applicable Wire: 0.08 - 0.33mm² (22 - 28AWG)
- Insolations O.D. (mm): 1.6 - 2.4
- Q'ty/reel: 4000pcs
- Materials and Finish: Phosphor bronze, tin-plated
Mating half / BH Connector
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |||
| A | B | C | D | |||
| 3 | BHR-03VS-1 | 8 | 10.4 | 11.6 | 13.8 | 1000 |
| 4 | BHR-04VS-1 | 12 | 14.4 | 15.6 | 17.8 | 1000 |
Material and Surface finish, etc.: PA 66, natural (white)
Terminal
Spcs:
- Model No.: SBH-001T-P0.5
- Applicable Wire: 0.08 - 0.33mm² (22 - 28AWG)
- Insolations O.D. (mm): 1.6 - 2.4
- Q'ty/reel: 4000pcs
- Materials and Finish: Phosphor bronze, tin-plated
Support Custom Wiring Harness Assembly
- Connector: 3, 4pin
- Wire gauge: 28 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
