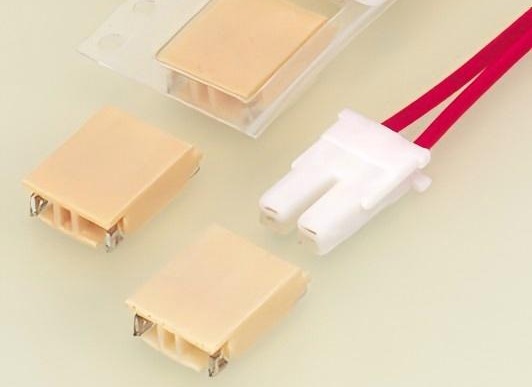

JST BHS Connector, Wire to Board, Custom Wire Assembly

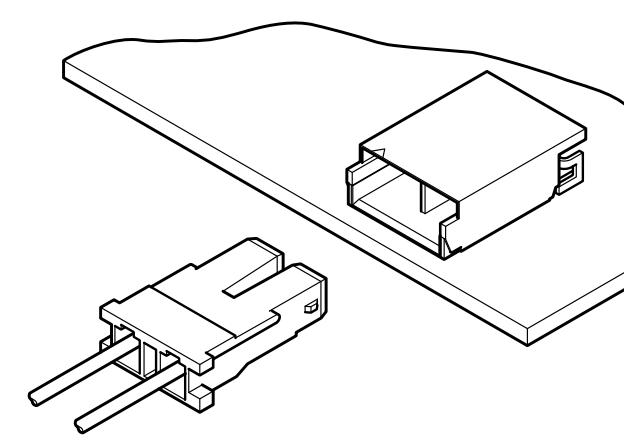

JST BHS Connector, Wire to Board Type
The JST BHS Connector is a compact, low-profile solution designed to meet the demands of modern electronic applications. Its surface-mount technology (SMT) configuration ensures seamless integration with advanced PCB designs, enhancing assembly efficiency. The connector is compatible with specialized wires, offering versatility across various industries. Additionally, its innovative housing lock doubles as a polarizing device, providing secure mating and preventing misalignment during installation. The socket contact features a wide, large design that ensures robust electrical connections, delivering reliability even in high-stress environments. This combination of features makes the JST BHS Connector ideal for compact, high-performance applications.
Specifications
- Connector type: Wire to Board, /Disconnectable Crimp style
- Connector Pitch: 3.5mm
- Current rating: 1.0A AC, DC (AWG #24)
- Voltage rating: 1,400V AC, DC
- Temperature range: -25℃ to +85℃, (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10mΩ max, After environmental testing/20mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 3,800V AC/minute
- Applicable wire: AWG #28 to #24, Insulation O.D./0.9 to 1.7mm

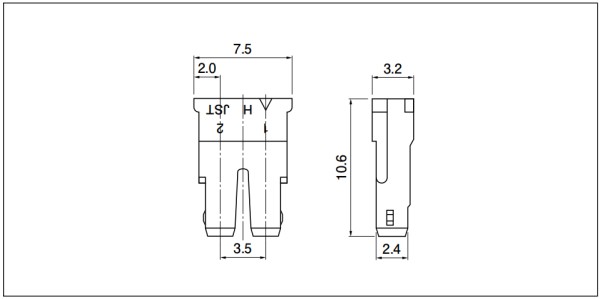

Housing
Specs:
- No. of Circuits: 2
- Model No.: BHSR-02VS-1 (N)
- Q'ty/reel: 1000pcs
- Materials and Finish: PA 66, UL94V-0, natural (white)
- RoHS Compliance

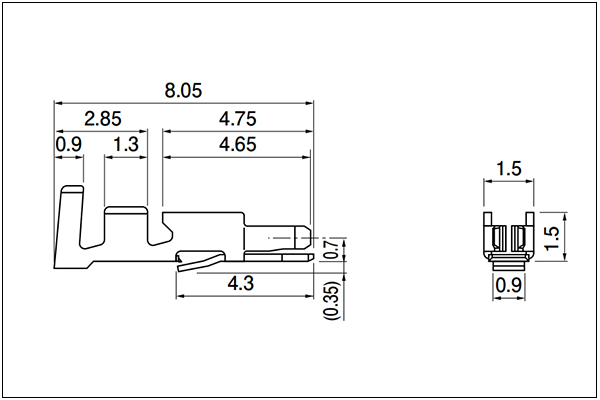

Terminal
Spcs:
- Model No.: SBHS-002T-P0.5A
- Applicable Wire: 0.08 - 0.22mm² (24 - 28AWG)
- Insolations O.D. (mm): 0.9 - 1.7
- Q'ty/reel: 10000pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS compliance

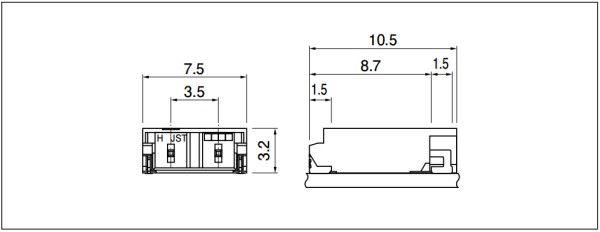

Header
Specs:
- No. of Circuits: 2
- Model No.: SM02B-BHSS-1-TB
- Q'ty/reel: 1000pcs
- Materials and Finish:
- Post: Brass, copper-undercoated, tin-plated (reflow treatment)
- Wafer: PPA, UL94V-0, natural (ivory)
- Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)
- This product displays (LF)(SN) on a label.
- The products listed above are supplied on embossed tape.
- RoHS Compliance
Support Custom Wiring Harness Assembly
- Connector: 2pin
- Wire gauge: 28 - 24AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
