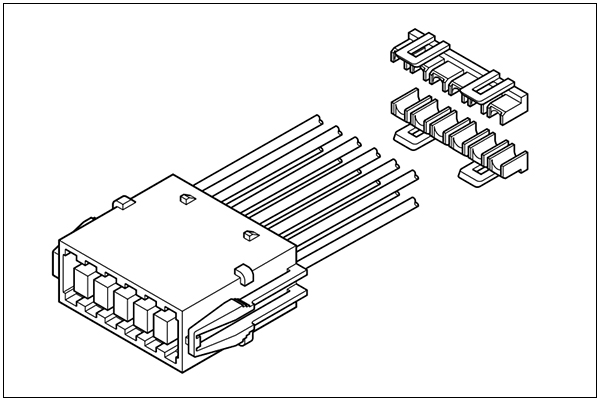

JST BL Connector, Wire to Wire Type
The JST BL Connector is a wire-to-wire solution designed specifically for short-circuit connections. Engineered for reliability, it features innovative housing lances made of resilient plastic, securing contacts firmly within the housing while ensuring smooth and consistent insertion. This design minimizes handling damage and enhances the tactile feedback upon proper insertion. Secondary retainers add an extra layer of safety, guiding improperly inserted contacts into position and locking them securely. Additionally, a compact panel lock construction prevents wire tangling and accidental breakage during use. For added convenience, pre-assembled connectors with built-in tab contacts are available, streamlining installation processes and reducing assembly time.
Specifications
- Connector type: wire to wire
- Connector pitch: 3.96mm
- Current rating: 7A AC, DC max./ line
- Voltage rating: 300V AC, DC max.
- Temperature range: -25˚C to +90˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/7m Ω max, After environmental testing/10m Ω max.
- Insulation resistance: 1,000M Ω min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #18, 0.3 to 0.75mm²
- Applicable panel thickness: 0.7 to 2.0mm
Current unit: A
| Circuits | Wire Size (AWG) | ||
| #18 | #20 | #22 | |
| 8, 12 | 7 | 5 | 4 |
Note:
- The current rating varies depending on the number of circuits and the wire size used in each connector.
- The table above lists the current rating as a function of the number of circuits and wire size.
Housing

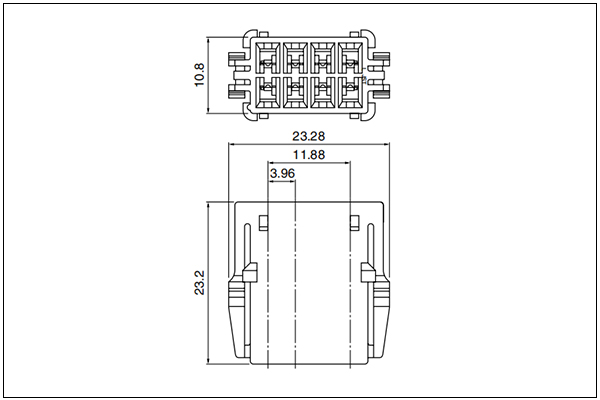

8 Circuits

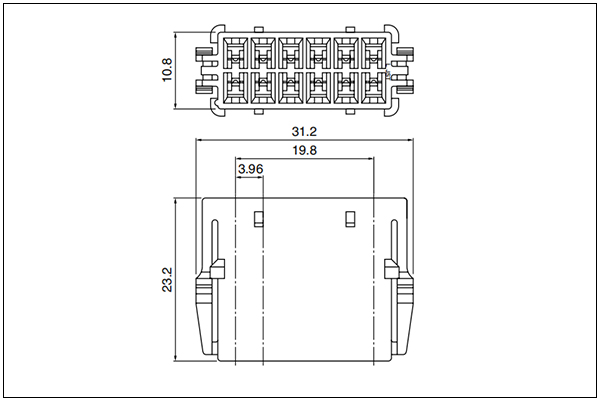

12 Circuits
| Circuits | Model No. | Q'ty /bag |
| 8 | BL-08V | 100 |
| 12 | BL-12V | 100 |

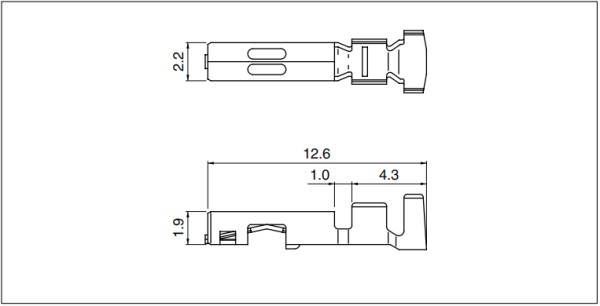

Terminal
Spcs:
- Model No.: SSF-21T-P1.4
- Applicable Wire: 0.3 - 0.75mm² (22 - 18AWG)
- Insolations O.D. (mm): 1.5 - 2.2
- Q'ty/reel: 6000pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS compliance

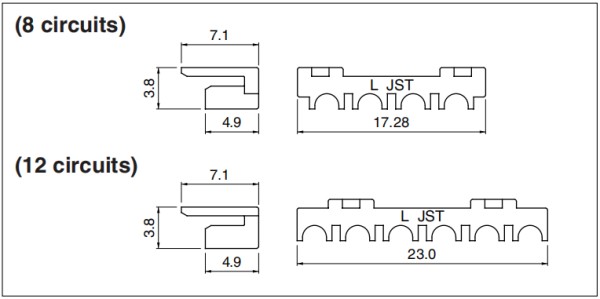

Retainer
| Circuits | Model No. | Q'ty/bag |
| 8 | HLS-08V | 1000 |
| 12 | HLS-12V | 1000 |

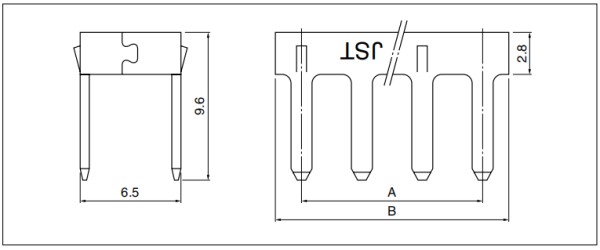

Tab Contact
| Circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||
| 8 | BLT-08T-0.5 | 11.88 | 15.08 | 500 |
| 12 | BLT-12T-0.5 | 19.80 | 23.00 | 250 |

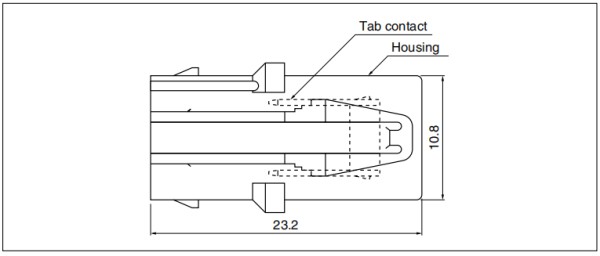

Tab contact built-in product
| Circuits | Model No. | Q'ty/box |
| 8 | BL-08V ST | 100 |
| 12 | BL-12V ST | 100 |

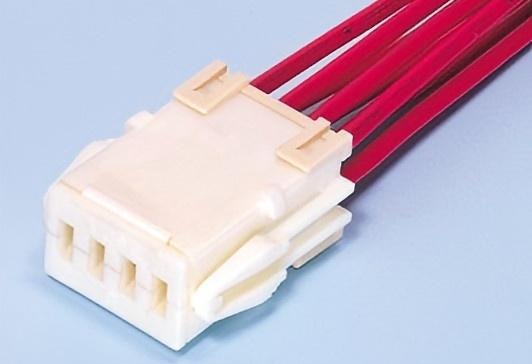

Support Custom Wiring Harness Assembly
- Connector: 8, 12pin
- Wire gauge: 18 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
