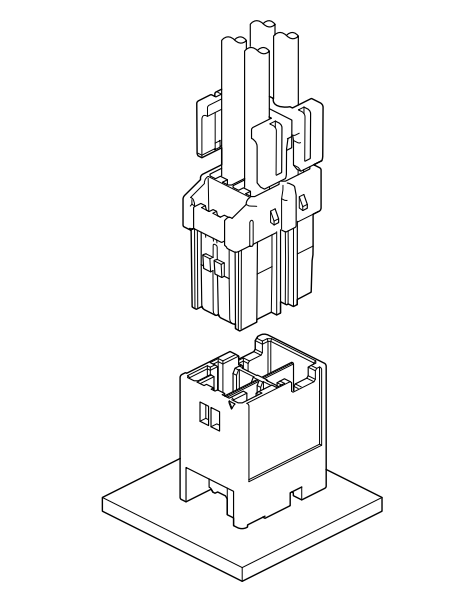

The JST BNI Connector is a 3.3 mm pitch wire-to-board solution designed for reliability and safety in electronic applications. It features an incomplete mating prevention mechanism, ensuring proper and secure connection during assembly. To prevent mismatched insertion, especially in configurations where multiple connectors are used within the same system, the BNI connector offers three distinct keying patterns. Its design includes a robust keying structure, a secure locking device for enhanced stability, and an inertia lock mechanism for added protection against accidental disconnection. Additionally, the connector supports a retainer for increased retention force and features a header optimized for potting processes, making it suitable for environments requiring additional insulation or moisture resistance.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 3.3mm
- Current rating: 4 A AC, DC (Refer to the table below.)
- Voltage rating: 300 V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: Conductor size/ AWG #24 to #20, Insulation O.D./ 1.3 mm to 2.5 mm
- Applicable PC board thickness: 1.6 mm
Current unit: A
| No.of circuits | Wire size (AWG) | ||
| #20 | #22 | #24 | |
| 2 | 4 | 3 | 3 |
| 3 | 4 | 3 | 2 |
| 4 | 4 | 3 | 2 |
| 6 | 4 | 3 | 2 |
| 8 | 4 | 3 | 2 |
| 10 | 4 | 3 | 2 |
| 12 | 4 | 3 | 2 |
Note:
- The current rating differs depending on the number of circuits and the wire size used in each connector. The table above lists the current rating as a function of the number of circuits and the wire size.
- Do not branch in parallel current which exceeds the rated current (e.g. more than 4 A in the case of 2 circuits with AWG #20). If branched in parallel, current imbalance or other problems may develop. If it is absolutely necessary to branch such a large current in parallel, design the circuits without causing any imbalance and provide an extra margin for each circuit.

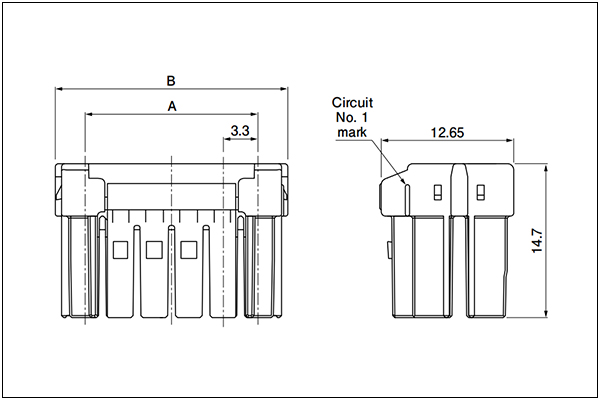

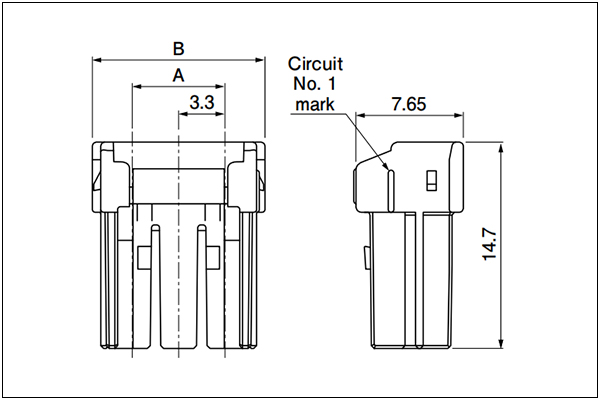

Housing

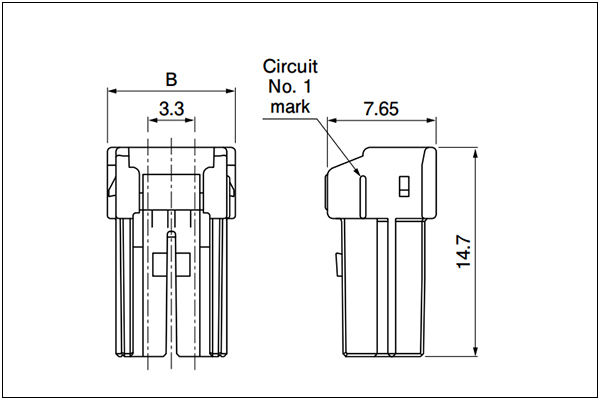

Single-row type
2 Circuits
3 Circuits

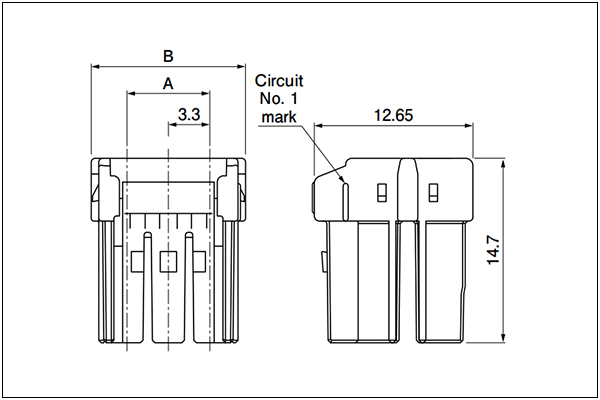

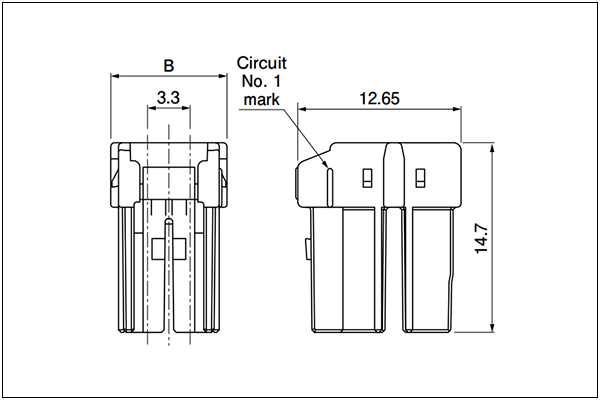

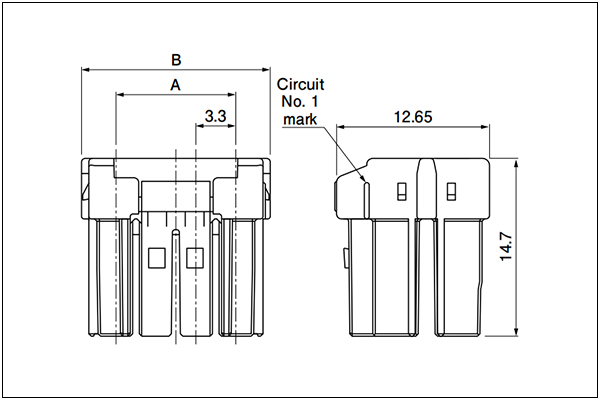

Dual-row type
4 Circuits
6 Circuits
8 Circuits
10 Circuits
12 Circuits
| Type | No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | ||||
| Single-row type | 2 | BNIRP-02V-A-S | 一 | 9.0 | 1000 |
| 3 | BNIRP-03V-A-S | 6.6 | 12.3 | 1000 | |
| Dual-row type | 4 | BNIRP-04V-W-A-S | 一 | 9.0 | 1000 |
| 6 | BNIRP-06V-W-A-S | 6.6 | 12.3 | 1000 | |
| 8 | BNIRP-08V-W-A-S | 9.9 | 15.6 | 1000 | |
| 10 | BNIRP-10V-W-A-S | 13.2 | 18.9 | 500 | |
| 12 | BNIRP-12V-W-A-S | 16.5 | 22.2 | 500 | |
Material: Glass-filled PA 66, UL94V-0, natural

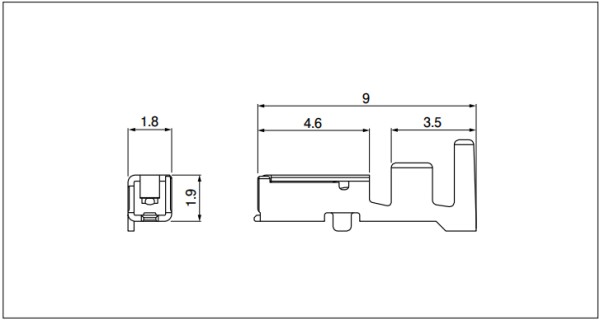

Terminal
Spcs:
- Model No.: SBNI-01T-P0.5
- Applicable Wire: 0.2 - 0.5mm² (24 - 20AWG)
- Insolations O.D. (mm): 1.3 - 2.5
- Q'ty/reel: 5000pcs
- Materials and Finish: Copper alloy, tin-plated (reflow treatment)
- RoHS compliance

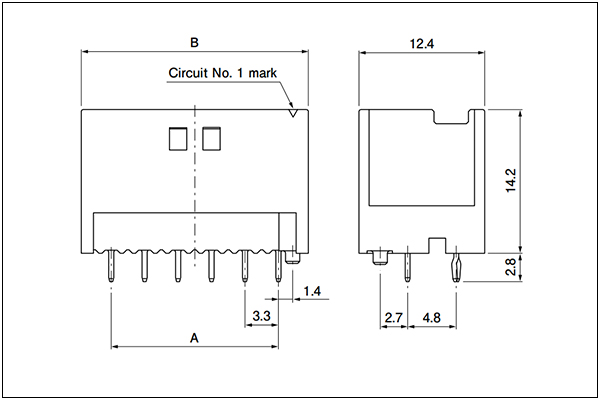

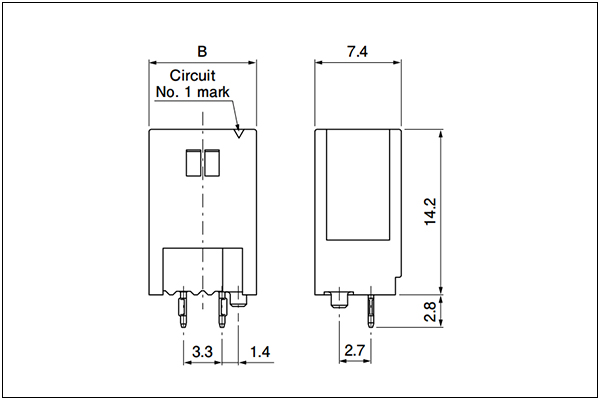

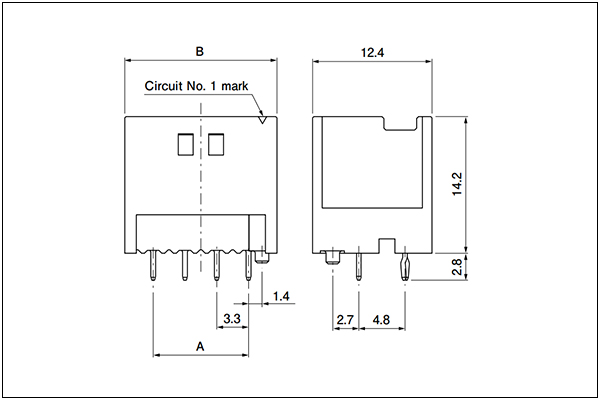

Header

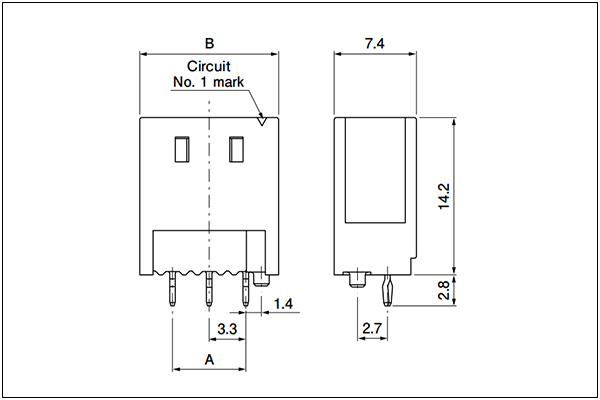

Single-row type
2 Circuits
3 Circuits

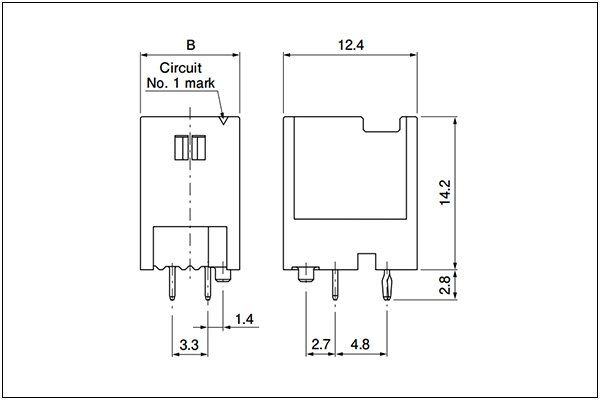

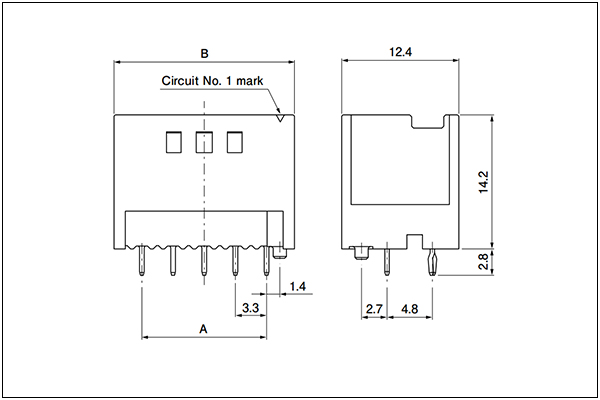

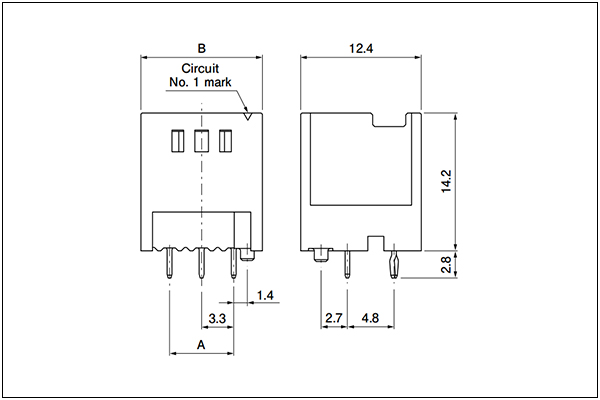

Dual-row type
4 Circuits
6 Circuits
8 Circuits
10 Circuits
12 Circuits
| Type | No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | ||||
| Single-row type | 2 | B02B-BNISK-A-1 | 一 | 9.2 | 310 |
| 3 | B03B-BNISK-A-1 | 6.6 | 12.5 | 260 | |
| Dual-row type | 4 | B04B-BNISK-A-1W | — | 9.2 | 210 |
| 6 | B06B-BNISK-A-1W | 6.6 | 12.5 | 170 | |
| 8 | B08B-BNISK-A-1W | 9.9 | 15.8 | 140 | |
| 10 | B10B-BNISK-A-1W | 13.2 | 19.1 | 110 | |
| 12 | B12B-BNISK-A-1W | 16.5 | 22.4 | 80 | |
Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural

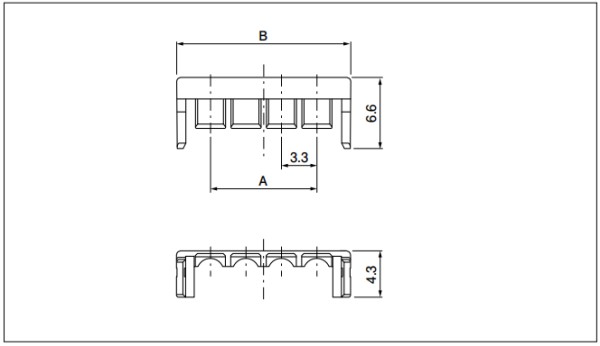

Retainer
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 2 | BNIS-02V | 一 | 9.6 | 2000 |
| 3 | BNIS-03V | 6.6 | 12.9 | 2000 |
| 4 | BNIS-04V | 9.9 | 16.2 | 2000 |
| 5 | BNIS-05V | 13.2 | 19.5 | 1000 |
| 6 | BNIS-06V | 16.5 | 22.8 | 1000 |

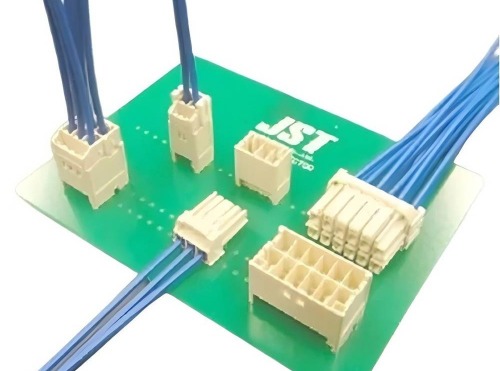

Support Custom Wiring Harness Assembly
- Connector: 2 - 12pin
- Wire gauge: 24 - 20AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
