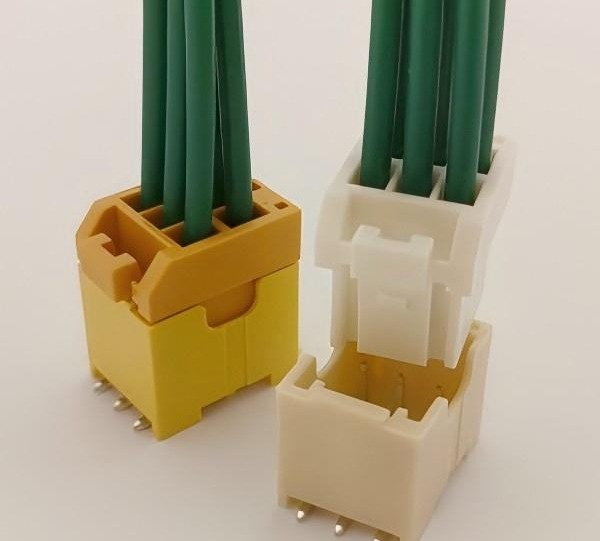

JST BSS Connector, Wire to Board, Custom Wire Assembly
JST BSS Connector, Wire to Board Type
The JST BSS Connector is a 3.0 mm pitch surface-mount technology (SMT) connector designed specifically for secondary power supply applications, offering a robust current carrying capacity of up to 7A using AWG #18 wire. This dual-row connector provides excellent functionality and ease of use, featuring a suction area on its top side to accommodate pick-and-place machine nozzles, eliminating the need for additional suction tape. For enhanced usability and versatility, the connector comes with two keying options (Type A and Type B), available in configurations of 4 or 6 circuits. Additionally, it incorporates an inertial lock mechanism to ensure secure and reliable connections in demanding environments.
Specifications
- Connector type: Board-to-Wire connectors／Crimp style and Mating style
- Connector pitch: 3.0mm
- Current rating: 7 A AC/DC (See the table below)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃（Including temperature rise in applying electrical current）
- Contact resistance: Initial value/10 mΩ max, After environmental tests/30 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: There shall be no breakdown or flashover while applying 1500 VAC for one minute.
- Applicable wire range: AWG #22 to AWG #18
Current unit: A
| No. of circuits | Wire size (AWG) | ||
| #18 | #20 | #22 | |
| 4 | 7 | 6 | 4 |
| 6 | 7 | 6 | 4 |
| 8 | 6 | 5 | 4 |
| 10 | 6 | 4 | 4 |
Note:
- Do not branch in parallel current which exceeds the rated current. If branched in parallel, current imbalance or other problems may occur. If it is absolutely necessary to branch such a large current in parallel, design the circuits without causing any imbalance and provide extra margin for each circuit.
- The rated current varies depending on the number of circuits in the housing and the wire to be crimped. The current rating for each housing and wire is as above.

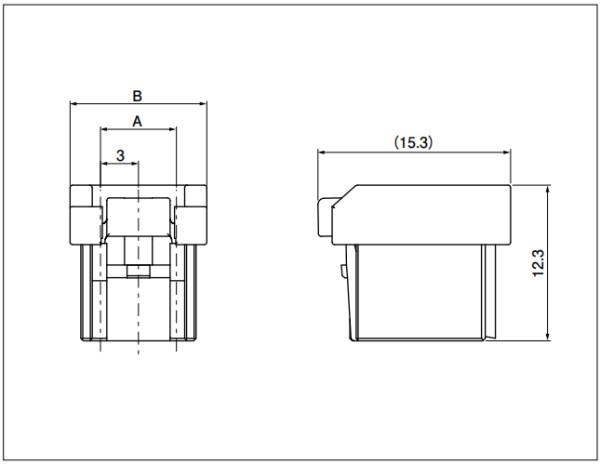

Housing
| No. of circuits | Keying | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | ||||
| 4 | A | BSSP-04V-S-A | 3 | 7.8 | 1000 |
| 4 | B | BSSP-04V-Y-B | 3 | 7.8 | 1000 |
| 6 | A | BSSP-06V-S-A | 6 | 10.8 | 700 |
| 6 | B | BSSP-06V-Y-B | 6 | 10.8 | 700 |
| 8 | A | BSSP-08V-S-A | 9 | 13.8 | 500 |
| 10 | A | BSSP-10V-S-A | 12 | 16.8 | 400 |
Material and Surface finish: Thermoplastic resin, natural, yellow
Terminal
Spcs:
- Model No.: SBSS-21T-M0.7
- Applicable Wire: 0.33 - 0.83mm² (22 - 18AWG)
- Insolations O.D. (mm): 1.5 - 2.1
- Q'ty/reel: 5500pcs
- Materials and Finish: Copper alloy, tin-plated

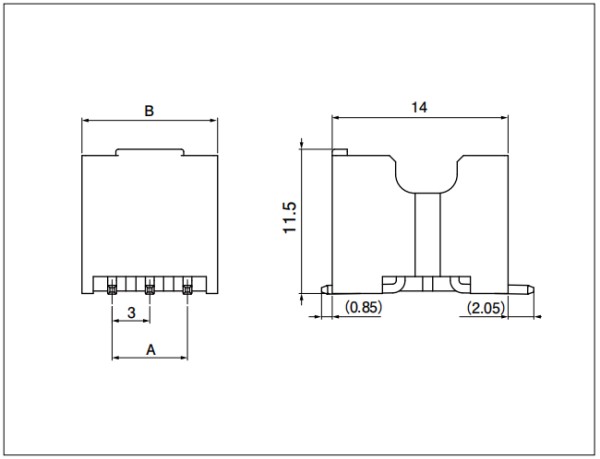

Header
| No. of circuits | Keying | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | ||||
| 4 | A | BM04B-BSSWS-A | 3 | 7.8 | 300 |
| 4 | B | BM04B-BSSLS-B | 3 | 7.8 | 300 |
| 6 | A | BM06B-BSSWS-A | 6 | 10.8 | 300 |
| 6 | B | BM06B-BSSLS-B | 6 | 10.8 | 300 |
| 8 | A | BM08B-BSSWS-A | 9 | 13.8 | 300 |
| 10 | A | BM10B-BSSWS-A | 12 | 16.8 | 300 |
Material and Surface finish
- Post：Copper alloy, copper-undercoated, tin-plated
- Header：Heat resisting resin, natural, lemon yellow
Support Custom Wiring Harness Assembly
- Connector: 4 -10pin
- Wire gauge: 18 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
