JST CZ Series Connector, Custom Wire Assembly Manufacturer

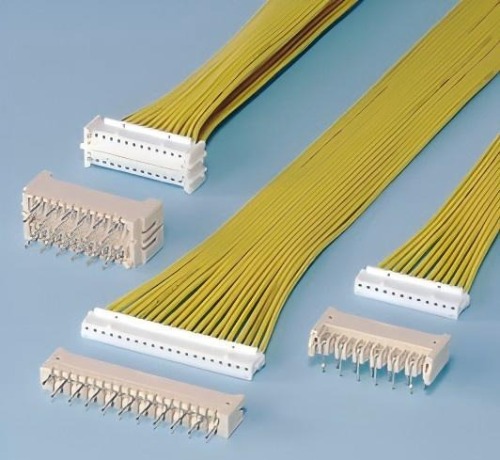

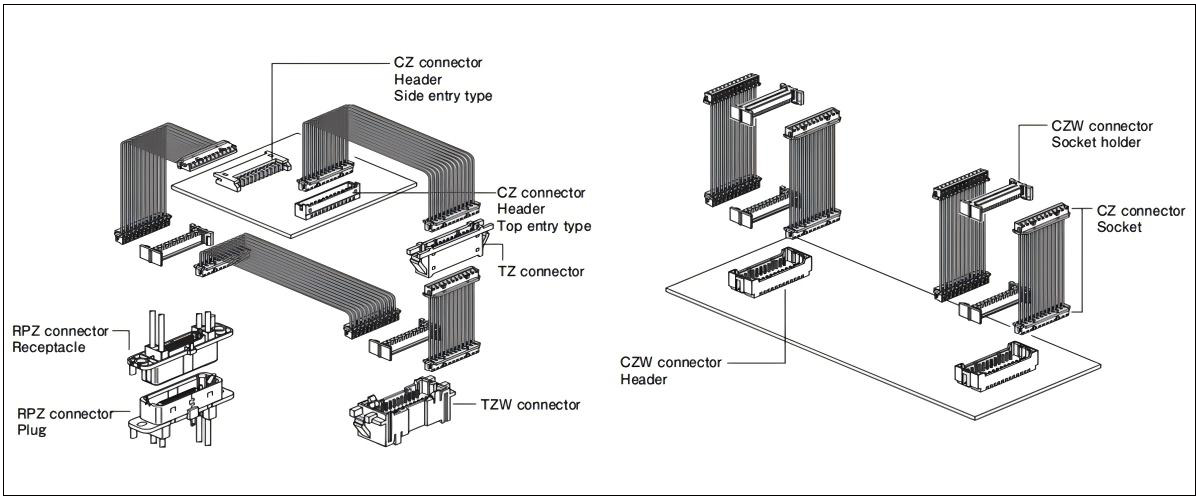

JST CZ Connector Family: CZ・CZH・CZW・CZHW・TZ・TZW
The JST CZ Connector is a versatile interconnect solution designed with a 1.5mm pitch, offering enhanced flexibility and efficiency for complex wiring and PCB mounting. It features a holder that enables the assembly of dual-row socket connectors, along with headers suitable for dual-row PCB connections. Additionally, it supports both single and dual-row wire-to-wire configurations, making it ideal for streamlining the production of intricate wire harnesses. This design facilitates efficient space utilization and high-density mounting on PCBs, ultimately improving manufacturing rationalization. The JST CZ Connector is a reliable choice for applications requiring compact, organized, and high-performance connections.
CZ Series Connector Featues
- CZ connector
- Distortion resistant construction
- Compact and low profile CZW connector
- CZW connector
- Low insertion force
- Locking structure (One-sided lock prevention structure)
- CZW connector socket is an assembly product that holds two CZ connector sockets by a socket folder.
- CZH/CZHW connectors
- Housing lance
- Interchangeability
- The crimp type CZH connector housing and CZHW connector are compatible with the insulation displacement type CZ/CZW connector sockets respectively.
- The CZHW connector is an assembly product which the CZ connector socket of the CZW connector socket is replaced with the CZH connector housing.
- TZ/TZW connectors
- The TZ connector is applicable to single-row connection, while the TZW connector is for dual-row connection.
- Applicable to wide range of panel thickness
- The design of the panel lock part does not allow the wires to be caught there before mounting on the panel.
CZ Connector Specifications
| CZ/CZW connectors | CZH/CZHW connectors | TZ/TZW connectors | |
| Current rating | 2A AC/DC (AWG#26) | ||
| Voltage rating | 100V AC/DC | ||
| Temperature rise | -25℃ to +85℃(including temperature rise) | ||
| Contact resistance | Initial value/10 mΩ max. After environmental test/20 mΩ max |
Initial value/20mΩ max. Afterenvironmental tests/40 mΩ max. |
|
| Insulation resistance | 500 MΩ min. | ||
| Withstanding voltage | 500 VAC/minute | ||
| Applicable wire | UL10272(Contact Hooha for other UL style wires.) AWG#28, #26. Conductor/7-strands, tincoated annealed Copper insulation 0.D./0.7 to 0.83 mm | AWG#28 to#26 | - |
| Applicable PC board thickness | 1.6mm | - | |
| Applicable panel thickness | 一 | 0.5 to 2 mm | |

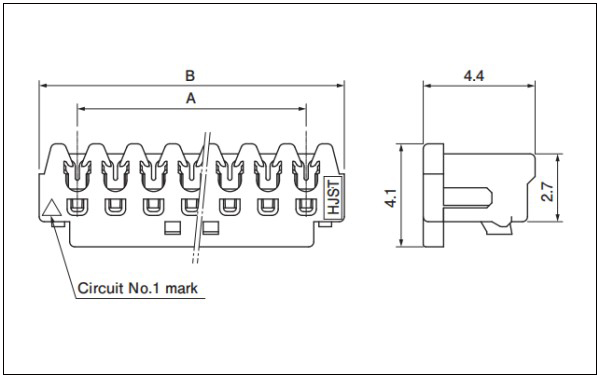

CZ connector Socket
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | ||
| Gray | Yellow | A | B | ||
| 2 | 02CZ-6H | 02CZ-6Y | 1.5 | 4.5 | 2000 |
| 3 | 03CZ-6H | 03CZ-6Y | 3.0 | 6.0 | 2000 |
| 4 | 04CZ-6H | 04CZ-6Y | 4.5 | 7.5 | 2000 |
| 5 | 05CZ-6H | 05CZ-6Y | 6.0 | 9.0 | 2000 |
| 6 | 06CZ-6H | 06CZ-6Y | 7.5 | 10.5 | 2000 |
| 7 | 07CZ-6H | 07CZ-6Y | 9.0 | 12.0 | 2000 |
| 8 | 08CZ-6H | 08CZ-6Y | 10.5 | 13.5 | 2000 |
| 9 | 09CZ-6H | 09CZ-6Y | 12.0 | 15.0 | 1000 |
| 10 | 10CZ-6H | 10CZ-6Y | 13.5 | 16.5 | 1000 |
| 11 | 11CZ-6H | 11CZ-6Y | 15.0 | 18.0 | 1000 |
| 12 | 12CZ-6H | 12CZ-6Y | 16.5 | 19.5 | 1000 |
| 13 | 13CZ-6H | 13CZ-6Y | 18.0 | 21.0 | 1000 |
| 14 | 14CZ-6H | 14CZ-6Y | 19.5 | 22.5 | 1000 |
| 15 | 15CZ-6H | 15CZ-6Y | 21.0 | 24.0 | 1000 |
| 16 | 16CZ-6H | 16CZ-6Y | 22.5 | 25.5 | 1000 |
| 17 | 17CZ-6H | 17CZ-6Y | 24.0 | 27.0 | 1000 |
| 18 | 18CZ-6H | 18CZ-6Y | 25.5 | 28.5 | 1000 |
| 19 | 19CZ-6H | 19CZ-6Y | 27.0 | 30.0 | 1000 |
| 20 | 20CZ-6H | 20CZ-6Y | 28.5 | 31.5 | 1000 |
Material and Finish
- Contact: Phosphor bronze, tin-plated
- Housing: Glass-filled PA 66, UL94V-0
CZH connector Contact
Notes:
- Model Number: SCZH-002T-P0.5
- Applicable Wire Gauge: 0.08 - 0.13mm² (28 - 26AWG)
- Insulation O.D. (mm): 0.8 - 1.1
- Qty/Reel: 13000pcs
- Material and Finish: Phosphor bronze, tin-plated
- RoHS2 compliance

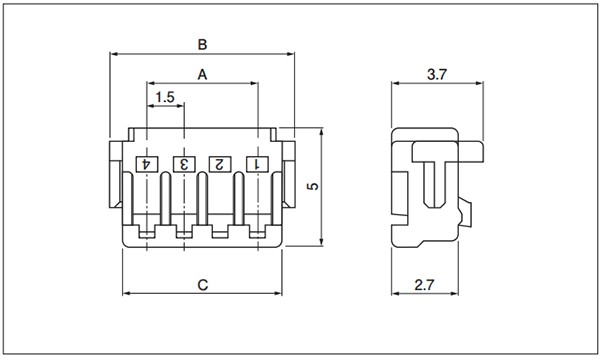

CZH connector Housing
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | ||
| A | B | C | |||
| 2 | CZHR-02V-S | 1.5 | 4.5 | 3.5 | 1000 |
| 3 | CZHR-03V-S | 3.0 | 6.0 | 5.0 | 1000 |
| 4 | CZHR-04V-S | 4.5 | 7.5 | 6.5 | 1000 |
| 5 | CZHR-05V-S | 6.0 | 9.0 | 8.0 | 1000 |
| 6 | CZHR-06V-S | 7.5 | 10.5 | 9.5 | 1000 |
| 7 | CZHR-07V-S | 9.0 | 12.0 | 11.0 | 1000 |
| 8 | CZHR-08V-S | 10.5 | 13.5 | 12.5 | 1000 |
| 9 | CZHR-09V-S | 12.0 | 15.0 | 14.0 | 1000 |
| 10 | CZHR-10V-S | 13.5 | 16.5 | 15.5 | 1000 |
| 11 | CZHR-11V-S | 15.0 | 18.0 | 17.0 | 1000 |
| 12 | CZHR-12V-S | 16.5 | 19.5 | 18.5 | 1000 |
| 13 | CZHR-13V-S | 18.0 | 21.0 | 20.0 | 1000 |
| 14 | CZHR-14V-S | 19.5 | 22.5 | 21.5 | 1000 |
| 15 | CZHR-15V-S | 21.0 | 24.0 | 23.0 | 1000 |
| 16 | CZHR-16V-S | 22.5 | 25.5 | 24.5 | 1000 |
| 17 | CZHR-17V-S | 24.0 | 27.0 | 26.0 | 1000 |
| 18 | CZHR-18V-S | 25.5 | 28.5 | 27.5 | 1000 |
| 19 | CZHR-19V-S | 27.0 | 30.0 | 29.0 | 1000 |
| 20 | CZHR-20V-S | 28.5 | 31.5 | 30.5 | 1000 |
Material and Finish: Thermoplastic resin, UL94V-0, natural (white)

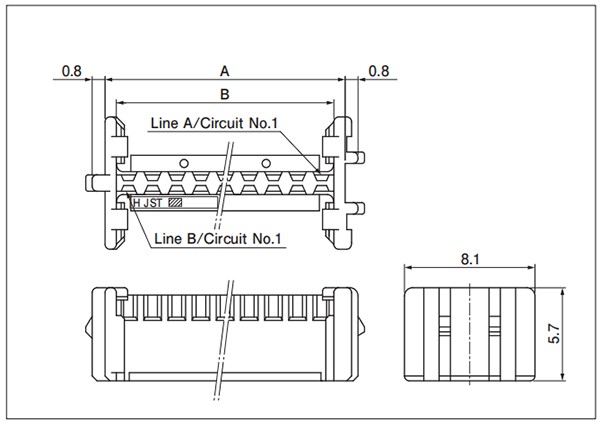

CZW connector Socket holder
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||
| 16 | CZWH-16-S | 14.9 | 13.5 | 1000 |
| 18 | CZWH-18-S | 16.4 | 15.0 | 1000 |
| 20 | CZWH-20-S | 17.9 | 16.5 | 1000 |
| 22 | CZWH-22-S | 19.4 | 18.0 | 1000 |
| 24 | CZWH-24-S | 20.9 | 19.5 | 1000 |
| 26 | CZWH-26-S | 22.4 | 21.0 | 1000 |
| 28 | CZWH-28-S | 23.9 | 22.5 | 1000 |
| 30 | CZWH-30-S | 25.4 | 24.0 | 1000 |
| 32 | CZWH-32-S | 26.9 | 25.5 | 1000 |
| 34 | CZWH-34-S | 28.4 | 27.0 | 1000 |
| 36 | CZWH-36-S | 29.9 | 28.5 | 1000 |
| 38 | CZWH-38-S | 31.4 | 30.0 | 1000 |
| 40 | CZWH-40-S | 32.9 | 31.5 | 1000 |
Material and Finish: Thermoplastic resin, UL94V-0, natural (white)

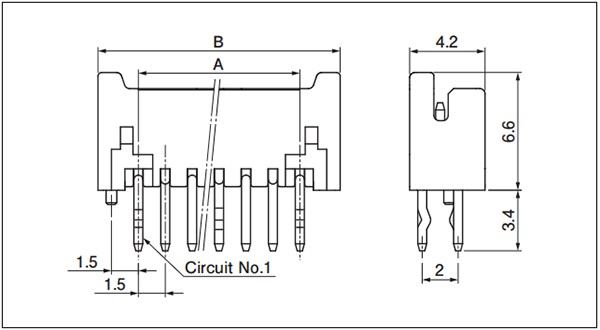

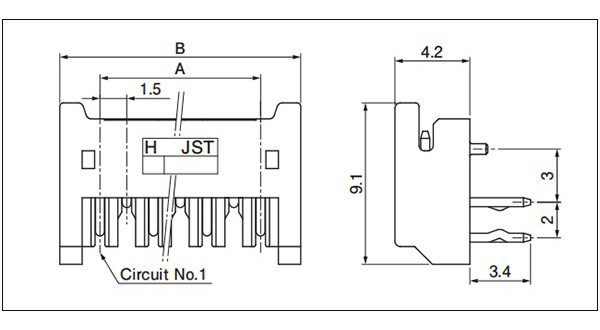

CZ connector Through-hole type Header
Top entry type
Side entry type
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | |||
| Top entry type | Side entry type | A | B | Top entry type | Side entry type | |
| 2 | B02B-CZHK-B-1 | S02B-CZHK-B-1 | 1.5 | 6.0 | 2072 | 1480 |
| 3 | B03B-CZHK-B-1 | S03B-CZHK-B-1 | 3.0 | 7.5 | 1624 | 1160 |
| 4 | B04B-CZHK-B-1 | S04B-CZHK-B-1 | 4.5 | 9.0 | 1344 | 960 |
| 5 | B05B-CZHK-B-1 | S05B-CZHK-B-1 | 6.0 | 10.5 | 1176 | 840 |
| 6 | B06B-CZHK-B-1 | S06B-CZHK-B-1 | 7.5 | 12.0 | 1008 | 720 |
| 7 | B07B-CZHK-B-1 | S⁰7B-CZHK-B-1 | 9.0 | 13.5 | 896 | 640 |
| 8 | B08B-CZHK-B-1 | S08B-CZHK-B-1 | 10.5 | 15.0 | 784 | 560 |
| 9 | B09B-CZHK-B-1 | S09B-CZHK-B-1 | 12.0 | 16.5 | 728 | 520 |
| 10 | B10B-CZHK-B-1 | S10B-CZHK-B-1 | 13.5 | 18.0 | 672 | 480 |
| 11 | B11B-CZHK-B-1 | S11B-CZHK-B-1 | 15.0 | 19.5 | 616 | 440 |
| 12 | B12B-CZHK-B-1 | S12B-CZHK-B-1 | 16.5 | 21.0 | 560 | 400 |
| 13 | B13B-CZHK-B-1 | S13B-CZHK-B-1 | 18.0 | 22.5 | 504 | 360 |
| 14 | B14B-CZHK-B-1 | S14B-CZHK-B-1 | 19.5 | 24.0 | 504 | 360 |
| 15 | B15B-CZHK-B-1 | S15B-CZHK-B-1 | 21.0 | 25.5 | 448 | 320 |
| 16 | B16B-CZHK-B-1 | S16B-CZHK-B-1 | 22.5 | 27.0 | 448 | 320 |
| 17 | B17B-CZHK-B-1 | S17B-CZHK-B-1 | 24.0 | 28.5 | 392 | 280 |
| 18 | B18B-CZHK-B-1 | S18B-CZHK-B-1 | 25.5 | 30.0 | 392 | 280 |
| 19 | B19B-CZHK-B-1 | S19B-CZHK-B-1 | 27.0 | 31.5 | 392 | 280 |
| 20 | B20B-CZHK-B-1 | S20B-CZHK-B-1 | 28.5 | 33.0 | 336 | 240 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated
- Wafer: Glass-filled PA 66, UL94V-0, natural (grayish color)
- RoHS2 compliance
- This product displays (LF)(SN) on a label.
- Top entry type (Without boss)：B（ ）B-CZHK-B
- Side entry type (Without boss)：S（ ）B-CZHK-B

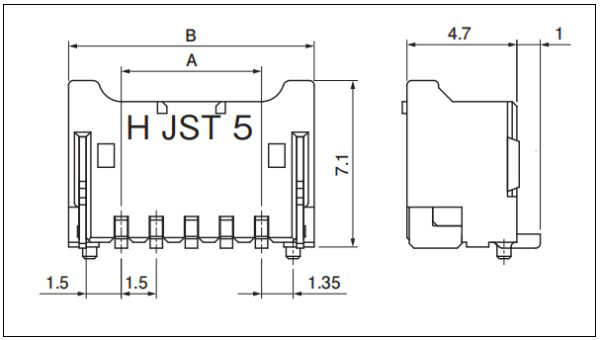

CZ connector SMT type Header
Tope entry type
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | ||
| With boss | Without boss | A | B | ||
| 2 | BM02B-CZSS-1-TF | BM02B-CZSS-TF | 1.5 | 6.0 | 800 |
| 4 | BM04B-CZSS-1-TF | BM04B-CZSS-TF | 4.5 | 9.0 | 800 |
| 5 | BM05B-CZSS-1-TF | BM05B-CZSS-TF | 6.0 | 10.5 | 800 |
| 6 | BM06B-CZSS-1-TF | BM06B-CZSS-TF | 7.5 | 12.0 | 800 |
| 8 | BM08B-CZSS-1-TF | BM08B-CZSS-TF | 10.5 | 15.0 | 800 |
| 10 | BM10B-CZSS-1-TF | BM10B-CZSS-TF | 13.5 | 18.0 | 800 |
| 13 | BM13B-CZSS-1-TF | BM13B-CZSS-TF | 18.0 | 22.5 | 800 |
| 14 | BM14B-CZSS-1-TF | BM14B-CZSS-TF | 19.5 | 24.0 | 800 |
| 15 | BM15B-CZSS-1-TF | BM15B-CZSS-TF | 21.0 | 25.5 | 800 |
| 16 | BM16B-CZSS-1-TF | BM16B-CZSS-TF | 22.5 | 27.0 | 800 |
| 17 | BM17B-CZSS-1-TF | BM17B-CZSS-TF | 24.0 | 28.5 | 800 |
| 20 | BM20B-CZSS-1-TF | BM20B-CZSS-TF | 28.5 | 33.0 | 800 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated
- Wafer: PA, UL94V-0, natural (ivory)
- Solder tab: Copper alloy, copper-undercoated, tin-plated

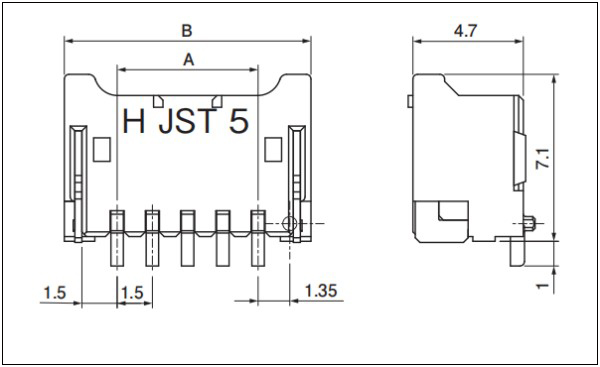

Side entry type
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | ||
| With boss | Without boss | A | B | ||
| 2 | SM02B-CZSS-1-TB | SM02B-CZSS-TB | 1.5 | 6.0 | 1250 |
| 4 | SM04B-CZSS-1-TB | SM04B-CZSS-TB | 4.5 | 9.0 | 1250 |
| 5 | SM05B-CZSS-1-TB | SM05B-CZSS-TB | 6.0 | 10.5 | 1250 |
| 6 | SM06B-CZSS-1-TB | SM06B-CZSS-TB | 7.5 | 12.0 | 1250 |
| 8 | SM08B-CZSS-1-TB | SM08B-CZSS-TB | 10.5 | 15.0 | 1250 |
| 10 | SM10B-CZSS-1-TB | SM10B-CZSS-TB | 13.5 | 18.0 | 1250 |
| 13 | SM13B-CZSS-1-TB | SM13B-CZSS-TB | 18.0 | 22.5 | 1250 |
| 16 | SM16B-CZSS-1-TB | SM16B-CZSS-TB | 22.5 | 27.0 | 1250 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated
- Wafer: PA, UL94V-0, natural (ivory)
- Solder tab: Copper alloy, copper-undercoated, tin-plated

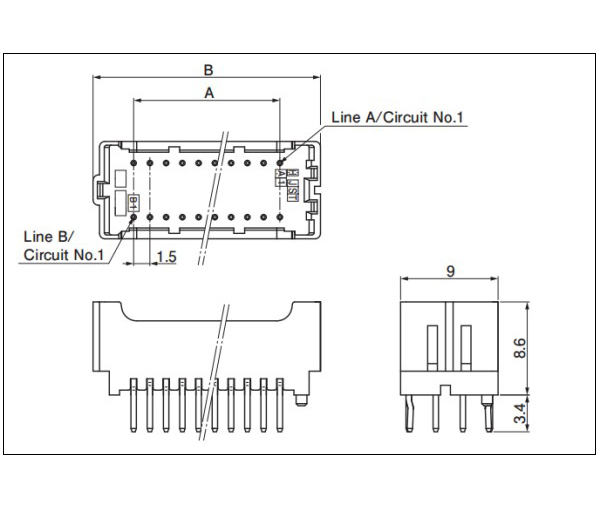

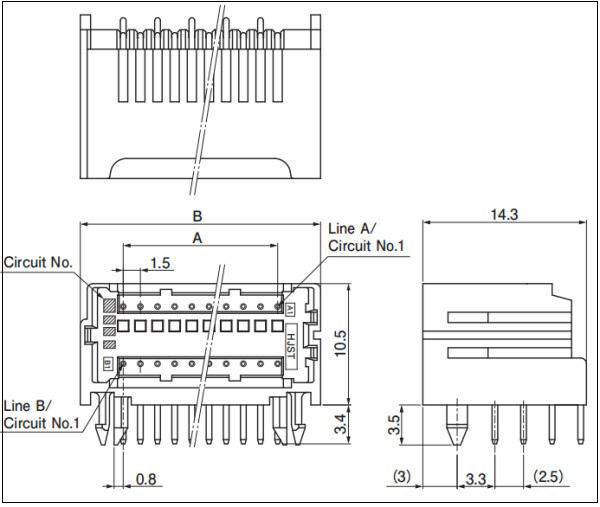

CZW connector Through-hole type Header
Top entry type
Side entry type
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |||
| Top entry type | Side entry type | A | B | Top entry type | Side entry type | |
| 20 | B20B-CZWHK-V-B-1 | S20B-CZWHS-B-1 | 13.5 | 21.0 | 350 | 280 |
| 22 | B22B-CZWHK-V-B-1 | - | 15.0 | 22.5 | 315 | - |
| 24 | B24B-CZWHK-V-B-1 | - | 16.5 | 24.0 | 315 | - |
| 26 | B26B-CZWHK-V-B-1 | S26B-CZWHS-B-1 | 18.0 | 25.5 | 280 | 224 |
| 28 | B28B-CZWHK-V-B-1 | - | 19.5 | 27.0 | 280 | - |
| 30 | B30B-CZWHK-V-B-1 | - | 21.0 | 28.5 | 245 | - |
| 32 | B32B-CZWHK-V-B-1 | - | 22.5 | 30.0 | 245 | - |
| 34 | B34B-CZWHK-V-B-1 | - | 24.0 | 31.5 | 245 | - |
| 36 | B36B-CZWHK-V-B-1 | - | 25.5 | 33.0 | 210 | - |
| 38 | B38B-CZWHK-V-B-1 | - | 27.0 | 34.5 | 210 | - |
| 40 | B40B-CZWHK-V-B-1 | S40B-CZWHS-B-1 | 28.5 | 36.0 | 210 | 168 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated
- Wafer: Glass-filled PA 66, UL94V-0, natural (grayish color)

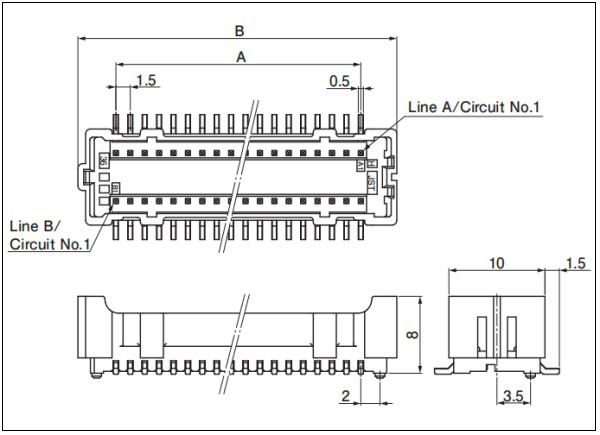

CZW connector SMT type Header
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | |||
| 36 | BM36B-CZWSS-1-TF | 25.5 | 33.0 | 300 |
| 40 | BM40B-CZWSS-1-TF | 28.5 | 36.0 | 300 |
Material and Finish
- Press pin: Copper alloy, copper-undercoated, tin-plated
- Wafer: PA, UL94V-0, natural (ivory)

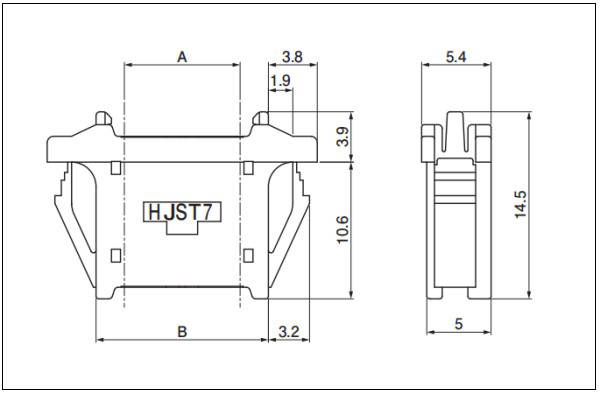

TZ connector (Unit for wire-to-wire connection)
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |||
| A | B | C | D | |||
| 2 | BU02P-TZ-S | 1.5 | 5.9 | 6.3 | 9.9 | 500 |
| 3 | BU03P-TZ-S | 3.0 | 7.4 | 7.8 | 11.4 | 500 |
| 4 | BU04P-TZ-S | 4.5 | 8.9 | 9.3 | 12.9 | 500 |
| 5 | BU05P-TZ-S | 6.0 | 10.4 | 10.8 | 14.4 | 500 |
| 6 | BU06P-TZ-S | 7.5 | 11.9 | 12.3 | 15.9 | 250 |
| 7 | BU07P-TZ-S | 9.0 | 13.4 | 13.8 | 17.4 | 250 |
| 8 | BU08P-TZ-S | 10.5 | 14.9 | 15.3 | 18.9 | 250 |
| 9 | BU09P-TZ-S | 12.0 | 16.4 | 16.8 | 20.4 | 250 |
| 10 | BU10P-TZ-S | 13.5 | 17.9 | 18.3 | 21.9 | 250 |
| 11 | BU11P-TZ-S | 15.0 | 19.4 | 19.8 | 23.4 | 250 |
| 12 | BU12P-TZ-S | 16.5 | 20.9 | 21.3 | 24.9 | 250 |
| 13 | BU13P-TZ-S | 18.0 | 22.4 | 22.8 | 26.4 | 250 |
| 14 | BU14P-TZ-S | 19.5 | 23.9 | 24.3 | 27.9 | 250 |
| 15 | BU15P-TZ-S | 21.0 | 25.4 | 25.8 | 29.4 | 250 |
| 16 | BU16P-TZ-S | 22.5 | 26.9 | 27.3 | 30.9 | 250 |
| 17 | BU17P-TZ-S | 24.0 | 28.4 | 28.8 | 32.4 | 250 |
| 18 | BU18P-TZ-S | 25.5 | 29.9 | 30.3 | 33.9 | 150 |
| 19 | BU19P-TZ-S | 27.0 | 31.4 | 31.8 | 35.4 | 150 |
| 20 | BU20P-TZ-S | 28.5 | 32.9 | 33.3 | 36.9 | 100 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated
- Housing: PA 66, UL94V-0, natural (white)
TZW connector (Dual-row unit for wire-to-wire connection)
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |||
| A | B | C | D | |||
| 16 | BU16P-TZW-S | 10.5 | 19.0 | 19.4 | 23.0 | 160 |
| 18 | BU18P-TZW-S | 12.0 | 20.5 | 20.9 | 24.5 | 140 |
| 20 | BU20P-TZW-S | 13.5 | 22.0 | 22.4 | 26.0 | 140 |
| 22 | BU22P-TZW-S | 15.0 | 23.5 | 23.9 | 27.5 | 140 |
| 24 | BU24P-TZW-S | 16.5 | 25.0 | 25.4 | 29.0 | 120 |
| 26 | BU26P-TZW-S | 18.0 | 26.5 | 26.9 | 30.5 | 120 |
| 28 | BU28P-TZW-S | 19.5 | 28.0 | 28.4 | 32.0 | 120 |
| 30 | BU30P-TZW-S | 21.0 | 29.5 | 29.9 | 33.5 | 100 |
| 32 | BU32P-TZW-S | 22.5 | 31.0 | 31.4 | 35.0 | 100 |
| 34 | BU34P-TZW-S | 24.0 | 32.5 | 32.9 | 36.5 | 100 |
| 36 | BU36P-TZW-S | 25.5 | 34.0 | 34.4 | 38.0 | 100 |
| 38 | BU38P-TZW-S | 27.0 | 35.5 | 35.9 | 39.5 | 100 |
| 40 | BU40P-TZW-S | 28.5 | 37.0 | 37.4 | 41.0 | 80 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated
- Housing: PA 66, UL94V-0, natural (white)
Support Custom Wiring Harness Assembly
- Connector: 2 - 20pin
- Wire gauge: 26 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
