JST DV Connector, Wire to Board, Custom Wire Assembly
JST DV Connector, Wire to Board Type
The JST DV Connector is uniquely designed with a standout feature where one position has a different pitch than the others. This built-in polarization ensures accurate alignment and prevents misinsertion, making it ideal for reliable electrical connections. Its secure mounting is achieved through a housing lock feature that firmly holds the connector to the header, maintaining stability even in environments with high vibration. Twin-beam contacts enhance the reliability of connections by providing dual wiping areas for consistent electrical performance. Additionally, housing lances on the resilient structure offer a secure locking mechanism, ensuring firm contact retention and easy insertion during assembly.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 5.0mm
- Current rating: 5A AC, DC (AWG #20)
- Voltage rating: 250V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10mΩ max, After environmental testing/20m Ω max.
- Insulation resistance: 1,000M Ω min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #24 to #20, 0.22 to 0.5mm²
- Applicable PC board thickness: 1.6mm

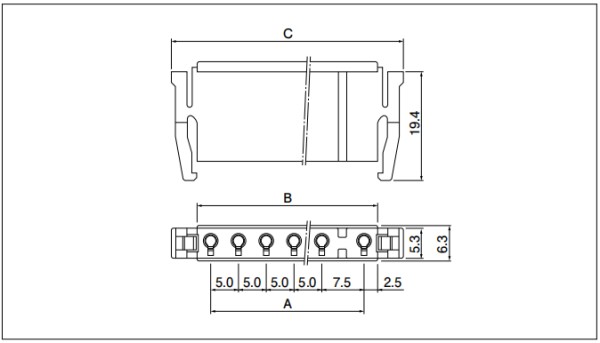

Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | ||
| A | B | C | |||
| 2 | DVR-02V-S | 7.5 | 12.5 | 21.7 | 500 |
| 3 | DVR-03V-S | 12.5 | 17.5 | 26.7 | 500 |
| 4 | DVR-04V-S | 17.5 | 22.5 | 31.7 | 500 |
| 5 | DVR-05V-S | 22.5 | 27.5 | 36.7 | 500 |
| 6 | DVR-06V-S | 27.5 | 32.5 | 41.7 | 500 |
Material: PA 66, UL94V-0, natural (white)

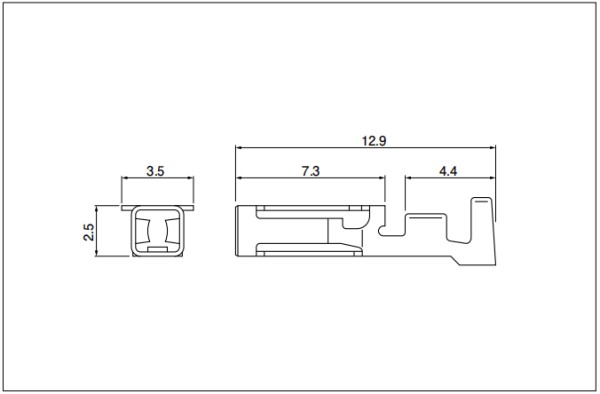

Terminal
Spcs:
- Model No.: SDY-01T-P1.6ASV
- Applicable Wire: 0.22 - 0.5mm² (24 - 20AWG)
- Insolations O.D. (mm): 1.5 - 2.7
- Q'ty/reel: 6000pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS compliance
Header

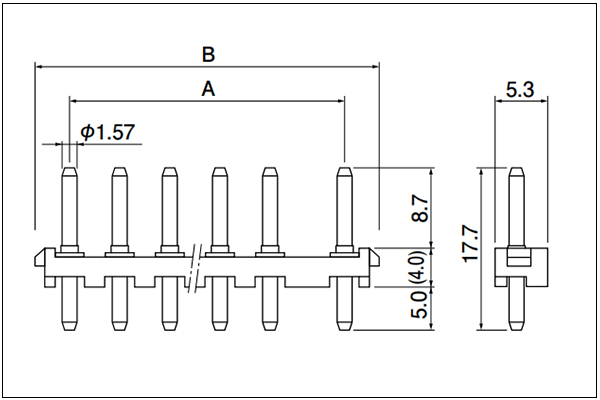

Top entry type

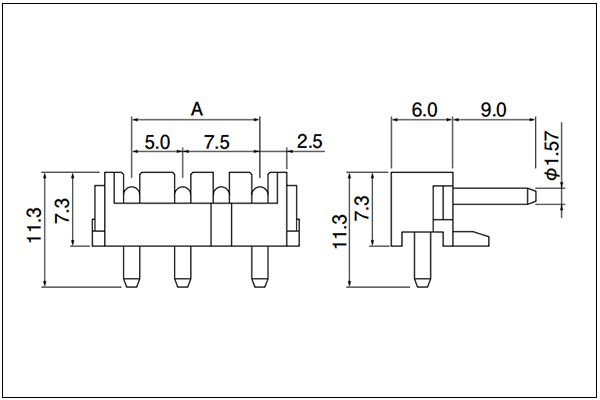

Side entry type
| No. of circuits | Model No. | Dimensions (mm) | Q'ty /box | |||
| Top entry type | Side entry type | A | B | Top entry type | Side entry type | |
| 2 | B02B-DVS-L | S02B-DVS-L | 7.5 | 12.5 | 500 | 250 |
| 3 | B03B-DVS-L | S03B-DVS-L | 12.5 | 17.5 | 500 | 250 |
| 4 | B04B-DVS-L | 一 | 17.5 | 22.5 | 250 | 一 |
| 5 | B05B-DVS-L | — | 22.5 | 27.5 | 250 | 一 |
| 6 | B06B-DVS-L | — | 27.5 | 32.5 | 200 | 一 |
Material and Finish
- Pin: Brass, nickel-undercoated, tin/copper alloy-plated
- Wafer: Glass-filled PBT, UL94V-0, natural (white)

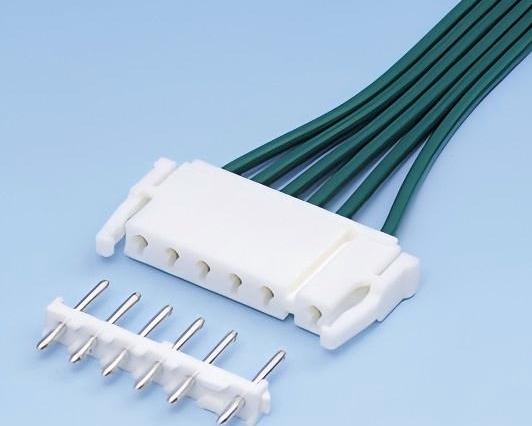

Support Custom Wiring Harness Assembly
- Connector: 2 - 6pin
- Wire gauge: 20 - 24AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
