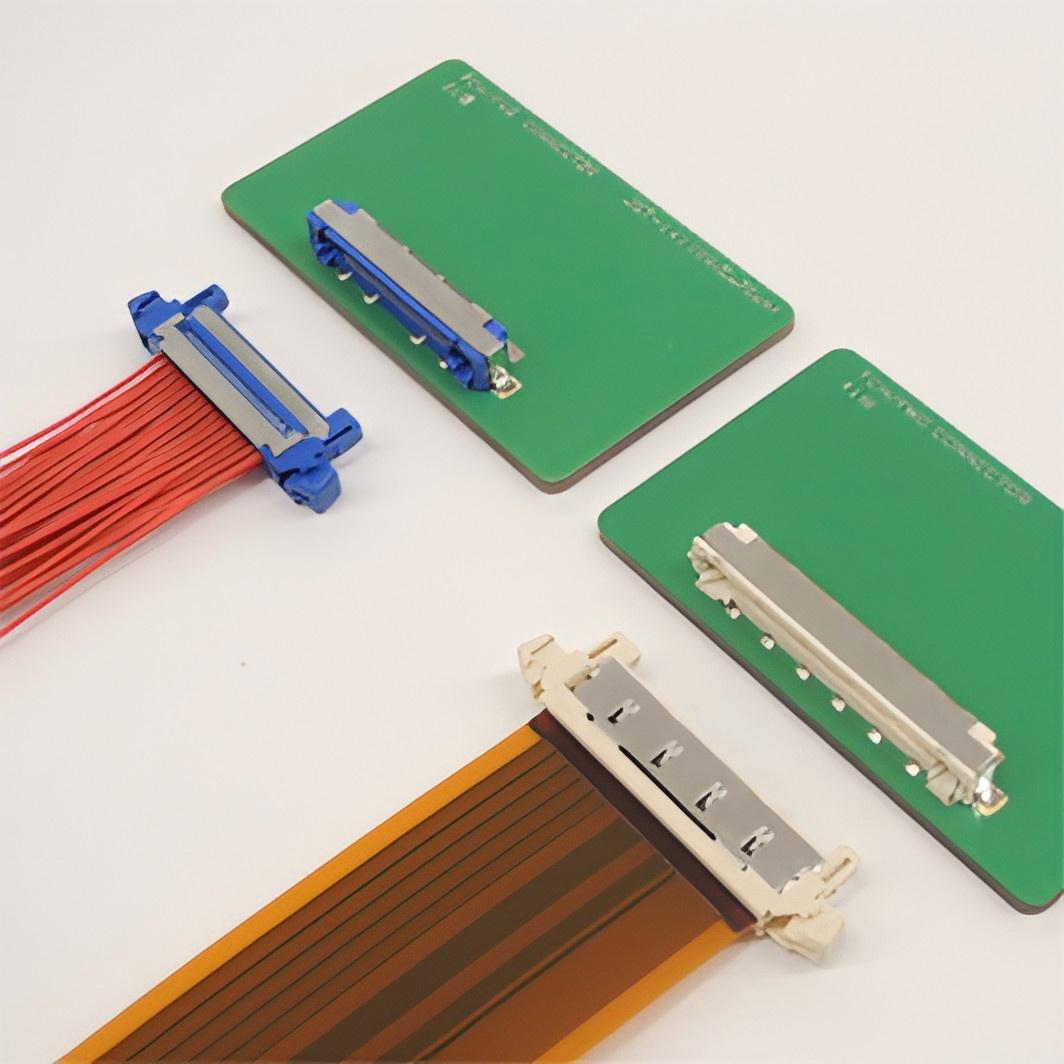

JST FWG Connector
The JST FWG Connector is a crimp-style, disconnectable solution designed with a 0.5mm pitch for high-speed data transmission, offering remarkable versatility across discrete wires, flexible printed circuits (FPC), and flat flexible cables (FFC). Engineered for applications requiring multiple connectors in close proximity, it incorporates advanced mis-mating prevention features with four unique keying patterns and color-coded housings, ensuring reliable and accurate connections. Its robust structure supports secure routing for wire, FPC, or FFC applications, while a low insertion force enhances usability during assembly. The space-saving design makes it ideal for compact electronic systems, and a secure locking mechanism guarantees stable performance under demanding conditions. Optimized for high-speed transmission, the FWG Connector delivers a seamless combination of functionality, durability, and reliability for diverse applications.
FWG Connector Specifications
- Connector Type: Wire to Board
- Connector Pitch: 0.5mm
- Current rating: 0.3 A AC, DC
- Voltage rating: 50 V AC, DC
- Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 80 mΩ max, After environmental tests/ 160 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 200 VAC/minute
- Applicable wire: Conductor size/ AWG #30, Insulation O.D./ 0.47 to 0.71 mm
- Applicable FPC/FFC: Conductor pitch/ 0.5 mm, Conductor width/ 0.32 mm, Mating part thickness/ 0.3 ± 0.03 mm

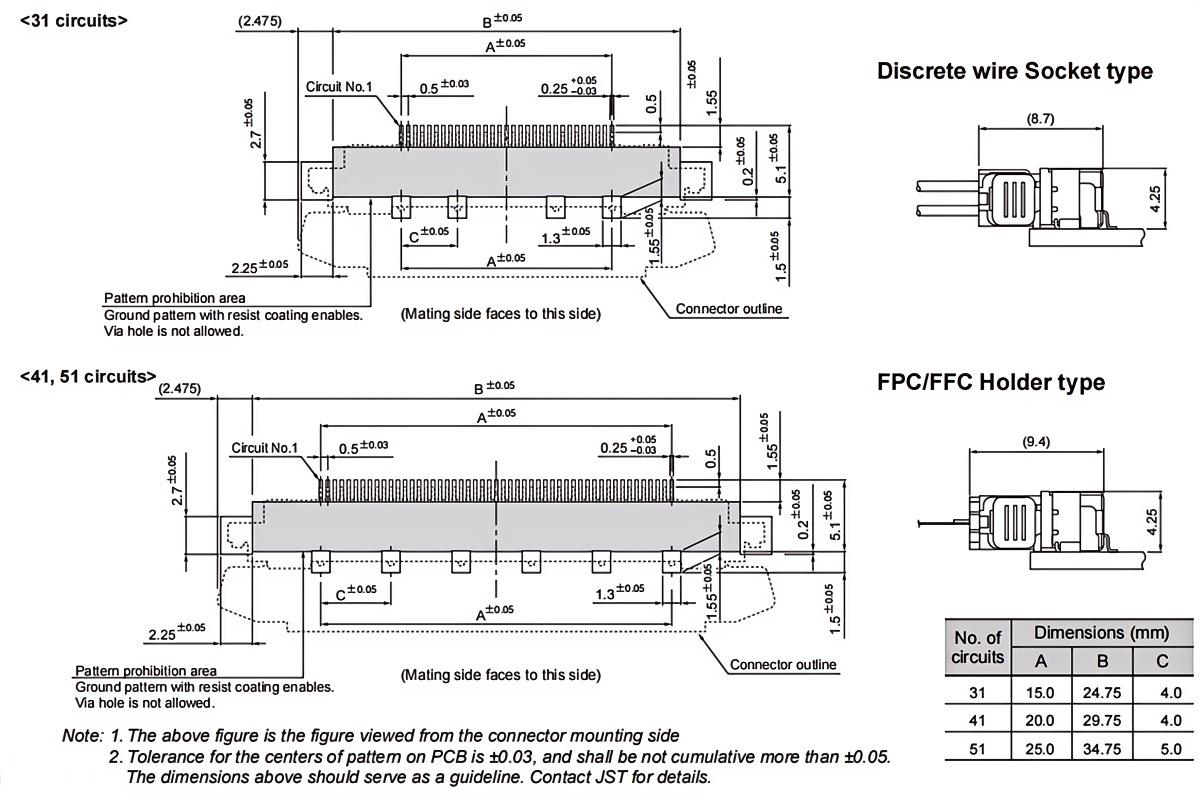

PC board layout and Assembly layout
FWG Contact size and P/N

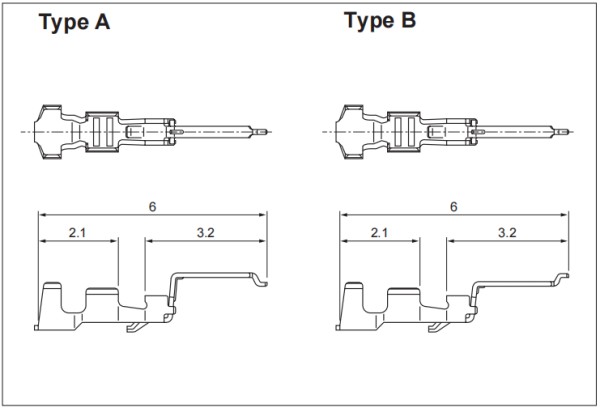

Contact Size

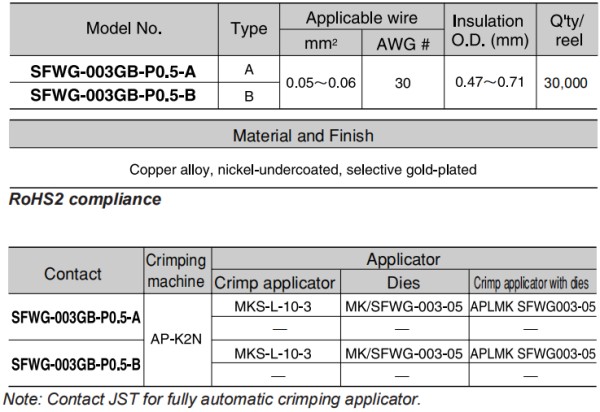

Contact Part Number
FWG Holder Housing Size and P/N

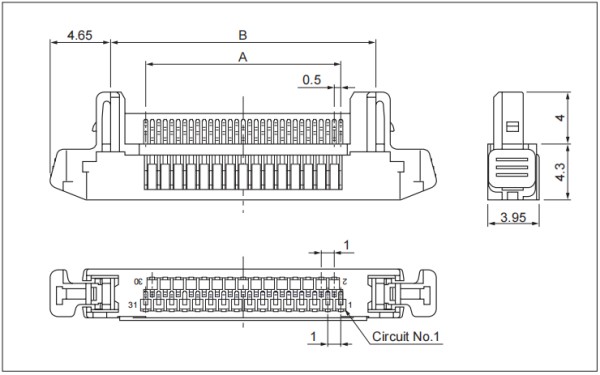

Holder Housing Size

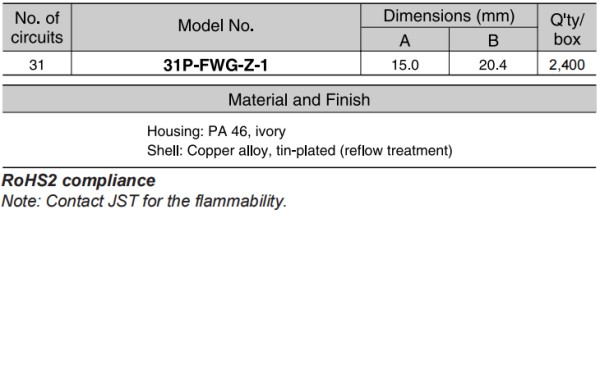

Holder Housing Part Number
FWG Header Housing and P/N

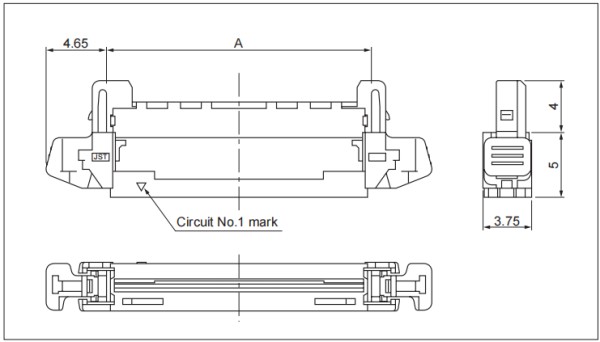

Header housing Size

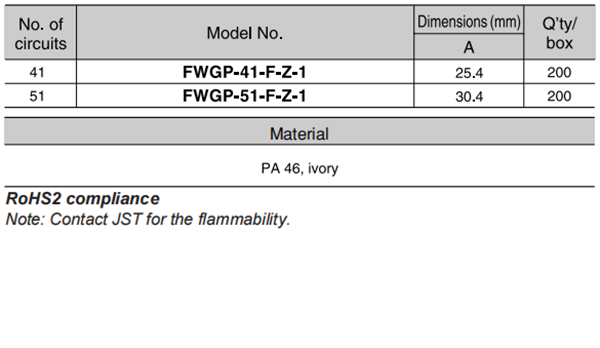

Header housing PN
FWG Holder Shell

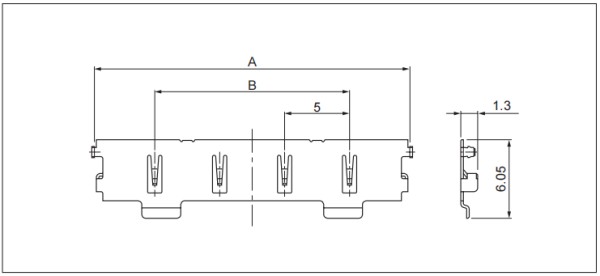

Holder shell size

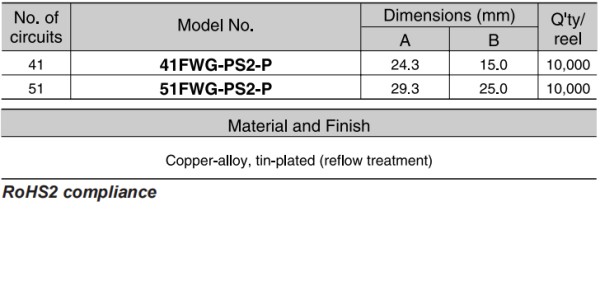

Holder shell PN

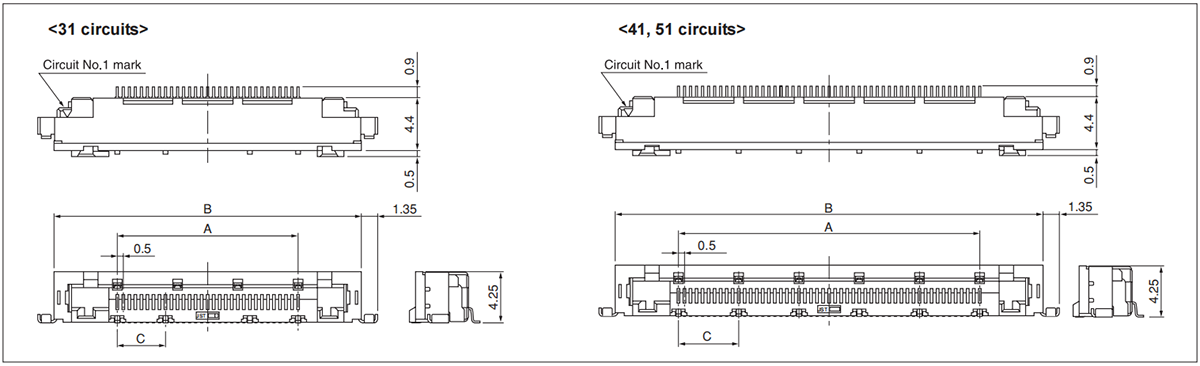

FWG Header Size and P/N
| No.of circuits | Model No. | Dimensions (mm) | Q'ty/ reel |
||
| A | B | C | |||
| 31 | 31FWG-RSM1-GAN-Z-1-TB | 15.0 | 25.5 | 4.0 | 1400 |
| 41 | 41FWG-RSM1-GAN-Z-1-TB | 20.0 | 30.5 | 4.0 | 1400 |
| 51 | 51FWG-RSM1-GAN-Z-1-TB | 25.0 | 35.5 | 5.0 | 1400 |
Notes:
- Material and Finish
- Base housing: Heat resisting resin, UL94V-0, ivory
- Signal contact: Copper alloy, nickel-undercoated, selective gold-plated
- Ground contact: Copper alloy, tin-plated (reflow treatment)
- RoHS2 compliance
- The product listed above is supplied on embossed-tape.
Support Custom Wiring Harness Assembly
- Connector: 31, 41, 51pin
- Wire gauge: 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
