JST GERD Connector

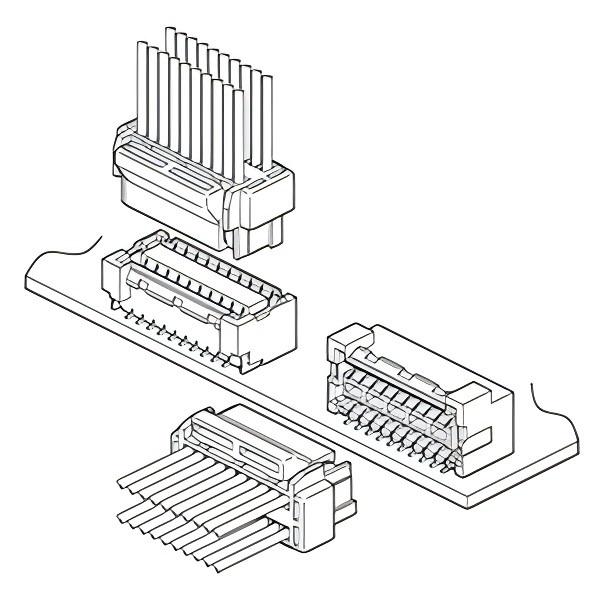

The JST GERD connector is a 1.25 mm pitch dual-row type connector meticulously engineered to support high-density PCB designs. This compact yet highly functional connector is available in a comprehensive lineup offering 10 to 40 circuits, catering to both top-entry and side-entry configurations. Despite its small size, the GERD connector is designed for exceptional ease of operation and features a tin-plated construction to enhance reliability. Key highlights include a secure locking structure for robust connections, low insertion and withdrawal forces for user convenience, a mis-mating prevention mechanism to ensure proper assembly, and a protected suction area on the header for automated assembly processes. Additionally, the design effectively prevents contact deformation, ensuring durability and long-term performance.
GERD Connector Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector Pitch: 1.25mm
- Current rating:
- 1.5 A AC/DC (AWG #26)
- 1.0 A AC/DC (AWG #28)
- 0.8 A AC/DC (AWG #30)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance:
- Initial value:
- Top entry type/ 30 mΩ max.
- Side entry type/ 50 mΩ max.
- After environmental tests:
- Top entry type/ 50 mΩ max.
- Side entry type/ 70 mΩ max.
- Initial value:
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire:
- Conductor size/ AWG #30 to #26
- Insulation O.D./ 0.76 mm to 1.05 mm
GERD Connector Housing Size and P/N

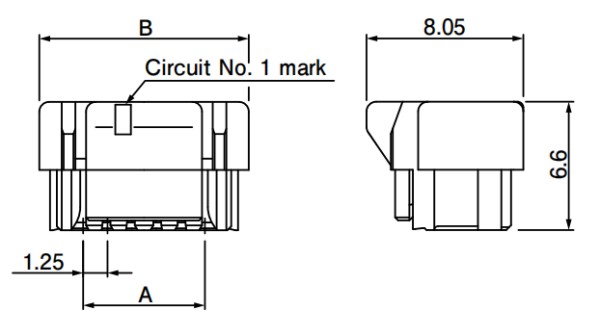

10 - 14 Circuits

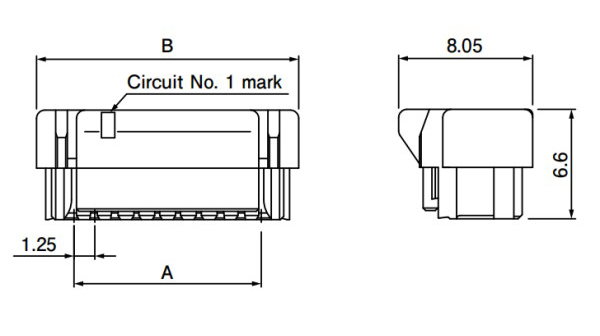

16 - 30 Circuits

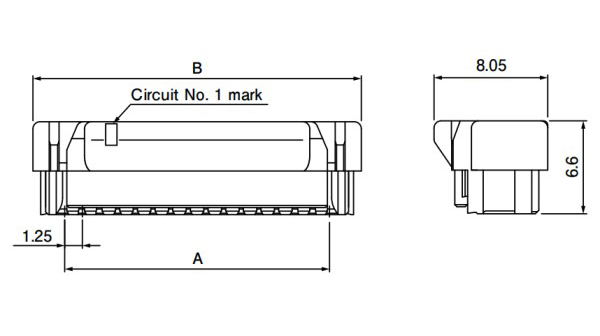

32 - 40 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 10 | GERDR-10V-S | 5.00 | 9.50 | 1000 |
| 12 | GERDR-12V-S | 6.25 | 10.75 | 1000 |
| 14 | GERDR-14V-S | 7.50 | 12.00 | 1000 |
| 16 | GERDR-16V-S | 8.75 | 13.25 | 1000 |
| 18 | GERDR-18V-S | 10.00 | 14.50 | 1000 |
| 20 | GERDR-20V-S | 11.25 | 15.75 | 1000 |
| 22 | GERDR-22V-S | 12.50 | 17.00 | 1000 |
| 24 | GERDR-24V-S | 13.75 | 18.25 | 1000 |
| 26 | GERDR-26V-S | 15.00 | 19.50 | 1000 |
| 28 | GERDR-28V-S | 16.25 | 20.75 | 1000 |
| 30 | GERDR-30V-S | 17.50 | 22.00 | 1000 |
| 32 | GERDR-32V-S | 18.75 | 23.25 | 1000 |
| 34 | GERDR-34V-S | 20.00 | 24.50 | 1000 |
| 36 | GERDR-36V-S | 21.25 | 25.75 | 1000 |
| 38 | GERDR-38V-S | 22.50 | 27.00 | 1000 |
| 40 | GERDR-40V-S | 23.75 | 28.25 | 1000 |
Material and Finish: PBT, UL94V-0, natural (white)

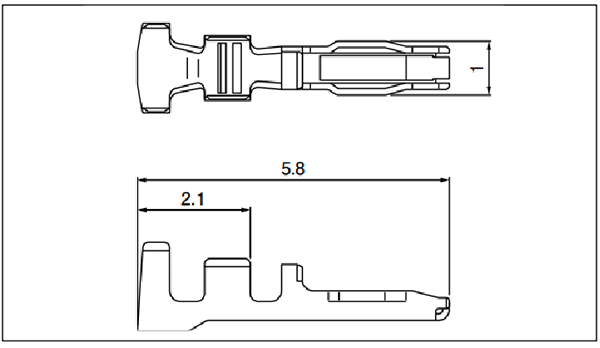

GERD Connector Terminal Size
Notes:
- Model Number: SGEZD-002T-C0.2A
- Suitable Wire Gauge: 0.05 - 0.13mm² (30 - 26AWG)
- Insulation O.D. (mm): 0.76 - 1.05
- Qty/Reel: 25000pcs
- Material and Finish: Copper alloy, tin-plated (reow treatment)
- RoHS2 compliance
Header Type, Size, and P/N
Top entry type

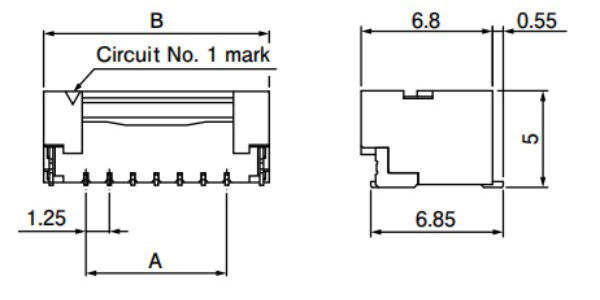

10 -14 Circuits

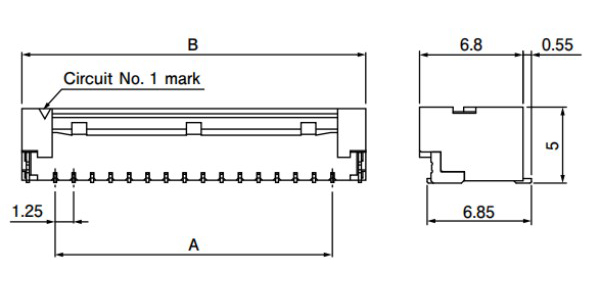

16 - 32 Circuits

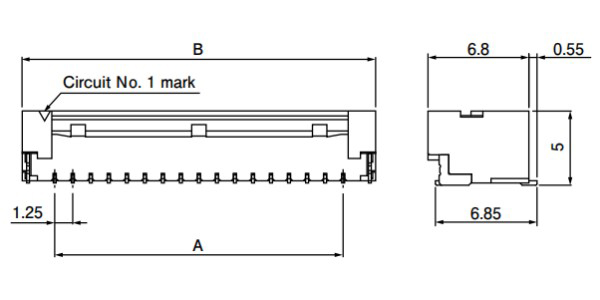

34 - 40 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | |||
| 10 | BM10B-GERDS-TF | 5.00 | 9.50 | 1250 |
| 12 | BM12B-GERDS-TF | 6.25 | 10.75 | 1250 |
| 14 | BM14B-GERDS-TF | 7.50 | 12.00 | 1250 |
| 16 | BM16B-GERDS-TF | 8.75 | 13.25 | 1250 |
| 18 | BM18B-GERDS-TF | 10.00 | 14.50 | 1250 |
| 20 | BM20B-GERDS-TF | 11.25 | 15.75 | 1250 |
| 22 | BM22B-GERDS-TF | 12.50 | 17.00 | 1250 |
| 24 | BM24B-GERDS-TF | 13.75 | 18.25 | 1250 |
| 26 | BM26B-GERDS-TF | 15.00 | 19.50 | 1250 |
| 28 | BM28B-GERDS-TF | 16.25 | 20.75 | 1250 |
| 30 | BM30B-GERDS-TF | 17.50 | 22.00 | 1250 |
| 32 | BM32B-GERDS-TF | 18.75 | 23.25 | 1250 |
| 34 | BM34B-GERDS-TF | 20.00 | 24.50 | 1250 |
| 36 | BM36B-GERDS-TF | 21.25 | 25.75 | 1250 |
| 38 | BM38B-GERDS-TF | 22.50 | 27.00 | 1250 |
| 40 | BM40B-GERDS-TF | 23.75 | 28.25 | 1250 |
Side entry type

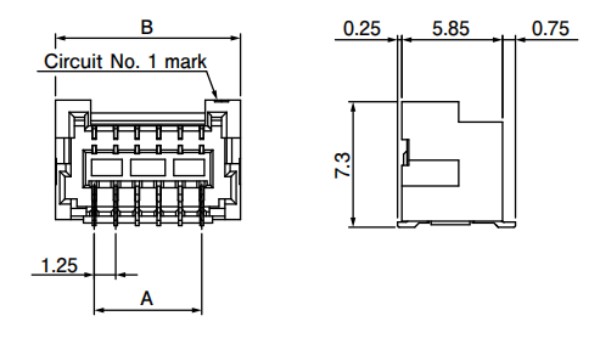

10 - 14 Circuits

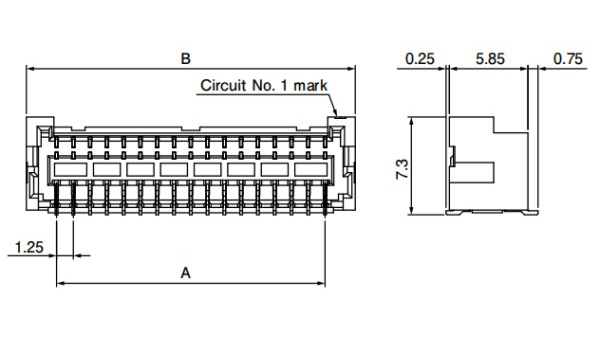

16 - 40 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | |||
| 10 | SM10B-GERDS-TF | 5.00 | 9.50 | 900 |
| 12 | SM12B-GERDS-TF | 6.25 | 10.75 | 900 |
| 14 | SM14B-GERDS-TF | 7.50 | 12.00 | 900 |
| 16 | SM16B-GERDS-TF | 8.75 | 13.25 | 900 |
| 18 | SM18B-GERDS-TF | 10.00 | 14.50 | 900 |
| 20 | SM20B-GERDS-TF | 11.25 | 15.75 | 900 |
| 22 | SM22B-GERDS-TF | 12.50 | 17.00 | 900 |
| 24 | SM24B-GERDS-TF | 13.75 | 18.25 | 900 |
| 26 | SM26B-GERDS-TF | 15.00 | 19.50 | 900 |
| 28 | SM28B-GERDS-TF | 16.25 | 20.75 | 900 |
| 30 | SM30B-GERDS-TF | 17.50 | 22.00 | 900 |
| 32 | SM32B-GERDS-TF | 18.75 | 23.25 | 900 |
| 34 | SM34B-GERDS-TF | 20.00 | 24.50 | 900 |
| 36 | SM36B-GERDS-TF | 21.25 | 25.75 | 900 |
| 38 | SM38B-GERDS-TF | 22.50 | 27.00 | 900 |
| 40 | SM40B-GERDS-TF | 23.75 | 28.25 | 900 |

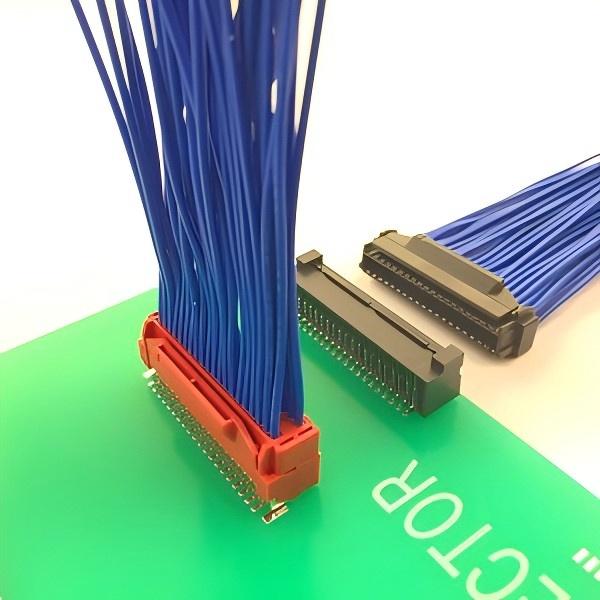

Support Custom Wiring Harness Assembly
- Connector: 10 - 40pin
- Wire gauge: 26 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
