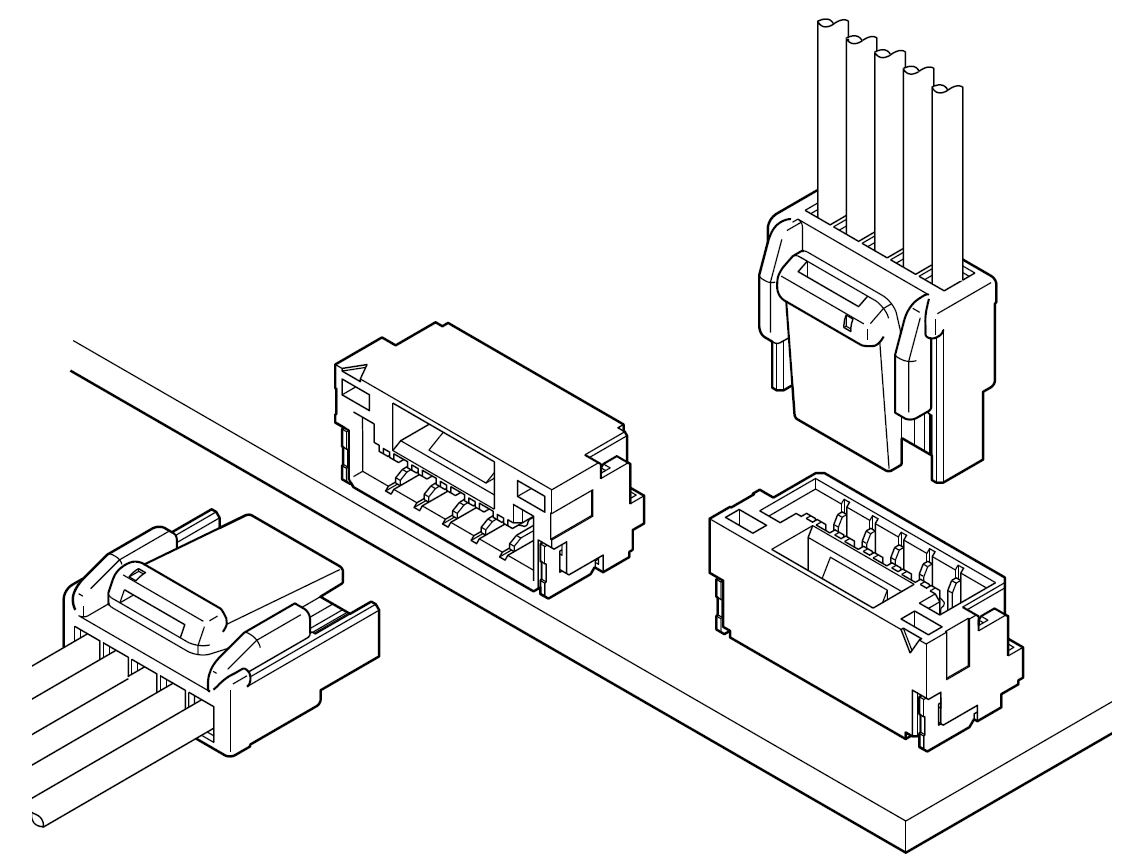

JST GEZ Connector
The JST GEZ Connector is specifically designed to cater to the unique demands of the Pachislot and Pachinko machine market, ensuring reliability and ease of use in high-frequency operations. Its innovative design features contacts that are fully interchangeable with the dual-row GEZD connector, providing flexibility and compatibility across systems. One of the standout features of the GEZ connector is its low insertion force contact, which significantly reduces the effort required for connector mating, simplifying assembly and maintenance processes. This makes it an ideal choice for applications where smooth and efficient connections are crucial for performance and durability.
GEZ Connector Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector Pitch: 1.25mm
- Current rating:
- 1.5 A AC/DC (AWG #26)
- 1.0 A AC/DC (AWG #28)
- 0.8 A AC/DC (AWG #30)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 30 mΩ max. After environmental tests/ 50 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size / AWG #30 to 26, Insulation O.D./ 0.76 mm to 1.05 mm
GEZ Connector
Housing Size and P/N

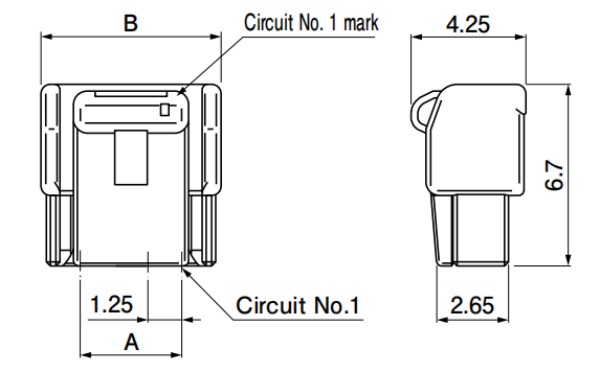

2 to 4 Circuits

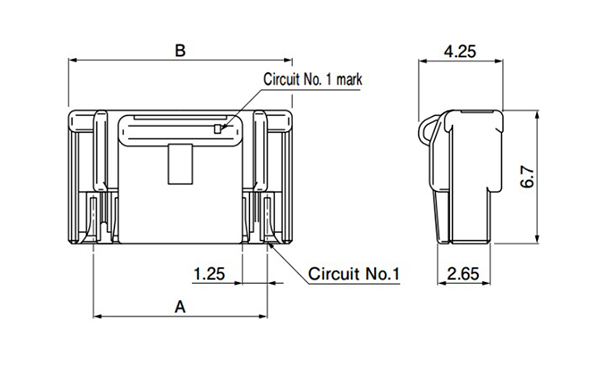

5 to 8 Circuits

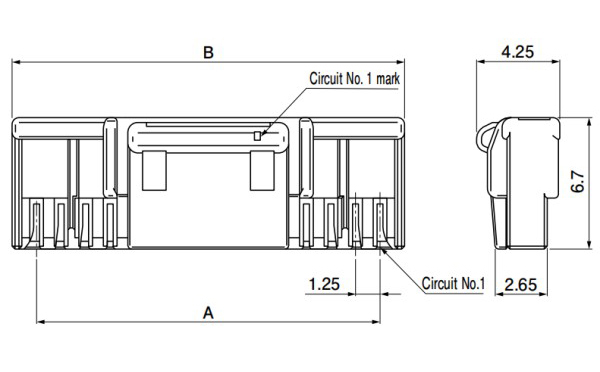

9 to 15 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | GEZR-02V-S | - | 4.45 | 2000 |
| 3 | GEZR-03V-S | 2.50 | 5.50 | 2000 |
| 4 | GEZR-04V-S | 3.75 | 6.65 | 2000 |
| 5 | GEZR-05V-S | 5.00 | 7.50 | 2000 |
| 6 | GEZR-06V-S | 6.25 | 8.75 | 2000 |
| 7 | GEZR-07V-S | 7.50 | 10.00 | 1000 |
| 8 | GEZR-08V-S | 8.75 | 11.25 | 1000 |
| 9 | GEZR-09V-S | 10.00 | 12.50 | 1000 |
| 10 | GEZR-10V-S | 11.25 | 13.75 | 1000 |
| 11 | GEZR-11V-S | 12.50 | 15.00 | 1000 |
| 12 | GEZR-12V-S | 13.75 | 16.25 | 1000 |
| 13 | GEZR-13V-S | 15.00 | 17.50 | 1000 |
| 14 | GEZR-14V-S | 16.25 | 18.75 | 1000 |
| 15 | GEZR-15V-S | 17.50 | 20.00 | 1000 |
Material and Finish: PBT, UL94V-0, natural (white)

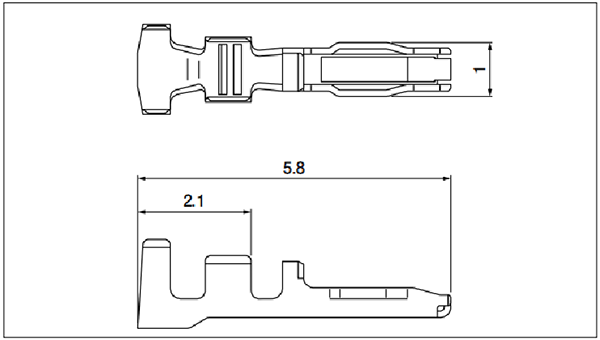

Terminal Size and P/N
Notes:
- Model Number: SGEZD-002T-C0.2A
- Suitable Wire Gauge: 0.05 - 0.13mm² (30 - 26AWG)
- Insulation O.D. (mm): 0.76 - 1.05
- Qty/Reel: 25000pcs
- Material and Finish: Copper alloy, tin-plated (reow treatment)
- RoHS2 compliance
GEZ Header

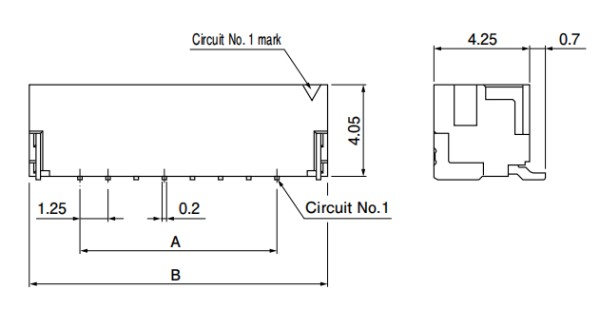

Top entry type

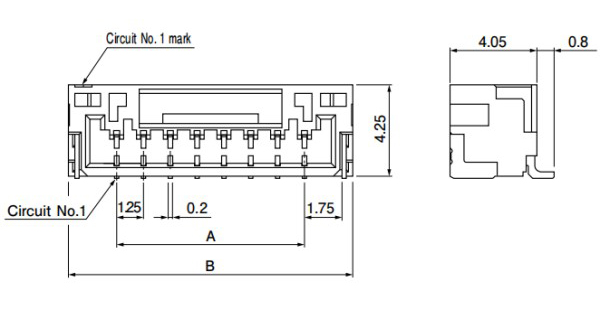

Side entry type
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | ||
| Top entry type | Side entry type | A | B | ||
| 2 | BM02B-GEZS-TBT | SM02B-GEZS-TB | - | 5.75 | 2500 |
| 3 | BM03B-GEZS-TBT | SM03B-GEZS-TB | 2.50 | 7.00 | 2500 |
| 4 | BM04B-GEZS-TBT | SM04B-GEZS-TB | 3.75 | 8.25 | 2500 |
| 5 | BM05B-GEZS-TBT | SM05B-GEZS-TB | 5.00 | 9.50 | 2500 |
| 6 | BM06B-GEZS-TBT | SM06B-GEZS-TB | 6.25 | 10.75 | 2500 |
| 7 | BM07B-GEZS-TBT | SM07B-GEZS-TB | 7.50 | 12.00 | 2500 |
| 8 | BM08B-GEZS-TBT | SM08B-GEZS-TB | 8.75 | 13.25 | 2500 |
| 9 | BM09B-GEZS-TBT | SM09B-GEZS-TB | 10.00 | 14.50 | 2500 |
| 10 | BM10B-GEZS-TBT | SM10B-GEZS-TB | 11.25 | 15.75 | 2500 |
| 11 | BM11B-GEZS-TBT | SM11B-GEZS-TB | 12.50 | 17.00 | 2500 |
| 12 | BM12B-GEZS-TBT | SM12B-GEZS-TB | 13.75 | 18.25 | 2500 |
| 13 | BM13B-GEZS-TBT | SM13B-GEZS-TB | 15.00 | 19.50 | 2500 |
| 14 | BM14B-GEZS-TBT | SM14B-GEZS-TB | 16.25 | 20.75 | 2500 |
| 15 | BM15B-GEZS-TBT | SM15B-GEZS-TB | 17.50 | 22.00 | 2500 |
Material and Finish
- Contact：Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Housing：PA 9T, UL94V-0, natural (ivory)
- Reinforcement：Brass, copper-undercoated, tin-plated (reflow treatment)

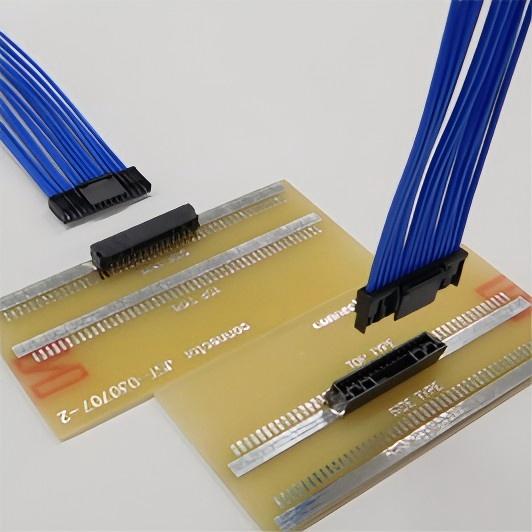

Support Custom Wiring Harness Assembly
- Connector: 2 - 15pin
- Wire gauge: 26 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
