JST GH Connector

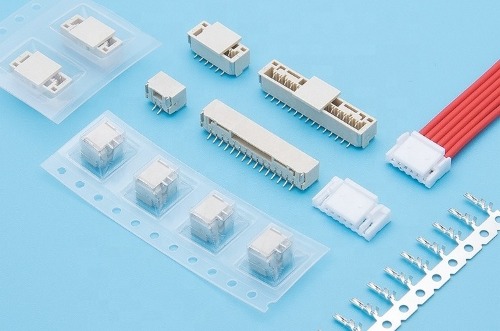

The JST GH Connector is designed specifically for PDP, LCD, and other compact electronic devices, offering a reliable and efficient connection solution. Engineered as a low insertion force type, this connector simplifies the mating process, making assembly and maintenance operations more convenient. Building on the proven performance of the SHL connector, the GH series incorporates a robust locking mechanism for secure engagement, a contact lock structure to maintain a stable connection, and design features that prevent contact deformation. Additionally, its clear engagement click sound provides audible feedback, ensuring proper connection and boosting user confidence during installation.
GH Connector Specifications
- Connector type: Wire to Board, disconnectable Crimp style
- Connector Pitch: 1.25mm
- Current rating: 1.0 A AC/DC (AWG #26)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 30 mΩ max, After environmental tests/ 50 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #30 to #26, Insulation O.D./ 0.76 to 1.0 mm

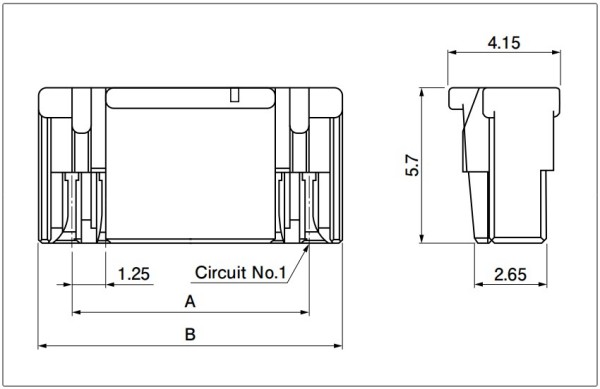

GH Connector Housing
| No. of Circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | GHR-02V-S | 1.25 | 3.75 | 3000 |
| 3 | GHR-03V-S | 2.50 | 5.00 | 3000 |
| 4 | GHR-04V-S | 3.75 | 6.25 | 3000 |
| 5 | GHR-05V-S | 5.00 | 7.50 | 3000 |
| 6 | GHR-06V-S | 6.25 | 8.75 | 3000 |
| 7 | GHR-07V-S | 7.50 | 10.00 | 3000 |
| 8 | GHR-08V-S | 8.75 | 11.25 | 3000 |
| 9 | GHR-09V-S | 10.00 | 12.50 | 3000 |
| 10 | GHR-10V-S | 11.25 | 13.75 | 3000 |
| 11 | GHR-11V-S | 12.50 | 15.00 | 3000 |
| 12 | GHR-12V-S | 13.75 | 16.25 | 3000 |
| 13 | GHR-13V-S | 15.00 | 17.50 | 3000 |
| 14 | GHR-14V-S | 16.25 | 18.75 | 3000 |
| 15 | GHR-15V-S | 17.50 | 20.00 | 3000 |
Material and Finish: PBT, UL94V-0, natural (white)

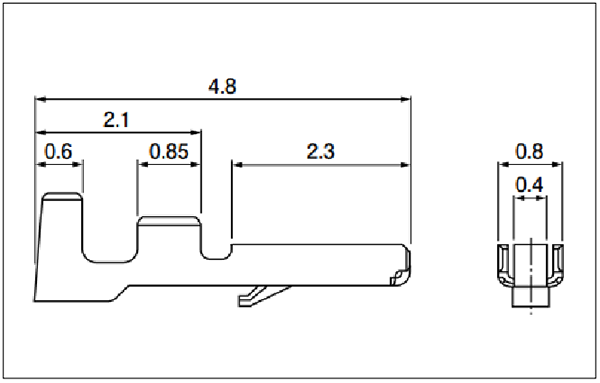

GH Connector Terminal Size
Notes:
- Model Number: SSHL-002T-P0.2
- Suitable Wire Gauge: 0.05 - 0.13mm² (30 - 26AWG)
- Insulation O.D. (mm): 0.76 - 1.0
- Qty/Reel: 35000pcs
- Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS2 compliance
- This contact can be applied only for the GH connector.
- SSHL-003( )-P0.2 cannot be applied for the GH connector.
Header Size and P/N

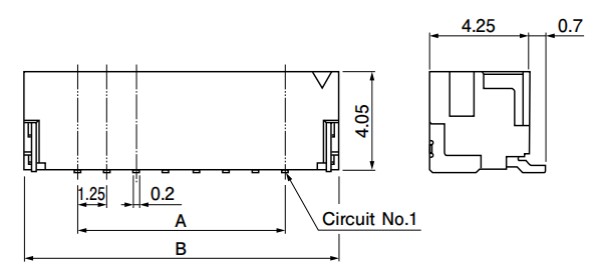

Top entry type

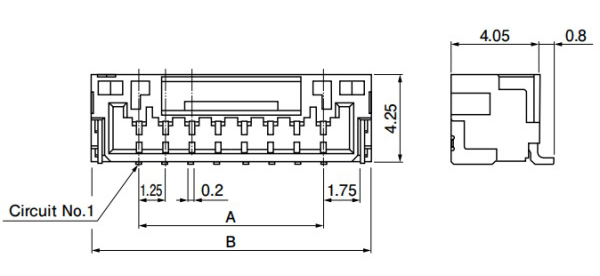

Side entry type
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | ||
| Top entry type | Side entry type | A | B | ||
| 2 | BM02B-GHS-TBT | SM02B-GHS-TB | 1.25 | 5.75 | 2500 |
| 3 | BM03B-GHS-TBT | SM03B-GHS-TB | 2.50 | 7.00 | 2500 |
| 4 | BM04B-GHS-TBT | SM04B-GHS-TB | 3.75 | 8.25 | 2500 |
| 5 | BM05B-GHS-TBT | SM05B-GHS-TB | 5.00 | 9.50 | 2500 |
| 6 | BM06B-GHS-TBT | SM06B-GHS-TB | 6.25 | 10.75 | 2500 |
| 7 | BM07B-GHS-TBT | SM07B-GHS-TB | 7.50 | 12.00 | 2500 |
| 8 | BM08B-GHS-TBT | SM08B-GHS-TB | 8.75 | 13.25 | 2500 |
| 9 | BM09B-GHS-TBT | SM09B-GHS-TB | 10.00 | 14.50 | 2500 |
| 10 | BM10B-GHS-TBT | SM10B-GHS-TB | 11.25 | 15.75 | 2500 |
| 11 | BM11B-GHS-TBT | SM11B-GHS-TB | 12.50 | 17.00 | 2500 |
| 12 | BM12B-GHS-TBT | SM12B-GHS-TB | 13.75 | 18.25 | 2500 |
| 13 | BM13B-GHS-TBT | SM13B-GHS-TB | 15.00 | 19.50 | 2500 |
| 14 | BM14B-GHS-TBT | SM14B-GHS-TB | 16.25 | 20.75 | 2500 |
| 15 | BM15B-GHS-TBT | SM15B-GHS-TB | 17.50 | 22.00 | 2500 |
Material and Finish
- Contact: Phosphor bronze, copper-undercoated, tin-plated (reflow treatment)
- Housing: PA 9T, UL94V-0, natural (ivory)
- Reinforcement: Brass, copper-undercoated, tin-plated

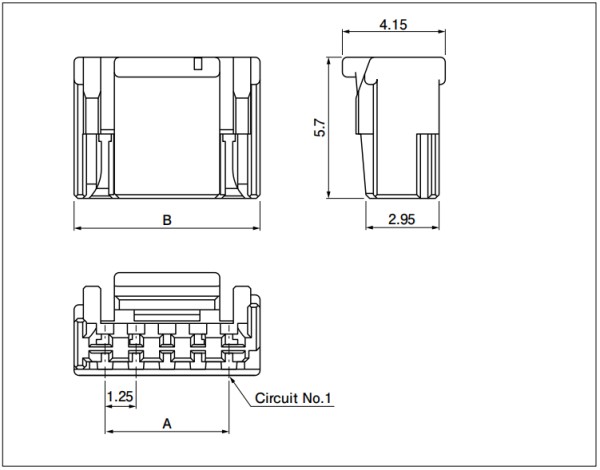

Housing (Keying pattern A)
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | GHR-02V-2P | 1.25 | 3.75 | 3000 |
| 4 | GHR-04V-2P | 3.75 | 6.25 | 3000 |
| 5 | GHR-05V-2P | 5.00 | 7.50 | 3000 |
Material and Finish: PBT, UL94V-0, purple

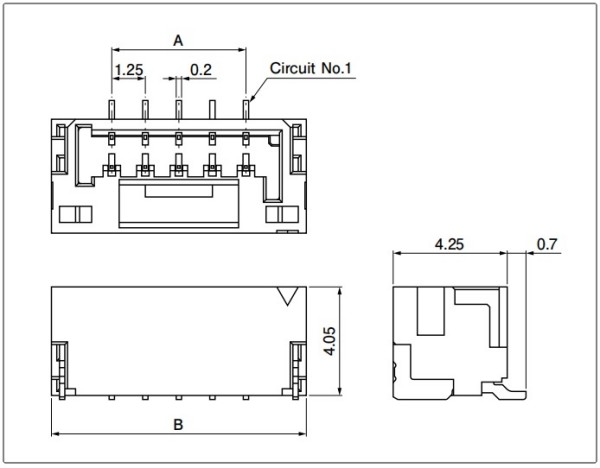

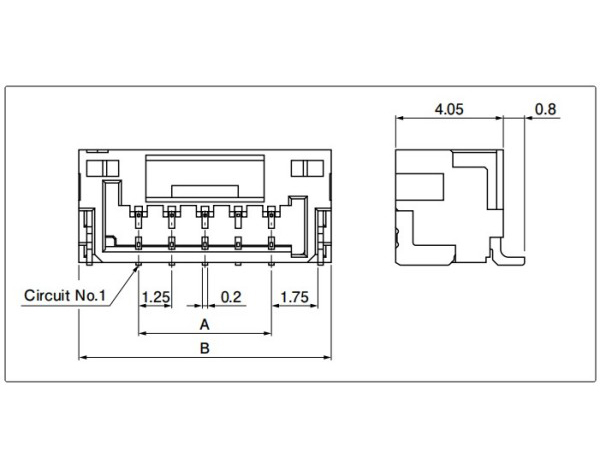

Header (Keying pattern A)
Top entry type
Side entry type
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/reel | ||
| Top entry type | Side entry type | A | B | ||
| 2 | BM02B-GHP-A-TBT | SM02B-GHP-A-TB | 1.25 | 5.75 | 2500 |
| 4 | BM04B-GHP-A-TBT | SM04B-GHP-A-TB | 3.75 | 8.25 | 2500 |
| 5 | BM05B-GHP-A-TBT | SM05B-GHP-A-TB | 5.00 | 9.50 | 2500 |
Material and Finish
- Contact: Phosphor bronze, copper-undercoated, tin-plated (reflow treatment)
- Housing: PA 9T, UL94V-0, purple
- Reinforcement: Brass, copper-undercoated, tin-plated

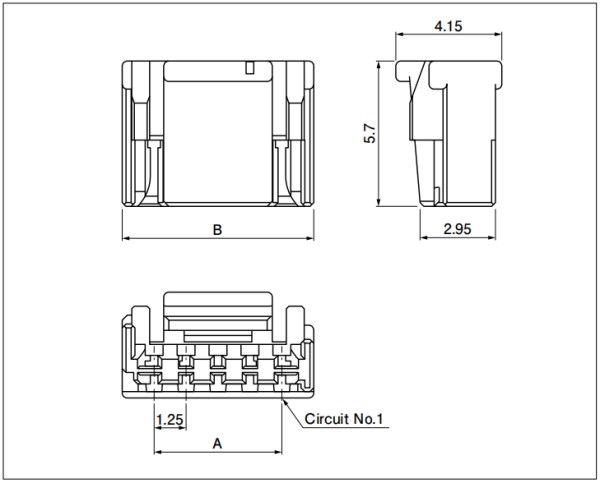

Housing (Keying pattern B)
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | GHR-02V-3HD | 1.25 | 3.75 | 3000 |
| 4 | GHR-04V-3HD | 3.75 | 6.25 | 3000 |
| 5 | GHR-05V-3HD | 5.00 | 7.50 | 3000 |
Material and Finish: PBT, UL94V-0, dark gray

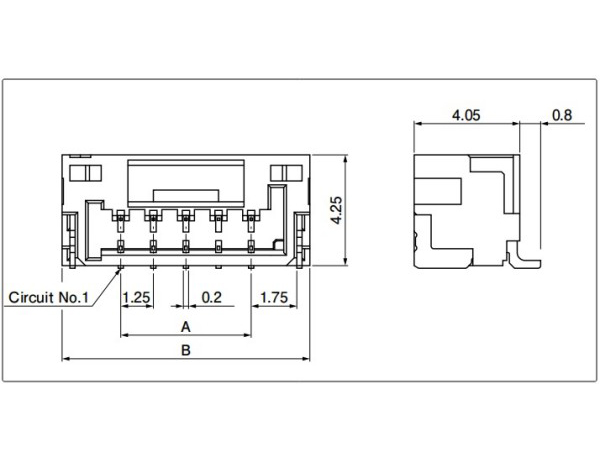

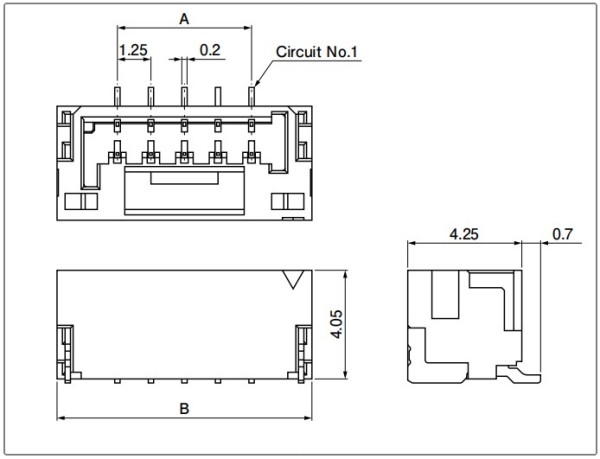

Header (Keying pattern B)
Top entry type
Side entry type
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | ||
| Top entry type | Side entry type | A | B | ||
| 2 | BM02B-GHHD-B-TBT | SM02B-GHHD-B-TB | 1.25 | 5.75 | 2500 |
| 4 | BM04B-GHHD-B-TBT | SM04B-GHHD-B-TB | 3.75 | 8.25 | 2500 |
| 5 | BM05B-GHHD-B-TBT | SM05B-GHHD-B-TB | 5.00 | 9.50 | 2500 |
Material and Finish
- Contact: Phosphor bronze, copper-undercoated, tin-plated (reflow treatment)
- Housing: PA 9T, UL94V-0, dark gray
- Reinforcement: Brass, copper-undercoated, tin-plated
Support Custom Wiring Harness Assembly
- Connector: 2 - 15pin
- Wire gauge: 26 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
What type of JST GH connector wire harness do we Make?
Both Connectors Same Direction
Both Connectors Opposite Direction
1 to 2 Splitter Wire Harness
Wire Tinned End
Wire Blunt End
Add Any Suitable Connectors
JST GH Connector Wire Harness Cases
GH 2P Connector Wiring
GH 3P Connector Wiring

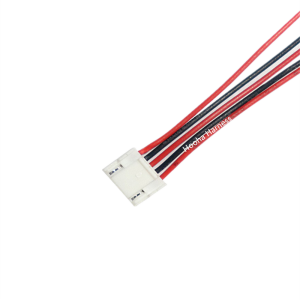

GH 5P Connector Wiring
GH 5P Wiring Harness
GH 6P Connector Wiring

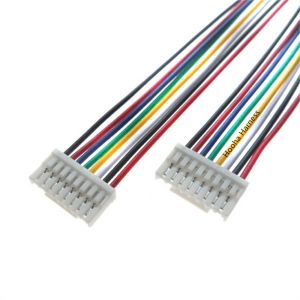

GH 8P Connector Wiring
GH 8P Wiring Harness
GH 10P Connector Wiring
GH 12P Connector Wiring
Customize Your Wire Harness
If all these wires are not exactly the same as you needed, don't worry, you can customize them from us, below is the custom way.
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
