JST GHD Connector (Tin-plated type)
The JST GHD Tin-Plated Connector is specifically engineered to meet the demands of high-density PCB designs, offering a compact 1.25mm pitch in a double-row configuration. It is available in a versatile range of 10 to 40 circuits, accommodating both top and side entry applications. Despite its small size, the connector ensures excellent usability and reliability, thanks to its robust tin-plated contacts. Key features include a secure locking mechanism for dependable connections, low insertion force for easy mating, a designated suction area for automated assembly, and a design that effectively prevents contact deformation, making it an ideal choice for high-performance electronic applications.

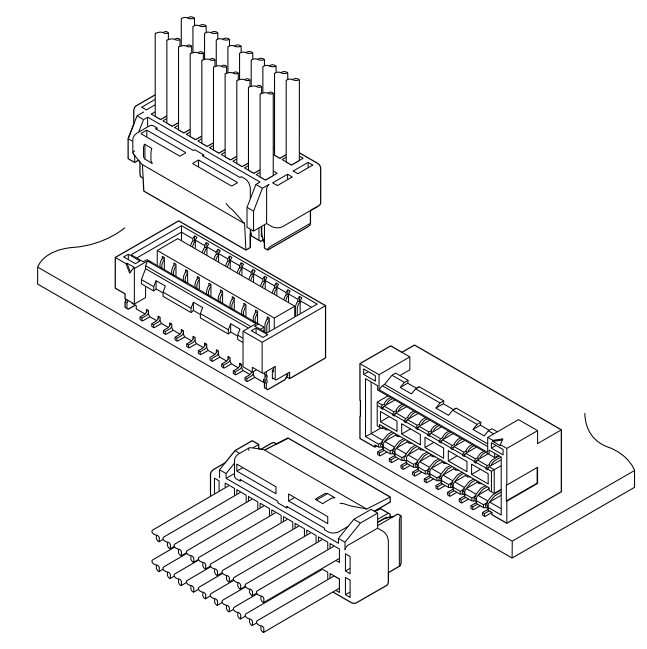

GHD Connectors (Gold Plated) Specifications
- Current rating:
- 1.25 A AC/DC (AWG #26)
- 1.0 A AC/DC (AWG #28)
- 0.8 A AC/DC (AWG #30)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance:
- Initial value
- Top entry type: 30 mΩ max.
- Side entry type: 50 mΩ max
- After environmental tests
- Top entry type: 50 mΩ max.
- Side entry type: 70 mΩ max
- Initial value
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire:
- Conductor size/ AWG #32 to #26
- Insulation O.D./ 0.4 to 1.0 mm
GHD Connector Housing Size and P/N

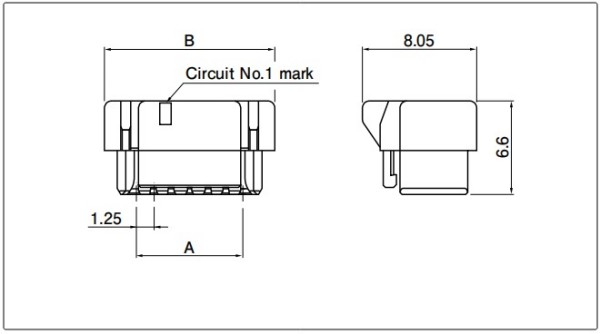

10 to 30 circuits
32 to 40 circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 10 | GHDR-10V-S-1 (F) | 5.00 | 9.50 | 1000 |
| 12 | GHDR-12V-S-1 (F) | 6.25 | 10.75 | 1000 |
| 14 | GHDR-14V-S-1 (F) | 7.50 | 12.00 | 1000 |
| 16 | GHDR-16V-S-1 (F) | 8.75 | 13.25 | 1000 |
| 18 | GHDR-18V-S-1 (F) | 10.00 | 14.50 | 1000 |
| 20 | GHDR-20V-S-1 (F) | 11.25 | 15.75 | 1000 |
| 22 | GHDR-22V-S-1 (F) | 12.50 | 17.00 | 1000 |
| 24 | GHDR-24V-S-1 (F) | 13.75 | 18.25 | 1000 |
| 26 | GHDR-26V-S-1 (F) | 15.00 | 19.50 | 1000 |
| 28 | GHDR-28V-S-1 (F) | 16.25 | 20.75 | 1000 |
| 30 | GHDR-30V-S-1 (F) | 17.50 | 22.00 | 1000 |
| 32 | GHDR-32V-S-1 (F) | 18.75 | 23.25 | 1000 |
| 36 | GHDR-36V-S-1 (F) | 21.25 | 25.75 | 1000 |
| 38 | GHDR-38V-S-1 (F) | 22.50 | 27.00 | 1000 |
| 40 | GHDR-40V-S-1 (F) | 23.75 | 28.25 | 1000 |
Material: PBT, UL94V-0, natural (white)

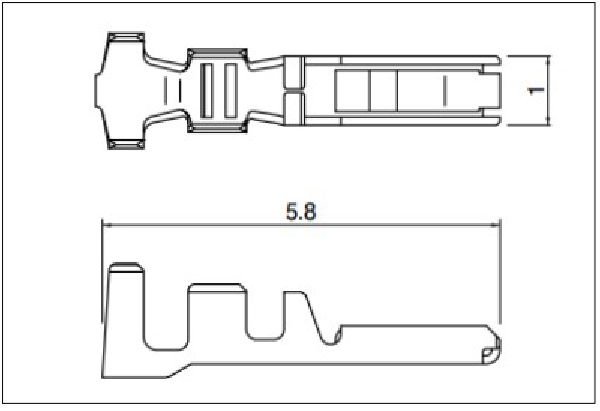

GHD Contact Size
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SGHD-002T-C0.2A | 0.05 to 0.13 | 30 to 26 | 0.76 to 1.0 | 20000 |
| SGHD-003T-C0.2A | 0.032 to 0.08 | 32 to 28 | 0.4 to 0.8 | 28000 |
Material and Finish: Copper alloy, tin-plated (reflow treatment)
Header Size and P/N
Top entry type

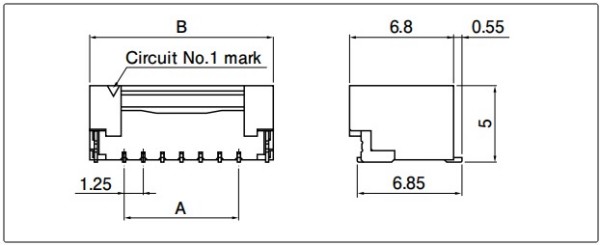

10 to 14 circuits

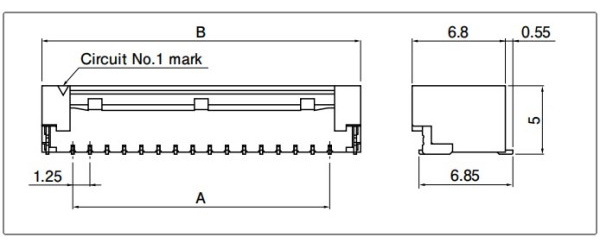

16 to 32 Circuits

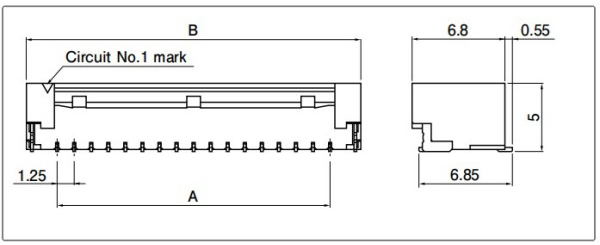

36 to 40 circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | |||
| 10 | BM10B-GHDS-TF | 5.00 | 9.50 | 1250 |
| 12 | BM12B-GHDS-TF | 6.25 | 10.75 | 1250 |
| 14 | BM14B-GHDS-TF | 7.50 | 12.00 | 1250 |
| 16 | BM16B-GHDS-TF | 8.75 | 13.25 | 1250 |
| 18 | BM18B-GHDS-TF | 10.00 | 14.50 | 1250 |
| 20 | BM20B-GHDS-TF | 11.25 | 15.75 | 1250 |
| 22 | BM22B-GHDS-TF | 12.50 | 17.00 | 1250 |
| 24 | BM24B-GHDS-TF | 13.75 | 18.25 | 1250 |
| 26 | BM26B-GHDS-TF | 15.00 | 19.50 | 1250 |
| 28 | BM28B-GHDS-TF | 16.25 | 20.75 | 1250 |
| 30 | BM30B-GHDS-TF | 17.50 | 22.00 | 1250 |
| 32 | BM32B-GHDS-TF | 18.75 | 23.25 | 1250 |
| 36 | BM36B-GHDS-TF | 21.25 | 25.75 | 1250 |
| 38 | BM38B-GHDS-TF | 22.50 | 27.00 | 1250 |
| 40 | BM40B-GHDS-TF | 23.75 | 28.25 | 1250 |
Material and Finish
- Contact: Phosphor bronze, copper-undercoated, tin-plated (reflow treatment)
- Housing: PA 9T, UL94V-0, natural (ivory)
- Reinoforcement: Brass, copper-undercoated, tin-plated (reflow treatment)
Side entry type

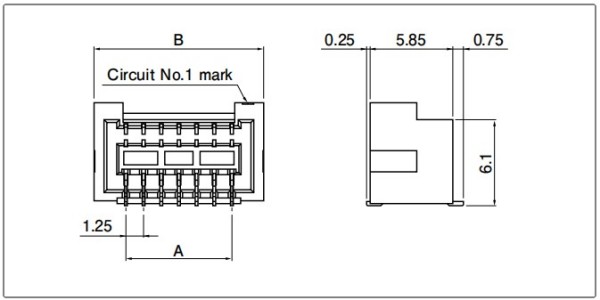

10 to 14 circuits

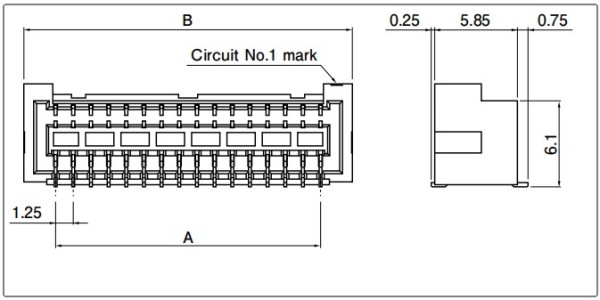

16 to 40 circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | |||
| 10 | SM10B-GHDS-A-TF | 5.00 | 9.50 | 900 |
| 12 | SM12B-GHDS-A-TF | 6.25 | 10.75 | 900 |
| 14 | SM14B-GHDS-A-TF | 7.50 | 12.00 | 900 |
| 16 | SM16B-GHDS-A-TF | 8.75 | 13.25 | 900 |
| 18 | SM18B-GHDS-A-TF | 10.00 | 14.50 | 900 |
| 20 | SM20B-GHDS-A-TF | 11.25 | 15.75 | 900 |
| 22 | SM22B-GHDS-A-TF | 12.50 | 17.00 | 900 |
| 24 | SM24B-GHDS-A-TF | 13.75 | 18.25 | 900 |
| 26 | SM26B-GHDS-A-TF | 15.00 | 19.50 | 900 |
| 28 | SM28B-GHDS-A-TF | 16.25 | 20.75 | 900 |
| 30 | SM30B-GHDS-A-TF | 17.50 | 22.00 | 900 |
| 36 | SM36B-GHDS-A-TF | 21.25 | 25.75 | 900 |
| 38 | SM38B-GHDS-A-TF | 22.50 | 27.00 | 900 |
| 40 | SM40B-GHDS-A-TF | 23.75 | 28.25 | 900 |
Material and Finish
- Contact: Phosphor bronze, copper-undercoated, tin-plated (reflow treatment)
- Housing: PA 9T, UL94V-0, natural (ivory)

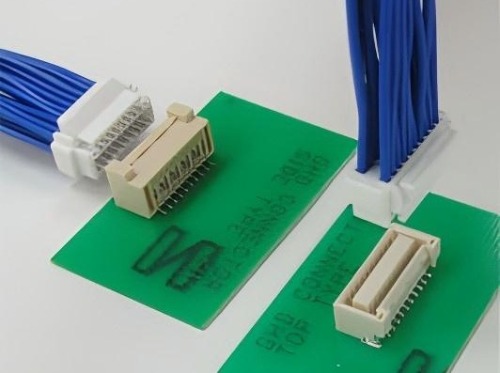

Support Custom Wiring Harness Assembly
- Connector: 10 - 40pin
- Wire gauge: 26 - 32AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
