JST GVH Connector

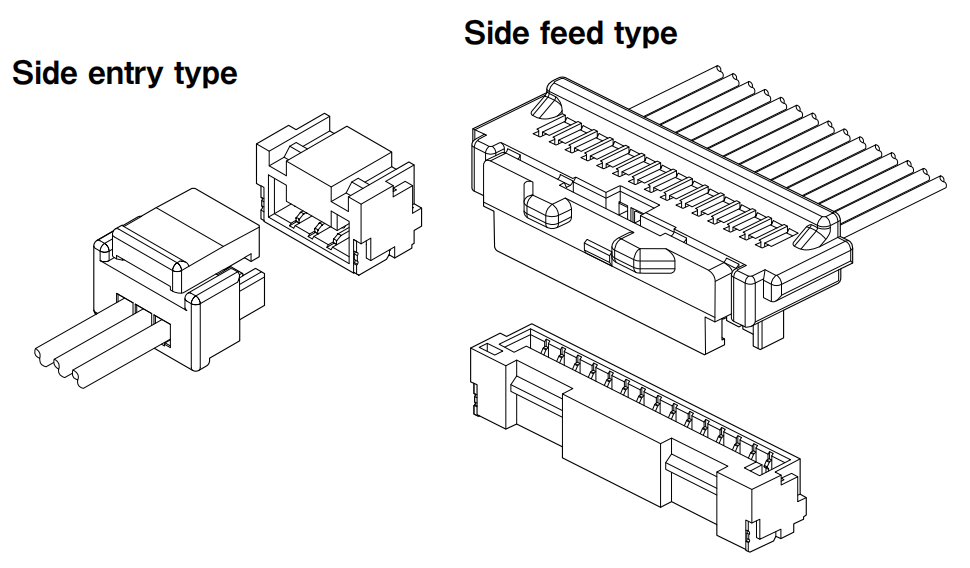

The JST GVH Connector is a versatile solution designed for seamless integration with PC boards that utilize the same layout as the GH Connector. This connector eliminates the need for suction tape by featuring a convenient sucking area on its top surface, enhancing assembly efficiency. It is available in two types: a side feed version that allows wires to be drawn out laterally for improved workability during mating, and a standard side entry version for conventional applications. Key features include a secure locking structure for reliable connections, a design that prevents contact deformation for enhanced durability, and the top-mounted sucking area for streamlined assembly processes.
GVH Connector Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector Pitch: 1.25mm
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 50V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 30mΩ max, After environmental testing/ 50mΩ max.
- Insulation resistance: 100MΩ min.
- Withstanding voltage: 500V AC/minute
- Applicable wire: Conductor size/ AWG #30 to #26, Insulation O.D./ 0.8 to 1.0mm
Housing

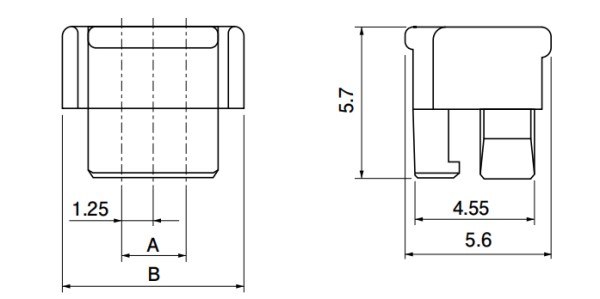

Normal type
Note:
- No. of circuits: 3
- Model Number: GVHR-03V-S
- Dimension(mm): A(2.50), B(7.00)
- Q'ty/bag: 5000pcs
- Material: PBT, UL94V-0, natural
- RoHS Compliance
Side feed type

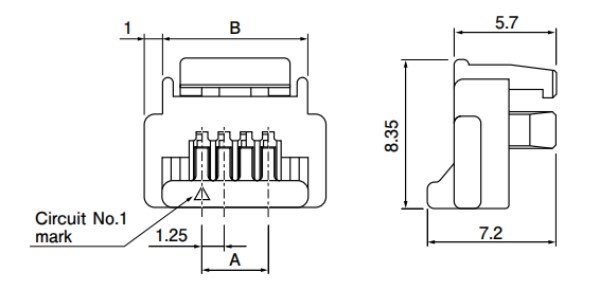

2 to 4 circuits

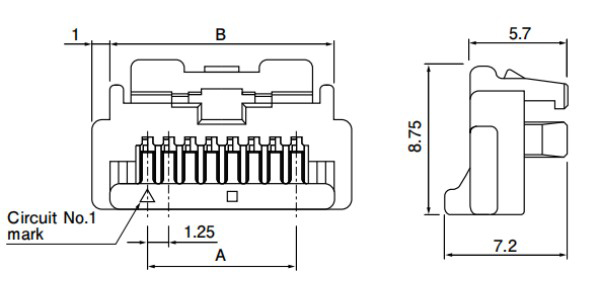

5 to 8 circuits

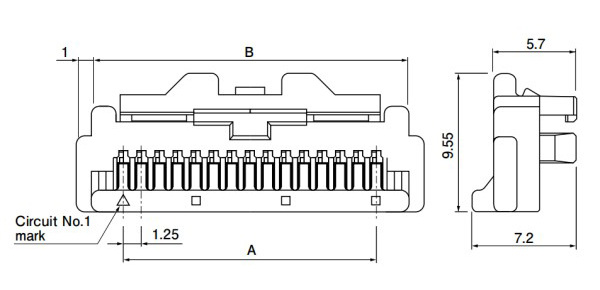

9 to 15 circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||
| 2 | GVHRSF-02V-S | 1.25 | 5.75 | 4000 |
| 3 | GVHRSF-03V-S | 2.50 | 7.00 | 4000 |
| 4 | GVHRSF-04V-S | 3.75 | 8.25 | 2500 |
| 5 | GVHRSF-05V-S | 5.00 | 9.50 | 2500 |
| 6 | GVHRSF-06V-S | 6.25 | 10.75 | 2500 |
| 7 | GVHRSF-07V-S | 7.50 | 12.00 | 2000 |
| 8 | GVHRSF-08V-S | 8.75 | 13.25 | 2000 |
| 9 | GVHRSF-09V-S | 10.00 | 14.50 | 1500 |
| 10 | GVHRSF-10V-S | 11.25 | 15.75 | 1500 |
| 11 | GVHRSF-11V-S | 12.50 | 17.00 | 1500 |
| 12 | GVHRSF-12V-S | 13.75 | 18.25 | 1000 |
| 13 | GVHRSF-13V-S | 15.00 | 19.50 | 1000 |
| 14 | GVHRSF-14V-S | 16.25 | 20.75 | 1000 |
| 15 | GVHRSF-15V-S | 17.50 | 22.00 | 1000 |
Header

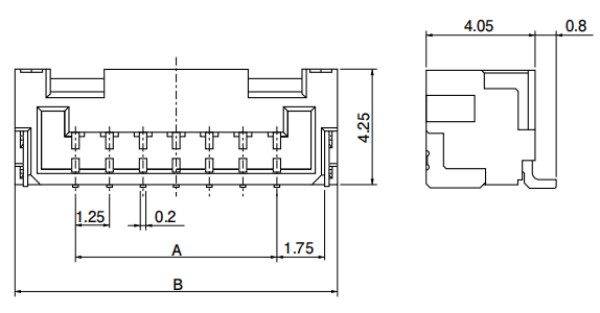

Side entry type

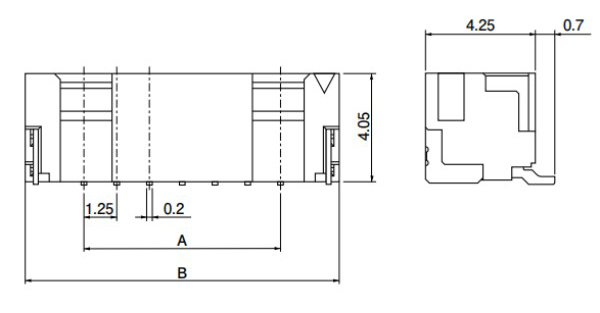

Side Feed type
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | ||
| Side feed type | Side entry type | A | B | ||
| 2 | BM02B-GVHS-TB | - | 1.25 | 5.75 | 2500 |
| 3 | BM03B-GVHS-TB | SM03B-GVHS-TB | 2.50 | 7.00 | 2500 |
| 4 | BM04B-GVHS-TB | - | 3.75 | 8.25 | 2500 |
| 5 | BM05B-GVHS-TB | - | 5.00 | 9.50 | 2500 |
| 6 | BM06B-GVHS-TB | - | 6.25 | 10.75 | 2500 |
| 7 | BM07B-GVHS-TB | - | 7.50 | 12.00 | 2500 |
| 8 | BM08B-GVHS-TB | - | 8.75 | 13.25 | 2500 |
| 9 | BM09B-GVHS-TB | - | 10.00 | 14.50 | 2500 |
| 10 | BM10B-GVHS-TB | - | 11.25 | 15.75 | 2500 |
| 11 | BM11B-GVHS-TB | 12.50 | 17.00 | 2500 | |
| 12 | BM12B-GVHS-TB | - | 13.75 | 18.25 | 2500 |
| 13 | BM13B-GVHS-TB | - | 15.00 | 19.50 | 2500 |
| 14 | BM14B-GVHS-TB | - | 16.25 | 20.75 | 2500 |
| 15 | BM15B-GVHS-TB | - | 17.50 | 22.00 | 2500 |

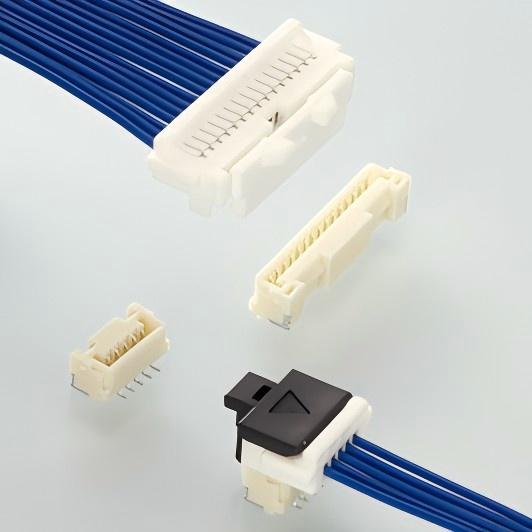

Support Custom Wiring Harness Assembly
- Connector: 2 - 15pin
- Wire gauge: 26 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
