JST HL Connector, Wire to Board, Custom Wire Assembly

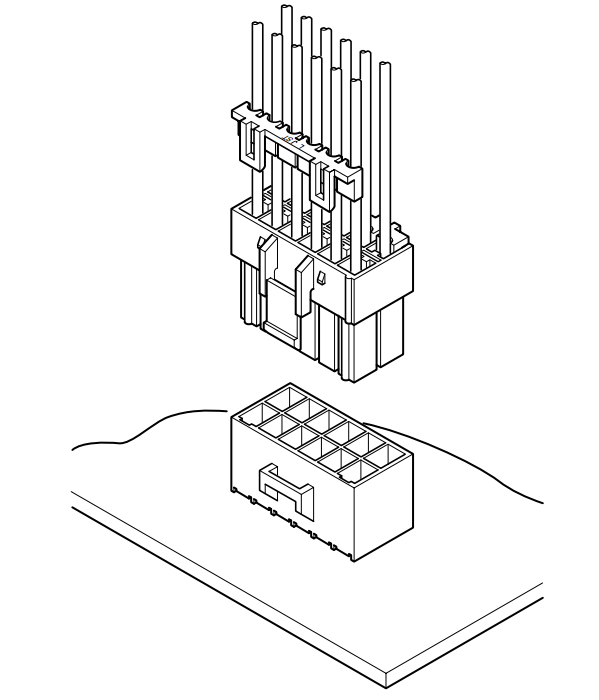

JST HL Connector, Wire to Board Type
The JST HL Connector is a versatile and reliable interconnect solution designed with advanced features to ensure secure and efficient connections. It incorporates housing lances for robust contact retention, preventing disengagement and ensuring stable performance even in demanding applications. An inner-housing lock provides additional reinforcement, enhancing the overall structural integrity of the connector. For added safety and durability, the HL Connector features a secondary retainer, ensuring contacts remain firmly in place under various conditions. Moreover, its low insertion force contact design reduces the effort required for mating, improving usability and minimizing wear during repeated cycles. This combination of features makes the JST HL Connector an ideal choice for high-performance, user-friendly connectivity.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 3.96mm
- Current rating: 7A AC, DC (Refer to the table below.)
- Voltage rating: 300V AC, DC
- Temperature range: -25˚C to +90˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/7m Ω max, After environmental testing/10m Ω max.
- Insulation resistance: 1,000M Ω min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #18
- Applicable PC board thickness: 1.5 to 2.2mm
Current unit:A
| Circuits | Wire size(AWG) | ||
| #18 | #20 | #22 | |
| 4 | 7 | 5 | 4 |
| 8 | 6 | 4 | 3 |
| 12 | 5 | 3 | 3 |
Note:
- The current rating differs depending on the number of circuits and the wire size used in each connector. The table above lists the current rating as a function of the number of circuits and the wire size.
- Do not branch in parallel current which exceeds the rated current (eg. more than 7A in the case of 4 circuits with AWG #18). If branched in parallel, current imbalance or other problems may develop.
Housing

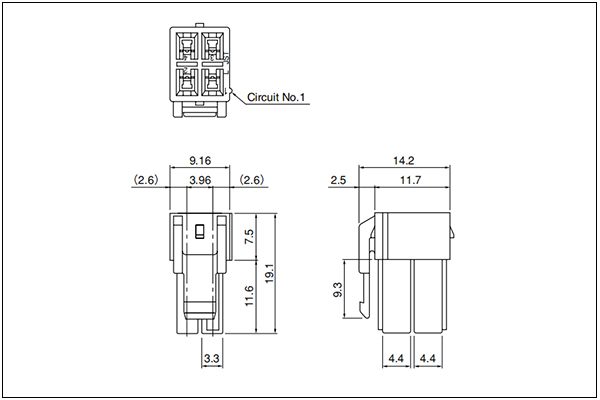

4 Circuits

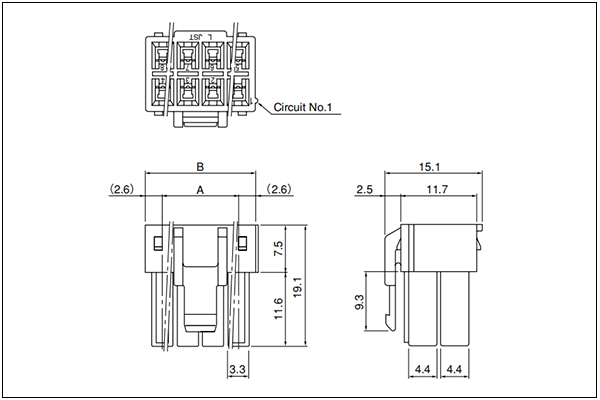

8, 12 Circuits
| Circuits | Model No. | Dimensions (mm) | Q'ty /bag | |
| A | B | |||
| 4 | HLP-04V | — | — | 500 |
| 8 | HLP-08V | 11.88 | 17.08 | 500 |
| 12 | HLP-12V | 19.8 | 25 | 500 |
Material: PA 66, UL94V-0, natural (white)

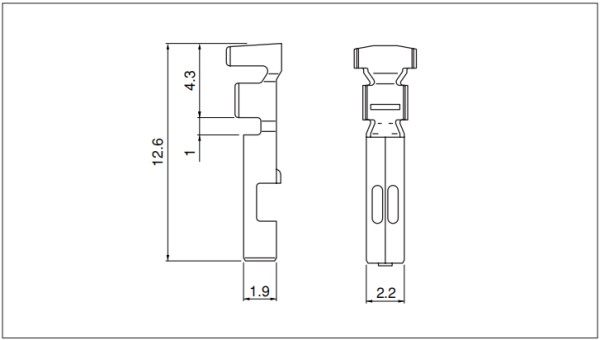

Terminal
Spcs:
- Model No.: SSF-21T-P1.4
- Applicable Wire: 0.3 - 0.75mm² (22 - 18AWG)
- Insolations O.D. (mm): 1.5 - 2.2
- Q'ty/reel: 6000pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS compliance

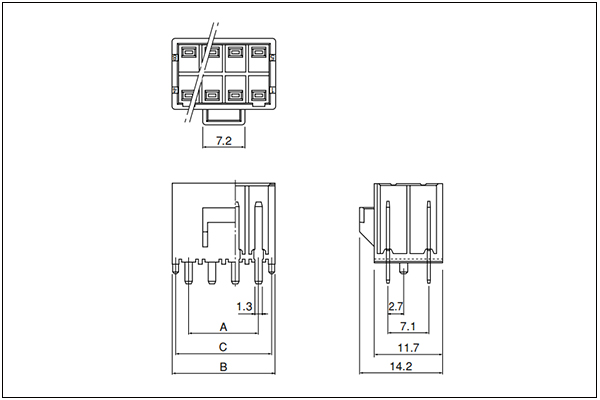

Locking Header
| Circuits | Model No. | Dimensions (mm) | Qty/box | ||
| A | B | C | |||
| 4 | B04P-HL-A | 3.96 | 9.56 | 8.46 | 200 |
| 8 | B08P-HL-A | 11.88 | 17.48 | 16.38 | 100 |
| 12 | B12P-HL-A | 19.80 | 25.40 | 24.30 | 50 |
Material and Finish
- Post: Brass, copper-undercoated, tin-plated (reflow treatment)
- Wafer: PA 66, UL94V-0, natural (white)
Retainer
| Applicable Housing Model No. | Retainer Model No. | Q'ty /bag |
| HLP-04V | HLS-02V | 1000 |
| HLP-08V | HLS-08V | 1000 |
| HLP-12V | HLS-12V | 1000 |
Material: Glass-filled PA 66, UL94V-0, natural (ivory)

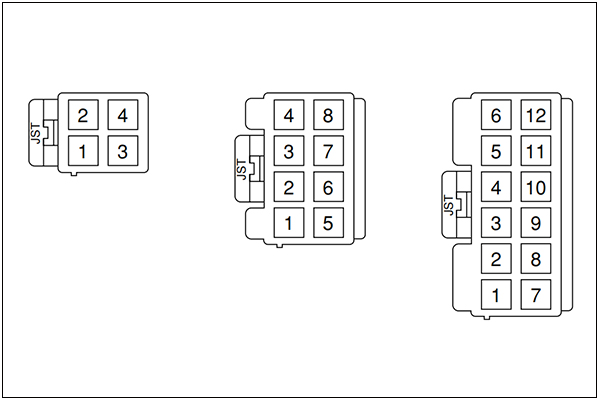

Terminal position location numbers

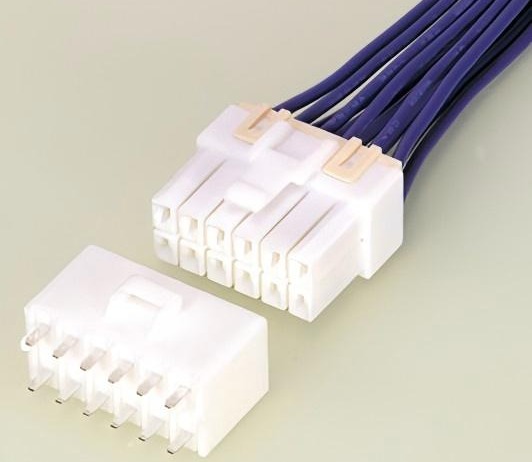

Support Custom Wiring Harness Assembly
- Connector: 4, 8, 12pin
- Wire gauge: 18 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
