JST HL Connector, Wire to Wire, Custom Wire Assembly

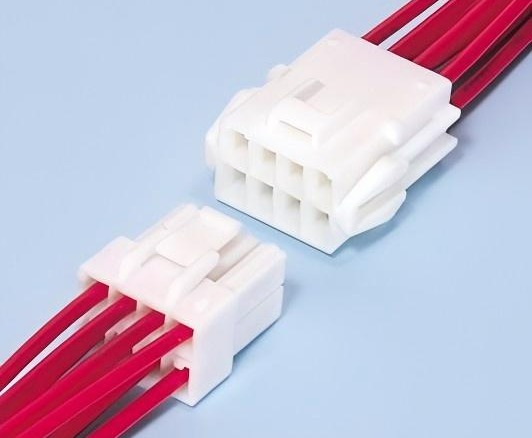

JST HL Connector, Wire to Wire

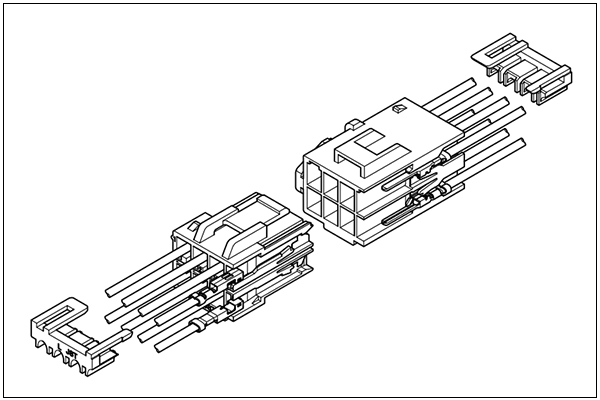

The JST HL Connector is a reliable, disconnectable crimp-style wire-to-wire connector designed with a 3.96mm pitch, ideal for applications requiring secure and efficient electrical connections. It features low insertion force contacts that simplify the mating process, ensuring ease of assembly and reducing wear on both connectors. The housing has a lance that securely holds the terminals and an inner-housing lock provides additional stability to prevent accidental disengagement. The connector includes secondary retainers for enhanced retention, ensuring that the connections remain intact under demanding conditions. Additionally, the panel lock construction offers increased mounting stability, making the JST HL Connector an excellent choice for various industrial and automotive applications.
Specifications
- Connector type: Disconnectable Crimp style Wire-to-wire connectors
- Connector pitch: 3.96mm
- Current rating: 7A AC, DC max.
- Voltage rating: 300V AC, DC max.
- Temperature range: -25˚C to +90˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/7m Ω max, After environmental testing/10m Ω max.
- Insulation resistance: 1,000M Ω min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #18, 0.3 to 0.75mm²
- Applicable panel thickness: 0.7 to 2.0mm
Current unit: A
| Circuits | Wire size (AWG) | ||
| #18 | #20 | #22 | |
| 2 | 7 | 5 | 4 |
| 3 | 6 | 4 | 4 |
| 4 | 6 | 4 | 4 |
| 8 | 4 | 3 | 3 |
| 9 | 4 | 3 | 3 |
| 12 | 3 | 2 | 2 |
Note: The current rating varies depending on the number of circuits and the wire size used in each connector. The table above lists the current rating as a function of the number of circuits and wire size.
Housing
HLP-02V
HLR-02V
HLR-02VF
HLP-03V

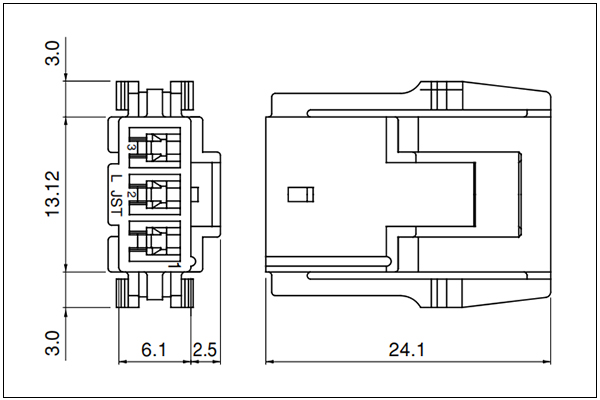

HLR-03V

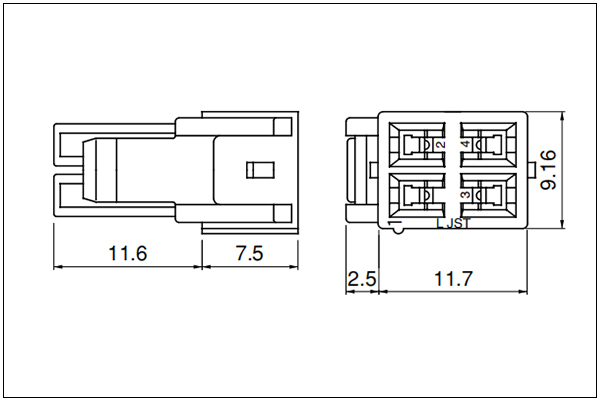

HLP-04V

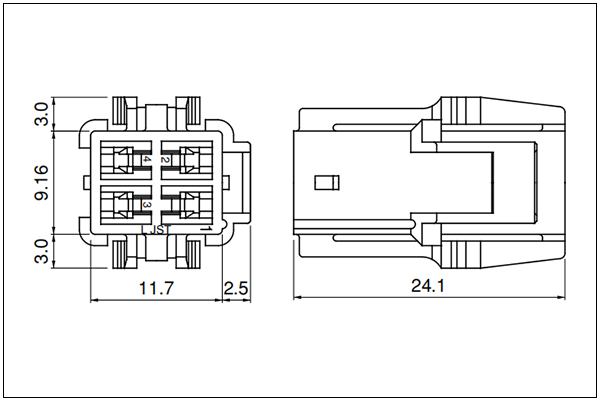

HLR-04V

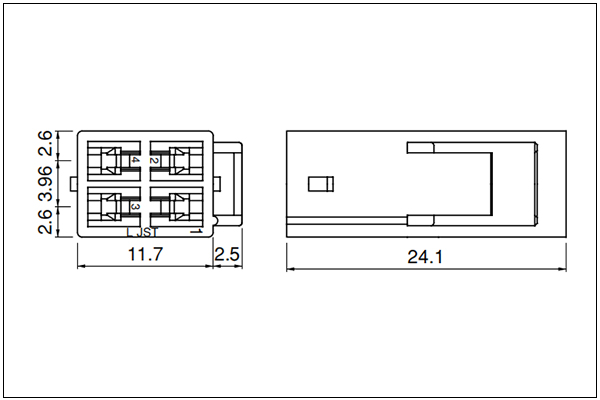

HLR-04VF

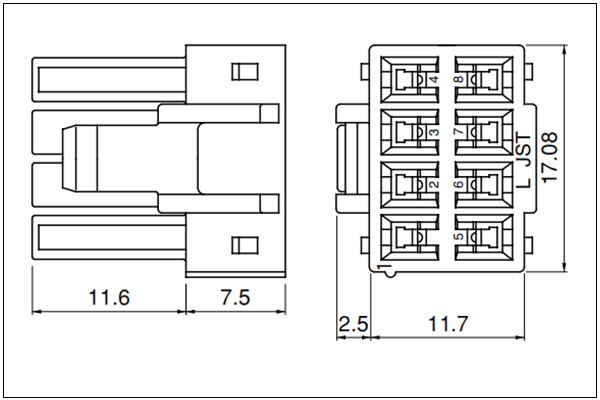

HLP-08V

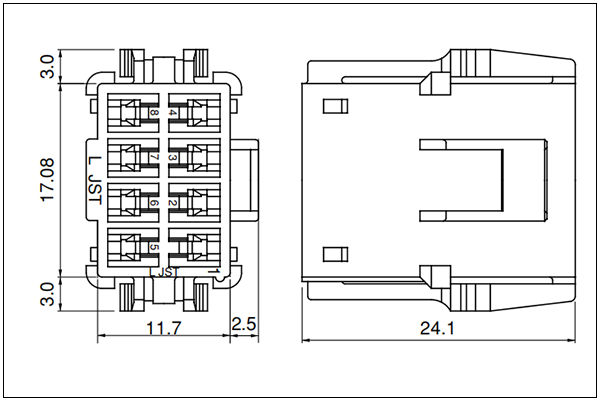

HLR-08V

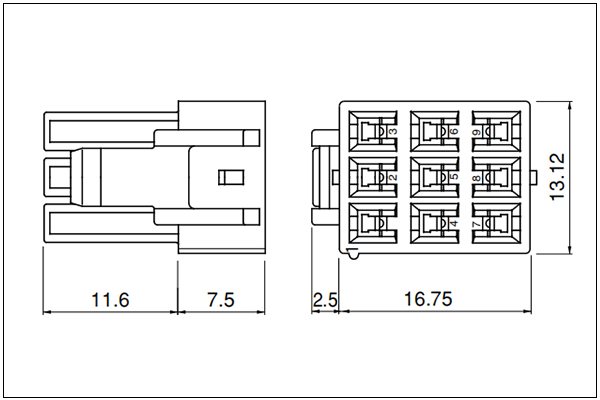

HLP-09V

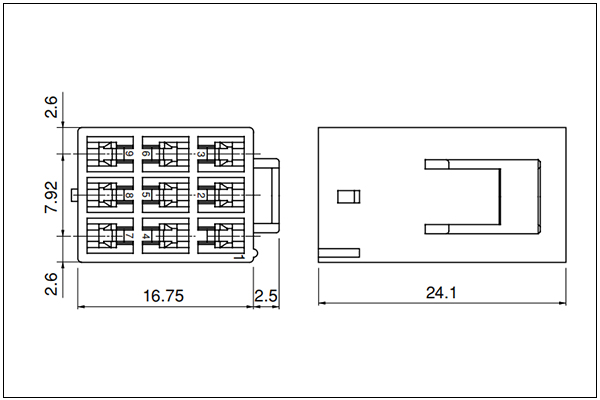

HLR-09VF

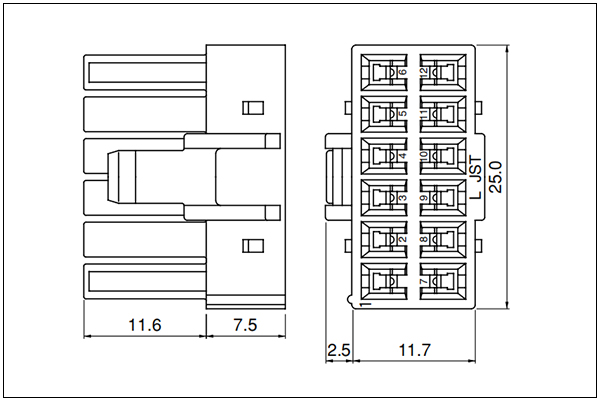

HLP-12V

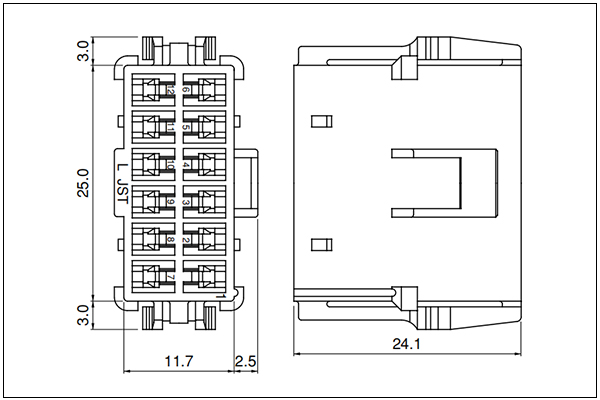

HLR-12V
Terminal
Pin Terminal
Socket Terminal
Specs:
- Model No.: SSF-21T-P1.4(Socket Terminal), SSM-21T-P1.4(Pin Terminal)
- Applicable Wire: 18 to 22AWG (0.3~0.75mm²)
- Insolations O.D. (mm): 1.5 to 2.2mm
- Q'ty/reel: 6000pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
Support Custom Wiring Harness Assembly
- Connector: 2, 3, 4, 8, 9, 12pin
- Wire gauge: 18 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
