JST HM Connector, Wire to Wire, Custom Wire Assembly
JST HM Connector, Wire to Wire Type

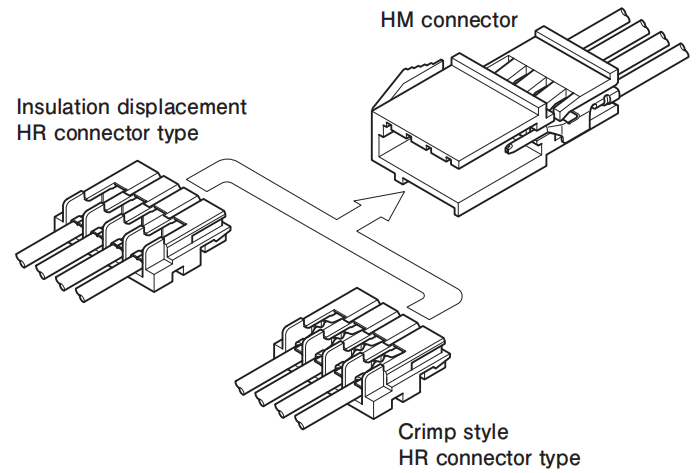

The JST HM Connector is a 2.5 mm pitch plug-style wire-to-wire connector designed to deliver exceptional reliability and cost efficiency. This versatile connector supports both HR crimp-style and HR insulation displacement receptacles, making it adaptable for various wiring needs and assembly methods. Its design incorporates robust housing lances that securely retain terminals, ensuring stability even in high-vibration environments. The panel lock mechanism enhances the connection by providing a secure and firm attachment to panels, while the protective shell-shaped housing offers added durability and safeguards against physical impacts. With its innovative features, the HM Connector is an ideal solution for applications requiring dependable and flexible wire-to-wire connectivity.
Specifications
- Connector type: Wire to Wire, Crimp style and Mating style
- Connector pitch: 2.5mm
- Current rating:
- Crimp style HR connectors type: 3 A AC/DC (AWG #22)
- Insulation displacement HR connectors type: 2 A AC/DC (AWG #24)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
- Applicable wire range: Conductor size/ AWG #26 to AWG #22, Insulation O.D./ φ1.3 mm to φ1.7 mm
- Applicable panel thickness: 0.8 to 1.6 mm

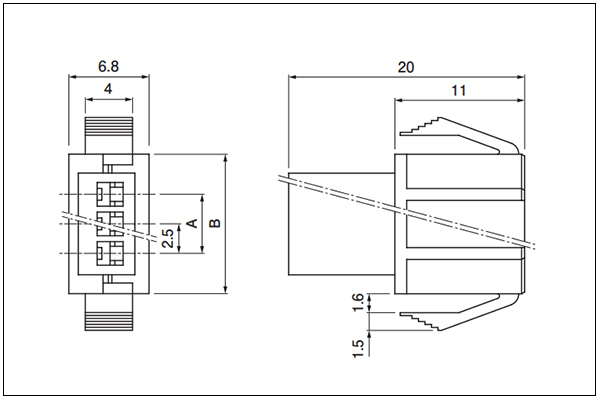

HM Connector - Plug
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | HMR-02V | 2.5 | 9.3 | 1000 |
| 3 | HMR-03V | 5.0 | 11.8 | 500 |
| 4 | HMR-04V | 7.5 | 14.3 | 500 |
| 8 | HMR-08V | 17.5 | 24.3 | 500 |
| 12 | HMR-12V | 27.5 | 34.3 | 500 |

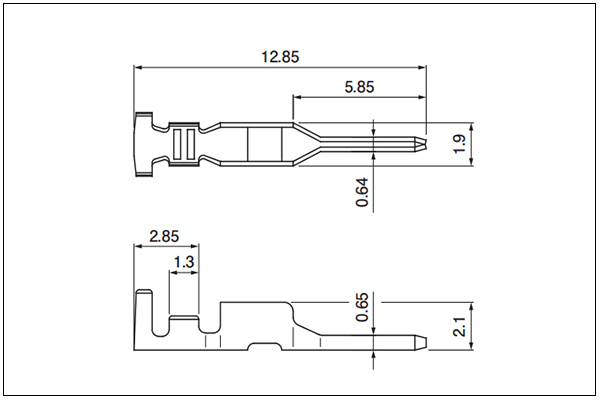

Terminal
Spcs:
- Model No.: SMR-001T-0.6
- Applicable Wire: 0.13 - 0.33mm² (22 - 26AWG)
- Insolations O.D. (mm): 1.3 - 1.7
- Q'ty/reel: 9000pcs
- Materials and Finish: Brass, tin-plated
Crimp style HR connector - Receptacle
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | HRP-02-S | 2.5 | 7.5 | 2000 |
| 3 | HRP-03-S | 5.0 | 10.0 | 2000 |
| 4 | HRP-04-S | 7.5 | 12.5 | 1000 |
| 8 | HRP-08-S | 17.5 | 22.5 | 500 |
| 12 | HRP-12-S | 27.5 | 32.5 | 500 |

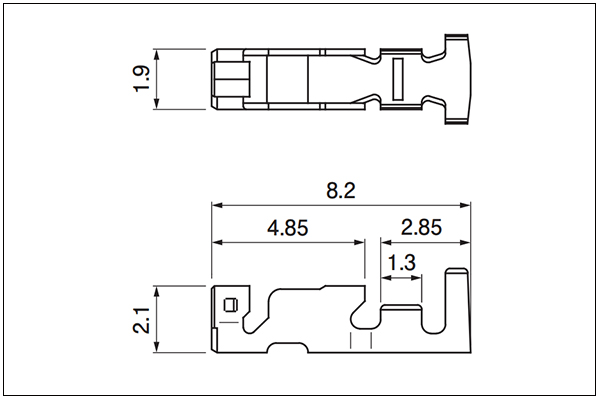

Terminal
Spcs:
- Model No.: SHR-001T-0.6
- Applicable Wire: 0.13 - 0.33mm² (22 - 26AWG)
- Insolations O.D. (mm): 1.3 - 1.7
- Q'ty/reel: 9000pcs
- Materials and Finish: Phosphor bronze, tin-plated

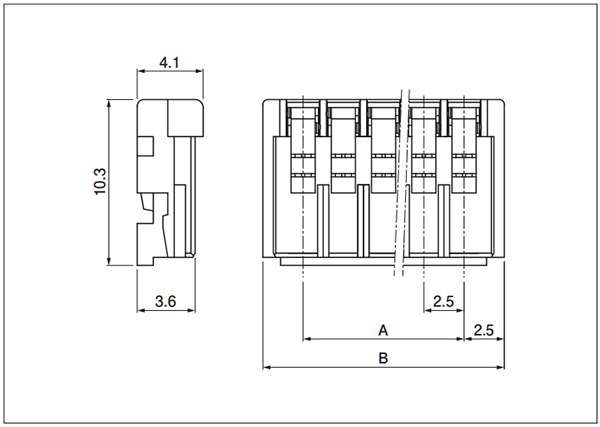

Insulation displacement HR connector - Receptacle
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |||
| For AWG #28 | For AWG #26 | ForAWG#24 | A | B | ||
| 2 | 02HR-8M-P-N | 02HR-6S-P-N | 02HR-4K-P-N | 2.5 | 7.5 | 1000 |
| 3 | 03HR-8M-P-N | 03HR-6S-P-N | 03HR-4K-P-N | 5.0 | 10.0 | 1000 |
| 4 | 04HR-8M-P-N | 04HR-6S-P-N | 04HR-4K-P-N | 7.5 | 12.5 | 1000 |
| 8 | 08HR-8M-P-N | 08HR-6S-P-N | 08HR-4K-P-N | 17.5 | 22.5 | 500 |
| 12 | 12HR-8M-P-N | 12HR-6S-P-N | 12HR-4K-P-N | 27.5 | 32.5 | 500 |

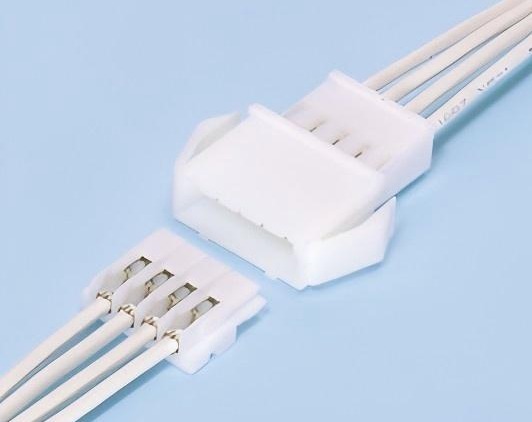

Support Custom Wiring Harness Assembly
- Connector: 2, 3, 4, 8, 12pin
- Wire gauge: 26 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
