JST HR Connector

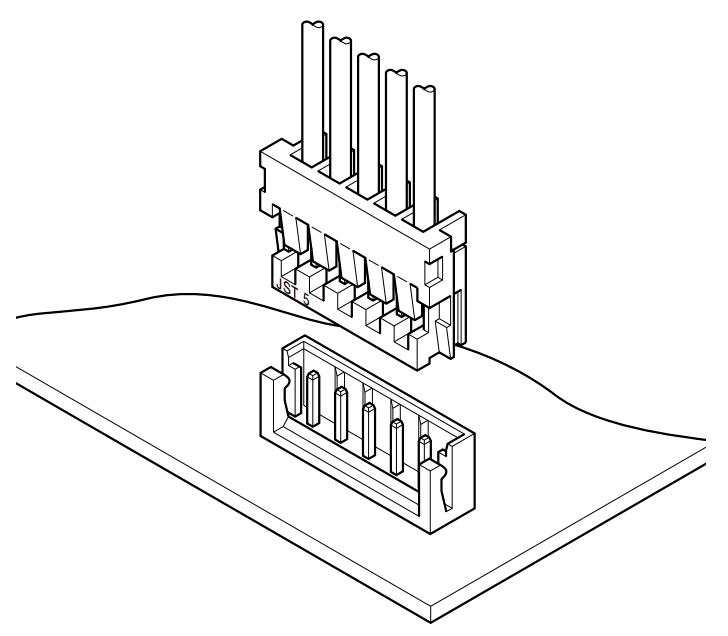

The JST HR Connector is a compact, versatile solution designed to support efficient PCB connections with a space-saving form factor. With a low mounting height of just 11.3 mm and a slim thickness of 4.1 mm, it is ideal for applications where space constraints are a concern. This connector utilizes an in-line method, allowing wires to be drawn vertically to the PCB, simplifying both insertion/withdrawal operations and PCB layout design. Its thin design supports compact electronic assemblies, while its high-reliability construction ensures consistent performance over time. Additionally, the connector offers interchangeability, making it compatible with a range of similar connector types, enhancing its adaptability in various electronic devices and systems.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 2.5mm
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #26 to #22
- Applicable PC board thickness: 0.8 to 1.6 mm

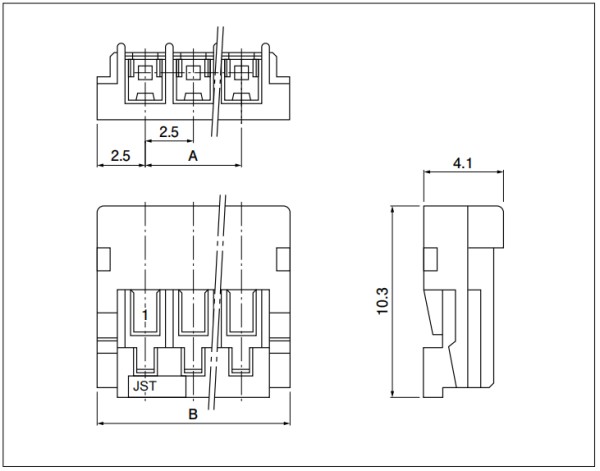

Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | HRP-02-S | 2.5 | 7.5 | 2000 |
| 3 | HRP-03-S | 5.0 | 10.0 | 2000 |
| 4 | HRP-04-S | 7.5 | 12.5 | 1000 |
| 5 | HRP-05-S | 10.0 | 15.0 | 1000 |
| 6 | HRP-06-S | 12.5 | 17.5 | 1000 |
| 7 | HRP-07-S | 15.0 | 20.0 | 500 |
| 8 | HRP-08-S | 17.5 | 22.5 | 500 |
| 9 | HRP-09-S | 20.0 | 25.0 | 500 |
| 10 | HRP-10-S | 22.5 | 27.5 | 500 |
| 11 | HRP-11-S | 25.0 | 30.0 | 500 |
| 12 | HRP-12-S | 27.5 | 32.5 | 500 |
| 13 | HRP-13-S | 30.0 | 35.0 | 250 |
Material and Finish: PA 66, UL94V-0, natural (white)

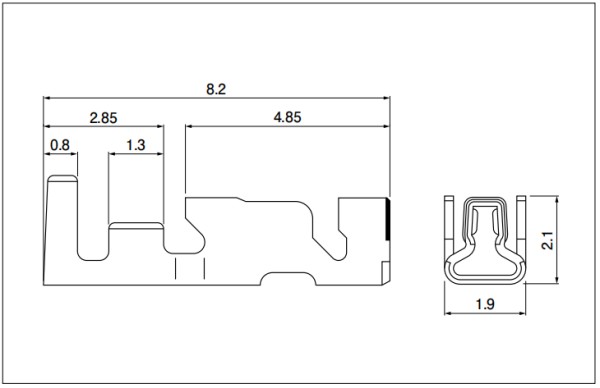

Terminal
Notes:
- Model No.: SHR-001T-P0.6
- Applicable wire: 0.13-0.33mm²(26-22AWG)
- Insulation O.D. (mm): 1.3 - 1.7
- Q'ty/reel: 9000pcs
- Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS2 Compliance

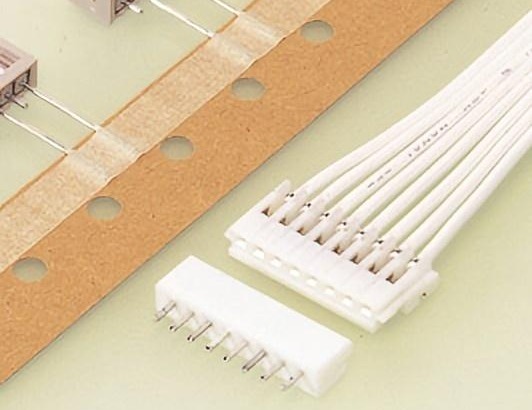

Support Custom Wiring Harness Assembly
- Connector: 2 - 13pin
- Wire gauge: 22 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
