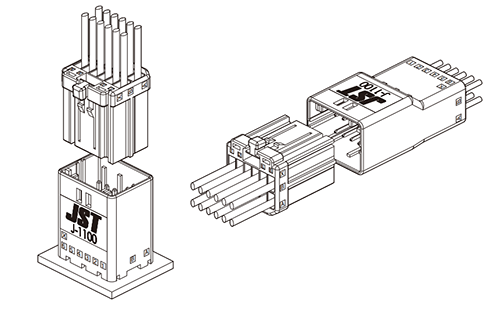

JST JFA Connector J1000
The JST JFA Connector J1000 Series is a versatile solution for both signal and power supply circuits, making it ideal for use in factory automation, heavy electric machinery, and a wide range of general industrial equipment. This series offers a variety of housing options while maintaining a standardized contact design, ensuring compatibility and simplifying assembly. The connectors feature a robust double-spring construction, providing enhanced stability and secure electrical connections. With a compact 2.2 mm pitch, the JFA Series supports wire sizes up to AWG #18. The inclusion of a housing lance and a secure locking mechanism ensures reliable mating retention, preventing accidental disconnections and enhancing system safety. Additionally, the standardized tooling for this connector family further optimizes production efficiency and reduces costs.
Specifications
- Connector type: Wire-to-board/Wire-to-wire, Disconnectable Crimp style
- Connector pitch: 2.2mm
- Voltage rating:
- 125 V AC/DC…J1100 series
- 250 V AC/DC…J1800 series
- Temperature range: -55℃ to +105℃ ( including temperature rise in applying electrical current )
- Applicable wire: AWG #28 to #18
- Applicable PC board thickness: 1.6 mm
- Current rating : AC/DC (Unit: A)
| No. of circuits | Wire size(AWG) | |||||
| #18 | #20 | #22 | #24 | #26 | #28 | |
| 3 | 6.4 | 5.4 | 4.8 | 4.0 | 3.4 | 2.8 |
| 6 | 5.5 | 4.6 | 4.0 | 3.4 | 2.9 | 2.4 |
| 8 | 5.5 | 4.6 | 4.0 | 3.1 | 2.6 | 2.2 |
| 12 | 4.7 | 3.9 | 3.4 | 2.7 | 2.6 | 2.0 |
| 20 | 4.0 | 3.4 | 3.0 | 2.4 | 2.0 | 1.8 |
| 22 | 3.9 | 3.3 | 2.9 | 2.3 | 1.9 | 1.7 |
| 26 | 3.6 | 3.0 | 2.6 | 2.2 | 1.8 | 1.6 |
| 30 | 3.6 | 3.0 | 2.6 | 2.1 | 1.7 | 1.5 |
J1000 series products line-up
J1100 Housing - Single row type

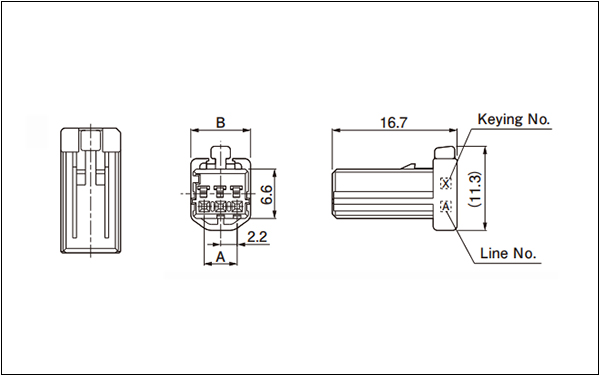

Receptacle housing

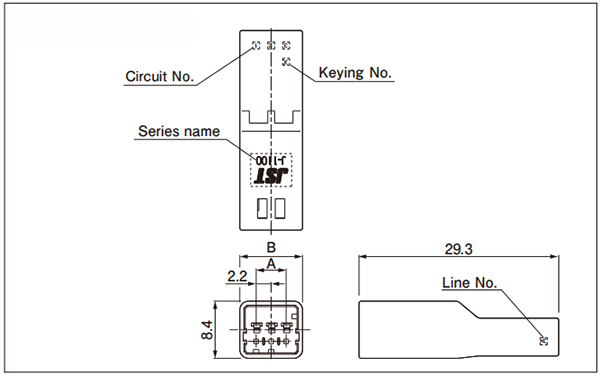

Tab housing
| Housing type | No. of circuits | Keying | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||||
| Receptacle | 3 | X | J11SF-03V-KX | 4.4 | 8.0 | 1200 |
| Y | J11SF-03V-KY | 4.4 | 8.0 | 1200 | ||
| Tab | 3 | X | J11SFM-03V-KX | 4.4 | 9.2 | 500 |
| Y | - | - | - | - | ||
Material and Finish: Glass-filled PBT, UL94V-0, black
J1100 Housing - Dual row type

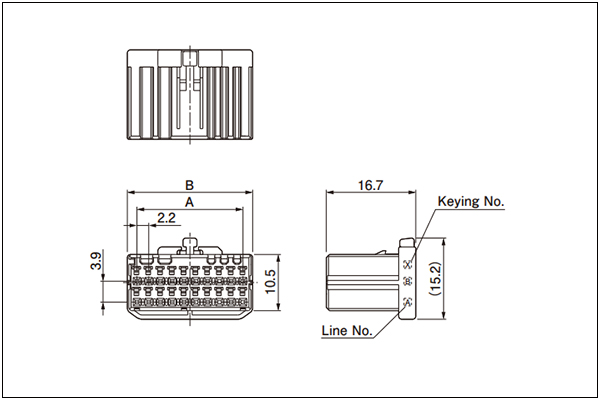

Receptacle housing
Tab housing
| Housing type | No. of circuits | Keying | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||||
| Receptacle | 6 | X | J11DF-06V-KX | 4.4 | 8.0 | 800 |
| Y | J11DF-06V-KY | 4.4 | 8.0 | 800 | ||
| 8 | X | J11DF-08V-KX | 6.6 | 10.2 | 500 | |
| Y | J11DF-08V-KY | 6.6 | 10.2 | 500 | ||
| 12 | X | J11DF-12V-KX | 11.0 | 14.6 | 400 | |
| Y | J11DF-12V-KY | 11.0 | 14.6 | 400 | ||
| 20 | X | J11DF-20V-KX | 19.8 | 23.4 | 250 | |
| Y | J11DF-20V-KY | 19.8 | 23.4 | 250 | ||
| 22 | X | *J11DF-22V-KX | 22.0 | 25.6 | 250 | |
| Y | *J11DF-22V-KY | 22.0 | 25.6 | 250 | ||
| 26 | X | *J11DF-26V-KX | 26.4 | 30.0 | 200 | |
| Y | *J11DF-26V-KY | 26.4 | 30.0 | 200 | ||
| 30 | X | *J11DF-30V-KX | 30.8 | 34.4 | 180 | |
| Y | *J11DF-30V-KY | 30.8 | 34.4 | 180 | ||
| Tab | 6 | X | J11DFM-06V-KX | 4.4 | 9.2 | 400 |
| Y | J11DFM-06V-KY | 4.4 | 9.2 | 400 | ||
| 8 | X | J11DFM-08V-KX | 6.6 | 11.4 | 300 | |
| Y | — | — | — | — | ||
| 12 | X | J11DFM-12V-KX | 11 | 15.8 | 200 | |
| Y | — | — | — | — | ||
| 20 | X | J11DFM-20V-KX | 19.8 | 24.6 | 150 | |
| Y | — | — | — | — | ||
| 26 | X | *J11DFM-26V-KX | 26.4 | 31.2 | 120 | |
| Y | *J11DFM-26V-KY | 26.4 | 31.2 | 120 | ||
Notes:
- Material and Finish: Glass-filled PBT, UL94V-0, black
- ＊ Marked products are unlisted in UL.
Receptable Terminal

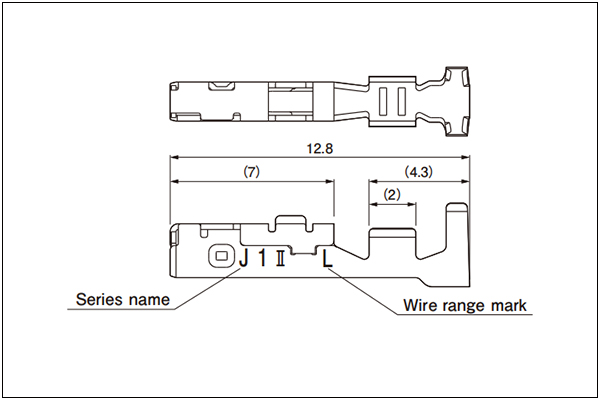

Gold-plated terminal
Tin-plated terminal
| Strip contact Model No. |
Series | Applicable wire | insulation O.D. (mm) |
Q'ty/ reel |
||
| Size | mm² | AWG# | ||||
| SF1F-002GC-P0.6 | Gold (0.2μm) | M | 0.08～0.2 | 28～24 | 0.88~1.43 | 6000 |
| SF1F-002T-P0.6 | Tin | |||||
| SF1F-01GC-P0.6 | Gold (0.2μm) | ME | 0.2～0.5 | 24～20 | 1.30~1.90 | 5500 |
| SF1F-21GC-P0.6 | Gold(0.2μm) | L | 0.3～0.8 | 22~18 | 1.50~2.10 | 5000 |
| SF1F-21T-P0.6 | Tin | |||||
Material and Finish: Copper alloy, nickel-undercoated, selective gold-plated and Tin-plated

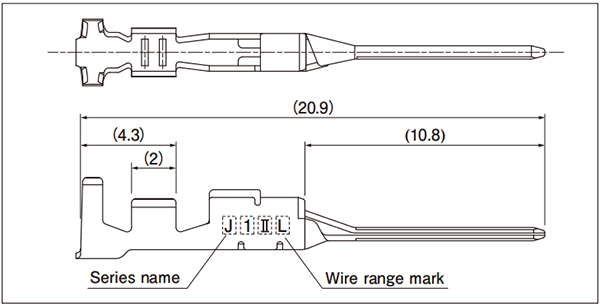

Tab Terminal
| Strip contact Model No. |
Series | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | ||
| Size | mm² | AWG# | ||||
| SF1M-002GC-M0.6A | Gold (0.2μm) | M | 0.08～0.2 | 28~24 | 0.88~1.43 | 6000 |
| SF1M-002T-M0.6A | Tin | |||||
| SF1M-01GC-M0.6A | Gold (0.2μm) | ME | 0.2～0.5 | 24～20 | 1.30~1.90 | 5500 |
| SF1M-21GC-M0.6A | Gold (0.2μm) | L | 0.3~0.8 | 22~18 | 1.50~2.10 | 5000 |
| SF1M-21T-M0.6A | Tin | |||||
Material and Finish: Copper alloy, nickel-undercoated, selective gold-plated and Tin-plated

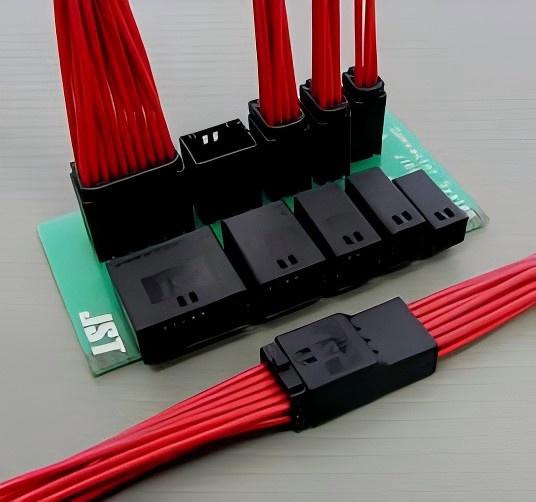

Support Custom Wiring Harness Assembly
- Connector: 3, 6, 8, 12, 20, 22, 26, 30pin
- Wire gauge: 18 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
