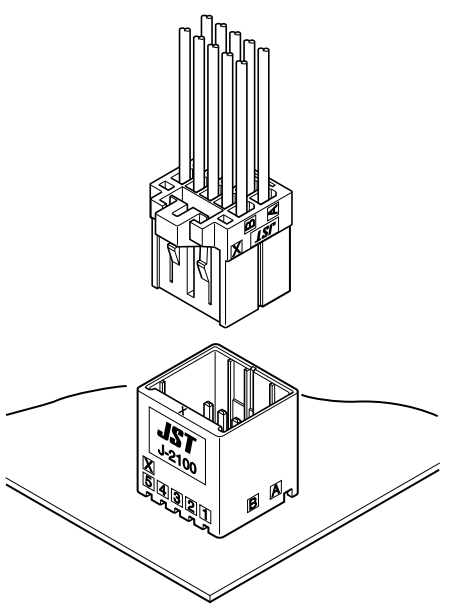

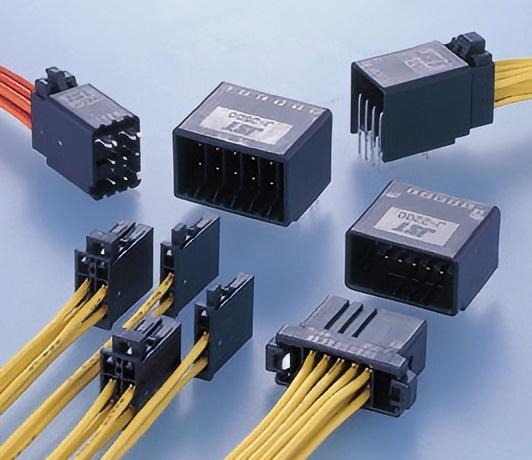

JST JFA Connector J2000 Series
The JST JFA Connector J2000 Series is a versatile solution designed to support the miniaturization of electronic equipment. It offers two locking options — center locking and side locking — allowing for flexible application-specific usage. The series features a unified design for receptacle and tab contacts, ensuring compatibility across all JFA J2000 variants. With a dual-spring construction, these connectors deliver enhanced contact stability and secure engagement. The inclusion of a housing lance provides reliable terminal retention, while the distinct "click feeling" offers tactile feedback to confirm proper connection. This combination of features ensures high performance, ease of use, and adaptability for compact electronic devices.
Specifications
- Connector type: Wire-to-board/Wire-to-wire, Disconnectable crimp style
- Connector pitch: 2.5/3.5 mm pitch
- Voltage rating:
- 125 V AC/DC…J2300 Series
- 250 V AC/DC…J2100, J2200, J2400, J2500, J2800 Series
- Temperature range: -55℃ to +105℃ (including temperature rise in applying electrical current)
- Applicable wire: AWG #28 to #20
- Applicable PC board thickness: 1.6 mm
- Current rating: AC/DC (Unit: A)
| No. of circuits | Wire size(AWG) | ||||
| #20 | #22 | #24 | #26 | #28 | |
| 3 | 4.6 | 4.4 | 3.4 | 3.0 | 2.4 |
| 4 | 4.5 | 4.3 | 3.2 | 2.8 | 2.3 |
| 6 | 4.3 | 4.1 | 2.8 | 2.6 | 2.1 |
| 8 | 4.1 | 3.6 | 2.6 | 2.3 | 1.9 |
| 10 | 3.9 | 3.4 | 2.5 | 2.2 | 1.8 |
| 12 | 3.6 | 3.1 | 2.4 | 2.0 | 1.6 |
| 16 | 3.2 | 2.8 | 2.2 | 1.8 | 1.4 |
| 20 | 2.9 | 2.5 | 2.1 | 1.7 | 1.3 |
| 30 | 2.8 | 2.4 | 2.0 | 1.6 | 1.2 |
| 40 | 2.7 | 2.3 | 1.9 | 1.5 | 1.1 |

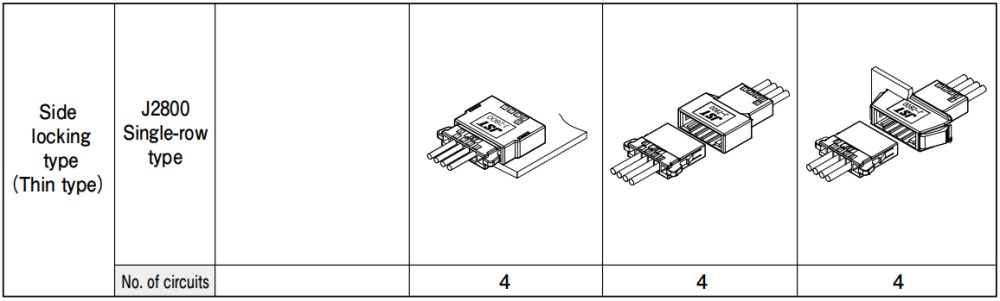

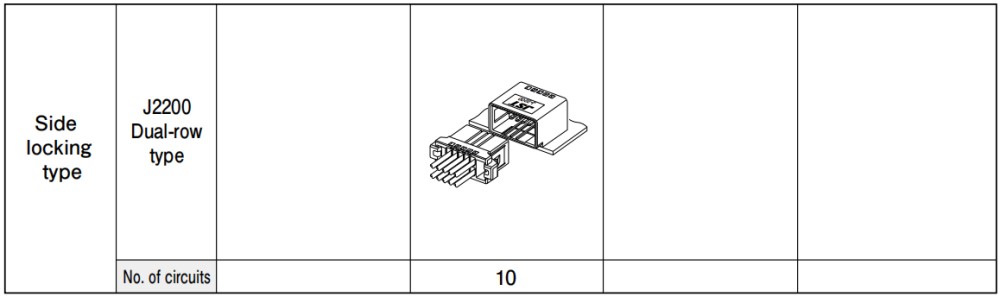

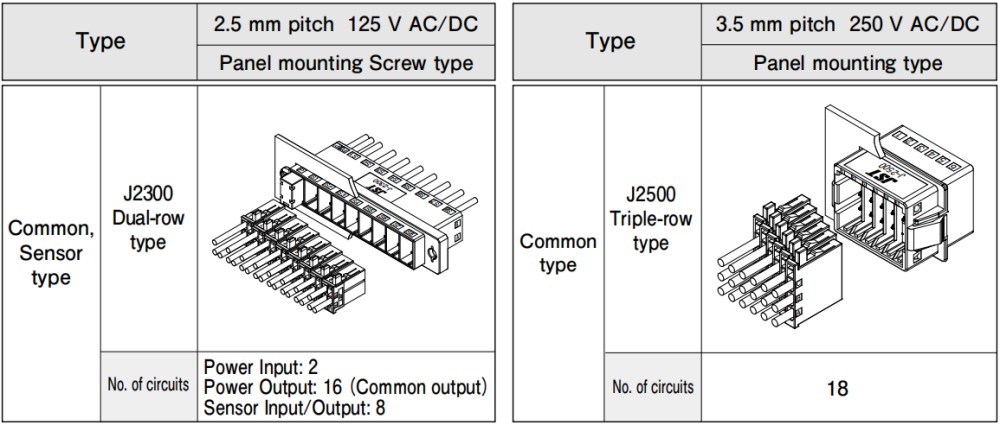

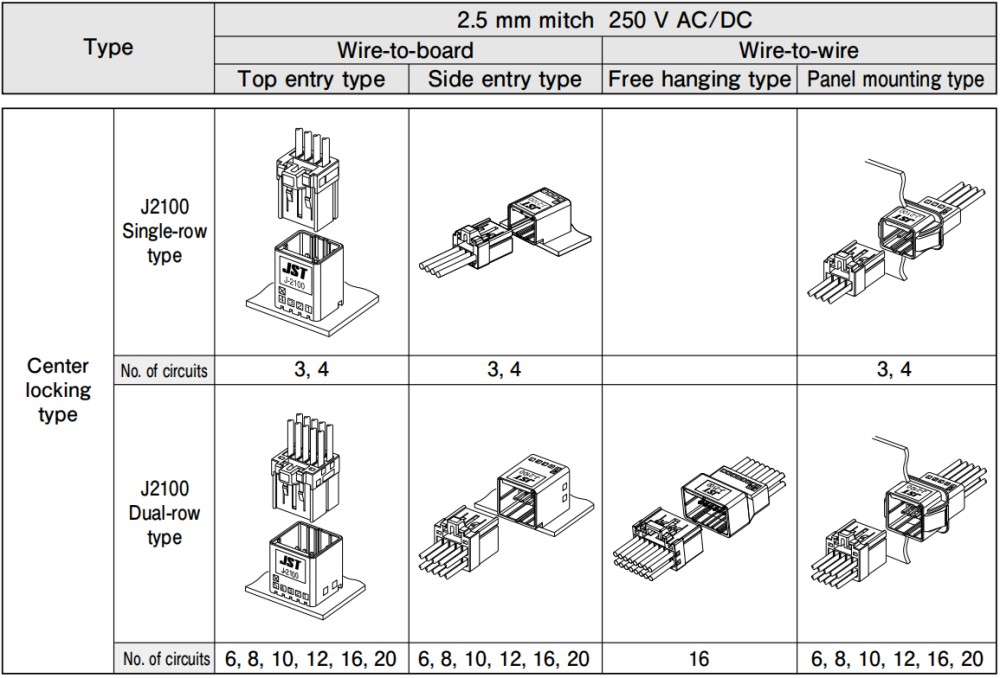

J2000 Series products line-up
J2000 Series Terminal

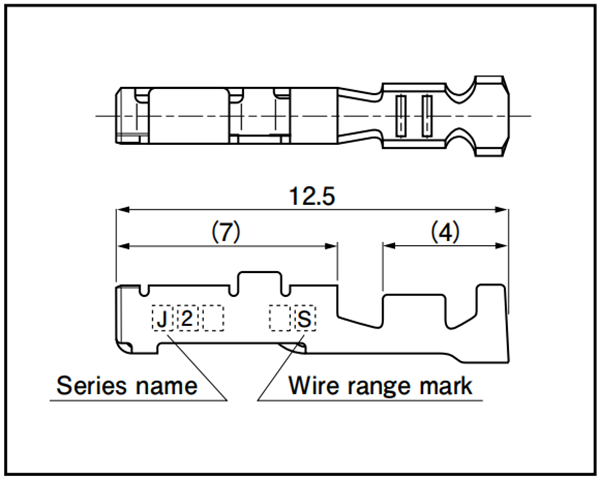

Receptacle Terminal
| Model No. | Applicable wire | Insulation O.D (mm) | Q'ty | ||||
| Strip contact | Loose piece | Wire range mark | mm² | AWG# | Reel | Box Loose piece) | |
| SJ2F-002(*)-P1.0 | 一 | S | 0.08~0.20 | 28~24 | 0.88~1.43 | 6000 | - |
| SJ2F-01(*)-P1.0 | 一 | M | 0.20~0.50 | 24~20 | 1.11~1.53 | 6000 | - |
| SJ2F-21(*)-P1.0 | BJ2F-21(*)-P1.0 | L | 0.30~0.75 | 22~20 | 1.30~1.90 | 5000 | 2000 |
Notes:
- Material and Finish: Copper alloy (superior conductivity), nickel-undercoated, selective gold-plated.
- Surface finish (*)：
- GF...Nickel-undercoated, 0.38 μm selective gold-plated
- GI ...Nickel-undercoated, 0.76 μm selective gold-plated
- Please note that the above general specifications may differ from the safety standards.
- RoHS2 compliance.
Tab Terminal

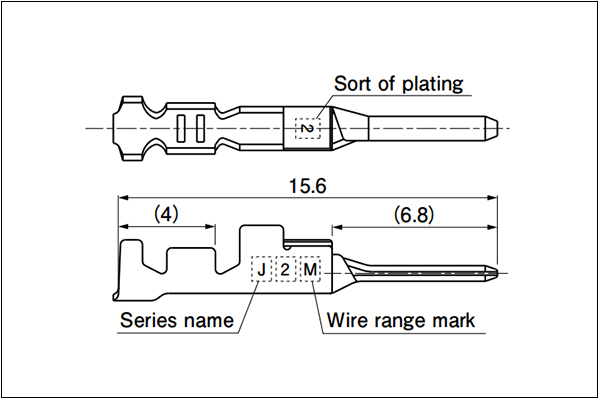

Normal type

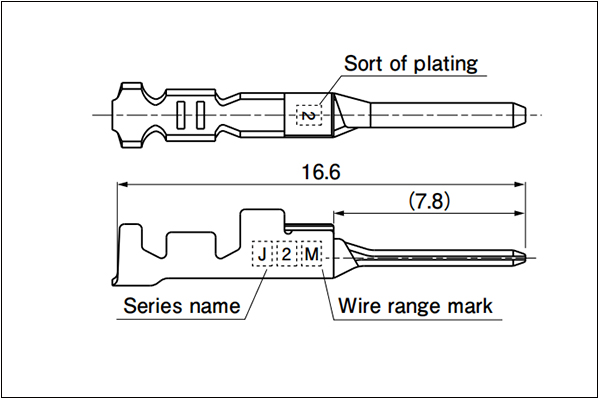

Sequential type
| Model No. | Applicable wire | Insulation0.D (mm) | Q'ty | |||||
| Strip contact | Loose piece | Wire range mark | mm² | AWG# | Reel | Box (Loose piece) | ||
| Normal | SJ2M-002(*)-M1.0N | 一 | S | 0.08～0.20 | 28~24 | 0.88~1.43 | 5500 | - |
| SJ2M-01(*)-M1.0N | 一 | M | 0.20~0.50 | 24~20 | 1.11~1.53 | 5500 | - | |
| SJ2M-21(*)-M1.0N | BJ2M-21(*)-M1.0N | L | 0.30～0.75 | 22~20 | 1.30~1.90 | 5000 | 2000 | |
| Sequential | SJ2M-01(*)-M1.0S | 一 | M | 0.20~0.50 | 24~20 | 1.11~1.53 | 5500 | - |
| SJ2M-21(*)-M1.0S | BJ2M-21(*)-M1.0S | L | 0.30~0.75 | 22~20 | 1.30~1.90 | 5000 | 2000 | |
Notes:
- Material and Finish: Copper alloy (superior conductivity), nickel-undercoated, selective gold-plated
- Surface finish (*)：
- GF...Nickel-undercoated, 0.38 μm selective gold-plated
- GI ...Nickel-undercoated, 0.76 μm selective gold-plated
- Please note that the above general specifications may differ from the safety standards.
- RoHS2 compliance

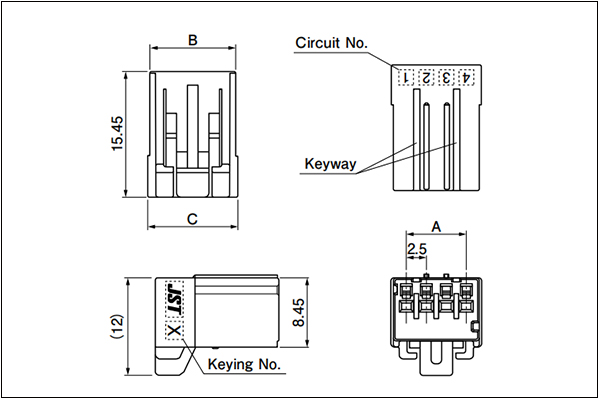

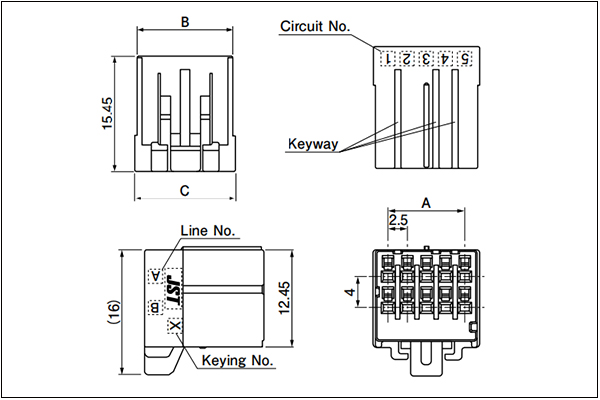

J2100 Receptacle Housing (Long-key type)
Single row type
Dual row type
| Type | No. of circuits | Keying | Model No. | Dimensions (mm) | Q'ty/bag | ||
| A | B | C | |||||
| Single-row type | 3 | X | J21SF-03V-KX-L | 5.0 | 8.3 | 8.9 | 400 |
| Y | J21SF-03V-KY-L | 5.0 | 8.3 | 8.9 | 400 | ||
| 4 | X | J21SF-04V-KX-L | 7.5 | 10.8 | 11.4 | 400 | |
| Y | J21SF-04V-KY-L | 7.5 | 10.8 | 11.4 | 400 | ||
| Dual-row type | 6 | X | J21DF-06V-KX-L | 5.0 | 8.3 | 8.9 | 300 |
| Y | J21DF-06V-KY-L | 5.0 | 8.3 | 8.9 | 300 | ||
| 8 | X | J21DF-08V-KX-L | 7.5 | 10.8 | 11.4 | 300 | |
| Y | J21DF-08V-KY-L | 7.5 | 10.8 | 11.4 | 300 | ||
| 10 | X | J21DF-10V-KX-L | 10.0 | 13.3 | 13.9 | 200 | |
| Y | J21DF-10V-KY-L | 10.0 | 13.3 | 13.9 | 200 | ||
| 12 | X | J21DF-12V-KX-L | 12.5 | 15.8 | 16.4 | 200 | |
| Y | J21DF-12V-KY-L | 12.5 | 15.8 | 16.4 | 200 | ||
| 16 | X | J21DF-16V-KX-L | 17.5 | 20.8 | 21.4 | 200 | |
| Y | J21DF-16V-KY-L | 17.5 | 20.8 | 21.4 | 200 | ||
| 20 | X | J21DF-20V-KX-L | 22.5 | 25.8 | 26.4 | 100 | |
| Y | J21DF-20V-KY-L | 22.5 | 25.8 | 26.4 | 100 | ||
Material and Finish : Glass-filled PBT, UL94V-0, black

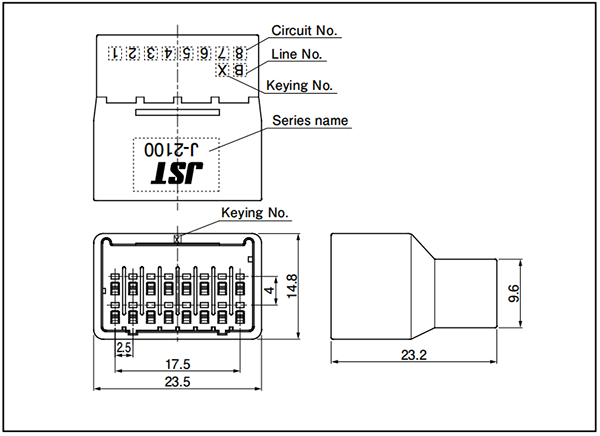

J2100 Tab housing (Free hanging type) Tab housing (Free hanging type)Tab housing (Free hanging type)
| No. of circuits | Keying | Model No. | Q'ty/bag |
| 16 | X | J21DFM-16V-KX | - |
| Y | J21DFM-16V-KY | - |
Material and Finish: Glass-filled PBT, UL94V-0, black

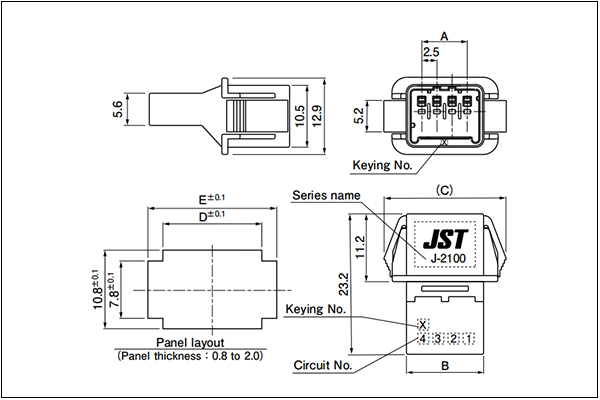

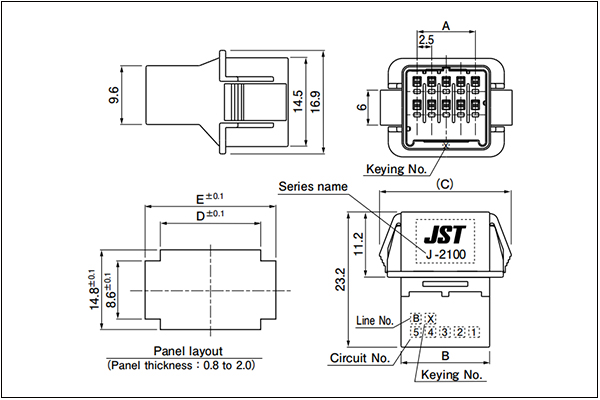

J2100 Tab housing (Panel mounting type)
Dual Row type
Single Row type
| Type | No. of circuits | Keying | Model No. | Dimensions (mm) | Q'ty/bag | ||||
| A | B | C | D | E | |||||
| Single-roW type |
3 | X | J21SPM-03V-KX | 5.0 | 10.2 | 17.6 | 10.5 | 15.2 | 400 |
| Y | J21SPM-03V-KY | 5.0 | 10.2 | 17.6 | 10.5 | 15.2 | 400 | ||
| 4 | X | J21SPM-04V-KX | 7.5 | 12.7 | 20.1 | 13.0 | 17.7 | 400 | |
| Y | J21SPM-04V-KY | 7.5 | 12.7 | 20.1 | 13.0 | 17.7 | 400 | ||
| Dual-roW type |
6 | X | J21DPM-06V-KX | 5.0 | 10.2 | 17.6 | 10.5 | 15.2 | 300 |
| Y | J21DPM-06V-KY | 5.0 | 10.2 | 17.6 | 10.5 | 15.2 | 300 | ||
| 8 | X | J21DPM-08V-KX | 7.5 | 12.7 | 20.1 | 13.0 | 17.7 | 200 | |
| Y | J21DPM-08V-KY | 7.5 | 12.7 | 20.1 | 13.0 | 17.7 | 200 | ||
| 10 | X | J21DPM-10V-KX | 10.0 | 15.2 | 22.6 | 15.5 | 20.2 | 200 | |
| Y | J21DPM-10V-KY | 10.0 | 15.2 | 22.6 | 15.5 | 20.2 | 200 | ||
| 12 | X | J21DPM-12V-KX | 12.5 | 17.7 | 25.1 | 18.0 | 22.2 | 200 | |
| Y | J21DPM-12V-KY | 12.5 | 17.7 | 25.1 | 18.0 | 22.2 | 200 | ||
| 16 | X | J21DPM-16V-KX | 17.5 | 22.7 | 30.1 | 23.0 | 27.7 | 200 | |
| Y | J21DPM-16V-KY | 17.5 | 22.7 | 30.1 | 23.0 | 27.7 | 200 | ||
| 20 | X | J21DPM-20V-KX | 22.5 | 27.7 | 35.1 | 28.0 | 32.7 | 150 | |
| Y | J21DPM-20V-KY | 22.5 | 27.7 | 35.1 | 28.0 | 32.7 | 150 | ||
Material and Finish: Glass-filled PBT, UL94V-0, black

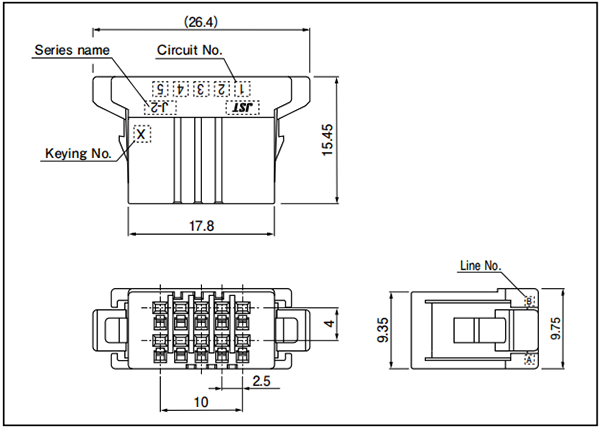

J2200 Receptacle Housing
| No. of circuits | Keying | Model No. | Q'ty/bag |
| 10 | X | J22DF-10V-KX | 250 |
| Y | J22DF-10V-KY | 250 |
Material and finish: Glass-filled PBT, UL94V-0, black

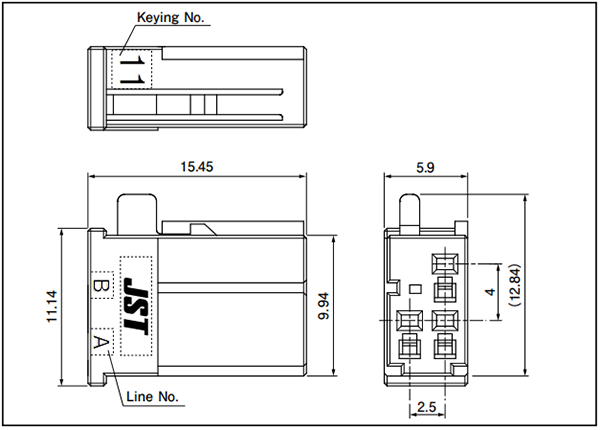

J2300 Receptacle Housing
| No. of circuits | Keying | Model No. | Q'ty/box |
| 3 | S11 | J23DF-03V-KS11 | 784 |
| S12 | J23DF-03V-KS12 | ||
| S13 | J23DF-03V-KS13 | ||
| S14 | J23DF-03V-KS14 | ||
| S15 | J23DF-03V-KS15 | ||
| S16 | J23DF-03V-KS16 | ||
| S17 | J23DF-03V-KS17 | ||
| S18 | J23DF-03V-KS18 | ||
| S21 | J23DF-03V-KS21 | ||
| S22 | J23DF-03V-KS22 |
Material and finish: Glass-filled PBT, UL94V-0, black

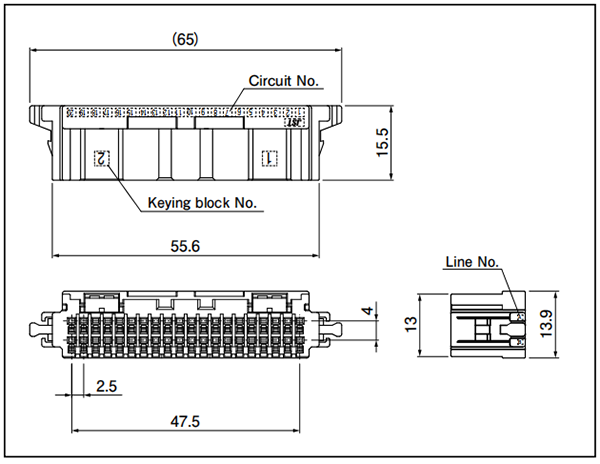

J2400 Receptacle housing (Side locking type)
Notes:
- No. of Circuits: 40
- Model No.: J24DFS-40V-KE
- Q'ty/bag: 100pcs
- Material and Finish: Glass-filled PBT, UL94V-0, black
- RoHS2 compliance
- Unlisted in UL/TÜV.

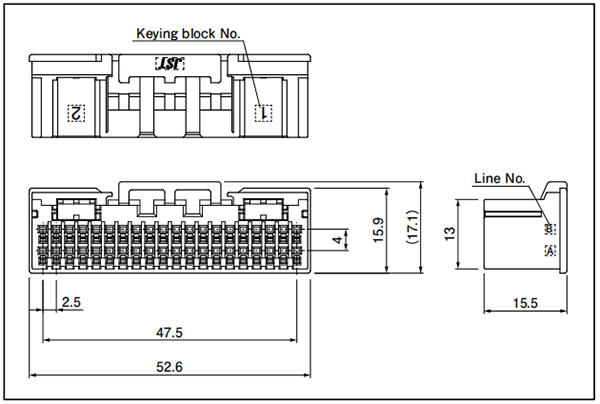

J2400 Receptacle housing (Center locking type)
Notes:
- No. of Circuits: 40
- Model No.: J24DFC-40V-KE
- Q'ty/bag: 100pcs
- Material and Finish: Glass-filled PBT, UL94V-0, black
- RoHS2 compliance
- Unlisted in UL/TÜV.

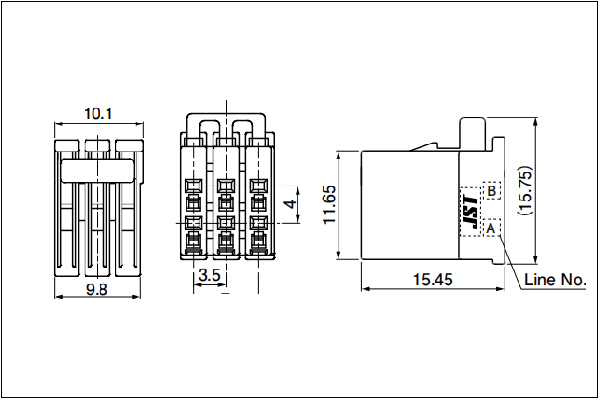

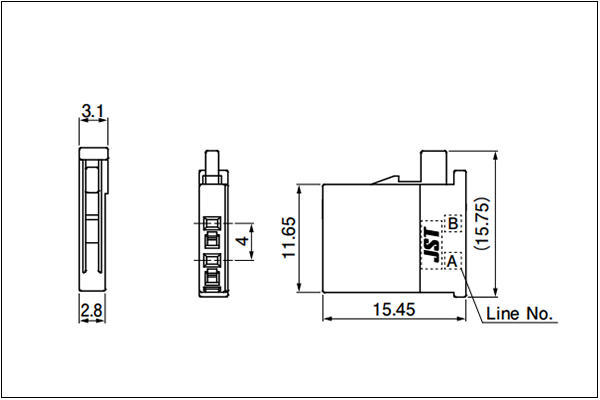

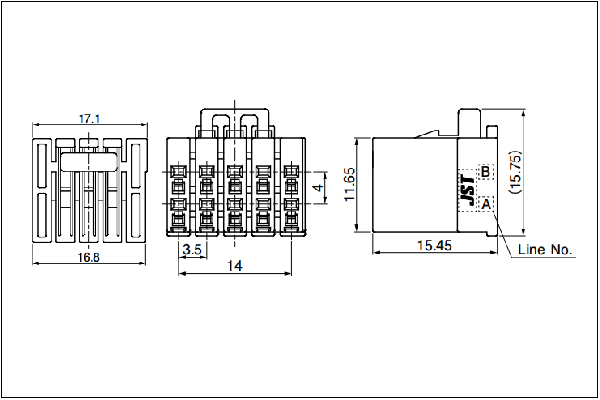

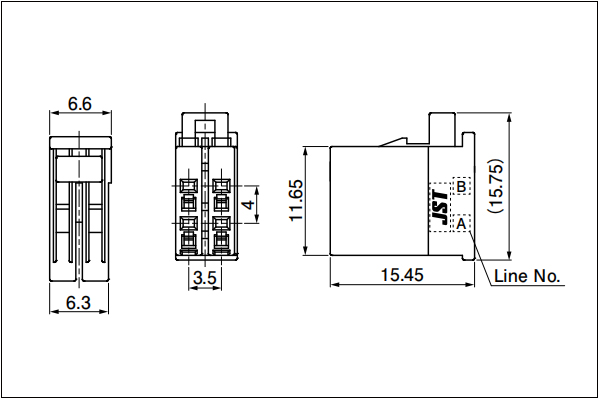

J2500 Receptacle housing
2 circuits
4 circuits
6 circuits
10 circuits
| No. of circuits | Keying | Model No. | Q'ty/bag |
| 2 | - | J25MF-02V-K | 800 |
| 4 | - | J25MF-04V-K | 400 |
| 6 | - | J25MF-06V-K | 300 |
| 10 | - | J25MF-10V-K | 200 |
Material and Finish: Glass-filled PBT, UL94V-0, black

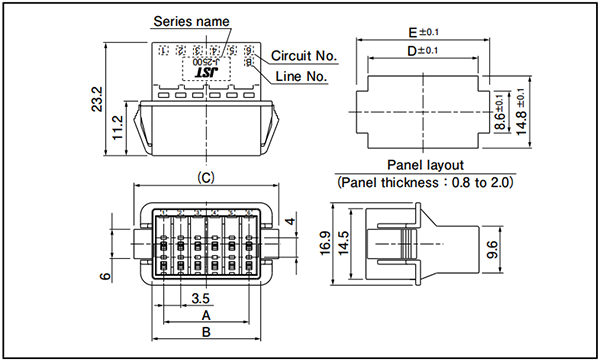

J2500 Tab housing (Panel mounting type)
| No. of circuits | Keying | Model No. | Q'ty/bag |
| 2 | - | J25MF-02V-K | 800 |
| 4 | - | J25MF-04V-K | 400 |
| 6 | - | J25MF-06V-K | 300 |
| 10 | - | J25MF-10V-K | 200 |
Material and Finish: Glass-filled PBT, UL94V-0, black

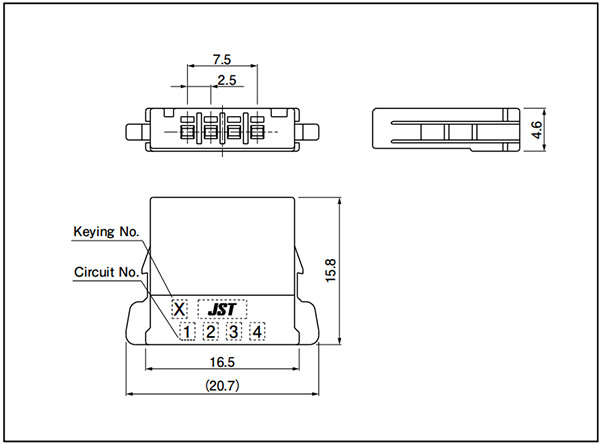

J2800 Receptacle housing
Notes:
- No. of Circuits: 4
- Keying: X
- Model No.: J28SF-04V-KX
- Q'ty/bag: 1000pcs
- Material and Finish: Glass-filled PBT, UL94V-0, black
- RoHS2 compliance

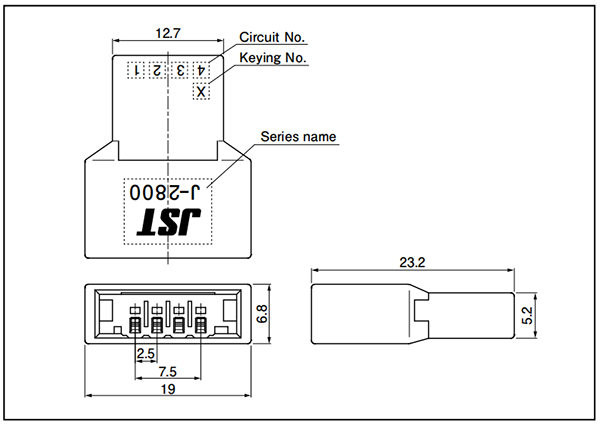

J2800 Tab housing (Free hanging type)
Notes:
- No. of Circuits: 4
- Keying: X
- Model No.: J28SFM-04V-KX
- Q'ty/bag: 500pcs
- Material and Finish: Glass-filled PBT, UL94V-0, black
- RoHS2 compliance

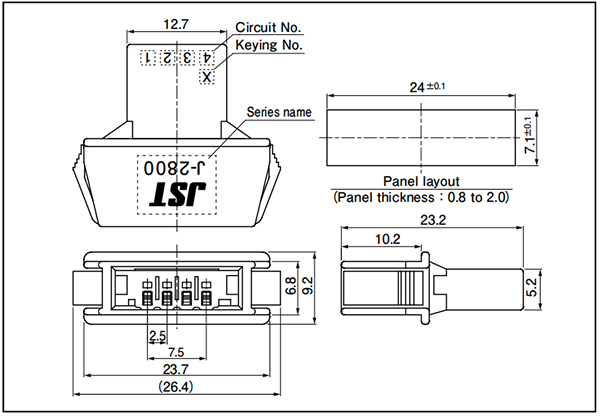

J2800 Tab housing (Panel mounting type)
Notes:
- No. of Circuits: 4
- Keying: X
- Model No.: J28SPM-04V-KX
- Q'ty/bag: 180pcs
- Material and Finish: Glass-filled PBT, UL94V-0, black
- RoHS2 compliance
- Unlisted in UL.
Support Custom Wiring Harness Assembly
- Connector: 2 - 40pin
- Wire gauge: 20 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
