JST JFA Connector J320S Series, Custom Wire Assembly

JST JFA Connector



The JST JFA Connector series is designed to meet the demands of signal and power supply circuits in industrial applications such as factory automation, heavy electrical machinery, and other general industrial equipment. This connector line offers a versatile range of housing options, yet features a standardized contact design to ensure compatibility and simplicity. The use of standardized tooling further enhances its practicality, reducing complexity and costs in assembly. Key features include a reliable double-spring construction for secure contact retention, housing lances for added stability, and a clear tactile click for a confident mating experience. This combination of features ensures robust performance and ease of use across diverse industrial settings.





JFA 320S Series

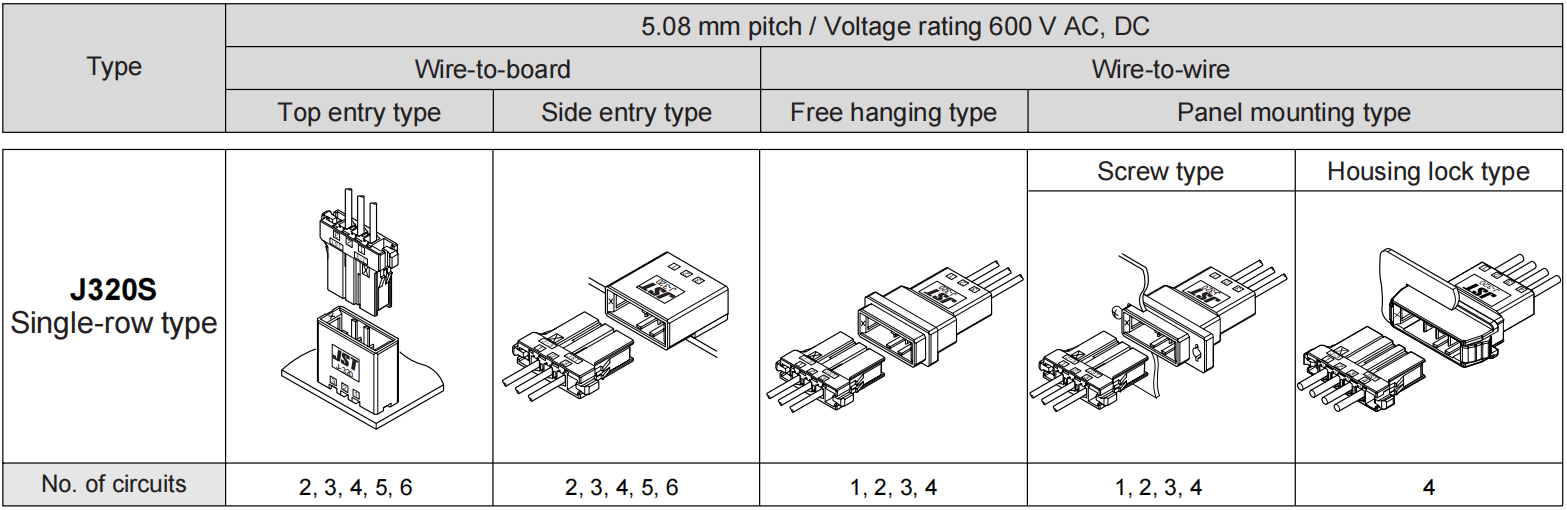

JFA J320S





Specifications



  • Connector type: Wire to Board, Wire to Wire, Disconnectable Crimp style
  • Connector pitch: 5.08mm
  • Voltage rating: 600 V AC, DC
  • Temperature range: -55°C to +105°C (including temperature rise in applying electrical current)
  • Contact resistance: Initial value/ 5 mΩ max, After environmental tests/ 10 mΩ max.
  • Insulation resistance: 1,000 MΩ min.
  • Withstanding voltage: 2,200 VAC/minute
  • Applicable wire: AWG #28 to #14
  • Applicable PC board thickness: 1.6 to 2.4 mm





J320S Receptacle Housing

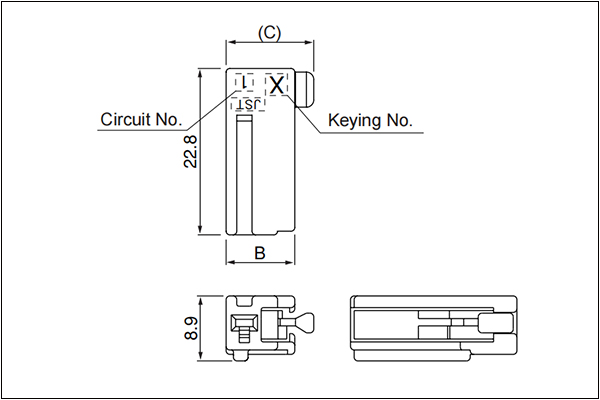

J320S Receptacle housing - Single Circuits

Single Circuits

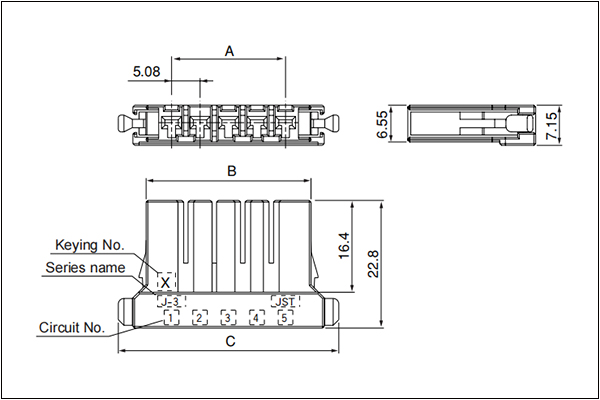

J320S Receptacle housing - 2-6 Circuits

2 to 6 Circuits



Circuits Keying Model No. Dimensions (mm) Q'ty/bag
A B C
1 X F32FSS-01V-KX 9.4 12 200
Y F32FSS-01V-KY 9.4 12 200
2 X F32FSS-02V-KX 5.08 14.16 24.08 200
Y F32FSS-02V-KY 5.08 14.16 24.08 200
3 X F32FSS-03V-KX 10.16 19.24 29.16 200
Y F32FSS-03V-KY 10.16 19.24 29.16 200
4 X F32FSS-04V-KX 15.24 24.32 34.24 200
Y F32FSS-04V-KY 15.24 24.32 34.24 200
5 X F32FSS-05V-KX 20.32 29.4 39.32 200
Y F32FSS-05V-KY 20.32 29.4 39.32 200
6 X F32FSS-06V-KX 25.4 34.48 44.4 100
Y F32FSS-06V-KY 25.4 34.48 44.4 100

Material and Finish: Glass-filled PBT, UL94V-0, black





Tab housing (Free hanging type)

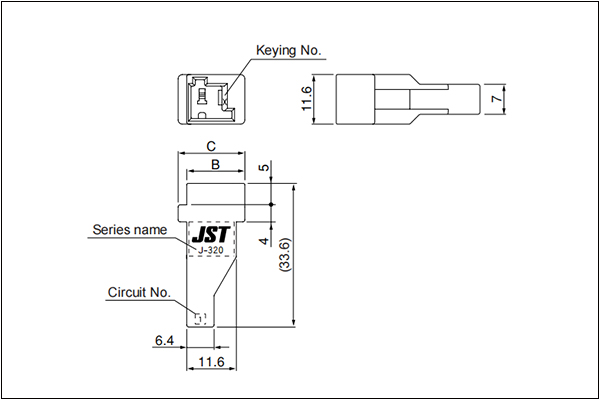

J320S Tab housing (Free hanging type) - Single Circuit

Single Circuit

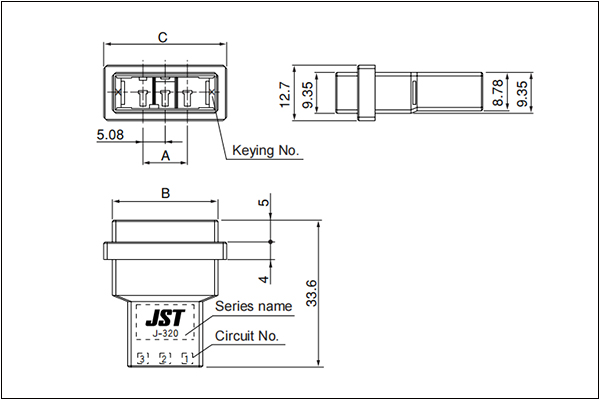

J320S Tab housing (Free hanging type) - 2-4 Circuit

2 to 4 Circuit



Circuits Keying Model No. Dimensions (mm) Q'ty/bag
A B C
1 X F32MSF-01V-KX 13.6 15.6 150
Y F32MSF-01V-KY 13.6 15.6 150
2 X F32MSF-02V-KX 5.08 19.08 23.03 200
Y F32MSF-02V-KY 5.08 19.08 23.03 200
3 X F32MSF-03V-KX 10.16 24.16 28.11 200
Y F32MSF-03V-KY 10.16 24.16 28.11 200
4 X F32MSF-04V-KX 15.24 29.24 33.19 200
Y F32MSF-04V-KY 15.24 29.24 33.19 200

Material and Finish: Glass-filled PBT, UL94V-0, black





Tab housing (Panel mounting type)

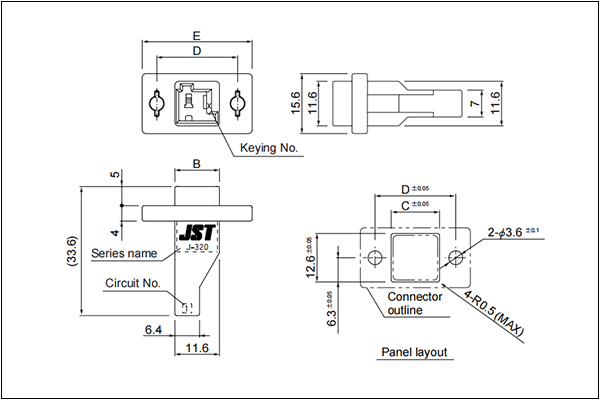

J320S Tab housing (Panel mounting type) - Single Circuits

Single Circuits

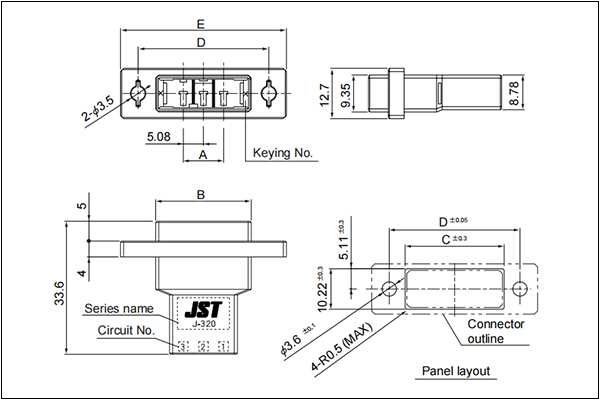

J320S Tab housing (Panel mounting type) - 2-4 Circuits

2 to 4 Circuits



Circuits Keying Model No. Dimensions    (mm) Q'ty/bag
A B C D E
1 X F32MSP-01V-KX - 11.6 12.6 21 28.6 150
Y F32MSP-01V-KY - 11.6 12.6 21 28.6 150
2 X F32MSP-02V-KX 5.08 19.08 20 28 36.83 200
Y F32MSP-02V-KY 5.08 19.08 20 28 36.83 200
3 X F32MSP-03V-KX 10.16 24.16 25 33 41.91 200
Y F32MSP-03V-KY 10.16 24.16 25 33 41.91 200
4 X F32MSP-04V-KX 15.24 29.24 30 38 46.99 200
Y F32MSP-04V-KY 15.24 29.24 30 38 46.99 200

Note

  • Material and Finish: Glass-filled PBT, UL94V-0, black.
  • Punch holes in the panel. Burrs must be removed.
  • The strength of the panel must be considered when punching two or more holes.
  • The connector must be inserted from the same side as the hole is punched.
  • RoHS2 compliance.

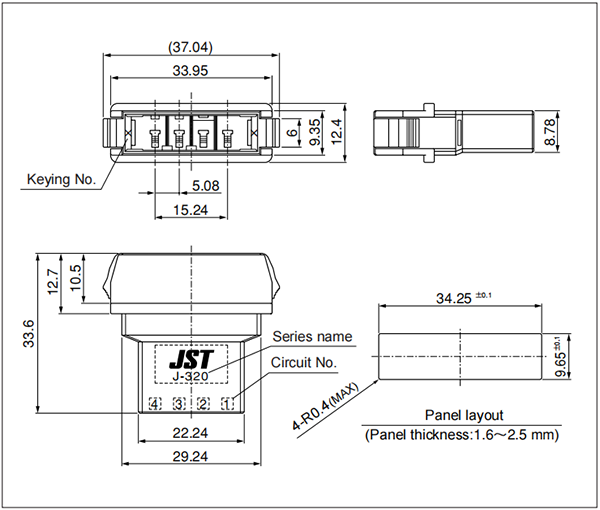

Tab housing (Panel mounting type Housing lock type)



J320S Tab housing (Panel mounting type Housing lock type)

Spcs:

  • Circuits: 4
  • Keying: X
  • Model No.: F32MSPL-04V-KX
  • Q’ty/bag: 90pcs
  • Material and Finish: Glass-filled PBT, UL94V-0, black
  • RoHS2 compliance
  • Punch holes in the panel. Burrs must be removed.
  • The strength of the panel must be considered when punching two or more holes.
  • The connector must be inserted from the same side as the hole is punched.
  • Not TÜV approved.





Terminal



Receptacle contact

Receptacle contact

Tab contact

Tab contact



Terminal Type Model No. Applicable wire Insulation 0.D
(mm)
Q'ty
Strip contact Loose piece Size mm² AWG# reel box(Loose piece)
Receptacle SF3F-002(*)-P2.0 BF3F-002(*)-P2.0 S 0.08~0.20 28~24 0.8~1.4 3700 1000
SF3F-01(*)-P2.0 BF3F-01(*)-P2.0 M 0.20~0.50 24~20 1.2~2.6 3700 1000
SF3F-41(*)-P2.0 LF3F-41(*)-P2.0 L 0.50~1.25 20~16 1.8~2.8 3200 1000
SF3F-71(*)-P2.0 BF3F-71(*)-P2.0 2L 1.25~2.0 16~14 2.4~3.4 3200 1000
Tab SF3M-002(*)-M2.0N BF3M-002(*)-M2.0N S 0.08~0.20 28~24 0.8~1.4 3500 1000
SF3M-01(*)-M2.0N BF3M-01(*)-M2.0N M 0.20~0.50 24~20 1.2~2.6 3500 1000
SF3M-41(*)-M2.0N LF3M-41(*)-M2.0N L 0.50~1.25 20~16 1.8~2.8 3300 1000
SF3M-71(*)-M2.0N BF3M-71(*)-M2.0N 2L 1.25~2.0 16~14 2.4~3.4 3200 1000

Notes:

  • Material and Finish: Copper alloy (superior conductivity), nickel-undercoated, selective gold-plated, tin-plated (reflow treatment)
  • Finish (*):
    • GF...Nickel-undercoated, 0.38μm selective gold-plated
    • GI....Nickel-undercoated, 0.76μm selective gold-plated
    • T......Tin-plated (reflow treatment)

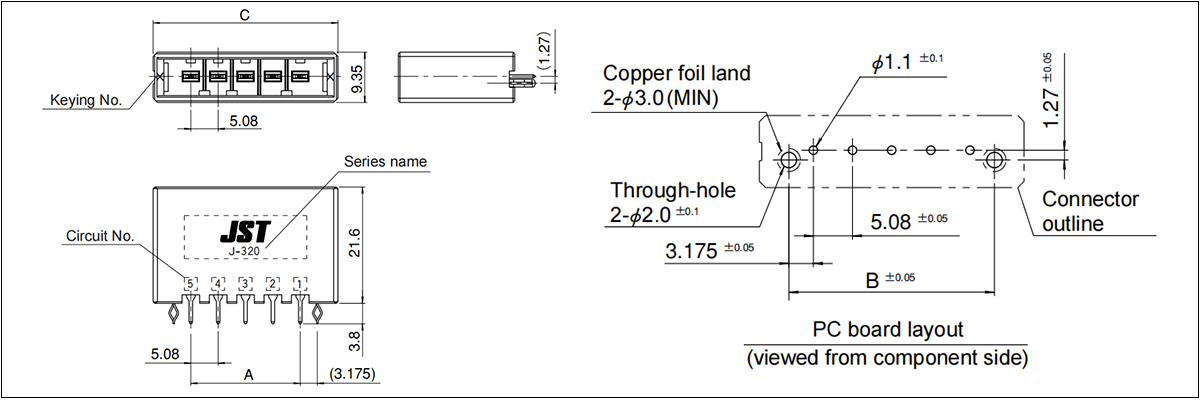

Header (Top entry type)



Header (Top entry type)

Circuits Keying Model No. Dimensions (mm) Q'ty/box
A B C
2 X B02B-F32SK-GGXR 5.08  11.43  19.08  240
Y B02B-F32SK-GGYR 5.08  11.43  19.08  240
3 X B03B-F32SK-GGXR 10.16  16.51  24.16  200
Y B03B-F32SK-GGYR 10.16  16.51  24.16  200
4 X B04B-F32SK-GGXR 15.24  21.59  29.24  160
Y B04B-F32SK-GGYR 15.24  21.59  29.24  160
5 X B05B-F32SK-GGXR 20.32  26.67  34.32  140
Y B05B-F32SK-GGYR 20.32  26.67  34.32  140
6 X B06B-F32SK-GGXR 25.40  31.75  39.40  120
Y B06B-F32SK-GGYR 25.40  31.75  39.40  120

Material and Finish

  • Tab contact: Copper alloy, nickel-undercoated, selective gold-plated
  • Housing: Glass-filled PBT, UL94V-0, black
  • Reinforcement: Copper alloy, nickel-undercoated, selective gold-plated

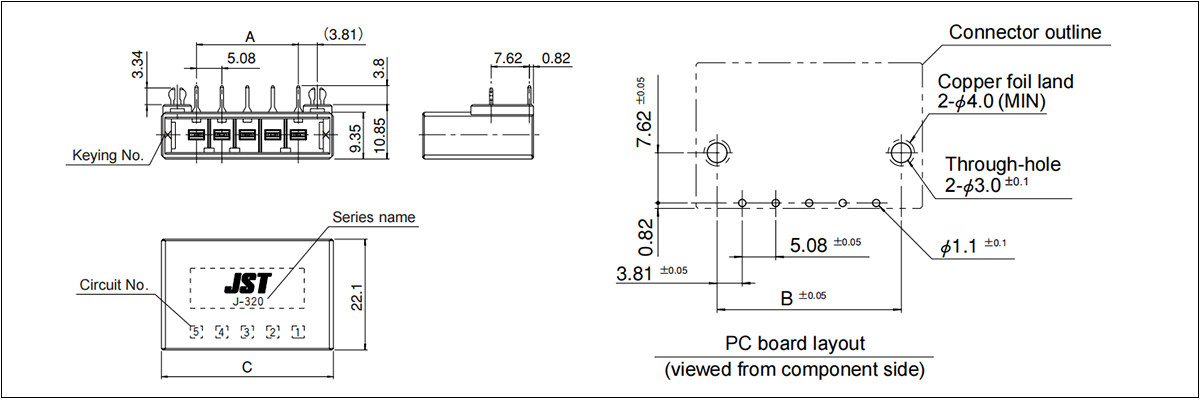

Header (Side entry type)



Header (Side entry type)

Circuits Keying Model No. Dimensions (mm) Q'ty/box
A B C
2 X S02B-F32SK-GGXR 5.08  12.70  19.08  180
Y S02B-F32SK-GGYR 5.08  12.70  19.08  180
3 X S03B-F32SK-GGXR 10.16  17.78  24.16  150
Y S03B-F32SK-GGYR 10.16  17.78  24.16  150
4 X S04B-F32SK-GGXR 15.24  22.86  29.24  120
Y S04B-F32SK-GGYR 15.24  22.86  29.24  120
5 X S05B-F32SK-GGXR 20.32  27.94  34.32  105
Y S05B-F32SK-GGYR 20.32  27.94  34.32  105
6 X S06B-F32SK-GGXR 25.40  33.02  39.40  90
Y S06B-F32SK-GGYR 25.40  33.02  39.40  90

Material and Finish

  • Tab contact: Copper alloy, nickel-undercoated, selective gold-plated
  • Housing: Glass-filled PBT, UL94V-0, black
  • Reinforcement: Copper alloy, nickel-undercoated, selective gold-plated

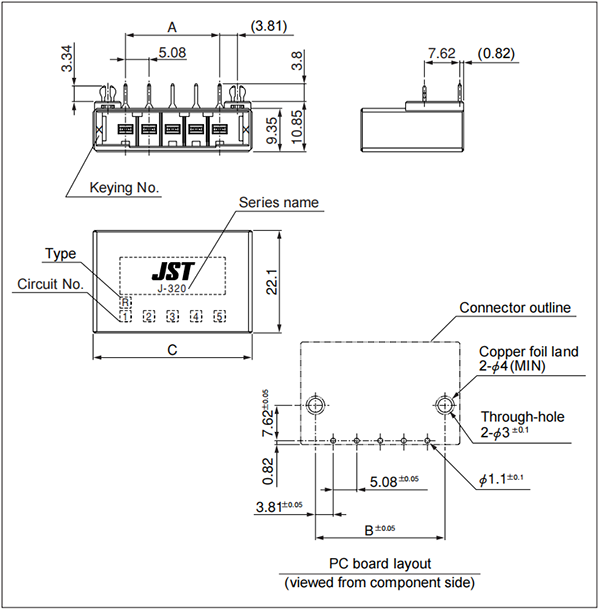

Header (Side entry type Reverse type)



Header (Side entry type Reverse type)

Circuits Keying Model No. Dimensions (mm) Q'ty/box
A B C
5 X SR05B-F32SK-GGXR 20.32 27.94 34.32 105
6 X SRO6B-F32SK-GGXR 25.4 33.02 39.4 90

Material and Finish

  • Tab contact: Copper alloy, nickel-undercoated, selective gold-plated
  • Housing: Glass-filled PBT, UL94V-0, black
  • Reinforcement: Copper alloy, nickel-undercoated, selective gold-plated





Support Custom Wiring Harness Assembly



  • Connector: 1 - 6pin
  • Wire gauge: 14 - 28AWG
  • Wire length: as long as your needs
  • Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
  • Custom type:
    • wire to wire
    • wire to tinned end
    • wire to open end
    • wire to any suitable connectors
  • Minimum Order: 100 pieces per order.



JST JFA Connectors J300 Wire Harness





Customize Your Wire Harness



Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
