JST JFPS Connector, Wire to Board, Custom Wire Assembly

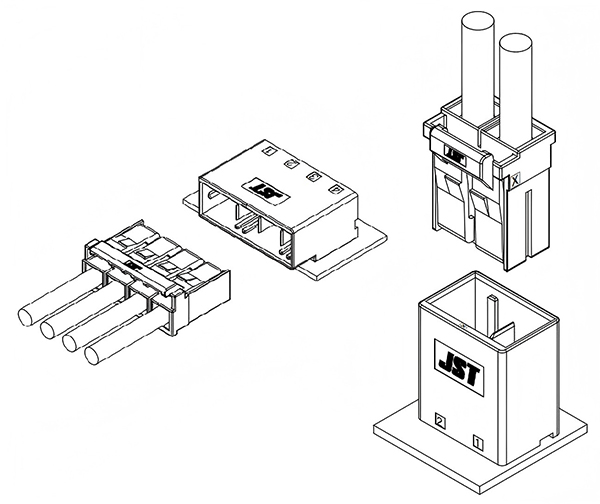

JST JFPS Connector, Wire to Board Type
The JST JFPS Connector is a high-performance solution designed to handle large currents in a small form factor. With a rated current capacity of 35A across 2 circuits, it excels as a reliable board-to-wire connector for demanding applications. Its space-saving design ensures efficient utilization of limited installation areas, making it ideal for compact devices or systems. To enhance functionality and user safety, the connector features a mis-mating prevention key, reducing the risk of incorrect connections during assembly. Additionally, the secure locking structure guarantees stable and robust connectivity, ensuring consistent electrical performance even in environments with vibrations or movement.
Specifications
- Connector type: Wire to Board, disconnectable crimp sytle
- Connector pitch: 8.8mm
- Voltage rating: 600 VAC/DC
- Temperature range: -40℃〜＋ 105℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/2 mΩ max, After environmental tests/2 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 2,200 VAC/minute
- Applicable wire: Conductor size/AWG #16 to #10
- Current rating: AC/DC
Current unit: A
| No. of circuits | Wire size(AWG) | |||
| #10 | #12 | #14 | #16 | |
| 1 | 35 | 28 | 21 | 17 |
| 2 | 35 | 28 | 21 | 17 |
| 3 | 30 | 20 | 19 | 16 |
| 4 | 28 | 20 | 18 | 15 |

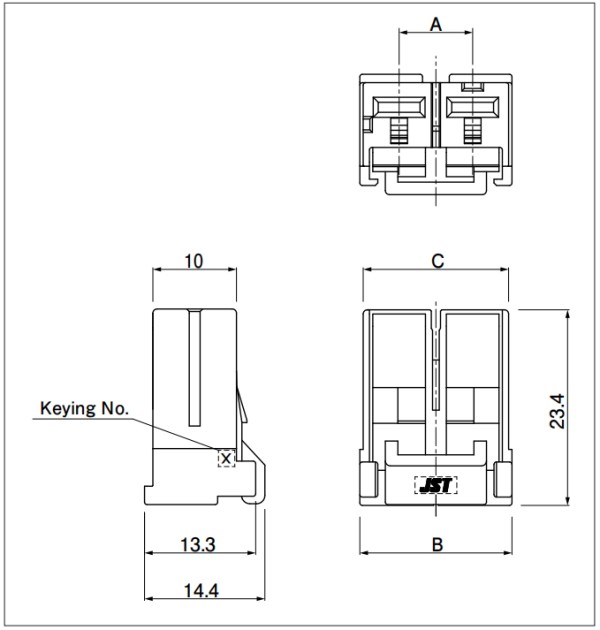

Receptacle housing
| No. of circuits | Keying | Model No. | Dimensions | Q'ty/bag | ||
| A | B | C | ||||
| 1 | X | JFPSRS-01WGT-EX | — | 9.4 | 8.6 | 400 |
| Y | JFPSRS-01WGT-KX | — | 9.4 | 8.6 | 400 | |
| Z | JFPSRS-01WGT-MZ | — | 9.4 | 8.6 | 400 | |
| 2 | X | JFPSRS-02V-EX | 8.8 | 18.2 | 17.4 | 200 |
| Y | JFPSRS-02V-KY | 8.8 | 18.2 | 17.4 | 200 | |
| 3 | X | JFPSRS-03V-EX | 17.6 | 27.0 | 26.2 | 125 |
| Y | JFPSRS-03V-KY | 17.6 | 27.0 | 26.2 | 125 | |
| 4 | X | JFPSRS-04V-EX | 26.4 | 35.8 | 35.0 | 100 |
| Y | JFPSRS-04V-KY | 26.4 | 35.8 | 35.0 | 100 | |
Material and Finish
- Single-circuit: PA 66 (Glass-filled), UL94V-0
- 2-, 3-, 4-circuit: PBT (Glass-filled), UL94V-0

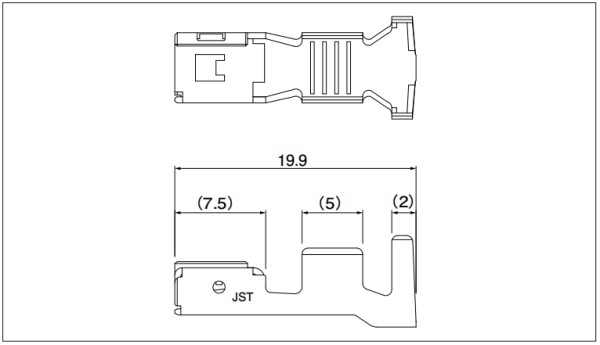

Receptacle Terminal
| Strip contact Model No. | Plating | Applicable wire | Insulation O.D (mm) | Q'ty/reel | ||
| Size | mm² | AWG# | ||||
| SJFPS-71GG-M1.0 | Gold | M | 1.25~2.0 | 16~14 | 3.1～4.0 | 1500 |
| SJFPS-81GG-M1.0 | Gold | L | 3.5～5.5 | 12~10 | 4.0~5.3 | 1500 |
| SJFPS-81T-M1.0 | Tin | |||||
Material and Finish: Copper alloy, nickel-undercoated, selective gold-plated, tin-plated (reflow treatment)

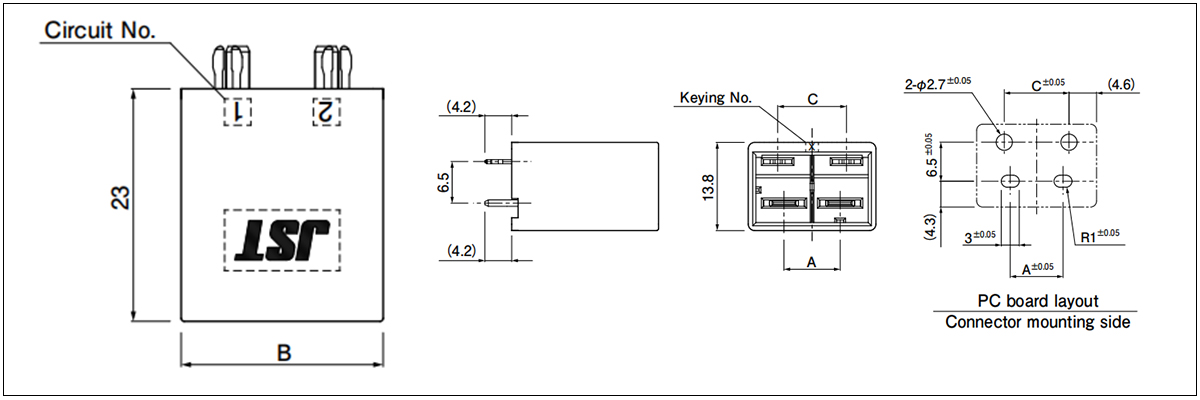

Header - Top entry type
One foot print type lead
| No. of circuits | Plating | Keying | Model No. | Dimensions (mm) | Q'ty/box | ||
| A | B | C | |||||
| 2 | Gold | X | BC02B-JFPSE-GHXS | 8.8 | 20.0 | 10.8 | 132 |
| Y | BC02B-JFPSK-GHYS | 8.8 | 20.0 | 10.8 | 132 | ||
| Tin | X | BC02B-JFPSE-TXS | 8.8 | 20.0 | 10.8 | 132 | |
| Y | BC02B-JFPSK-TYS | 8.8 | 20.0 | 10.8 | 132 | ||
| 3 | Gold | X | BC03B-JFPSE-GHXS | 17.6 | 28.8 | 19.6 | 84 |
| Y | BC03B-JFPSK-GHYS | 17.6 | 28.8 | 19.6 | 84 | ||
| Tin | X | BC03B-JFPSE-TXS | 17.6 | 28.8 | 19.6 | 84 | |
| Y | BC03B-JFPSK-TYS | 17.6 | 28.8 | 19.6 | 84 | ||
| 4 | Gold | X | BC04B-JFPSE-GHXS | 26.4 | 37.6 | 28.4 | 60 |
| Y | BC04B-JFPSK-GHYS | 26.4 | 37.6 | 28.4 | 60 | ||
Material and Finish
- Contact: Copper alloy, nickel-undercoated, gold-plated, copper-undercoated, tin-plated (reflow treatment)
- Housing: PA 66 (Glass-filled) , UL94V-0
- Reinforcement: Copper alloy, copper-undercoated, tin-plated (reflow treatment)

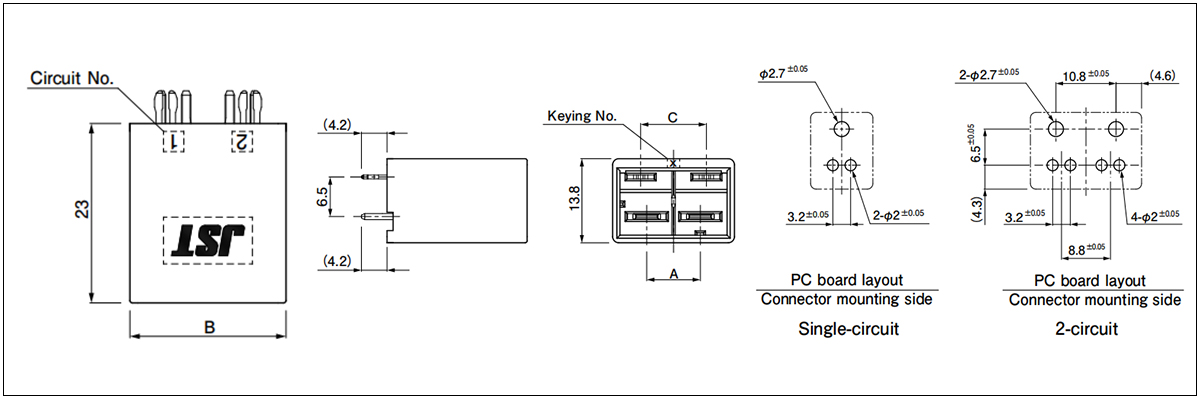

Two foot print type lead
| No. of circuits | Plating | Keying | Model No. | Dimensions (mm) | Q'ty/box | ||
| A | B | C | |||||
| 1 | Tin | X | BC01B-JFPSE-TX | — | 11.2 | — | 228 |
| Y | BC01B-JFPSK-TY | — | 11.2 | — | 228 | ||
| Z | BC01B-JFPSM-TZ | — | 11.2 | — | 228 | ||
| 2 | Tin | X | BC02B-JFPSE-TX | 8.8 | 20 | 10.8 | 132 |
| Y | BC02B-JFPSK-TY | 8.8 | 20 | 10.8 | 132 | ||
Material and Finish
- Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Housing: PA 66 (Glass-filled) , UL94V-0
- Reinforcement: Copper alloy, copper-undercoated, tin-plated (reflow treatment)

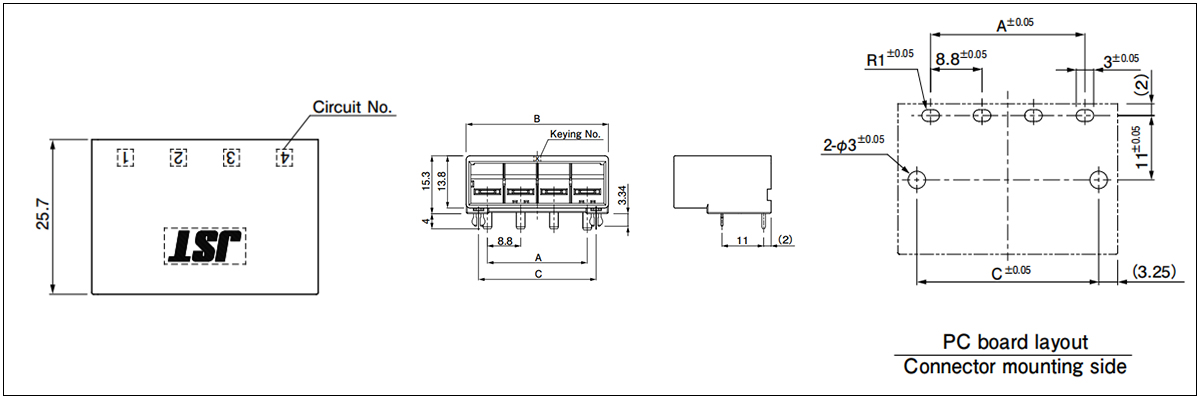

Header - Side entry type
| No. of circuits | Plating | Keying | Model No. | Dimensions(mm) | Q'ty/box | ||
| A | B | C | |||||
| 4 | Gold | X | *SC04B-JFPSE-GHXS | 26.4 | 37.6 | 31.1 | 48 |
| Y | *SC04B-JFPSK-GHYS | 26.4 | 37.6 | 31.1 | 48 | ||
Material and Finish
- Contact: Copper alloy, nickel-undercoated, gold-plated
- Housing: PA 66 (Glass-filled) , UL94V-0
- Reinforcement: Copper alloy, copper-undercoated, tin-plated (reflow treatment)

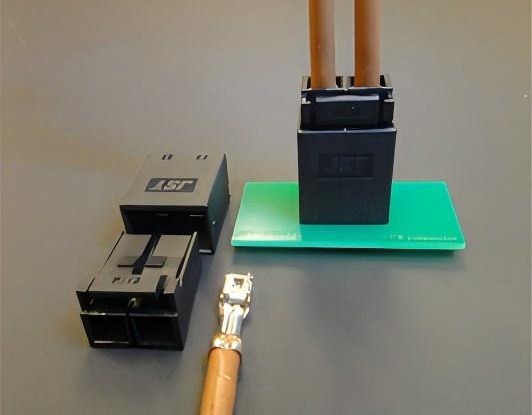

Support Custom Wiring Harness Assembly
- Connector: 1 - 4pin
- Wire gauge: 16 - 10AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
