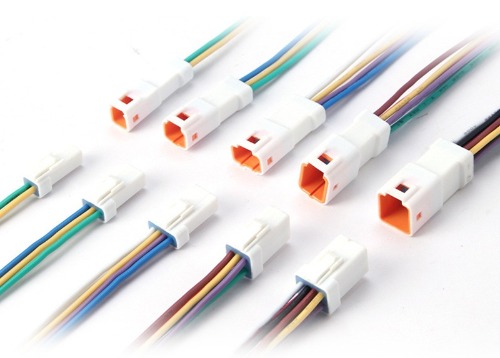

JST JWPF Connector

The JST JWPF Connector is a reliable and versatile wire-to-wire connector specifically designed for applications where waterproofing is essential. It offers superior water resistance, achieving a grade 7 ingress protection rating under JIS C 0920 and meeting the IPX7 standard of IEC 60529, ensuring protection against water immersion. This connector is equipped with several advanced features to enhance durability and performance, including a built-in seal ring, a solid rubber seal, and a double-spring construction that provides a secure and stable connection. Additional safety measures include housing-to-terminal locks and an inner-housing lock, which prevent accidental disconnections and maintain a firm connection even in harsh environments. These features make the JST JWPF Connector an ideal choice for automotive, industrial, and outdoor electronic applications where waterproof reliability is critical.

Specifications

• Connector type: Disconnectable Crimp style, Wire-to-wire connectors (waterproot type)
• Connector pitch: 2.0mm
• Current rating: 3 A AC, DC (AWG #22)
• Voltage rating: 100 V AC, DC
• Temperature range: -55˚C to +85˚C (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 15 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,000 VAC/minute
• Applicable wire: AWG #26 to #22 (0.13 to 0.33 mm²), Insulation O.D./ 1.4 to 1.7 mm
• Waterproof grade: Grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529 )

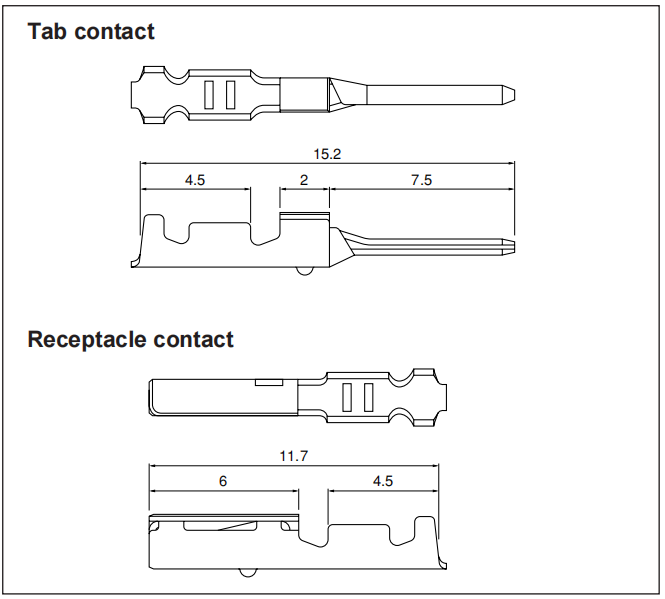

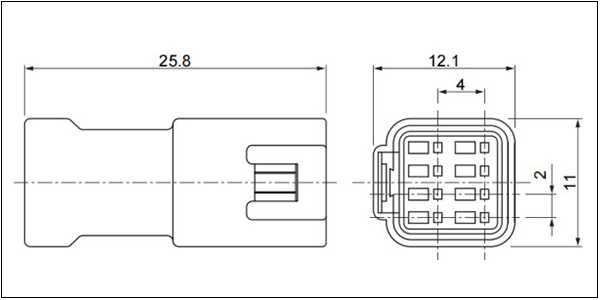

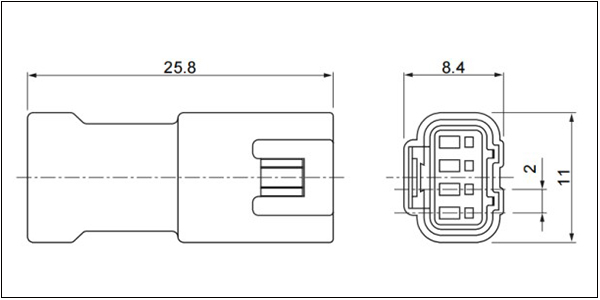

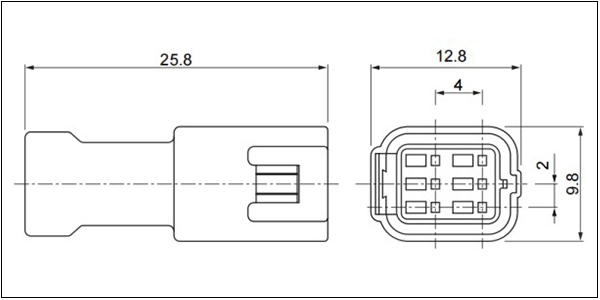

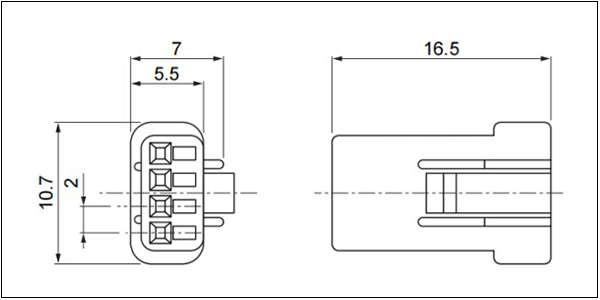

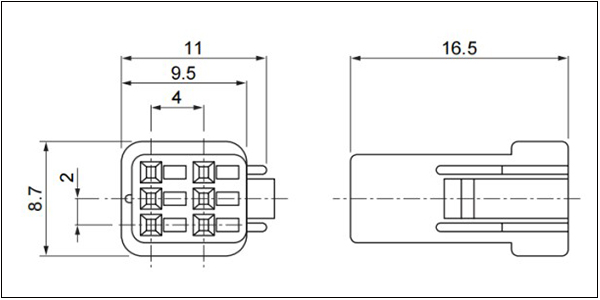

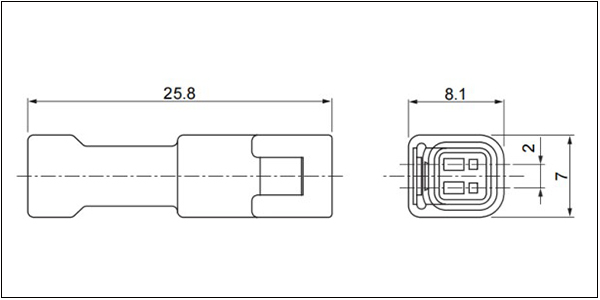

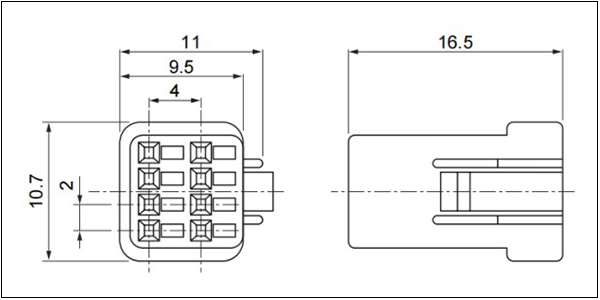

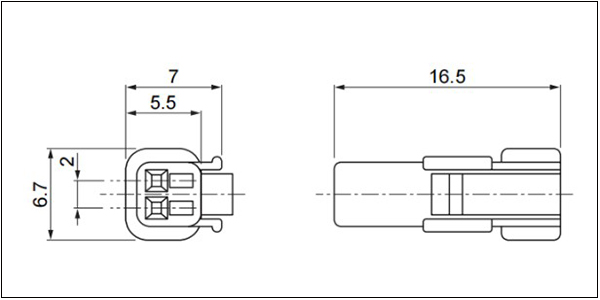

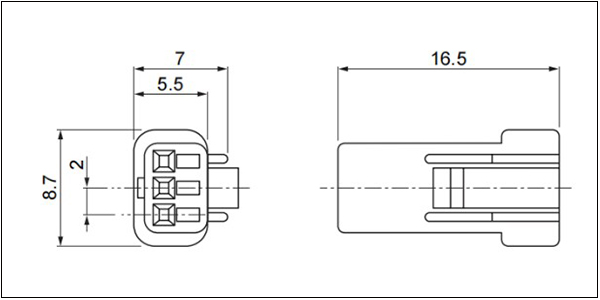

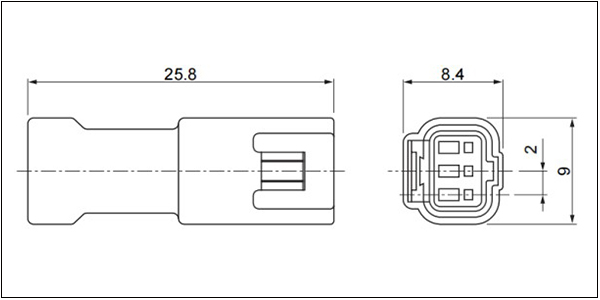

Housing
