JST JWPF connector, Panel lock type, Custom Wire Assembly

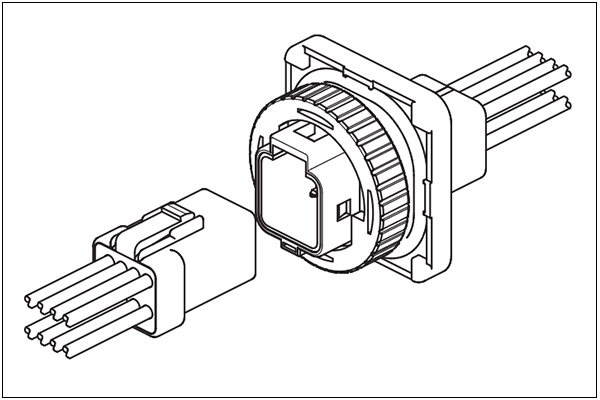

JST JWPF connector, Panel lock type

The JST JWPF connector is 2.0 mm pitch wire-to-wire panel lock type connector designed to meet demanding environmental conditions, featuring exceptional water ingress protection with an IPX7 rating as per IEC 60529 (equivalent to grade 7 under JIS C 0920). This makes it an ideal choice for applications where waterproofing is critical, such as in outdoor or industrial settings. The connector incorporates a pre-installed seal ring and a unique sealing method using a bulk seal rubber plate, ensuring reliable protection against moisture and dust. Its double-spring construction enhances contact reliability, while the housing lance and inner lock mechanism provide secure mating and retention. The panel lock design ensures easy installation and stability, making it a versatile and durable solution for waterproof connectivity needs.

Specifications

• Connector type: Wire-to-Wire connectors (Waterproof type)/Panel lock type
• Connector pitch: 2.0mm
• Current rating: 3 A AC/DC (AWG #22)
• Voltage rating: 100 V AC/DC
• Temperature range: -55℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 15 mΩ max.
• Insulation resistance: Initial value/ 1,000 MΩ min, After environmental tests/ 100 MΩ min.
• Withstanding voltage: There shall be no breakdown or flashover while applying 500 VAC for one minute.
• Applicable wire: Conductor size/AWG #26 to AWG #22, Insulation O.D./ φ1.4 mm to φ1.7 mm
• Water ingress protection with an IPX7 rating per IEC 60529 (grade 7 per JIS C 0920)
• Applicable panel: Thickness/ 1.2 ± 0.05 mm, 2.0 ± 0.05 mm, Surface roughness/ RZ 1.6 µm max.

Tab housing assembly (for tab contact)

• Material and Surface finish, etc.
  • Tab housing: PBT(GF), natural (white)/ black
  • Seal ring holder: PBT, yellow
  • Seal ring A: Silicone rubber, blue
  • Seal ring B: Silicone rubber, blue
  • Seal rubber plate: Silicone rubber, light blue
• Seal ring holder, seal ring A, seal ring B and seal rubber plate are preassembled in tab housing assembly.

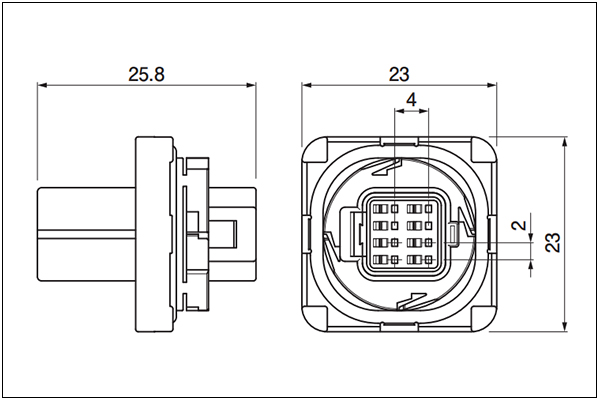

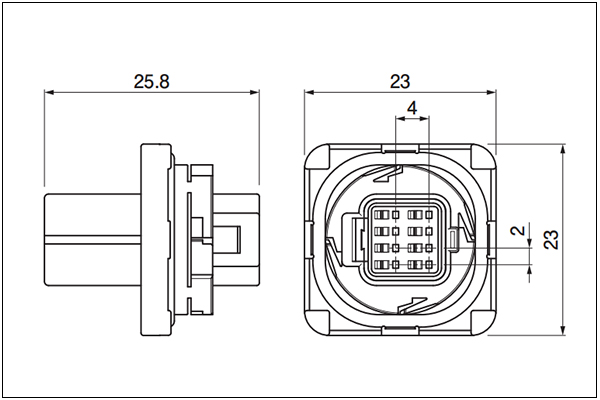

• Applicable panel thickness (mm): 1.2 ± 0.05 (08TP-JWPF-VSLE-D-A), 2.0 ± 0.05 (08TP-JWPF-VKLE-D)
• Color: Natural (white）(08TP-JWPF-VSLE-D-A), Black (08TP-JWPF-VKLE-D)
• Qty/bag: 100pcs

Receptacle housing assembly (for receptacle contact）

Specs:

• No. of circuits: 8

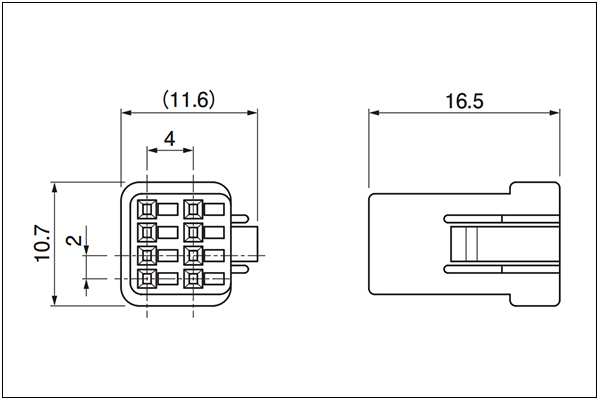

• Modeo No.: 08R-JWPF-VSLE-D
• Qyu/bag: 1000pcs
• Material and Surface finish, etc.
  • Receptacle housing: PBT(GF), natural (white)
  • Seal rubber plate: Silicone rubber, light blue
• Seal rubber plate is preassembled in receptacle housing assembly.

Tab cover housing

Specs:

• No. of circuits: 8

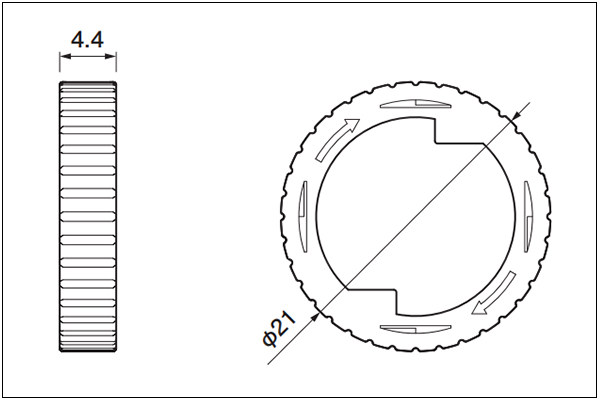

• Modeo No.: 08TPC-JWPF-VK-D
• Qyu/bag: 400pcs
• Material and Surface finish, etc.: PBT, black

Terminal

Specs:

• Model No.:
  • Tab contact: SWPT-001T-P025

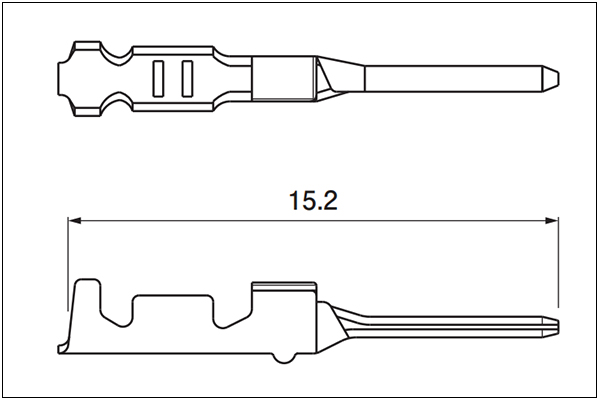

  • Receptacle contact: SWPR-001T-P025
• Applicable Wire range:
  • Conductor size AWG (mm²): 26 - 22AWG (0.13 - 0.33mm²)
  • Insulation O.D. (mm): 1.4 - 1.7
• Qty/reel: 8200pcs
• Material and Surface finish, etc.: Copper alloy, tin-plated

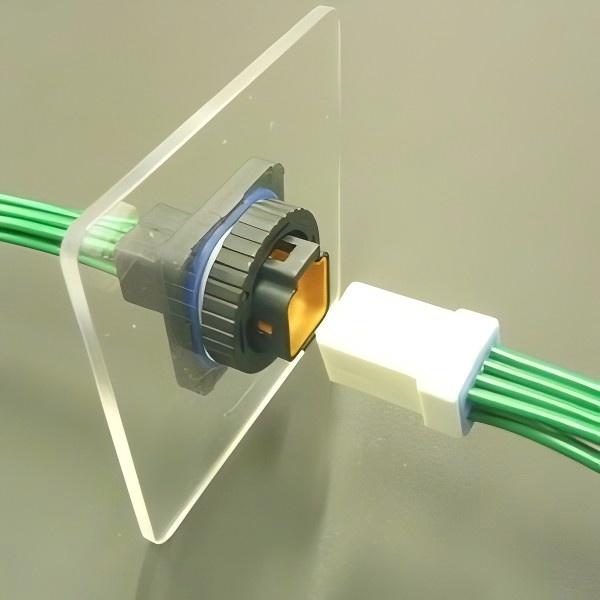

Support Custom Wiring Harness Assembly

• Connector: 8pin
• Wire gauge: 26 - 22AWG
• Wire length: as long as your needs
• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
• Custom type:
  • wire to wire
  • wire to tinned end
  • wire to open end
  • wire to any suitable connectors
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness
