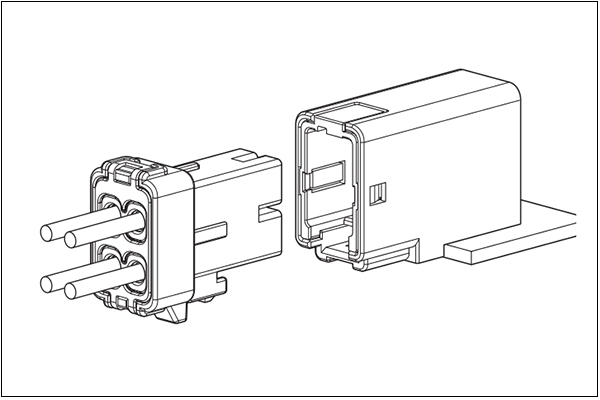

JST JWPS Connector
The JST JWPS Connector is designed specifically for applications requiring reliable waterproofing. This wire-to-board connector meets Grade 7 ingress protection standards of JIS C 0920, equivalent to IPX7 as defined by IEC 60529, ensuring optimal performance in wet or challenging environments. Key features include exceptional waterproof performance achieved through a contained seal ring and solid rubber seal. The double-spring construction enhances contact reliability, while housing-to-terminal locks ensure secure connections. Additionally, the connector is equipped with a mis-mating prevention key, reducing the risk of incorrect assembly. These features make the JWPS Connector an ideal choice for demanding waterproof applications.
Specifications
- Connector type: Combined use for both wire-to-board and wire-to-wire connections, Disconnectable Crimp style
- Cnnector pitch: 4.0mm
- Current rating:
- 4 A AC/DC (AWG #22)
- 5 A AC/DC (AWG #20)
- 6 A AC/DC (AWG #18)
- Voltage rating: 300 V AC/DC
- Temperature range: -55℃ to +85℃ (including temperature rise in applying electrical current)
- Applicable wire: Conductor size/AWG #22 to #18, Insulation O.D./1.75 to 2.5 mm
- Applicable PC board thickness: 1.6 mm
- Waterproof grade: Grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529 )
(*Since the waterproof performance is not available at the opposite side of mating entrance, waterproof treatment is required, if necessary.)

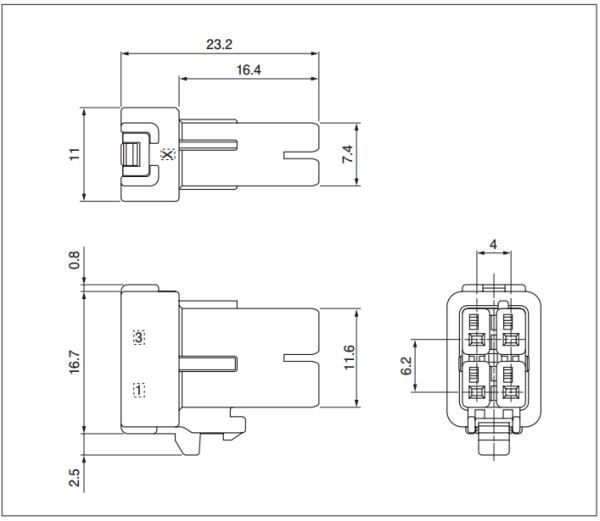

Receptacle housing assembly
| No.of circuits | Keying | Model No. | Q'ty/box |
| 4 | X | 04R-JWPS-VKLE-DX-A | 400 |
| Y | 04R-JWPS-VSLE-DY-A | 400 | |
| Z | 04R-JWPS-VELE-DZ-A | 400 |
Material and Finish
- Receptacle housing: Glass-filled PBT, UL94V-0, X-Keying (black), Y-Keying (natural), Z-Keying (blue)
- Retainer: PBT, UL94V-0, purple
- Seal rubber plate: Silicone rubber, light blue

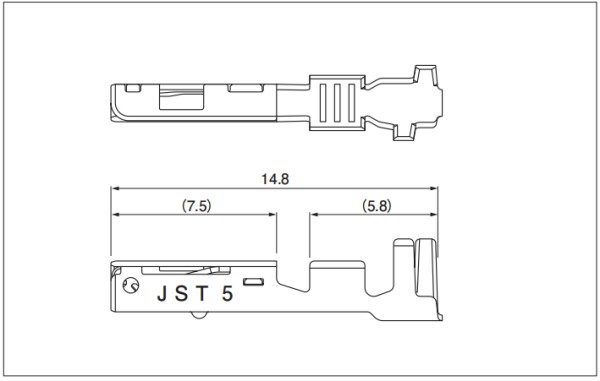

Receptacle contact
Spcs:
- Model No.: SJWPSR-21T-P1.0
- Applicable Wire: 22 - 18AWG
- Insolations O.D. (mm): 1.75 - 2.5
- Q'ty/reel: 4500pcs
- Materials and Finish: Copper alloy, tin-plated
- RoHS2 compliance

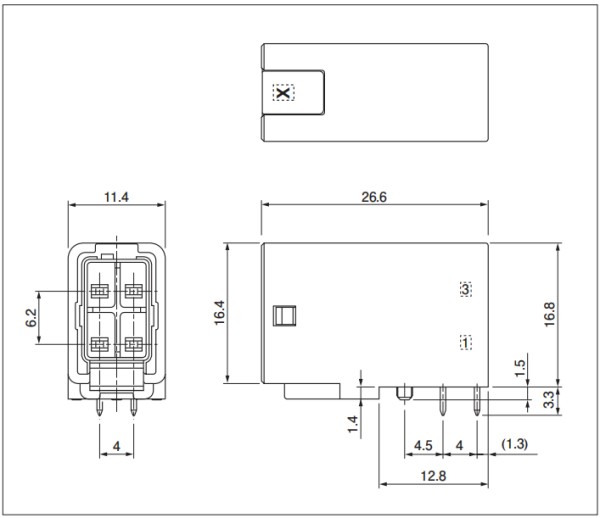

Header housing assembly
| No.of circuits | Keying | Model No. | Q'ty/box |
| 4 | X | S04B-JWPS-KKS-XR | 160 |
| Y | S04B-JWPS-KSS-YR | 160 | |
| Z | S04B-JWPS-KES-ZR | 160 |
Material and Finish
- Header housing: Glass-filled PBT, UL94V-0, black
- Seal ring holder: Glass-filled PBT, UL94V-0, X-Keying (black), Y-Keying (natural), Z-Keying (blue)
- Seal ring: Silicone rubber, brown
- Tab contact: Copper alloy, tin-plated

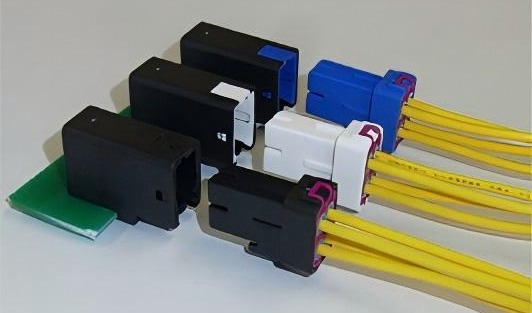

Support Custom Wiring Harness Assembly
- Connector: 4pin
- Wire gauge: 18 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
