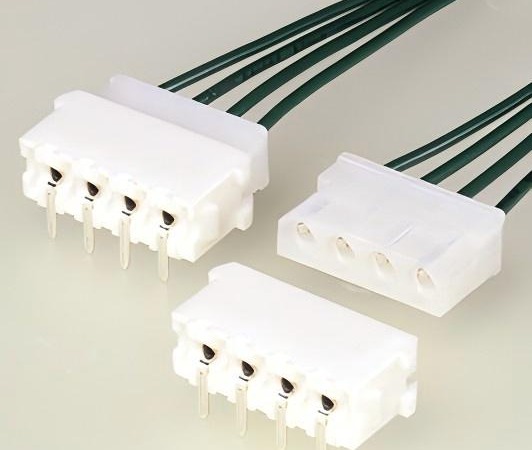

JST LC Connector, Wire to Board, Custom Wire Assembly

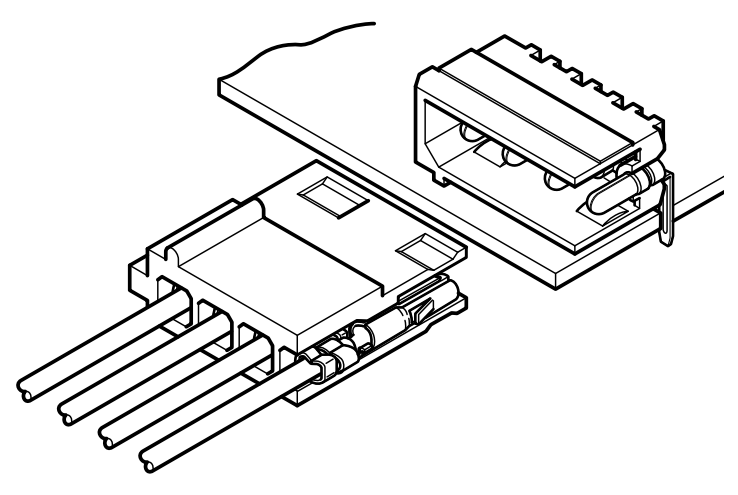

JST LC Connector, Wire to Board Type
The JST LC Connector is a cost-effective and reliable solution for delivering power to printed circuit boards, making it an excellent choice for office automation equipment. It has been widely adopted for secondary power supply circuits in devices such as floppy disk drives. This connector features an anti-misinsertion design with polarized plugs and headers to ensure accurate connections. Its self-locking housing clamp enhances ease of handling and ensures secure mounting. Available in two header configurations—Type A and Type B—this side-entry design accommodates diverse PCB mounting orientations. Additionally, the connector offers two-wire crimp-style contacts, facilitating efficient branch connections and internal jumpering for streamlined applications.
Features
- Anti-misinsertion feature
- The plug and header are polarized, thus preventing misinsertion of the connector.
- Self-locking housing clamp
- The self-locking housing clamp for the header ensures easy handling and sturdy mounting.
- Two kinds of headers (Side entry type)
- Type A and B headers are available to match the mounting direction of your printed circuit boards.
- Two-wire crimp style contact
- Two-wire crimp contacts which facilitate branch connections and internal jumpering are available.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 5.08mm
- Current rating: 7A AC, DC (AWG #18)
- Voltage rating: 250V AC, DC
- Temperature range: -25℃ to +90℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10mΩ max, After environmental testing/20mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #18
- Applicable PC board thickness: 1.6mm
- Number of circuits: 4

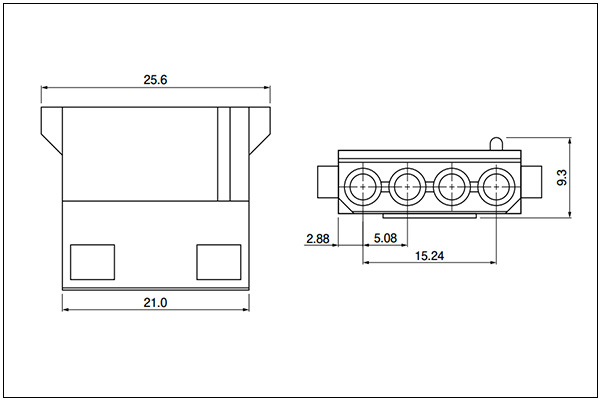

Housing
Specs:
- Model No.: LCP-04
- Materials: PA 6, UL94V-0, natural (white)
- Q'ty/Box: 500
- RoHS compliance

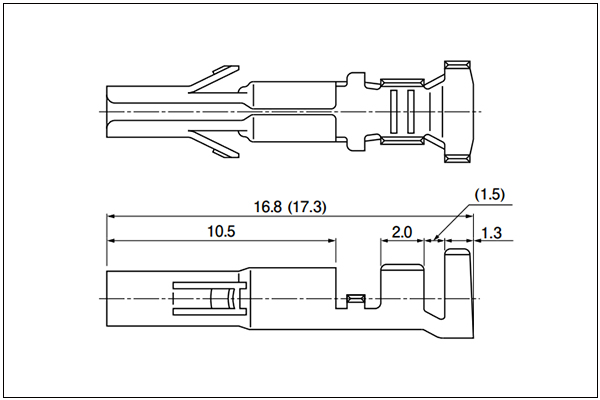

Terminal
| Type | Model No. | Applicable wire | Q'ty/reel | ||
| mm² | AWG# | Insulation O.D. (mm) | |||
| one-wire crimping | SLC-21T-2.0 | 0.33 - 0.75 | 22 - 18 | 1.7 - 2.1 | 4000 |
| two-wire crimping | SLC-22T-2.0 | Combination of applicabnle wires UL1007 AWG# 20+20, 20+18, 18+18 | 3000 | ||
Note:
- Material and Finish: Brass, tin-plated (reflow treatment)
- Dimensions in[ ]apply to the SLC-22T-2.0 two-wire crimping type
- RoHS compliance
Header

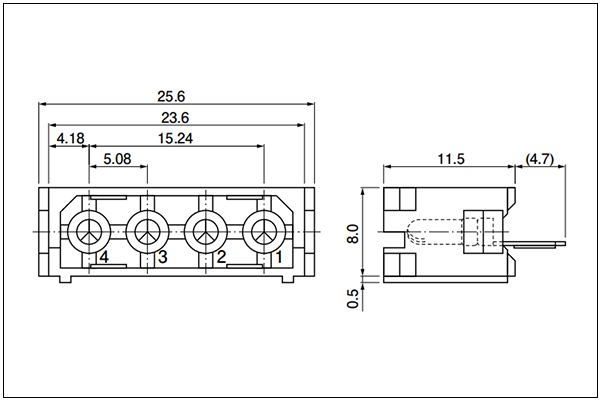

Top entry type
Specs:
- Model No.: LC-04T
- Materials:
- Contact: Brass, tin-plated (reflow treatment)
- Housing: PA 66, UL94V-0, natural (white)
- Q'ty/Box: 100
- RoHS compliance
Side entry type

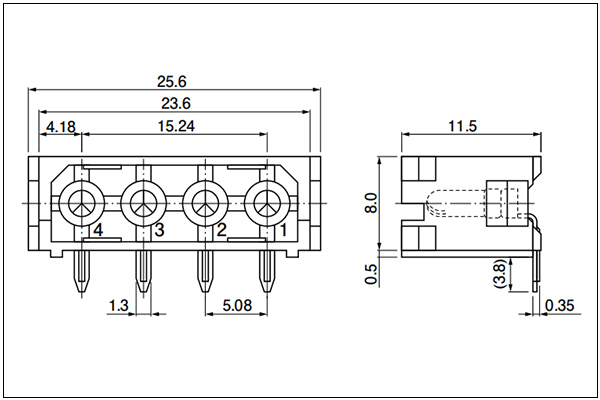

Shape A

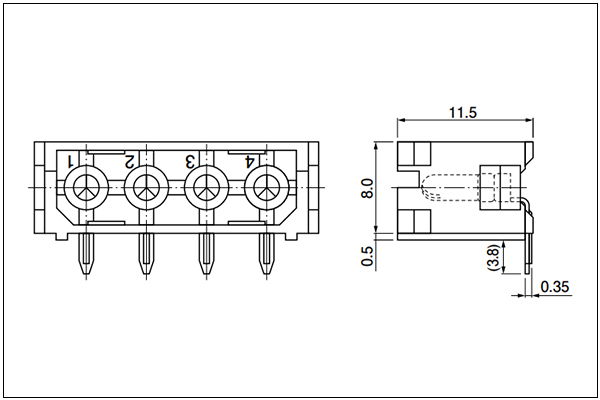

Shape B
Specs:
- Model No.: LC-04A (Shape A), LC-04B (Shape B)
- Materials:
- Contact: Brass, tin-plated (reflow treatment)
- Housing: PA 66, UL94V-0, natural (white)
- Q'ty/Box: 100
- RoHS compliance
Housing Clamp
Specs:
- Model No.: LCC-04
- Material and Finish: Brass, tin-plated (reflow treatment)
- Q'ty/Box: 500
- RoHS compliance
Support Custom Wiring Harness Assembly
- Connector: 4pin
- Wire gauge: 18 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
