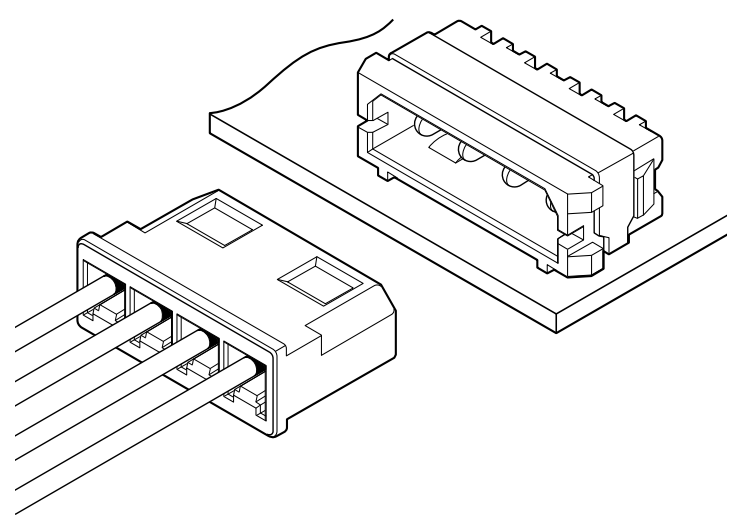

JST LC-L Connector, Wire to Board Type
The JST LC-L Connector is a versatile solution specifically designed for secondary power circuits in office automation equipment, including devices like 3.5-inch hard disk drives (HDDs), magneto-optical (MO) drives, and DVDs. This low-profile, crimp-style connector supports the industry's growing demand for equipment miniaturization, offering a compact yet reliable connection. The LC-L Plug Housing is engineered for compatibility with various configurations, allowing seamless mating with both top-entry and side-entry LC connectors, as well as the power connection components of the LK connector series. This adaptability ensures efficient integration across diverse applications while maintaining performance and durability.
Features
- Space-saving
- The miniaturization (improved from 20.5mm to 13.5mm height) realizes radical space saving after mating and consequently will provide more space for wiring.
- Lower insertion force
- Insertion and withdrawal force are reduced by 40 to 50% compared to the existing type.
- Double-crimping contact
- For an internal branching or jumper connection, a doublecrimping type contact is adopted.
Specifications
- Connector type: Wire to Board, disconnectable crimp style
- Connector pitch: 5.08mm
- Current rating: 5A AC, DC (AWG#20)
- Voltage rating: 250V AC, DC
- Temperature range: -25℃ to +90℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10mΩ max, After environmental testing/20mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire:
- 001 type: AWG#26 to #22, #26+#26
- 002 type: AWG#20 to #18, #26+#24, #24+#24, #24+#22, #22+#22
- Applicable PC board thickness: 1.6mm
- Number of circuits: 4

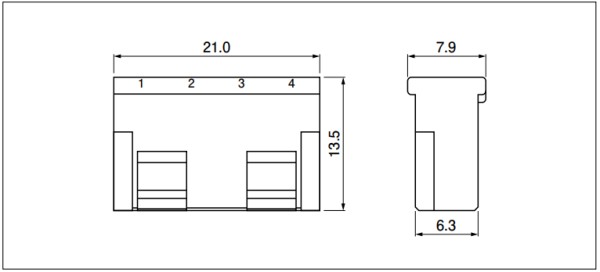

Housing
Specs:
- Model No.: LCP-04L
- Materials: PA 66, UL94V-0
- Q'ty/Box: 500
- RoHS compliance
Terminal
| Model No. | Applicable wire | Q'ty/reel | ||
| mm² | AWG# | Insulation O.D. (mm) |
||
| SLC-001T-P2.0 | 0.13 to 0.33 | 26 to 22 | 1.3 to 1.7 | 3000 |
| 0.13+0.13 | 26+26 | 1.3+1.3 | ||
| SLC-02T-P2.0 | 0.5 to 0.75 | 20 to 18 | 1.9 to 2.1 | 3000 |
| 0.13 + 0.22 to 0.33 + 0.33 | 26 + 24 to 22 + 22 | 1.3 + 1.5 to 1.7 + 1.7 | ||
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
Header
Top entry type
Specs:
- Model No.: LC-04T
- Materials:
- Contact: Brass, tin-plated (reflow treatment)
- Housing: PA 66, UL94V-0, natural (white)
- Q'ty/Box: 100
- RoHS compliance
Side entry type

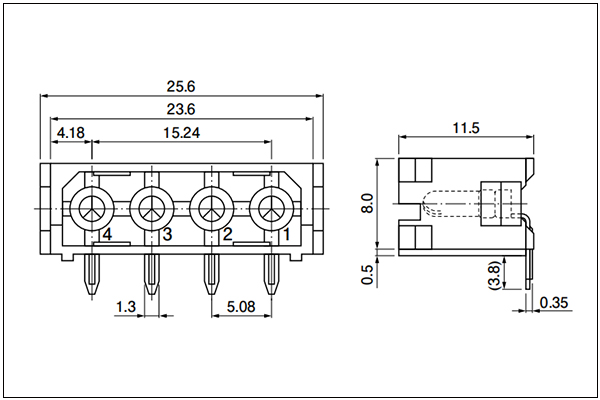

Shape A

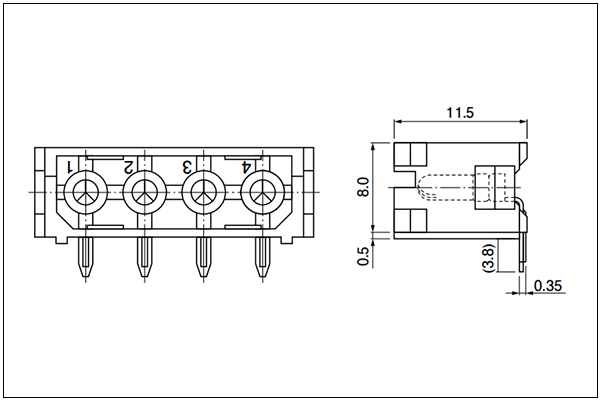

Shape B
Specs:
- Model No.: LC-04A (Shape A), LC-04B (Shape B)
- Materials:
- Contact: Brass, tin-plated (reflow treatment)
- Housing: PA 66, UL94V-0, natural (white)
- Q'ty/Box: 100
- RoHS compliance

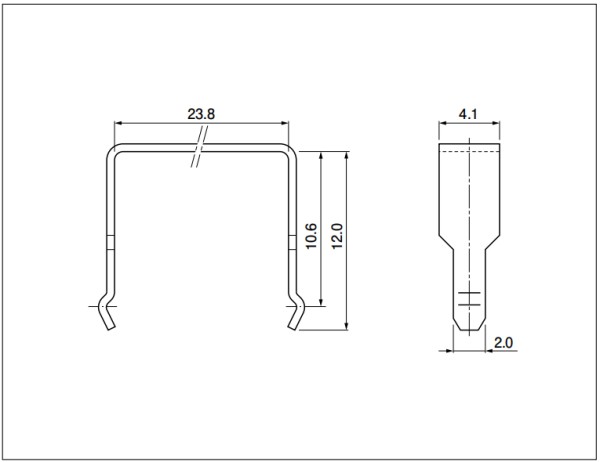

Housing Clamp
Specs:
- Model No.: LCC-04
- Material and Finish: Brass, copper-undercoated, tin-plated (reflow treatment)
- Q'ty/Box: 500
- RoHS compliance
Support Custom Wiring Harness Assembly
- Connector: 4pin
- Wire gauge: 18 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
