JST LEA Connector

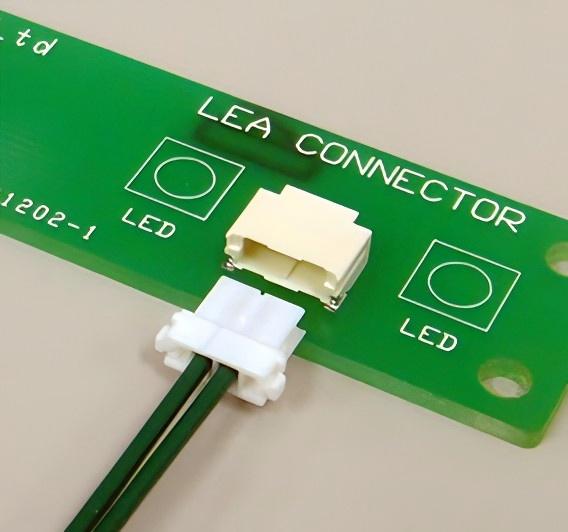

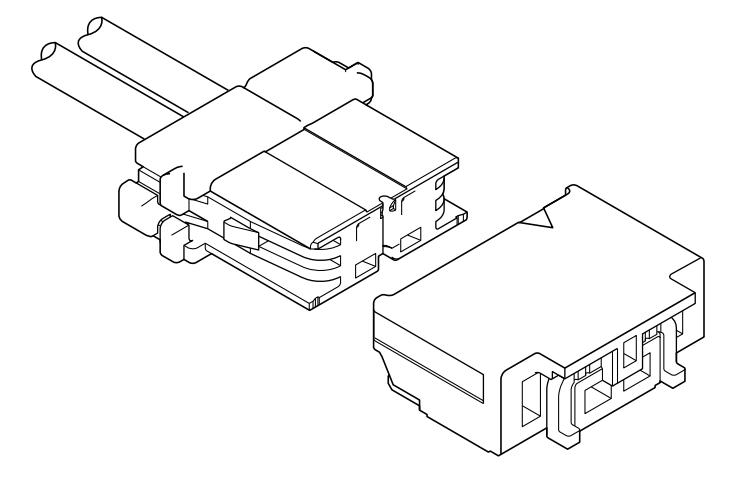

The JST LEA Connector is a compact, low-profile solution (with a height of just 3mm) specifically designed for connecting LED lamps without affecting the luminescence angle of the LED chip. This space-saving design makes it ideal for applications where size constraints are critical. Despite its small form factor, the connector incorporates a secure locking mechanism to ensure stable and reliable wire connections during handling and usage. Additionally, it features a mechanism to prevent reverse insertion, reducing the risk of assembly errors. The inclusion of a contact lance further enhances the stability and security of the connection, making the JST LEA Connector a dependable choice for modern LED lighting systems.
LEA Connector Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 1.8mm
- Current rating: 3A AC, DC (AWG #22)
- Voltage rating: 300V AC, DC
- Temperature range: -55℃ to +105℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10mΩ max， After environmental testing/20mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,700V AC/minute
- Applicable wire: Conductor size/AWG #30 to #22， Insulation O.D./0.7 to 1.3mm
- Application: For LED Lamp

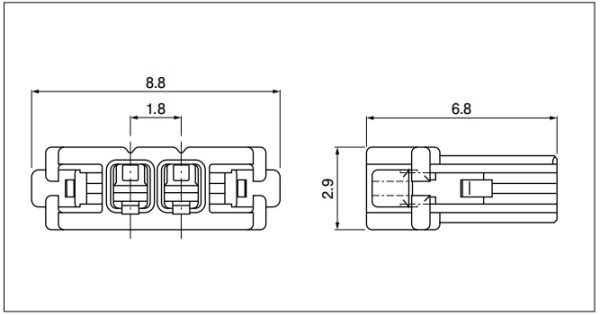

Housing
Notes:
- No. of circuits: 2
- Model Number: LEAR-02V-S
- Q'ty/bag: 2000pcs
- Material: PBT, UL94V-0, natural
- RoHS Compliance

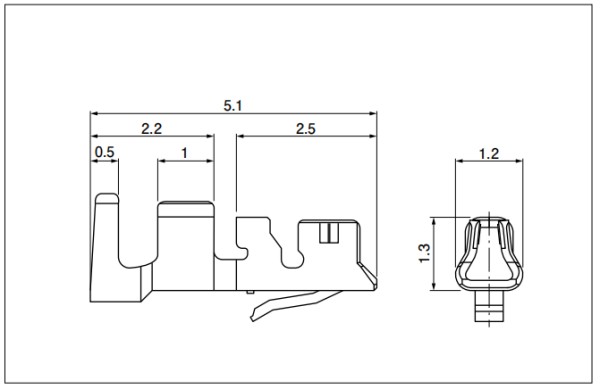

Terminal
| Model No. | Applicable wire | Insulation 0.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SSFH-001T-P0.5 | 0.13 to 0.33 | 26 to 22 | 0.95 to 1.3 | 15000 |
| SSFH-002T-P0.5 | 0.05 to 0.13 | 30 to 26 | 0.7 to 1.25 | 15000 |
Material and Finish: Copper alloy, tin-plated (reflow treatment)

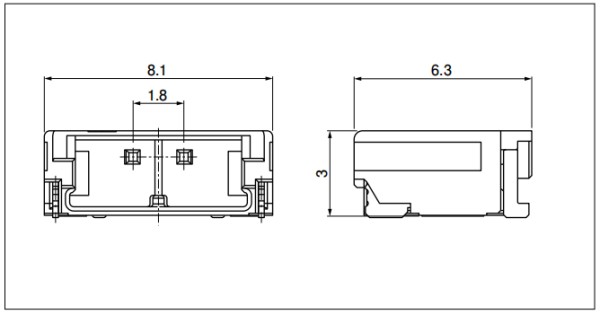

Header
Notes:
- No. of circuits: 2
- Model Number: SM02B-LEASS-TF
- Q'ty/bag: 2000pcs
- Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Housing: PA 9T, UL94V-0, white
- Solder tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- RoHS Compliance
- This product displays (LF)(SN) on a label.
- The products listed above are supplied on embossed-tape
Support Custom Wiring Harness Assembly
- Connector: 2pin
- Wire gauge: 22 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
