JST LEX Connector

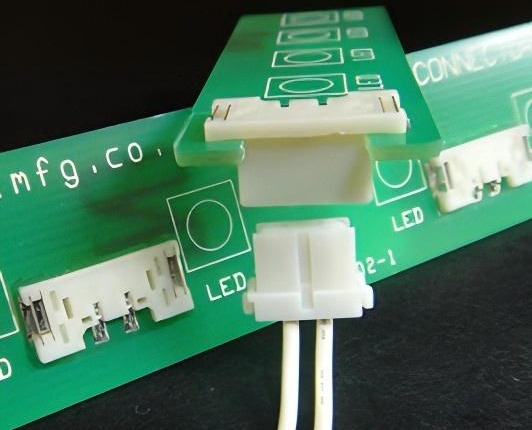

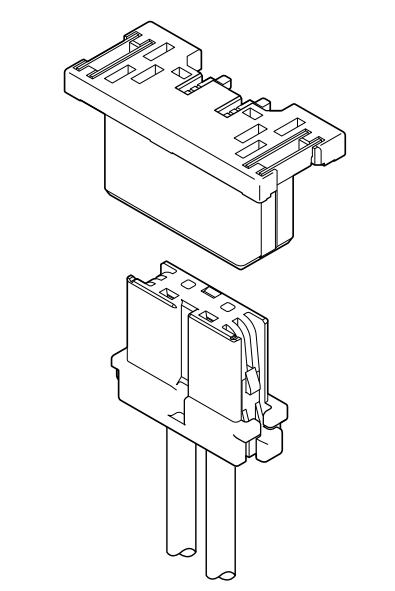

The JST LEX Connector is a low-profile, bottom-type connector specifically engineered for LED lighting equipment to optimize luminescence properties while achieving significant space savings on the PCB. With a mounting height of just 1.2mm, this connector excels in compact designs, making it ideal for space-constrained applications. It features a secure locking mechanism and a design that prevents incorrect insertion, ensuring reliable and error-free connections. Additionally, the connector’s soldering strength has been significantly enhanced to withstand potential stresses during mating, offering improved durability after mounting. The LEX Connector is halogen-free and RoHS compliant, aligning with environmentally friendly and regulatory standards.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 2.5mm
- Current rating: 3 A AC, DC (AWG #22)
- Voltage rating: 300 V AC, DC
- Temperature range: -55℃ to +105℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10 mΩ max, After environmental tests/20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,700 VAC/minute
- Applicable wire: Conductor size/AWG #30 to #22, Insulation O.D./0.7 to 1.3 mm
- Application: LED Lamp
Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | LEXR-02V-S(HF) | - | 7 | 2000 |
| 4 | LEXR-04V-S(HF) | 7.5 | 12 | 1000 |
Material: Glass-filled PA 66, UL94V-0, natural
Terminal
| Model No. | Applicable wire | Insulation 0.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SSFH-001T-P0.5 | 0.13 to 0.33 | 26 to 22 | 0.95 to 1.3 | 15000 |
| SSFH-002T-P0.5 | 0.05 to 0.13 | 30 to 26 | 0.7 to 1.25 | 15000 |
Material and Finish: Copper alloy, tin-plated (reflow treatment)
Header
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/reel | ||
| A | B | C | |||
| 2 | EM02B-LEXSS-TF(HF) | - | 8.8 | 12.5 | 1600 |
| 4 | EM04B-LEXSS-TF(HF) | 7.5 | 13.8 | 17.5 | 1600 |
Material and Finish
- Press pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Housing: PA 9T, UL94V-0, natural
- Solder tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Support Custom Wiring Harness Assembly
- Connector: 2, 4pin
- Wire gauge: 22 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
