JST LV Connector, Wire to Board, Custom Wire Assembly

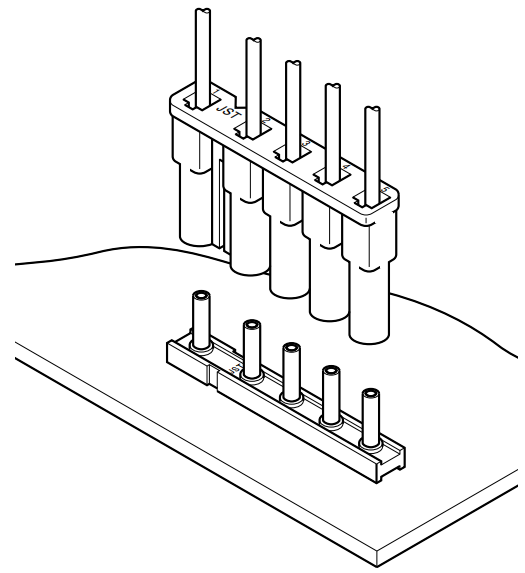

JST LV Connector, Wire to Board
The JST LV Connector is designed for compatibility with headers featuring 2.36mm diameter pins, making it an ideal choice for power supply circuits in electronic devices such as TVs, stereo systems, and VCRs. With an 8.0mm pitch between circuits, it offers enhanced spacing for reliable performance. Its standout features include a three-point contact design, which ensures a secure grip on round mating pins while maintaining high contact force even after repeated connections, providing exceptional reliability. The connector also incorporates anti-misinsertion construction, utilizing a 10.0mm pitch for positions 1 and 2 in housings with three or more circuits to prevent mismating. Additionally, flux entry prevention is achieved through closed solder-side header pins and a tight press-fit, ensuring a clean and dependable connection.
Features
- Three-point contact
- The mating section of the contact has a triangular configuration so that the terminal grips the round mating pin at three points. Furthermore, this contact keeps its high force after mating and unmating many times, thus assuring high reliability.
- Anti-misinsertion construction
- The pitch between positions 1 and 2 of the housings and the headers having three or more circuits is 10.0mm, while the pitch of the other circuits is 8.0mm. This provides polarization which in turn prevents mismating the connector.
- Flux entry prevention
- The solder side of the header pins are closed so as to completely prevent flux or solder from entering. The tight press-fit of the pin into the header insulator also prevents flux from coming up the pin.
Specifications
- Connector type: Wire to Board, disconnectable crimp style connectors for 2.36 diameter pins
- Connector pitch: 8.0mm
- Current rating:
- SVF-01T-2.36N: 5A AC, DC (AWG #20)
- SVF-01T-2.36LN: 7A AC, DC (AWG #18)
- Voltage rating: 250V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10mΩ max, After environmental testing/20mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire:
- SVF-01T-2.36N: AWG #24 to #20
- SVF-01T-2.36LN: AWG #24 to #18
- Applicable PC board thickness: 1.6mm
Housing

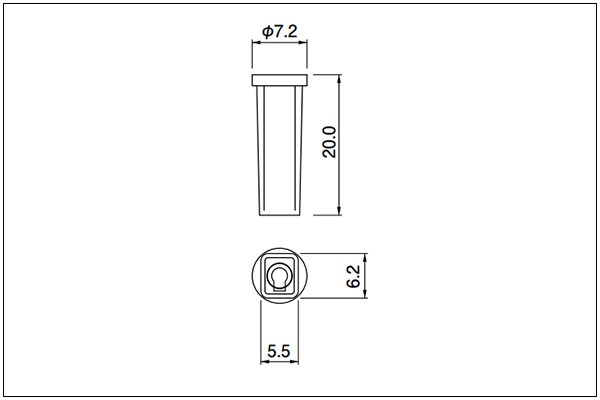

1 Circuit

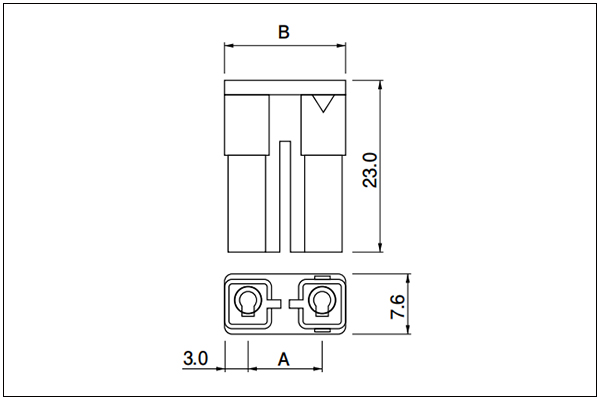

2 Circuits

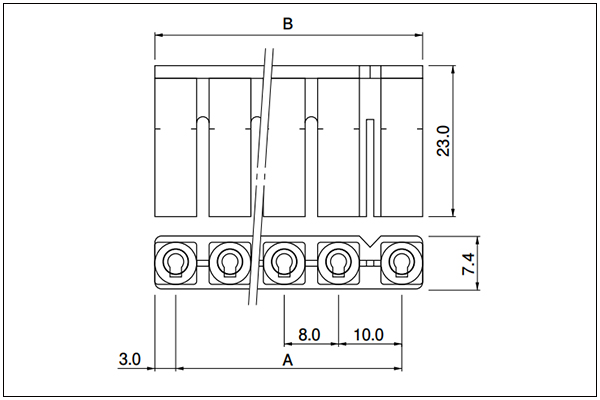

3 to 6 Circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty / bag | ||
| Noryl | PBT | A | B | ||
| 1 | S1P-LV | S1P-LV-P | 一 | 一 | 1000 |
| 2 | 2P-LV | 2P-LV-P | 10.0 | 16.0 | 1000 |
| 3 | 3P-LV | 3P-LV-P | 18.0 | 24.0 | 500 |
| 4 | 4P-LV | 4P-LV-P | 26.0 | 32.0 | 500 |
| 5 | 5P-LV | 5P-LV-P | 34.0 | 40.0 | 500 |
| 6 | 6P-LV | 6P-LV-P | 42.0 | 48.0 | 500 |
Material:
- S1P-LV, ( )P-LV: Noryl, UL94V-1, gray
- S1P-LV-P, ( )P-LV-P: PBT, UL94V-0, black

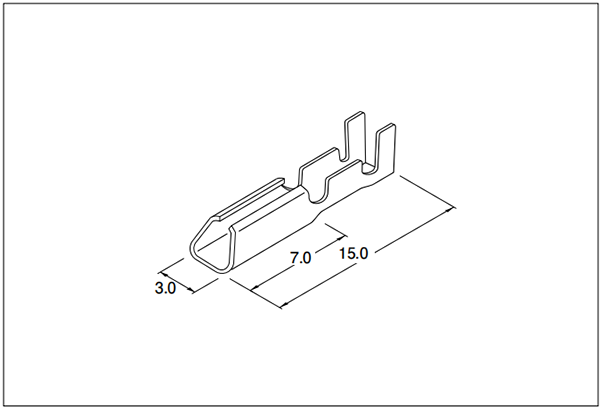

Terminal
| Model No. | Applicable wire | Insulation O.D.(mm) | Q'ty / reel | |
| mm² | AWG# | |||
| SVF-01T-2.36N | 0.2 to 0.5 | 24 to 20 | 1.4 to 2.7 | 15000 |
| SVF-01T-2.36LN | 0.2 to 0.83 | 24 to 18 | 1.4 to 2.9 | 5000 |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
Header

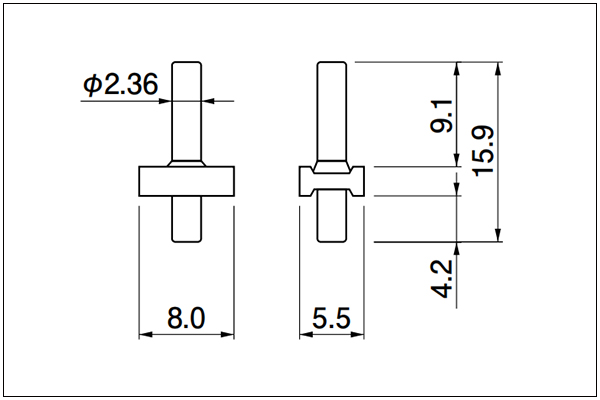

1 Circuit

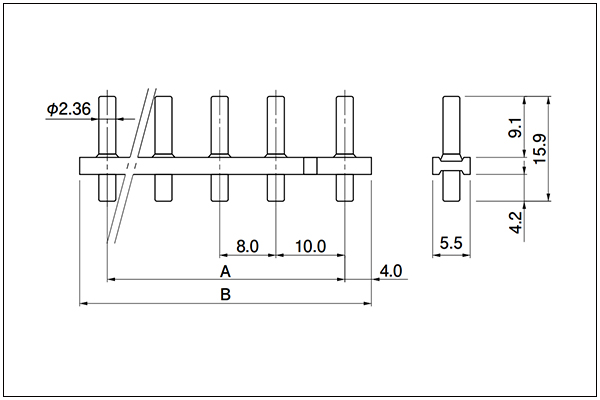

2 to 6 Circuits
| Applicable contact | No. of circuits | Model No. | Dimensions (mm) | Finish | Q'ty/box | |
| A | B | |||||
| SVF-01T-2.36N | 1 | B1P-LV-TA | — | — | Nickel-undercoated, tin/copper alloy-plated | 1000 |
| B1P-LV-TN | Copper-undercoated, nickel-plated | |||||
| 2 | B2P-LV-TA | 10.0 | 18.0 | Nickel-undercoated, tin/copper alloy-plated | 500 | |
| B2P-LV-TN | Copper-undercoated, nickel-plated | |||||
| 3 | B3P-LV-TN | 18.0 | 26.0 | Copper-undercoated, nickel-plated | 500 | |
| 4 | B4P-LV-TN | 26.0 | 34.0 | 250 | ||
| 5 | B5P-LV-TN | 34.0 | 42.0 | 200 | ||
| 6 | B6P-LV-TN | 42.0 | 50.0 | |||
| SVF-01T-2.36LN | 1 | B1P-LV-TA | — | — | Nickel-undercoated, tin/copper alloy-plated | 1000 |
| 2 | B2P-LV-TA | 10.0 | 18.0 | 500 | ||
| 3 | B3P-LV-TA | 18.0 | 26.0 | |||
| 4 | B4P-LV-TA | 26.0 | 34.0 | 250 | ||
| 5 | B5P-LV-TA | 34.0 | 42.0 | 200 | ||
| 6 | B6P-LV-TA | 42.0 | 50.0 | |||
Material:
- Pin: Brass
- Wafer: Glass filled PA 66, UL94V-0, natural (ivory)

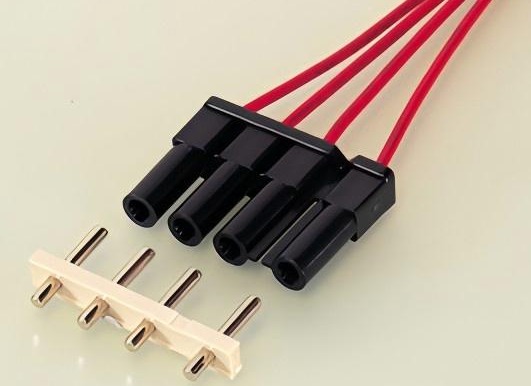

Support Custom Wiring Harness Assembly
- Connector: 1 - 6pin
- Wire gauge: 18 - 24AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
