The JST MWP Connector is a high-performance waterproof wire-to-wire connector designed to ensure a reliable electric power supply in harsh environments. Featuring a low insertion force contact, it allows for easy and smooth mating, reducing strain during installation. The connector is equipped with a housing lance and an inner-housing lock, providing enhanced security and preventing accidental disengagement. Its innovative slider-locking mechanism ensures a stable and robust connection, even under vibration or stress. Additionally, the MWP Connector offers interchangeability with similar products, making it a versatile solution for a wide range of applications, especially in automotive and industrial settings.
Specifications
- Connector type: Disconnectable Crimp style Wire-to-wire connectors
- Connector pitch: 7.0mm
- Current rating: 7A AC, DC max.
- Voltage rating: 300V AC, DC max.
- Temperature range: -40˚C to +105˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/7m Ω max, After environmental testing/10m Ω max.
- Insulation resistance: 1,000M Ω min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #26 to #18, 0.13 to 0.75mm²， Insulation O.D./2.1 to 2.5mm
- Waterproof grade: Grade 4 ingress protection of JIS C 0920(IEC 60529 IPX4)
Current unit: A
| Circuits | Wire size(AWG) | ||||
| #18 | #20 | #22 | #24 | #26 | |
| 1 | 7 | 5 | 4 | 3 | 2 |
| 2 | 7 | 5 | 4 | 3 | 2 |
Note:
- The current rating varies depending on the number of circuits and the wire size used in each connector.
- The table above lists the current rating as a function of the number of circuits and wire size.
Housing

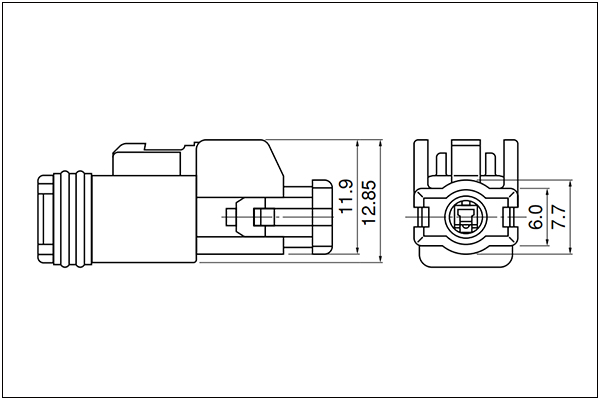

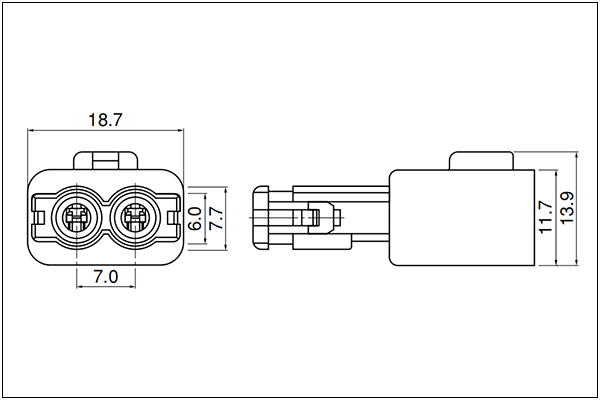

01P-MWPV-SSR
01R-MWPV-SSRR
02P-MWPV-SSR
02R-MWPV-SSRR
Note:
- Model ( )P-MWPV-SSR comes with the wire end seal and slider.
- Model ( )R-MWPV-SSRR comes with a rubber ring, wire end seal and slider.
Terminal

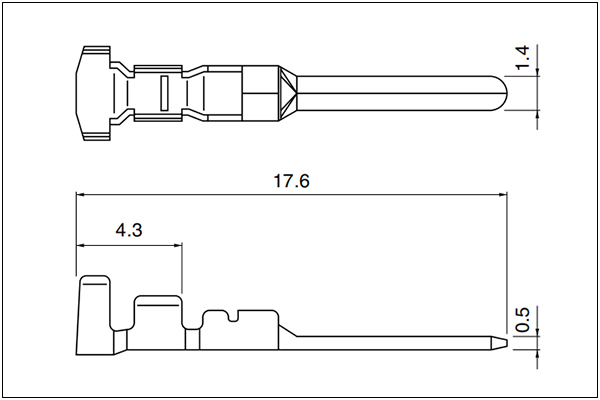

Pin Terminal

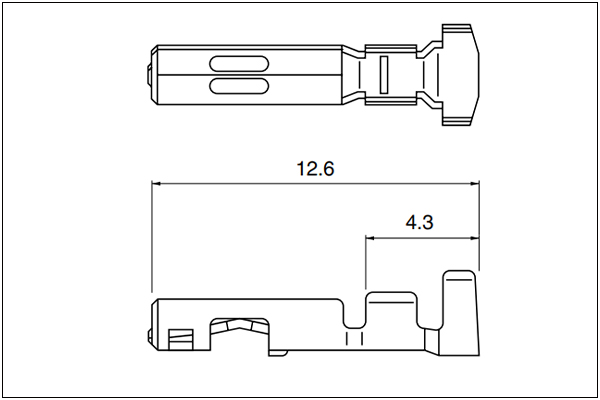

Socket Terminal
| Model No. | Applicable wire | Insulation O.D (mm) |
Qty/reel | ||
| Pin contact | Socket contact | mm² | AWG# | ||
| SSM-01T-P1.4 | SSF-01T-P1.4 | 0.13~0.5 | 26～20 | 2.1～2.5 | 6000 |
| SSM-21T-P1.4 | SSF-21T-P1.4 | 0.3～0.75 | 22~18 | ||
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)

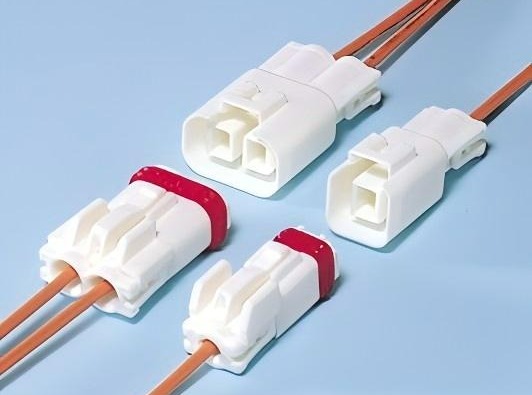

Support Custom Wiring Harness Assembly
- Connector: 1, 2pin
- Wire gauge: 18 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
