JST NV Connector, Wire to Board, Custom Wire Assembly

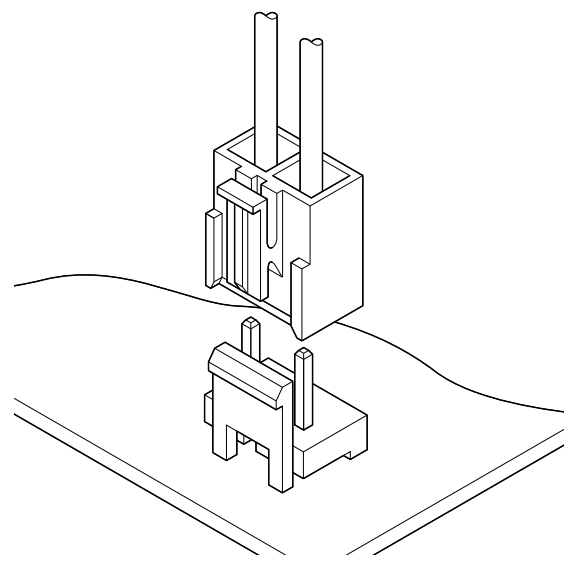

JST NV Connector, Wire to Board Type
The JST NV Connector is a versatile and compact solution designed to meet the demands of modern electronic applications. Featuring a side-stackable design, it enables seamless scalability in space-constrained environments, making it ideal for multi-connector setups. The connector incorporates robust box contacts, which ensure secure and stable electrical connections, reducing the risk of disconnection or signal loss even in demanding conditions. Despite its compact size, the NV Connector boasts a large capacity, making it suitable for applications requiring high-density wiring or power transmission. Additionally, its design emphasizes secure contact and reliable mounting, offering enhanced performance and long-term durability.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 5.0mm
- Current rating: 10 A AC/DC (AWG #16)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #22 to #16
- Applicable PC board thickness: 1.6 mm

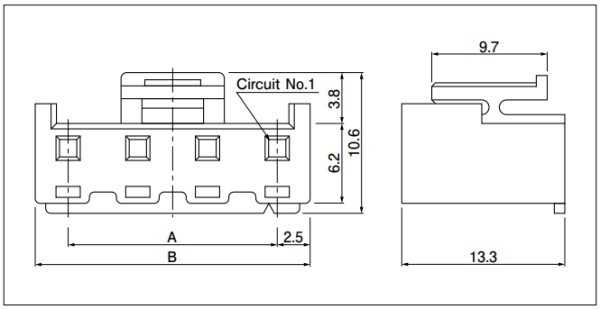

Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | NVR-02 | 5 | 10 | 1000 |
| 3 | NVR-03 | 10 | 15 | 500 |
| 4 | NVR-04 | 15 | 20 | 1000 |
Material and Finish: PA 6, UL94V-0, natural (white)

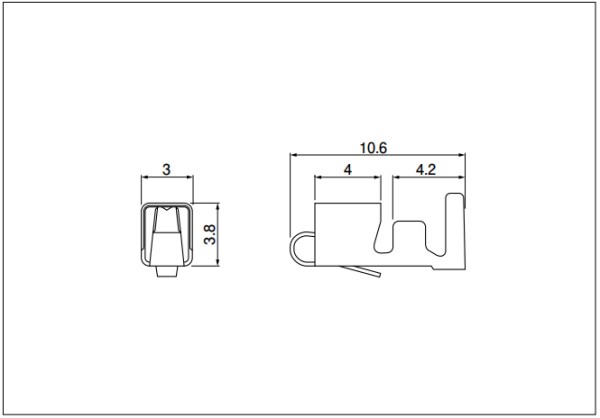

Terminal
| Model No. | Applicable wire | Insulation O.D (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SVH-21T-P1.1 | 0.33 to 0.83 | 22 to 18 | 1.7 to 3 | 4500 |
| SVH-41T-P1.1 | 0.5 to 1.25 | 20 to 16 | 1.7 to 3 | 3500 |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)

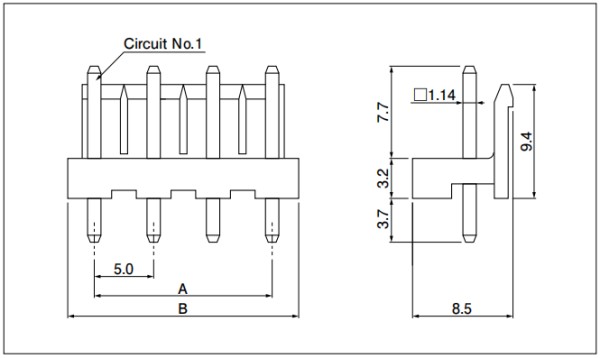

Header
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | |
| A | B | |||
| 2 | B02P-NV | 5 | 10 | 1000 |
| 3 | B03P-NV | 10 | 15 | 700 |
| 4 | B04P-NV | 15 | 20 | 500 |
Material and Finish
- Post: Brass, copper-undercoated, tin-plated (reflow treatment)
- Wafer:
- B02P-NV...PA 66, UL94V-0, natural (white)
- B03P-NV & B04P-NV...Glass-filled PBT, UL94V-0, natural (white)

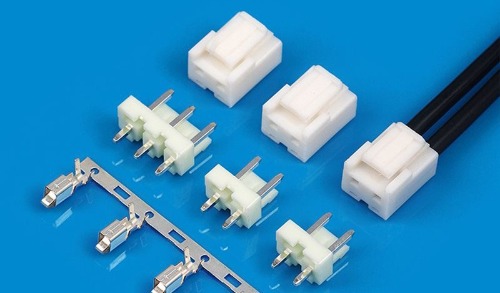

Support Custom Wiring Harness Assembly
- Connector: 2, 3, 4pin
- Wire gauge: 16 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
