JST OTZ Connector, Wire to Wire, Custom Wire Assembly

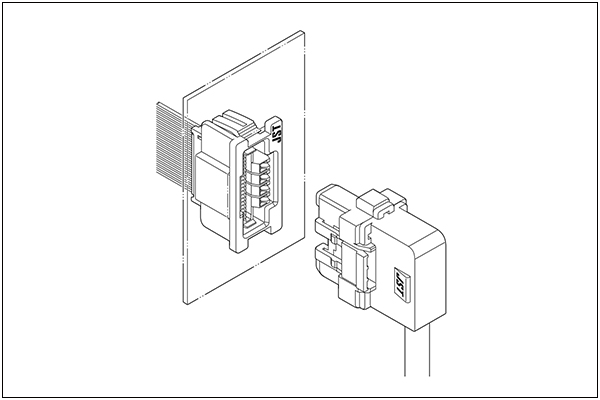

JST OTZ Connector, Wire to Wire

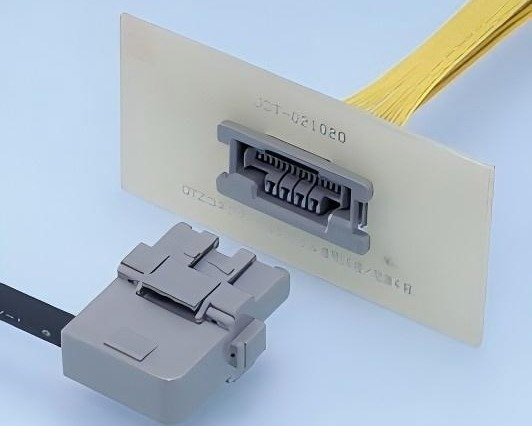

The JST OTZ Connector is a hybrid I/O connector designed to streamline and enhance connectivity by combining both signal and power supply circuits into a single unit. This integration reduces the number of components needed, making it a more efficient solution for various applications. Its compact design contributes to significant space savings, making it ideal for environments where space is limited. Additionally, the OTZ Connector is equipped with a lever lock function, ensuring secure and reliable connections while simplifying the assembly and maintenance process. This versatile connector is well-suited for industries that require high performance in constrained spaces.
Specifications
- Current rating:
- Signal circuit: 1 A AC/DC (AWG #26)
- Power supply circuit: 5 A AC/DC (AWG #20)
- Voltage rating:
- Signal circuit: 50 V AC/DC
- Power supply circuit: 300 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Applicable wire:
- Signal circuit: AWG #28 to #26
- Power supply circuit: AWG #26 to #20
- Number of circuits:
- Signal circuit: 16 circuits
- Power supply circuit: 4 circuits
Housing

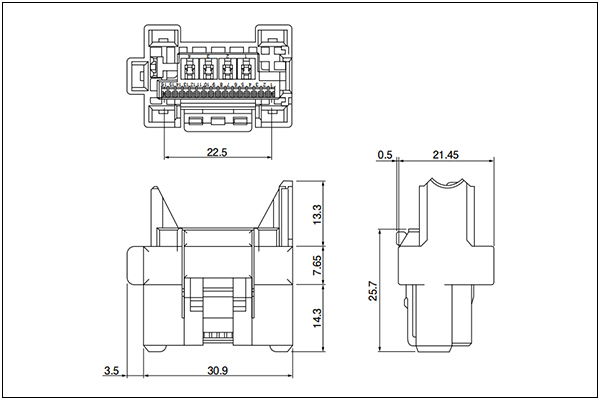

Plug - Signal 16 circuits and Power supply 4 circuits
P/N: OTZP-16-H-P4

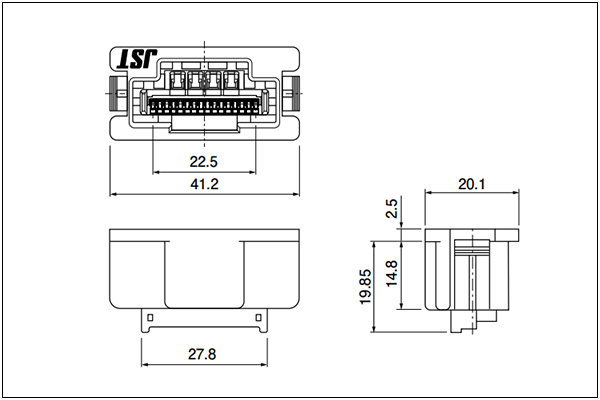

Receptacle - Signal 16 circuits and Power supply 4 circuits
P/N: 16R-OTZ-H4GG-P4RL
Terminal

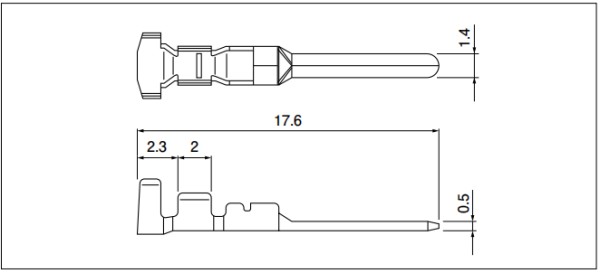

Plug contact for power supply circuit

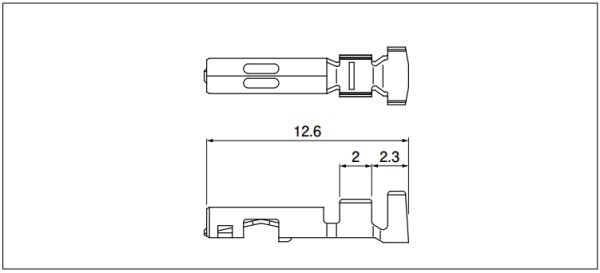

Receptacle contact for power supply circuit

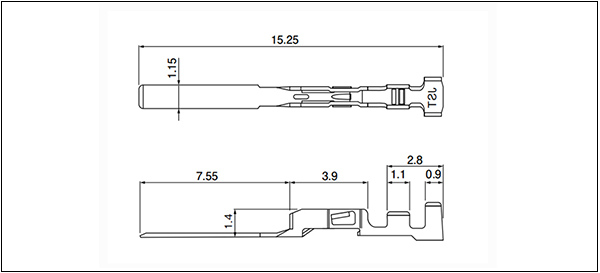

Plug contact for signal

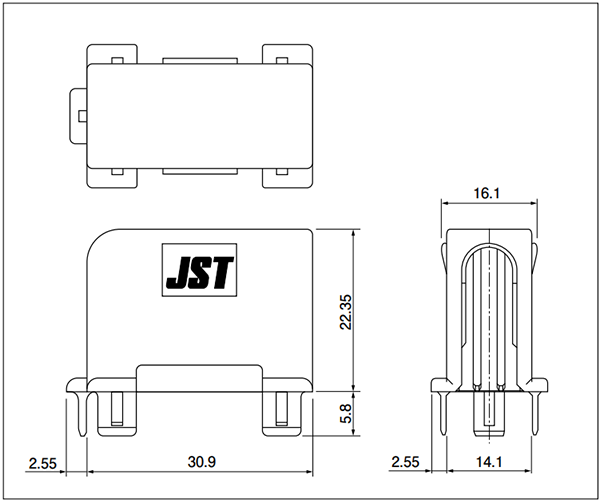

Plug cover
Specs:
- Model No. : OTZC-16-H-P4
- Q'ty/box: 200pcs
- Material and Surface finish: Thermoplastic resin, gray
- RoHS2 compliance
- Use a tie lock to fix the composite wire.

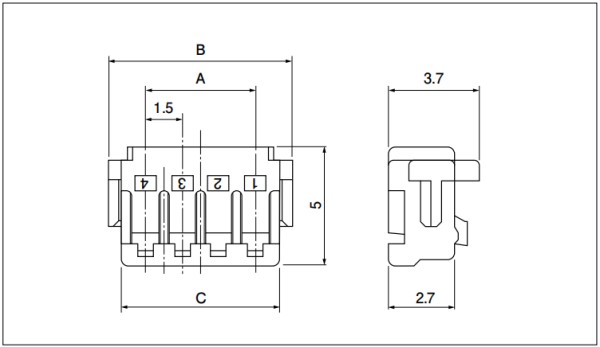

CZH connector Housing
Specs:
- No. of Circuits: 16
- Model Number: CZHR-16V-S
- Dimension: A(22.5), B(25.5), C(24.5)
- Q'ty/reel: 1000pcs
- Materials and Finish: Thermoplastic resin, natural
- RoHS2 compliance

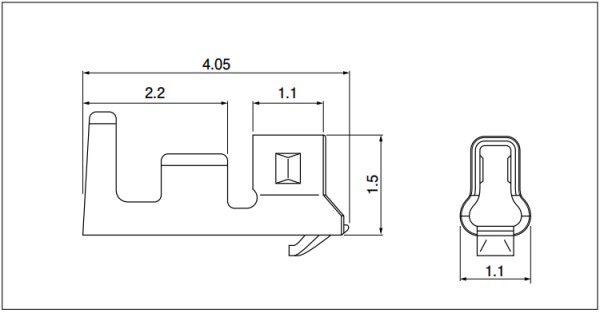

CZH Connector Contact
Specs:
- Model No.: SCZH-002T-P0.5
- Applicable Wire: 28 to 26AWG（0.08 to 0.13mm²）
- Insolations O.D. (mm): 0.8 to 1.1mm
- Q'ty/reel: 13000pcs
- Materials and Finish: Copper alloy, Tin-plated
- RoHS2 compliance

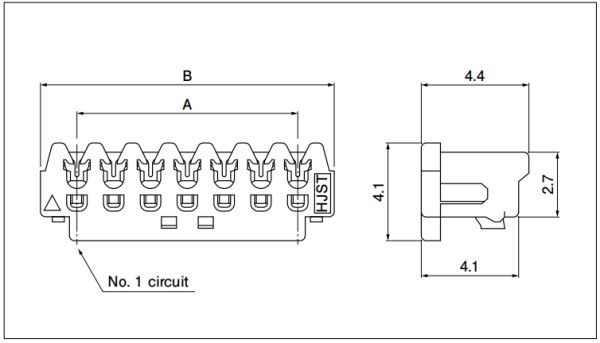

CZ Connector Socket
Specs:
- No. of Circuits: 16
- Model Number: 16CZ-6H
- Dimension: A(22.5), B(25.5)
- Q'ty/reel: 1000pcs
- Materials and Finish:
- Contact: Copper alloy, tin-plated
- Housing: Thermoplastic resin
- RoHS2 compliance
Support Custom Wiring Harness Assembly
- Connector: 16pin (Signal), 4pin(Power)
- Wire gauge: 28 - 14AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
