JST PAD Connector

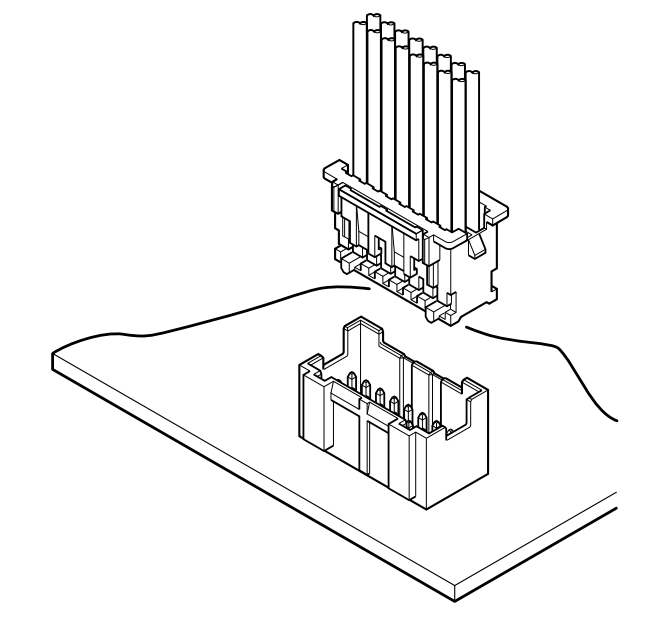

The JST PAD Connector is a compact, high-performance wire-to-board connector featuring a 2.0 mm pitch, crimp-style, dual-row PAD structure. Designed for secure and stable connections, it incorporates a robust locking device that prevents accidental disconnection, ensuring reliability even in environments subject to vibration or movement. The connector boasts reliable contacts that maintain strong electrical conductivity, reducing the risk of signal loss or power interruption. An insertion guide mechanism simplifies assembly, enabling easy and accurate mating of connectors, while the polarizing boss ensures proper alignment and prevents incorrect insertion. This thoughtful design supports high efficiency, safety, and durability in a wide range of electronic and industrial applications.
Specifications
- Connector type: Disconnectable Crimp style, Wire-to-board
- Connector Pitch: 2.0mm
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: AWG #28 to #22
- Applicable PC board thickness: 1.6 mm
Housing

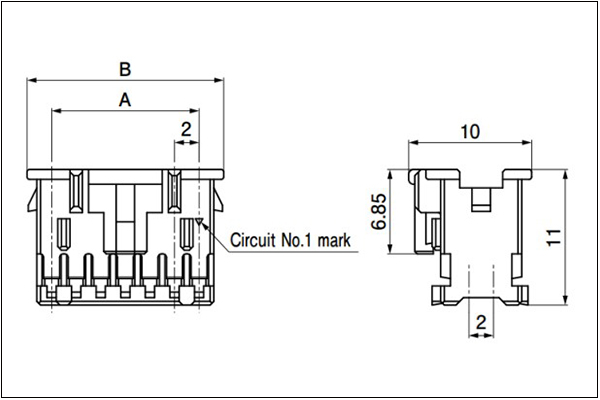

10 to 14 circuits

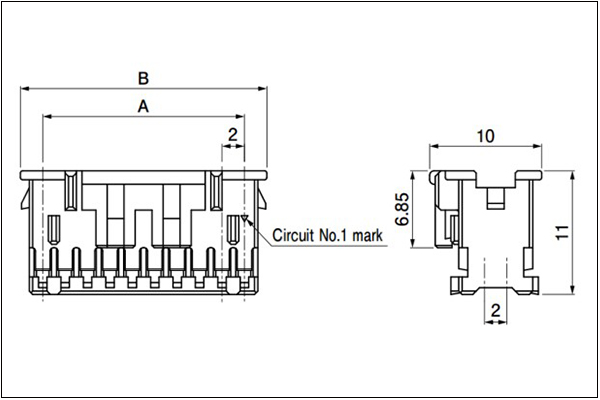

16 to 24 circuits

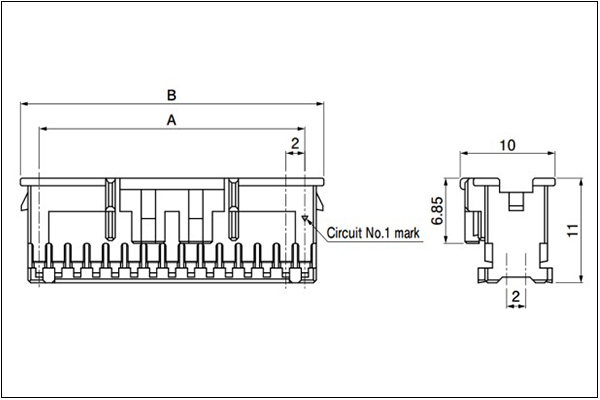

40 circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 10 | PADP-10V-1-S | 8.0 | 12.0 | 1000 |
| 12 | PADP-12V-1-S | 10.0 | 14.0 | 1000 |
| 14 | PADP-14V-1-S | 12.0 | 16.0 | 1000 |
| 16 | PADP-16V-1-S | 14.0 | 18.0 | 1000 |
| 20 | PADP-20V-1-S | 18.0 | 22.0 | 1000 |
| 22 | PADP-22V-1-S | 20.0 | 24.0 | 1000 |
| 24 | PADP-24V-1-S | 22.0 | 26.0 | 1000 |
| 40 | *PADP-40V-1-S | 38.0 | 42.0 | 500 |
Note:
- *Marked product is unlisted in TÜV.
- Material and Finish: PA 66, UL94V-0, natural (white)
- RoHS2 compliance
Terminal

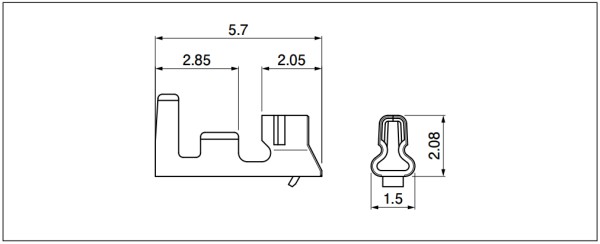

Type A

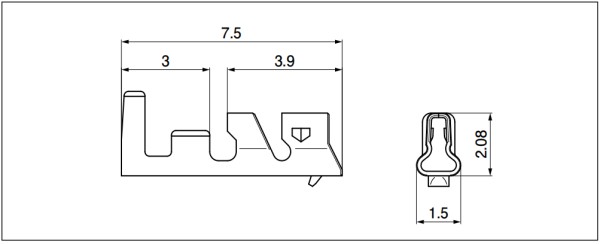

Type B
| Type | Model No. | Applicable wire | Insulation O.D. (mm) |
Q'ty/reel |
Material and Finish | |
| mm² | AWG# | |||||
| Type A | SPH-002T-P0.5L | 0.08 to 0.22 | 28 to 24 | 0.8 to 1.5 | 8000 | Phosphor bronze, tin-plated |
| SPH-001T-P0.5L | 0.13 to 0.33 | 26 to 22 | 1 to 1.5 | |||
| Type B | SPND-002T-C0.5 | 0.08 to 0.22 | 28 to 24 | 0.76 to 1.5 | 8000 | Copper alloy, tin-plated |
| SPND-001T-C0.5 | 0.13 to 0.33 | 26 to22 | 1.0 to 1.5 | |||
Note: Type B is low insertion/withdrawal force type contact, in order to improve the work of insertion/withdrawal.
Header
Top entry type

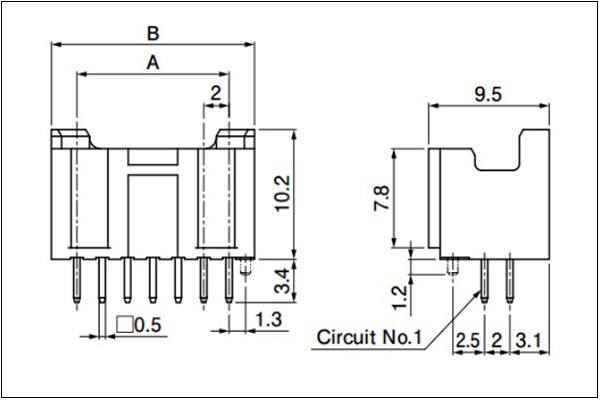

10 to 14 Circuits

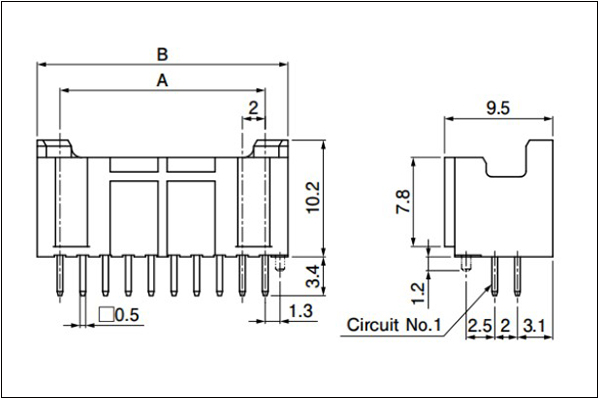

16 to 24 Circuits

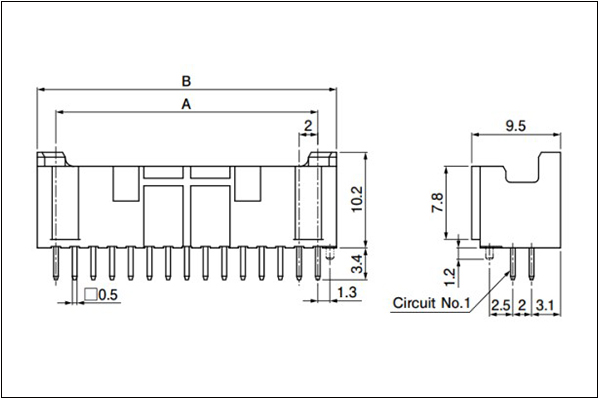

40 Circuits
Side entry type

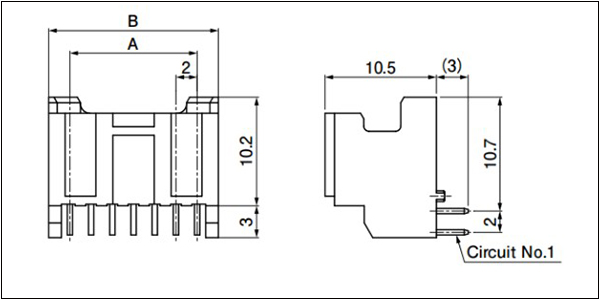

10 to 14 Circuits

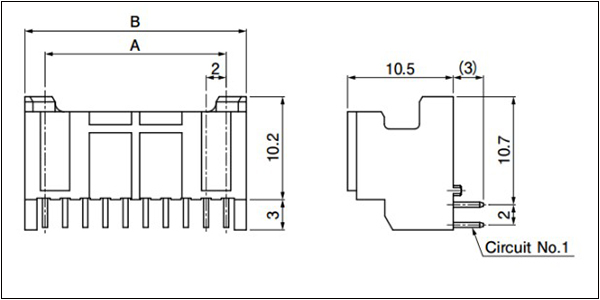

16 to 24 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | ||||
| Top entry type | Side entry type | ||||||
| Without a boss | With a boss | A | B | Top entry type | Side enty type | ||
| 10 | B10B-PADSS-F | B10B-PADSS-1F | S10B-PADSS-1 | 8.0 | 12.0 | 400 | 504 |
| 12 | B12B-PADSS-F | B12B-PADSS-1F | S12B-PADSS-1 | 10.0 | 14.0 | 300 | 420 |
| 14 | B14B-PADSS-F | B14B-PADSS-1F | S14B-PADSS-1 | 12.0 | 16.0 | 300 | 364 |
| 16 | B16B-PADSS-F | B16B-PADSS-1F | S16B-PADSS-1 | 14.0 | 18.0 | 200 | 336 |
| 20 | B20B-PADSS-F | B20B-PADSS-1F | S20B-PADSS-1 | 18.0 | 22.0 | 150 | 280 |
| 22 | B22B-PADSS-F | B22B-PADSS-1F | 一 | 20.0 | 24.0 | 150 | 一 |
| 24 | B24B-PADSS-F | B24B-PADSS-1F | S24B-PADSS-1 | 22.0 | 26.0 | 150 | 224 |
| 40 | 一 | *B40B-PADSS-1F | 一 | 38.0 | 42.0 | 100 | 一 |
Notes:
- Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated
- Wafer:
- Top entry type/PA66 (Glass-filled), UL94V-0, natural (ivory)
- Side entry type/PBT (Glass-filled), UL94V-0, natural (white)
- This product displays (LF)(SN) on a label.
- *Marked product is unlisted in TÜV.
- RoHS2 compliance

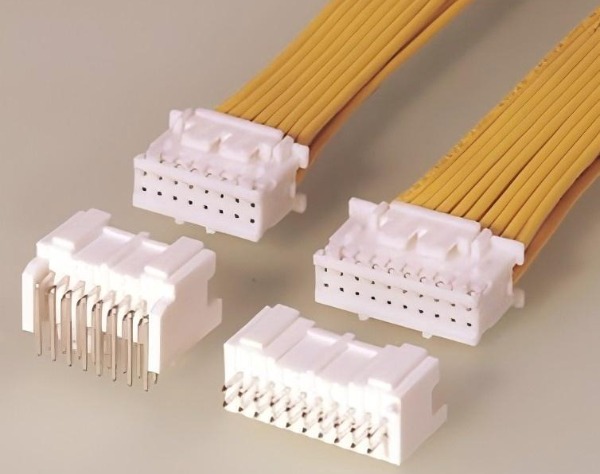

Support Custom Wiring Harness Assembly
- Connector: 10 - 40pin
- Wire gauge: 22 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
