JST PBD Connector

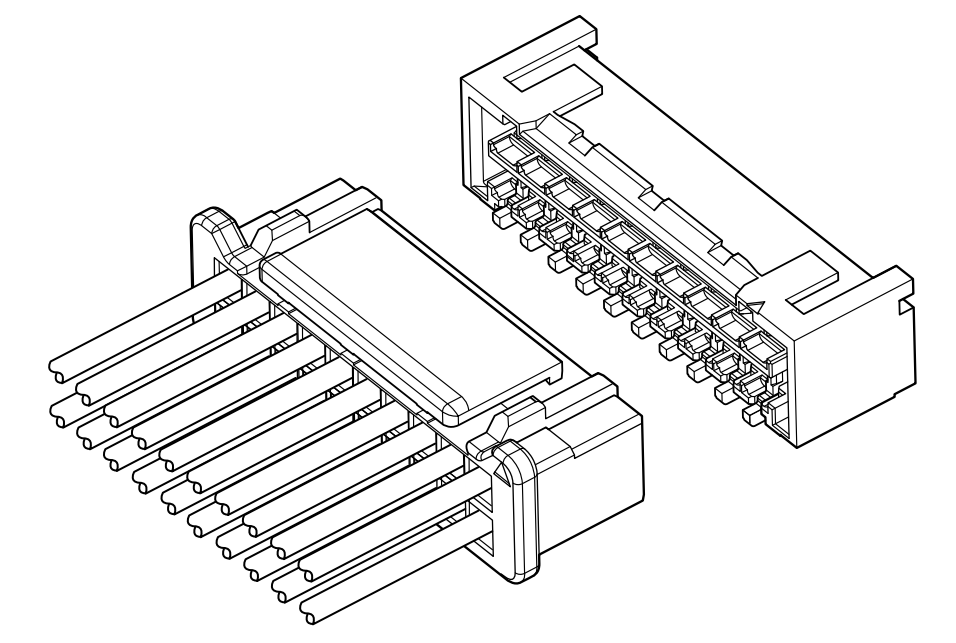

The JST PBD Connector is a 2.0mm pitch, disconnectable crimp-style connector designed to deliver high performance and reliability for various electronic applications. It features a secure locking structure that ensures strong retention, preventing accidental disconnections during use. The connector's header includes a designated "sucking area," which allows for efficient automated pick-and-place assembly in high-volume production. Its high-reliability contacts provide stable electrical performance, even in demanding environments. The PBD Connector adopts a side-entry, dual-row design, optimizing space utilization on PCBs. Additionally, its contacts are compatible with applicators used for JST's PHD connectors, enabling manufacturing flexibility and reducing tooling costs for users.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style connectors
- Connector pitch: 2.0 mm pitch
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: lnitial/ 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: Conductor size/ AWG #28 to #22, Insulation O.D./ 1.0 to 1.5 mm

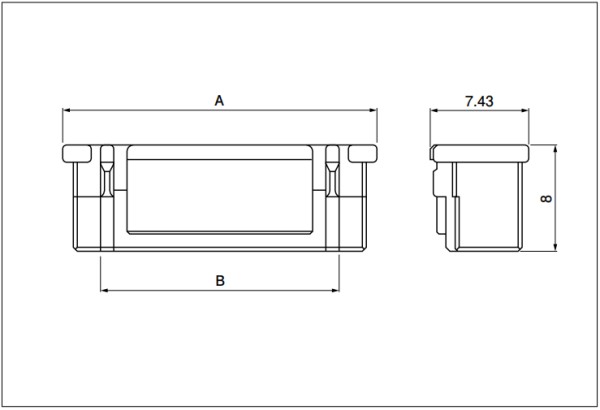

Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 16 | PBDP-16V-S | 19.7 | 14.0 | 500 |
| 20 | PBDP-20V-S | 23.7 | 18.0 | 300 |
| 30 | PBDP-30V-S | 33.7 | 28.0 | 200 |
Material and Finish: PBT, UL94V-0, natural (white)

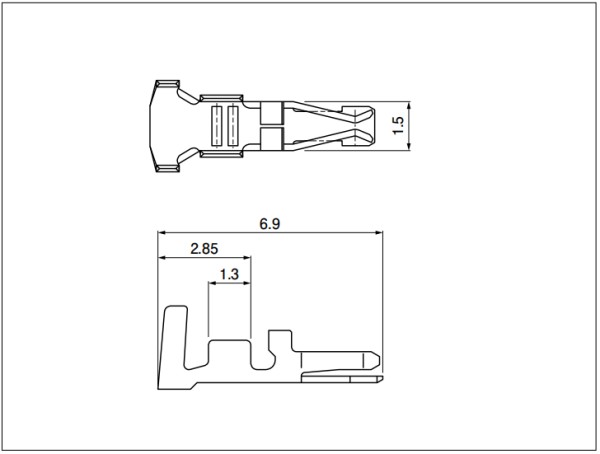

Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm2 | AWG# | |||
| SPBD-001T-P0.5 | 0.13 to 0.33 | 26 to 22 | 1 to 1.5 | 10000 |
| SPBD-002T-P0.5 | 0.08 to 0.21 | 28 to 24 | 0.8 to 1.5 | 10000 |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)

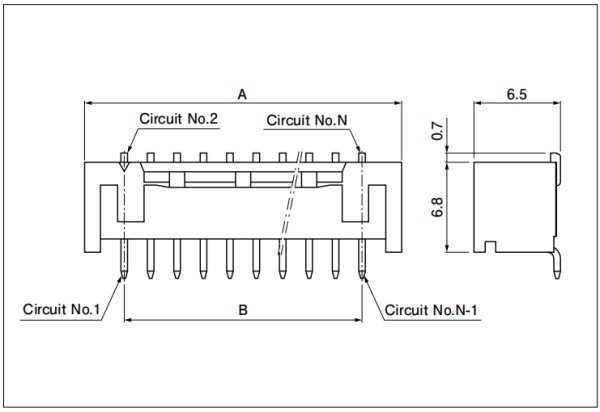

Header
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/reel | |
| A | B | |||
| 16 | SM16B-PBDSS-TF | 20.0 | 14.0 | 800 |
| 20 | SM20B-PBDSS-TF | 24.0 | 18.0 | 800 |
| 30 | SM30B-PBDSS-TF | 34.0 | 28.0 | 800 |
Note:
- Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Base housing: Polyamide resin, UL94V-0, natural (ivory)
- Base contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- RoHS2 compliance
- This product displays (LF)(SN) on a label.
- These products listed above are supplied on embossed-tape.

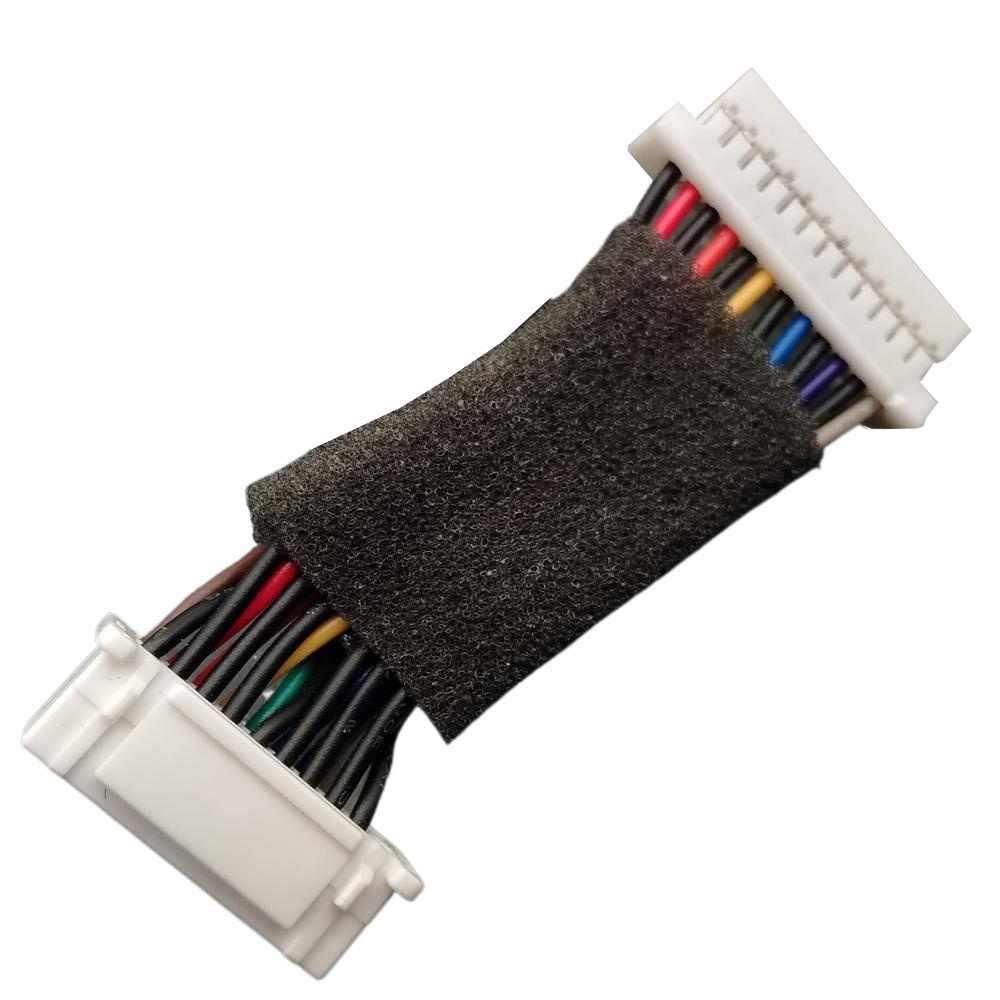

Support Custom Wiring Harness Assembly
- Connector: 16, 20, 30pin
- Wire gauge: 22 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
