JST PBV Connector, Custom Wire Assembly Manufacturer
JST PBV Connector

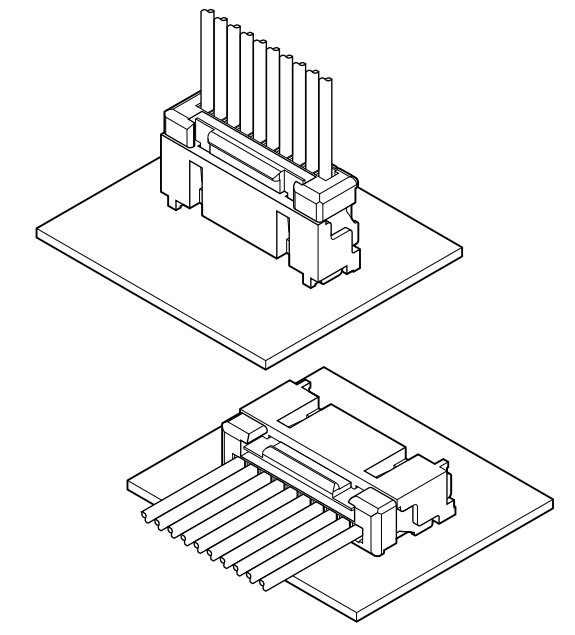

The JST PBV Connector is a crimp-style connector specifically designed for reliable PCB connections in flat-screen televisions and other electronic devices. Engineered with a secure locking structure, it ensures a firm and stable connection, preventing accidental disconnections due to vibrations or external forces. The connector also features a dedicated "sucking area" on the header, facilitating easy automated pick-and-place assembly during the manufacturing process. With high-reliability contact points, it maintains consistent electrical conductivity, even in demanding environments. These features make the PBV connector an ideal choice for modern electronics, offering enhanced assembly efficiency, secure connectivity, and long-term performance stability.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 2.0mm
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: lnitial/ 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: Conductor size/ AWG#28 to #22, Insulation O.D./ 0.9 to 1.5 mm
Housing

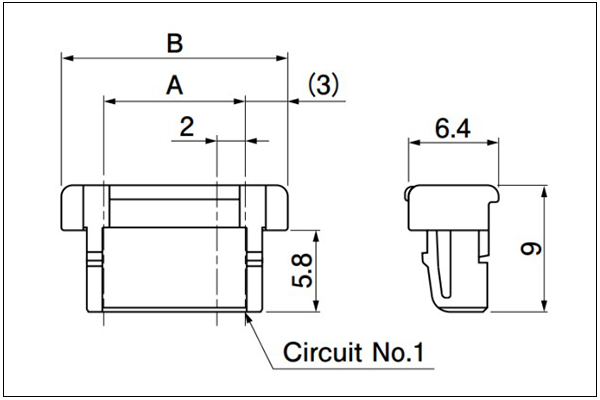

3 (2 circuits in common use) to 8 circuits

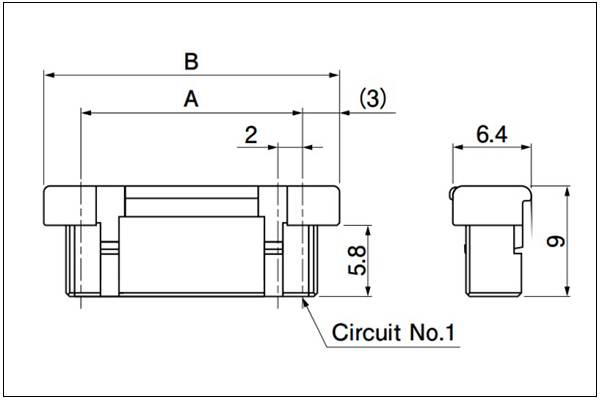

9 to 12 circuits

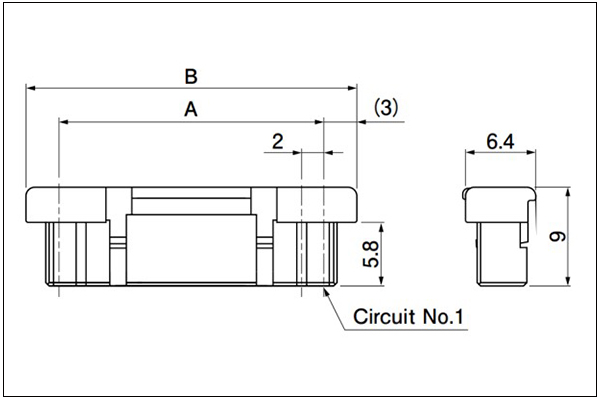

13 to 15 circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| *3 | PBVP-03V-S | 4.0 | 10.0 | 2000 |
| 4 | PBVP-04V-S | 6.0 | 12.0 | 2000 |
| 6 | PBVP-06V-S | 10.0 | 16.0 | 1000 |
| 8 | PBVP-08V-S | 14.0 | 20.0 | 1000 |
| 10 | PBVP-10V-S | 18.0 | 24.0 | 1000 |
| 12 | PBVP-12V-S | 22.0 | 28.0 | 500 |
| 15 | PBVP-15V-S | 28.0 | 34.0 | 500 |
Notes:
- Material and Finish: PA 66, UL94V-0, natural (white)
- 2 circuits in common use.
- RoHS2 compliance

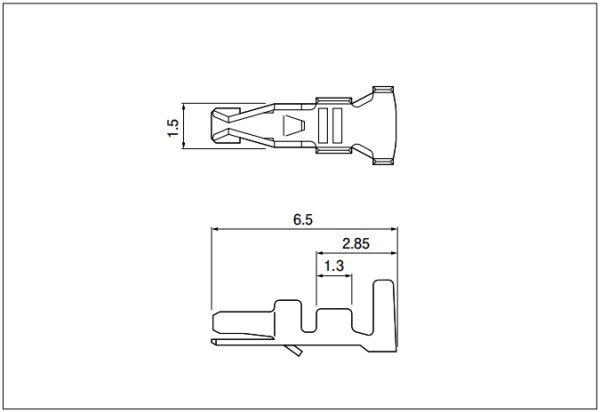

Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SPHD-001T-P0.5 | 0.13 to 0.33 | 26 to 22 | 1 to 1.5 | 8000 |
| SPHD-002T-P0.5 | 0.08 to 0.21 | 28 to 24 | 0.9 to 1.5 | 8000 |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
Header
Top entry type

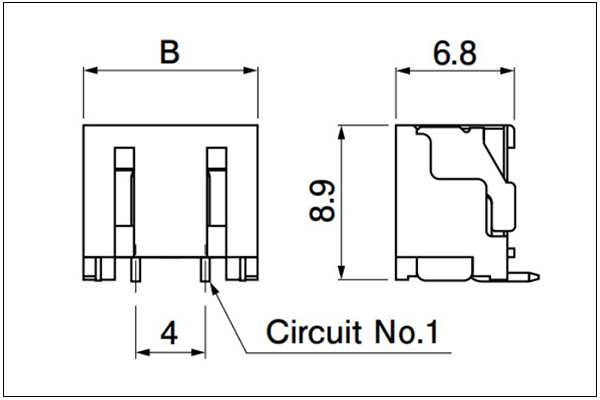

2 circuits

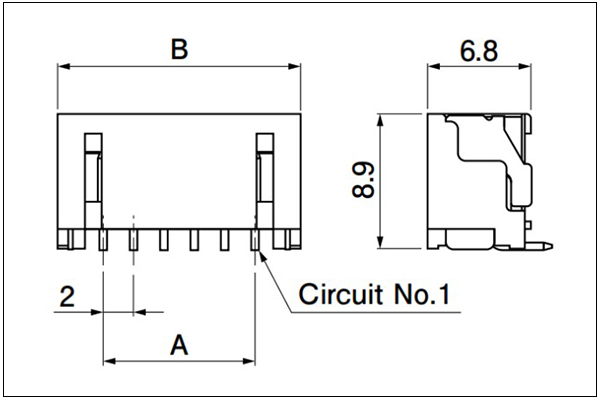

3 to 8 circuits

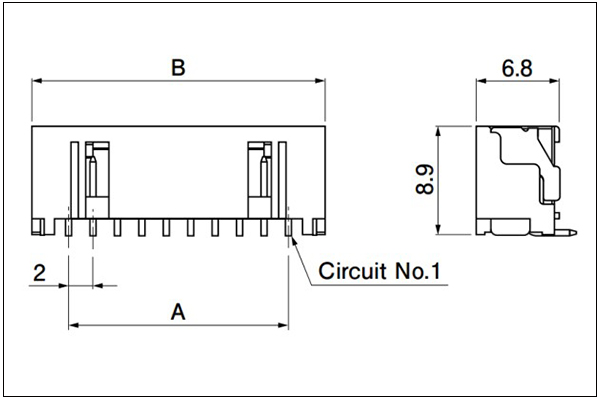

9 to 12 circuits

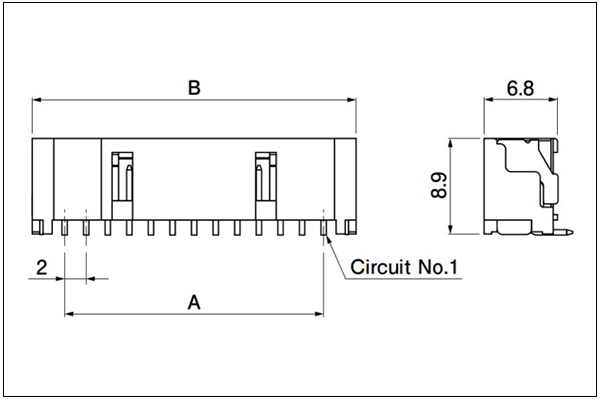

13 to 15 circuits
Side entry type

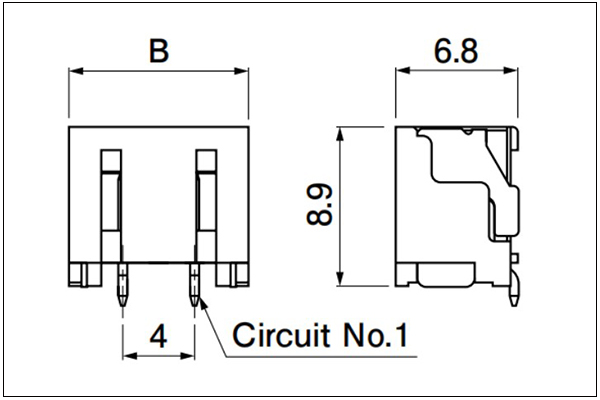

2 circuits

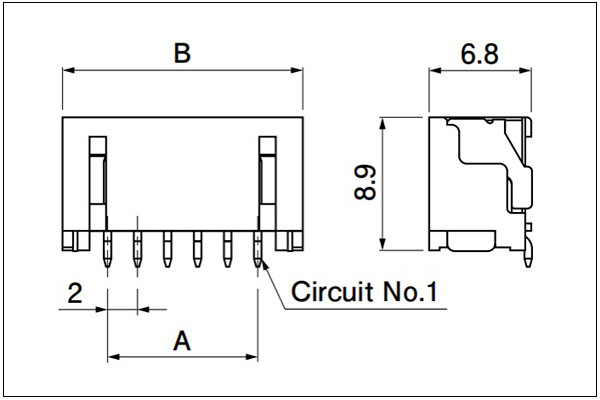

3 to 8 circuits

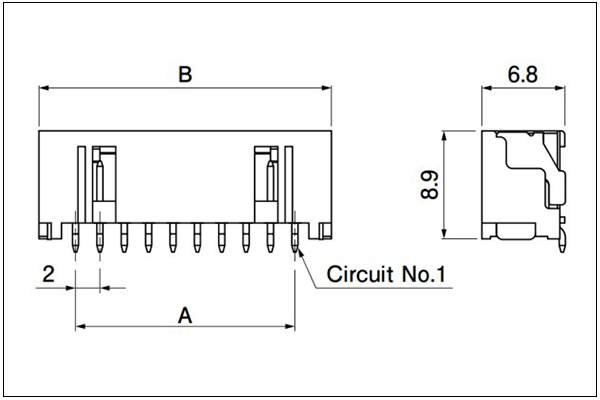

9 to 12 circuits

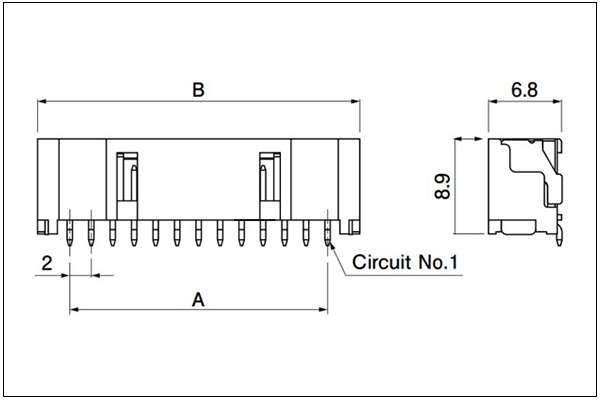

13 to 15 circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/reel | |||
| Top entry type | Side entry type | A | B | Top type | Side type | |
| *2 | BM02(4.0)B-PBVSS-TF | SM02(4.0)B-PBVSS-TB | 4.0 | 10.0 | 700 | 800 |
| 3 | BM03B-PBVSS-TF | SM03B-PBVSS-TB | 4.0 | 10.0 | 700 | 800 |
| 4 | BM04B-PBVSS-TF | SM04B-PBVSS-TB | 6.0 | 12.0 | 700 | 800 |
| 6 | BM06B-PBVSS-TF | SM06B-PBVSS-TB | 10.0 | 16.0 | 700 | 800 |
| 8 | BM08B-PBVSS-TF | SM08B-PBVSS-TB | 14.0 | 20.0 | 700 | 800 |
| 10 | BM10B-PBVSS-TF | SM10B-PBVSS-TB | 18.0 | 24.0 | 700 | 800 |
| 12 | BM12B-PBVSS-TF | SM12B-PBVSS-TB | 22.0 | 28.0 | 700 | 800 |
| 15 | BM15B-PBVSS-TF | SM15B-PBVSS-TB | 28.0 | 34.0 | 700 | 800 |
Notes:
- Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Polyamide resin, UL94V-0, natural (ivory)
- Reinforcement: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- RoHS2 compliance
- This product displays (LF)(SN) on a label.
- These products listed above are supplied on embossed-tape.
- *2 circuits product: Removing center pin from 3 circuits product

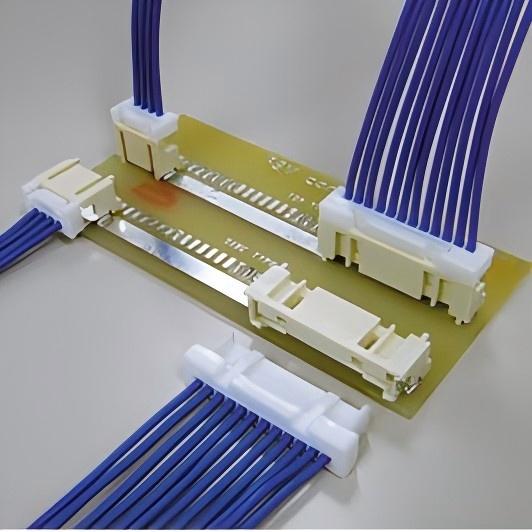

Support Custom Wiring Harness Assembly
- Connector: 2 - 15pin
- Wire gauge: 22 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
