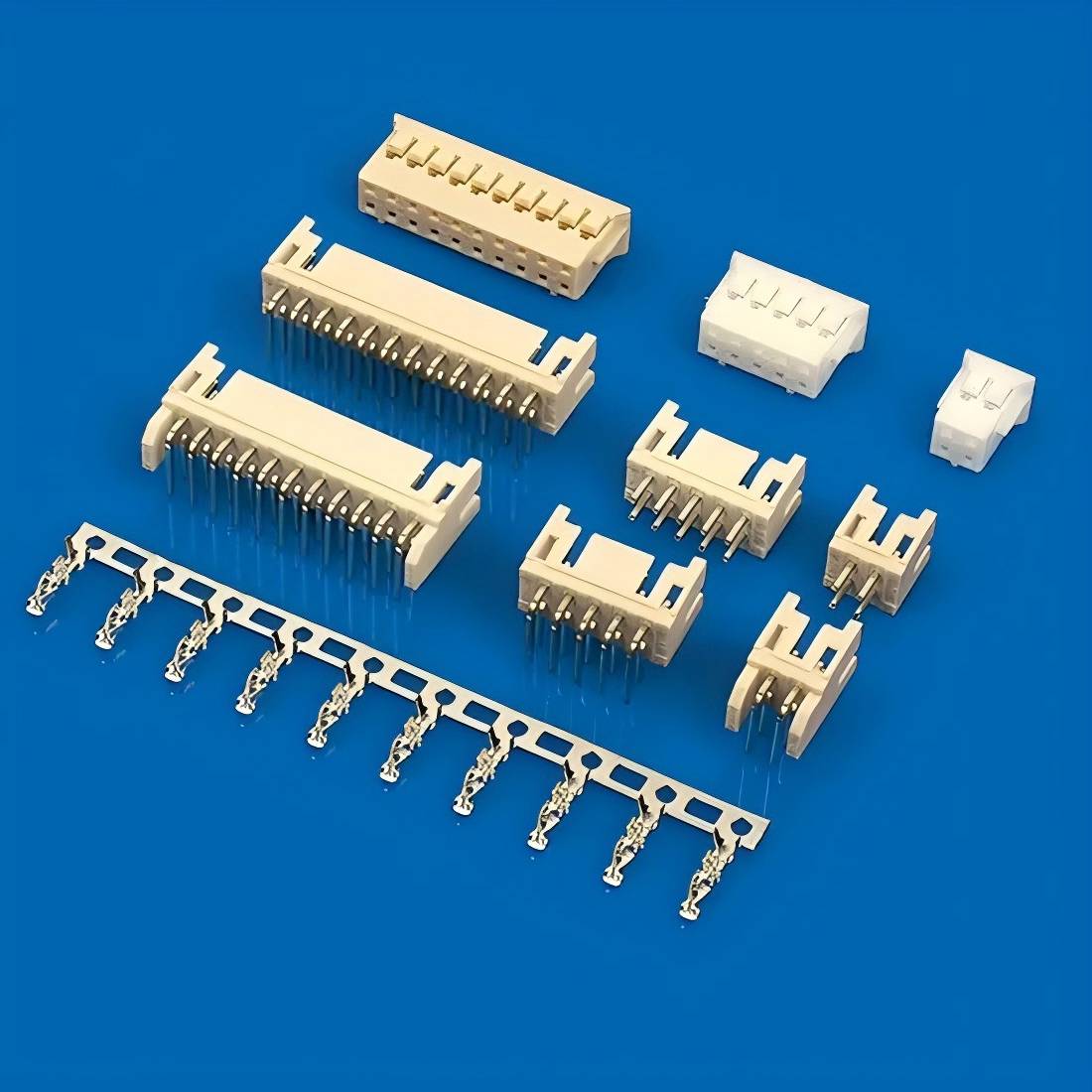

JST PHD Connector

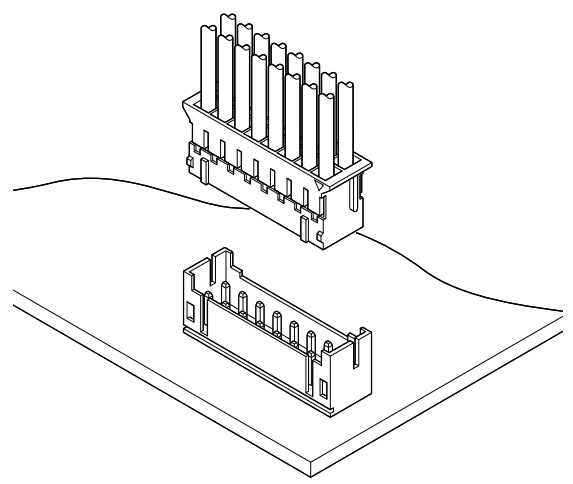

The JST PHD Connector is a compact, dual-row, wire-to-board connector with a 2.0 mm pitch, designed to support the growing need for high-density, space-saving interconnections. Its crimp-style design ensures a secure and reliable connection, making it ideal for applications where space constraints are critical. One of its key features is its fully shrouded header, which provides enhanced protection for the contact points, reducing the risk of damage during handling or assembly. Additionally, the PHD Connector is engineered for dependable electrical performance, ensuring consistent conductivity even in demanding environments. Its small form factor, robust contact reliability, and protective design make it a preferred choice for modern electronics and compact device applications.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 2.0mm
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: AWG #28 to #22
- Applicable PC board thickness: 1.6 mm

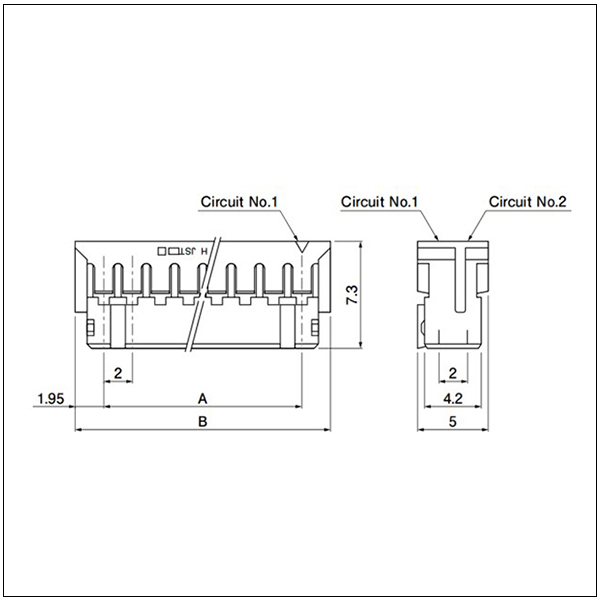

Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 8 | PHDR-08VS | 6.0 | 9.9 | 1000 |
| 10 | PHDR-10VS | 8.0 | 11.9 | 1000 |
| 12 | PHDR-12VS | 10.0 | 13.9 | 1000 |
| 14 | PHDR-14VS | 12.0 | 15.9 | 1000 |
| 16 | PHDR-16VS | 14.0 | 17.9 | 1000 |
| 18 | PHDR-18VS | 16.0 | 19.9 | 1000 |
| 20 | PHDR-20VS | 18.0 | 21.9 | 1000 |
| 22 | PHDR-22VS | 20.0 | 23.9 | 1000 |
| 24 | PHDR-24VS | 22.0 | 25.9 | 1000 |
| 26 | PHDR-26VS | 24.0 | 27.9 | 1000 |
| 28 | PHDR-28VS | 26.0 | 29.9 | 1000 |
| 30 | PHDR-30VS | 28.0 | 31.9 | 1000 |
| 32 | PHDR-32VS | 30.0 | 33.9 | 1000 |
| 34 | PHDR-34VS | 32.0 | 35.9 | 1000 |
Material and Finish: PA 66, UL94V-0, natural (white)

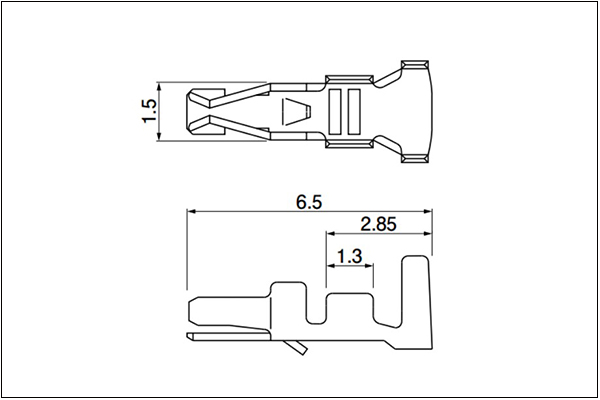

Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SPHD-002T-P0.5 | 0.08~0.21 | 28~24 | 0.9~1.5 | 8000 |
| SPHD-001T-P0.5 | 0.13～0.33 | 26~22 | 1.0~1.5 | |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
Shrouded header

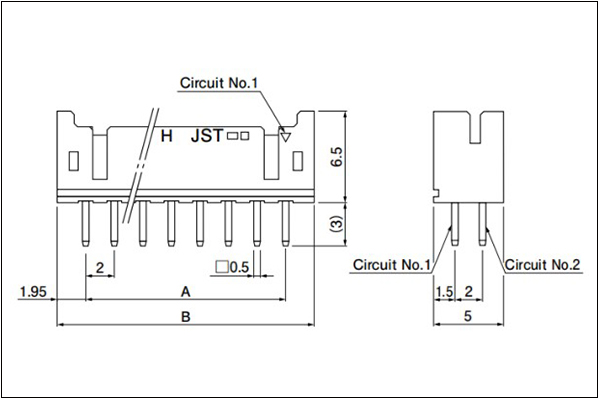

Top entry type

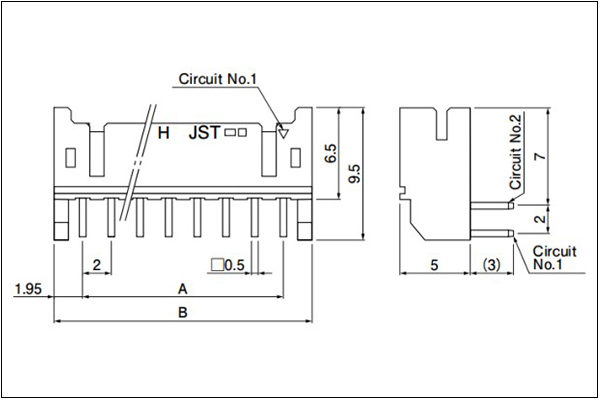

Side entry type
| No. of circuits | Model No. | Dimensions (mm) |
Q'ty/box | |||||
| Glass-filled nylon | Nylon | |||||||
| Top entry type | Side entry type | Top entry type | Side entry type | A | B | Top entry type | Side enty type | |
| 8 | B8B-PHDSS | S8B.-PHDSS | — | — | 6.0 | 9.9 | 500 | 500 |
| 10 | B10B.PHDSS | S10BPHDSS | B10B-PHDSS-B | S10B-PHDSS-B | 8.0 | 11.9 | 500 | 500 |
| 12 | B12B-PHDSS | S12B-PHDSS | B12B-PHDSS-B | S12B-PHDSS-B | 10.0 | 13.9 | 500 | 500 |
| 14 | B14B-PHDSS | S14B-PHDSS | B14B-PHDSS-B | S14B-PHDSS-B | 12.0 | 15.9 | 500 | 250 |
| 16 | B16B-PHDSS | S16B-PHDSS | B16B-PHDSS-B | S16B-PHDSS-B | 14.0 | 17.9 | 500 | 250 |
| 18 | B18B-PHDSS | S18B-PHDSS | B18B-PHDSS-B | S18B-PHDSS-B | 16.0 | 19.9 | 500 | 250 |
| 20 | B20B.PHDSS | S20B.PHDSS | B20B-PHDSS-B | S20B-PHDSS-B | 18.0 | 21.9 | 250 | 250 |
| 22 | B22B-PHDSS | S22B-PHDSS | B22B-PHDSS-B | S22B-PHDSS-B | 20.0 | 23.9 | 250 | 250 |
| 24 | B24B.PHDSS | S24B-PHDSS | B24B-PHDSS-B | S24B-PHDSS-B | 22.0 | 25.9 | 250 | 200 |
| 26 | B26B-PHDSS | S26B-PHDSS | B26B-PHDSS-B | S26B.PHDSS-B | 24.0 | 27.9 | 250 | 200 |
| 28 | B28B-PHDSS | S28B-PHDSS | B28B-PHDSS-B | S28B-PHDSS-B | 26.0 | 29.9 | 250 | 200 |
| 30 | B30B.PHDSS | S30B-PHDSS | B30B-PHDSS-B | S30B-PHDSS-B | 28.0 | 31.9 | 250 | 200 |
| 32 | B32B-PHDSS | S32B-PHDSS | B32B-PHDSS-B | S32B-PHDSS-B | 30.0 | 33.9 | 250 | 200 |
| 34 | B34B-PHDSS | S34B-PHDSS | B34B-PHDSS-B | S34B-PHDSS-B | 32.0 | 35.9 | 250 | 200 |
Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural (ivory)
- PA 66, UL94V-0, natural (white)

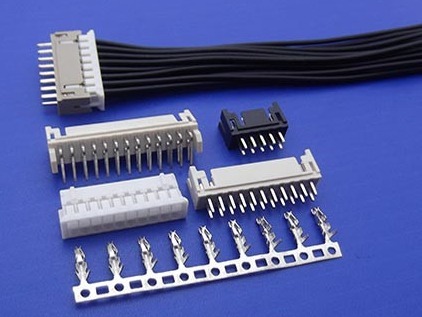

Support Custom Wiring Harness Assembly
- Connector: 8 - 34pin
- Wire gauge: 22 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
