JST PID Connector

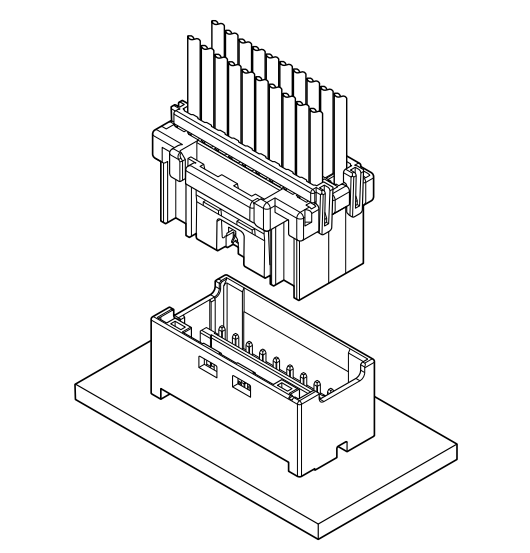

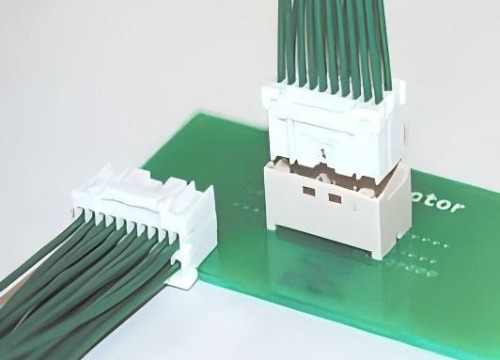

The JST PID connector is a versatile 2.0mm pitch wire-to-board box-type connector designed to ensure secure and reliable connections in various applications. It features an advanced mechanism for detecting half-mating, allowing electrical verification of whether the connector is fully or partially mated. This functionality enhances system reliability by preventing incomplete connections that could cause signal loss or electrical failure. The PID connector is equipped with a secure locking device that provides a strong, stable connection, reducing the risk of accidental disconnection. Its box-type header supports potting treatment with a maximum height of 6.5 mm, offering enhanced protection against environmental factors like moisture or dust. Additionally, it includes a retainer that further stabilizes the connection, ensuring long-term performance even in high-vibration environments. This combination of features makes the JST PID connector ideal for automotive, industrial, and consumer electronics applications where secure, foolproof connections are critical.

Specifications

• Connector type: Wire to Board, Disconnectable Crimp style
• Connector pitch: 2.0mm
• Current rating: 3 A AC, DC (AWG #22)
• Voltage rating: 250 V AC, DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 800 VAC/minute
• Applicable wire: AWG #26 to #22
• Applicable PC board thickness: 1.6 mm

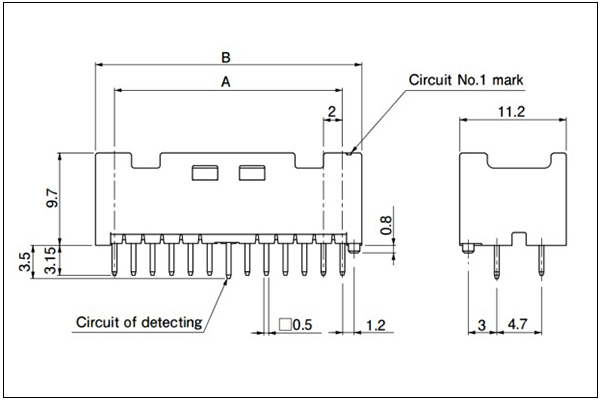

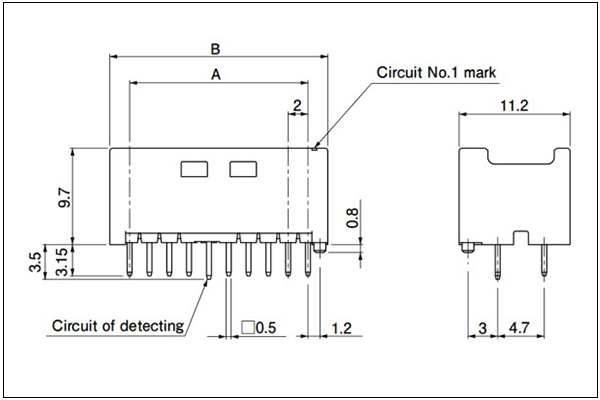

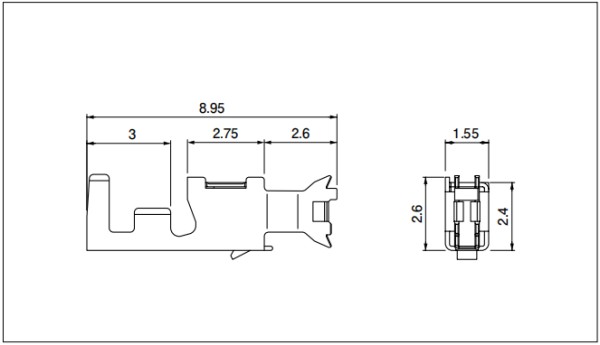

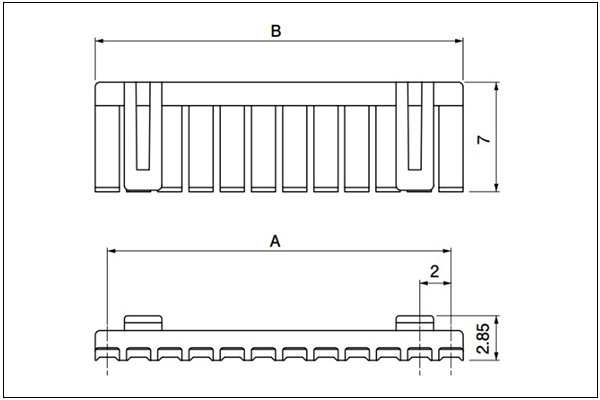

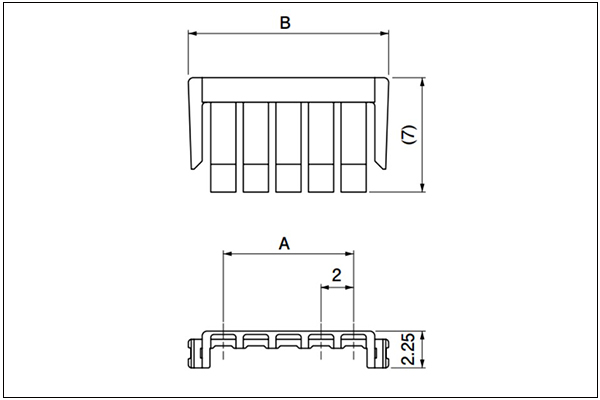

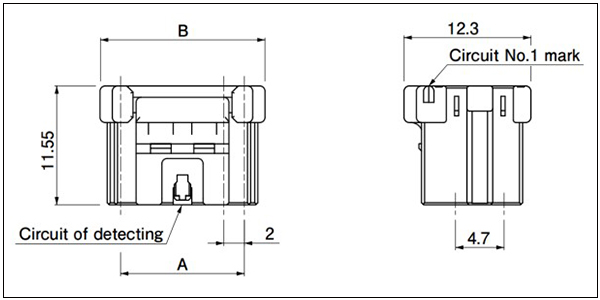

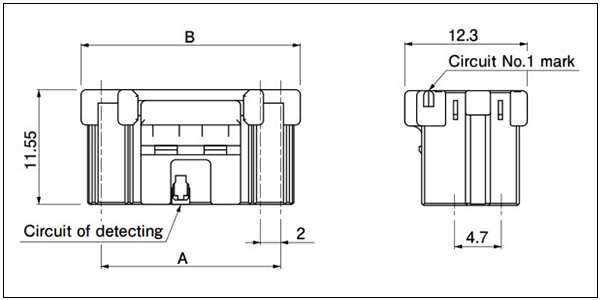

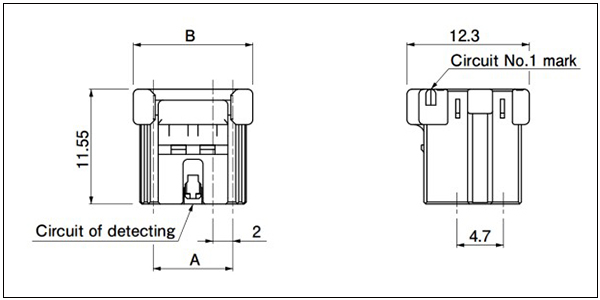

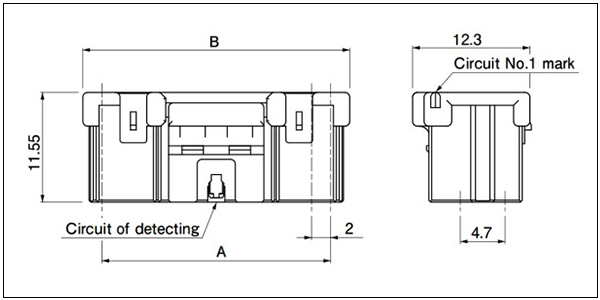

Housing
