JST PNI Connector

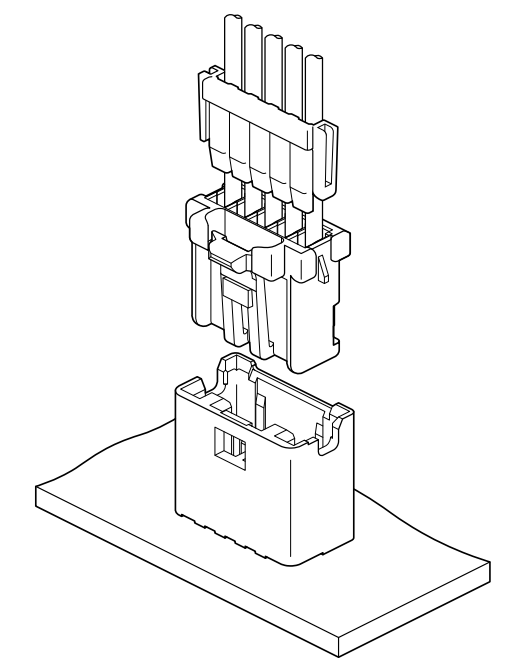

The JST PNI Connector is a 2.0 mm pitch wire-to-board connector designed to ensure reliable and secure electrical connections. It features an inertial lock structure that prevents accidental disconnection, even in high-vibration environments. The connector is equipped with an incomplete mating prevention mechanism, ensuring proper alignment during assembly and reducing the risk of faulty connections. Its finger-friendly design allows for easy handling, insertion, and removal, improving efficiency and reducing operator fatigue. Additionally, the secure locking structure provides a firm, snap-fit connection, offering enhanced stability and durability in demanding applications. This combination of features makes the JST PNI Connector ideal for automotive, industrial, and consumer electronics.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 2.0mm
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: Conductor size/ AWG #28 to #22, Insulation O.D./ 0.76 to 1.5 mm
- Applicable PC board thickness: 1.6 mm
Housing

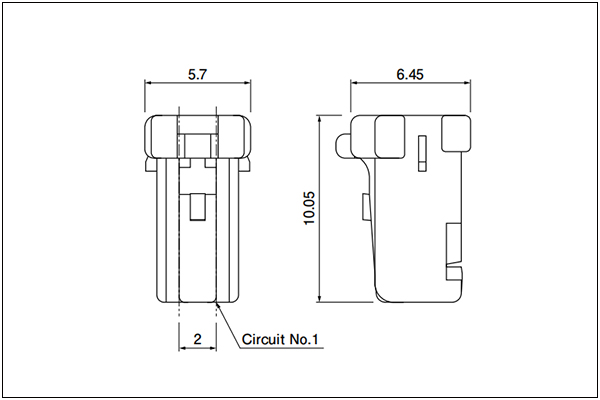

2 Circuits

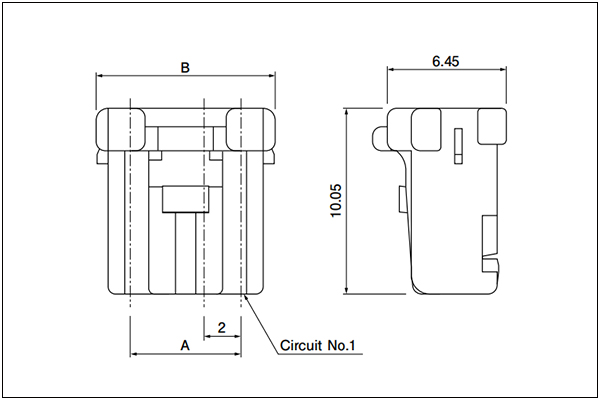

3, 4 Circuits

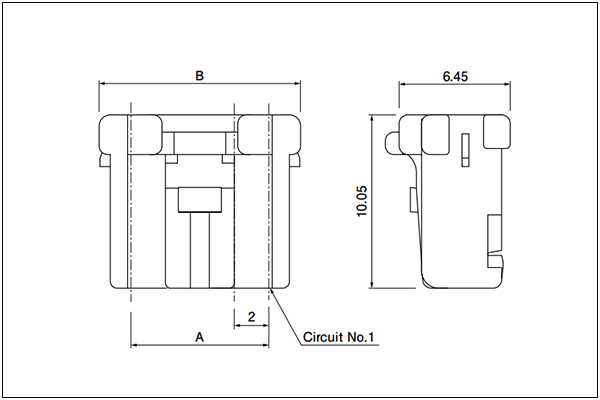

5, 6 Circuits

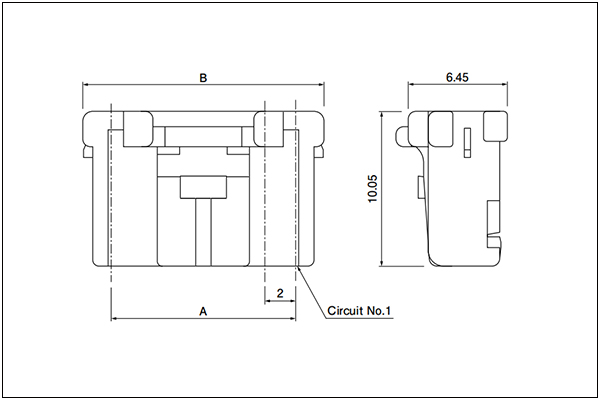

7 to 10 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | PNIRP-02V-S | - | 5.7 | 1000 |
| 3 | PNIRP-03V-S | 4.0 | 7.7 | 1000 |
| 4 | PNIRP-04V-S | 6.0 | 9.7 | 1000 |
| 5 | PNIRP-05V-S | 8.0 | 11.7 | 1000 |
| 6 | PNIRP-06V-S | 10.0 | 13.7 | 1000 |
| 7 | PNIRP-07V-S | 12.0 | 15.7 | 1000 |
| 8 | PNIRP-08V-S | 14.0 | 17.7 | 1000 |
| 9 | PNIRP-09V-S | 16.0 | 19.7 | 1000 |
| 10 | PNIRP-10V-S | 18.0 | 21.7 | 1000 |
Material and Finish: Glass-filled PBT, UL94V-0, natural (white)

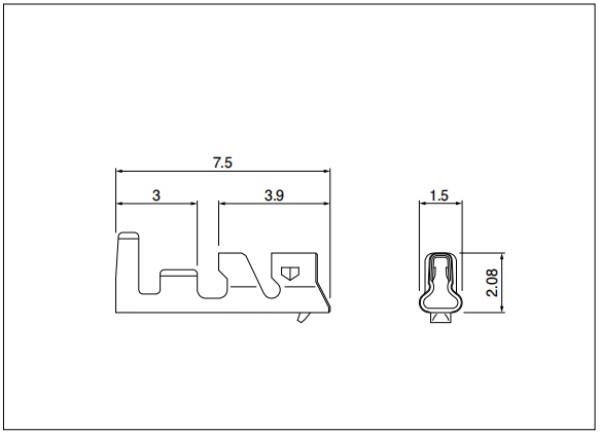

Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SPND-001T-C0.5 | 0.13 to 0.33 | 26 to 22 | 1.0 to 1.5 | 8000 |
| SPND-002T-C0.5 | 0.08 to 0.22 | 28 to 24 | 0.76 to 1.5 | 8000 |
Material and Finish: Copper alloy, tin-plated (reflow treatment)
Header

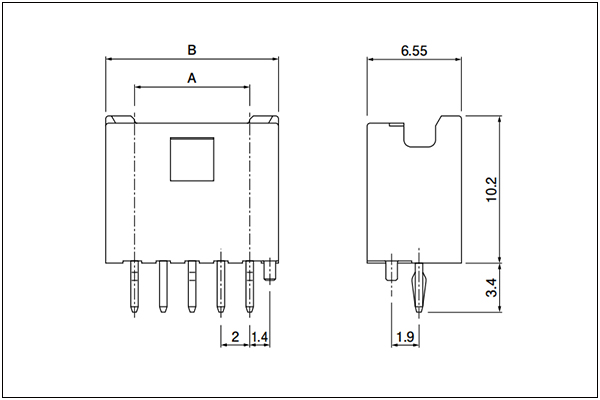

2 to 7 Circuits

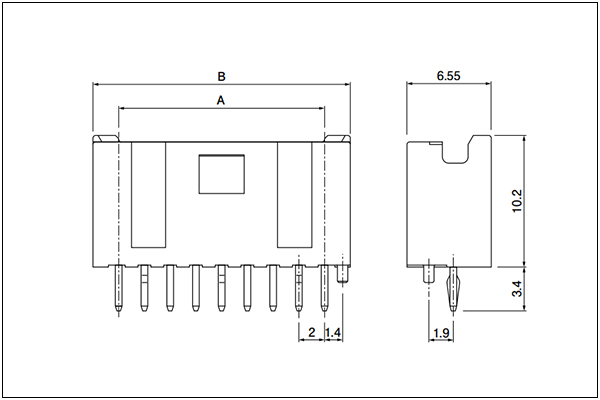

8 to 10 Circuits
Glass-filled PBT
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| With boss | A | B | ||
| 2 | B02B-PNISK-1 | 2.0 | 6.0 | 1000 |
| 3 | B03B-PNISK-1 | 4.0 | 8.0 | 1000 |
| 4 | B04B-PNISK-1 | 6.0 | 10.0 | 500 |
| 5 | B05B-PNISK-1 | 8.0 | 12.0 | 500 |
Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PBT, UL94V-0, natural (white)
Glass-filled PA 66
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| With boss | A | B | ||
| 2 | B02B-PNISK-1A | 2.0 | 6.0 | 1000 |
| 3 | B03B-PNISK-1A | 4.0 | 8.0 | 1000 |
| 4 | B04B-PNISK-1A | 6.0 | 10.0 | 500 |
| 5 | B05B-PNISK-1A | 8.0 | 12.0 | 500 |
| 6 | B06B-PNISK-1A | 10.0 | 14.0 | 350 |
| 7 | B07B-PNISK-1A | 12.0 | 16.0 | 300 |
| 8 | B08B-PNISK-1A | 14.0 | 18.0 | 250 |
| 9 | B09B-PNISK-1A | 16.0 | 20.0 | 250 |
| 10 | B10B-PNISK-1A | 18.0 | 22.0 | 250 |
Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural (white)

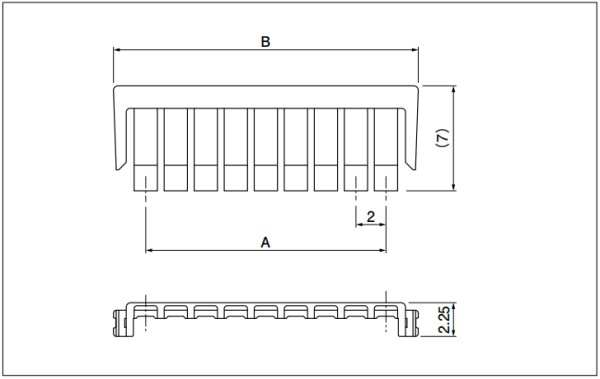

Retainer
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | PNIS-02V | 2.0 | 6.3 | 1000 |
| 3 | PNIS-03V | 4.0 | 8.3 | 1000 |
| 4 | PNIS-04V | 6.0 | 10.3 | 1000 |
| 5 | PNIS-05V | 8.0 | 12.3 | 1000 |
| 6 | PNIS-06V | 10.0 | 14.3 | 1000 |
| 7 | PNIS-07V | 12.0 | 16.3 | 1000 |
| 8 | PNIS-08V | 14.0 | 18.3 | 1000 |
| 9 | PNIS-09V | 16.0 | 20.3 | 1000 |
| 10 | PNIS-10V | 18.0 | 22.3 | 1000 |
Material and Finish: Glass-filled PA 66, UL94V-0, natural (ivory)

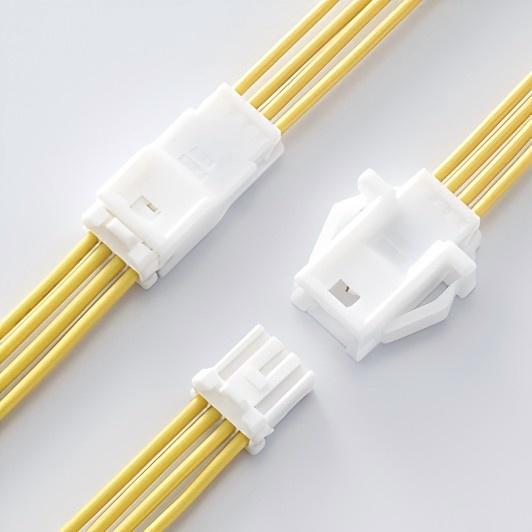

Support Custom Wiring Harness Assembly
- Connector: 2 - 10pin
- Wire gauge: 22 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
