JST PNI Connector (High Box Type)

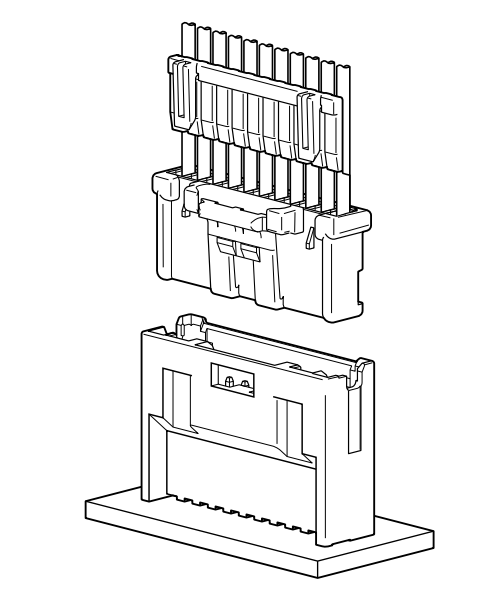

The JST PNI Connector (High Box Type) is a reliable board-to-wire connection solution designed with a 2.0mm pitch and a compact, space-saving high box configuration. It features a mounting height of 19.95mm (including the retainer) and a depth of 6.65mm, making it ideal for applications where vertical space is limited. This connector incorporates a secure locking mechanism to prevent accidental disconnection, ensuring stable and durable connections. Its low insertion force contact design enhances ease of use, enabling smooth and efficient mating. Additionally, a retainer can be mounted to provide extra security for the connection. The PNI Connector is compatible with resin-coated (potted) PC boards, making it suitable for harsh environments where protection from moisture, dust, and vibration is essential.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 2.0mm
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: Conductor size/ AWG #28 to #22, Insulation O.D./ 0.76 to 1.5 mm
- Applicable PC board thickness: 1.6 mm
Housing

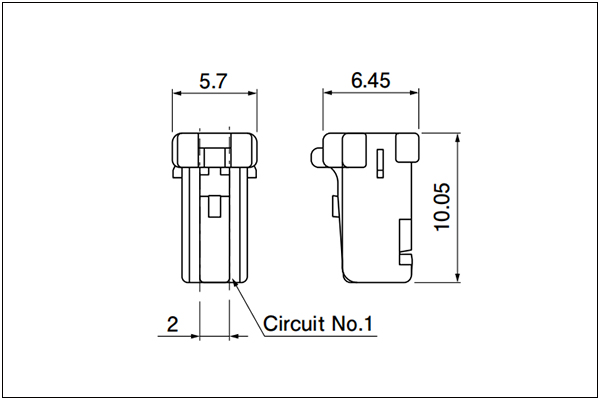

2 Circuits

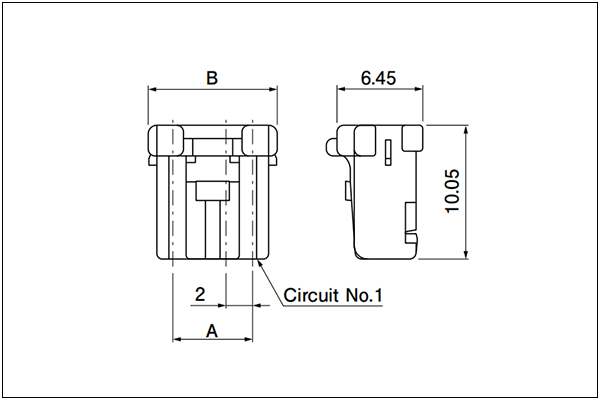

3, 4 Circuits

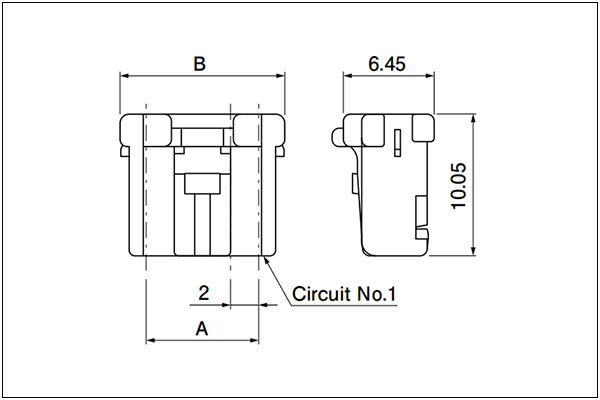

5, 6 Circuits

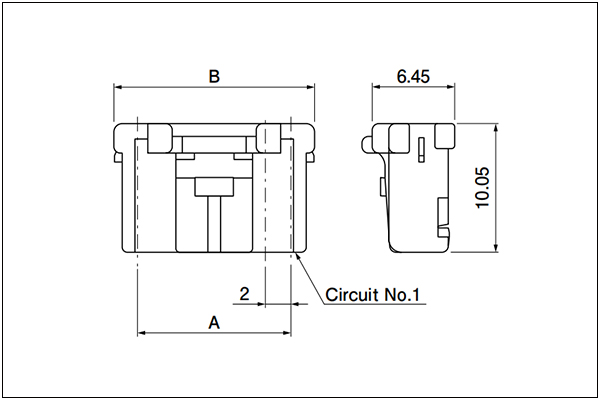

7 to 10 Circuits

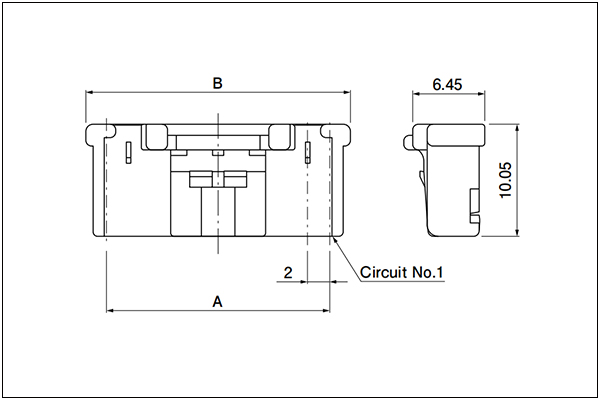

11 to 15 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | PNIRP-02V-S | 一 | 5.7 | 1000 |
| 3 | PNIRP-03V-S | 4.0 | 7.7 | 1000 |
| 4 | PNIRP-04V-S | 6.0 | 9.7 | 1000 |
| 5 | PNIRP-05V-S | 8.0 | 11.7 | 1000 |
| 6 | PNIRP-06V-S | 10.0 | 13.7 | 1000 |
| 7 | PNIRP-07V-S | 12.0 | 15.7 | 1000 |
| 8 | PNIRP-08V-S | 14.0 | 17.7 | 1000 |
| 9 | PNIRP-09V-S | 16.0 | 19.7 | 1000 |
| 10 | PNIRP-10V-S | 18.0 | 21.7 | 1000 |
| 11 | PNIRP-11V-S | 20.0 | 23.7 | 1000 |
| 12 | PNIRP-12V-S | 22.0 | 25.7 | 1000 |
| 13 | PNIRP-13V-S | 24.0 | 27.7 | 1000 |
| 14 | PNIRP-14V-S | 26.0 | 29.7 | 500 |
| 15 | PNIRP-15V-S | 28.0 | 31.7 | 500 |
Material and Finish: Glass-filled PBT, UL94V-0, natural (white)
Header

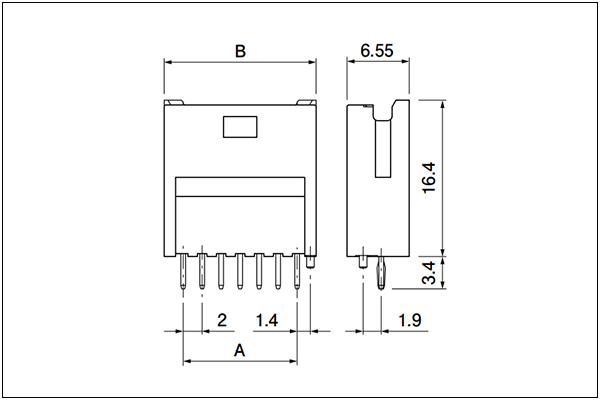

2 to 7 Circuits

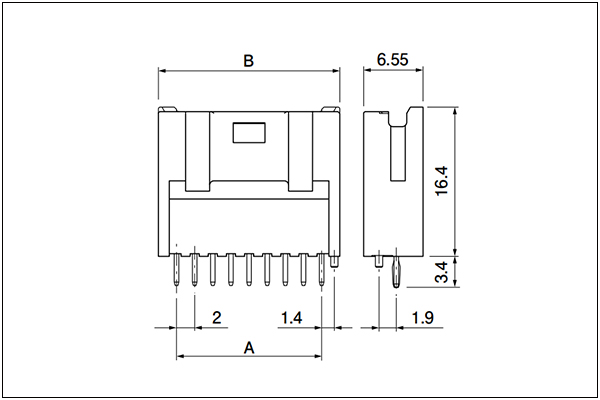

8 to 10 Circuits

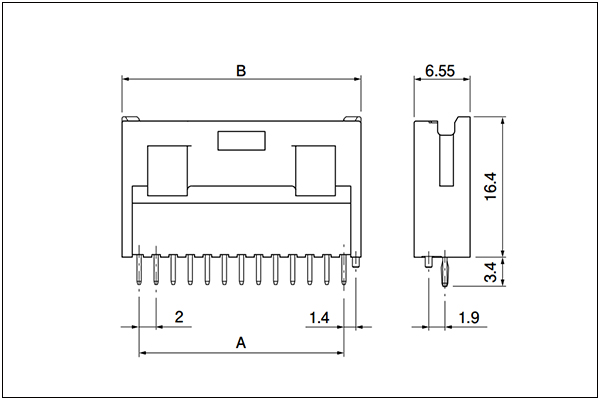

11 to 15 Circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | |
| A | B | |||
| 2 | BH02B-PNISK-1A | 2.0 | 6.0 | 500 |
| 3 | BH03B-PNISK-1A | 4.0 | 8.0 | 450 |
| 4 | BH04B-PNISK-1A | 6.0 | 10.0 | 350 |
| 5 | BH05B-PNISK-1A | 8.0 | 12.0 | 300 |
| 6 | BH06B-PNISK-1A | 10.0 | 14.0 | 250 |
| 7 | BH07B-PNISK-1A | 12.0 | 16.0 | 200 |
| 8 | BH08B-PNISK-1A | 14.0 | 18.0 | 200 |
| 9 | BH09B-PNISK-1A | 16.0 | 20.0 | 150 |
| 10 | BH10B-PNISK-1A | 18.0 | 22.0 | 150 |
| 11 | BH11B-PNISK-1A | 20.0 | 24.0 | 150 |
| 12 | BH12B-PNISK-1A | 22.0 | 26.0 | 100 |
| 13 | BH13B-PNISK-1A | 24.0 | 28.0 | 100 |
| 14 | BH14B-PNISK-1A | 26.0 | 30.0 | 100 |
| 15 | BH15B-PNISK-1A | 28.0 | 32.0 | 100 |
Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, white
Retainer

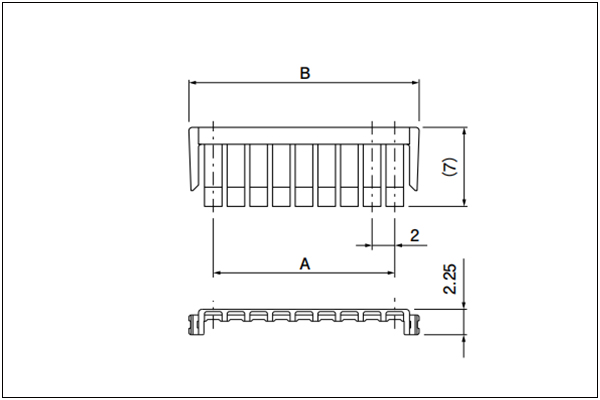

2 to 10 Circuits

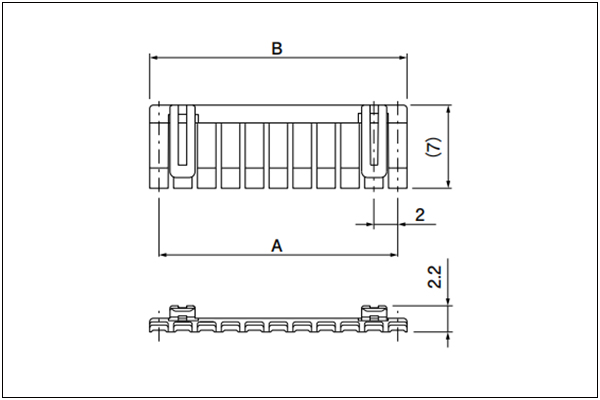

11 to 15 Circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 2 | PNIS-02V | 2.0 | 6.3 | 1000 |
| 3 | PNIS-03V | 4.0 | 8.3 | 1000 |
| 4 | PNIS-04V | 6.0 | 10.3 | 1000 |
| 5 | PNIS-05V | 8.0 | 12.3 | 1000 |
| 6 | PNIS-06V | 10.0 | 14.3 | 1000 |
| 7 | PNIS-07V | 12.0 | 16.3 | 1000 |
| 8 | PNIS-08V | 14.0 | 18.3 | 1000 |
| 9 | PNIS-09V | 16.0 | 20.3 | 1000 |
| 10 | PNIS-10V | 18.0 | 22.3 | 1000 |
| 11 | PNIS-11V | 20.0 | 21.6 | 1000 |
| 12 | PNIS-12V | 22.0 | 23.6 | 1000 |
| 13 | PNIS-13V | 24.0 | 25.6 | 1000 |
| 14 | PNIS-14V | 26.0 | 27.6 | 1000 |
| 15 | PNIS-15V | 28.0 | 29.6 | 1000 |
Material and Finish: Glass-filled PA 66, UL94V-0, natural (ivory)

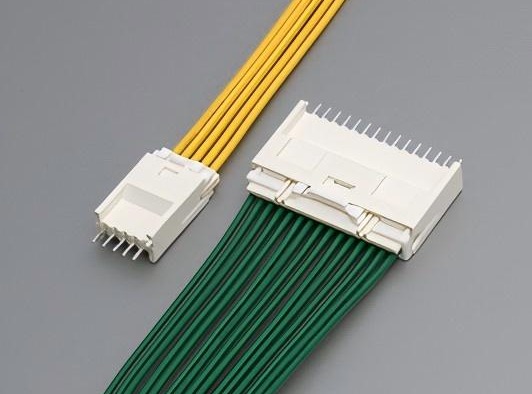

Support Custom Wiring Harness Assembly
- Connector: 2 - 15pin
- Wire gauge: 22 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
