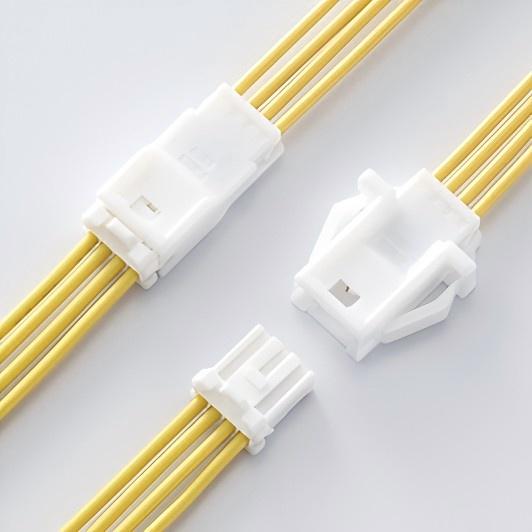

JST PNI Connector, Wire to Wire, Custom Wire Assembly

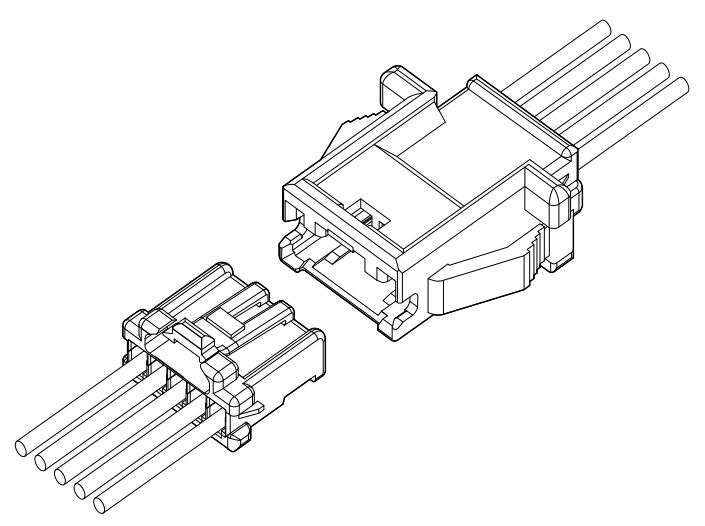

JST PNI Connector, Wire to Wire Type
This JST PNI Connector is a high-performance 2.0 mm pitch wire-to-wire connector designed with a range of features to enhance functionality and safety. It incorporates an incomplete mating prevention mechanism, ensuring reliable connections in critical applications. The connector is equipped with an inertial lock structure, providing secure and stable locking even in environments subject to vibration or impact. Its finger-friendly design prioritizes ease of handling during assembly and maintenance. Additionally, the connector features a robust secondary retainer for added safety and reliability, as well as compatibility with various panel mounting configurations, making it a versatile choice for diverse applications.
Specifications
- Connector type: Wire to Wire, disconnectable crimp style
- Connector pitch: 2.0mm
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 15 mΩ max, After environmental tests/ 25 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: AWG #28 to #22
- Applicable panel thickness: 0.5 to 2.0 mm
Receptacle housing (for pin contact)

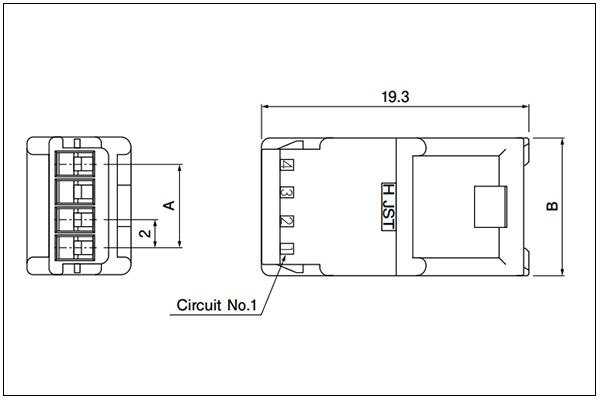

Without panel locks

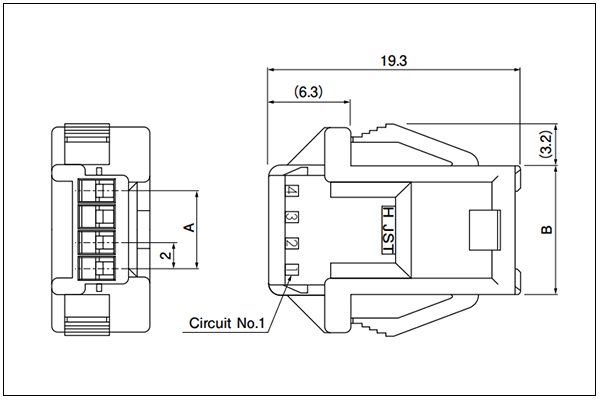

With panel locks
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | ||||
| Without panel locks | With panel locks | A | B | C | D | ||
| 2 | PNIRR-02VF | PNIRR-02V | 一 | 6.0 | 6.4 | 9.7 | 1000 |
| 3 | PNIRR-03VF | PNIRR-03V | 4.0 | 8.0 | 8.4 | 11.7 | 1000 |
| 4 | PNIRR-04VF | PNIRR-04V | 6.0 | 10.0 | 10.4 | 13.7 | 500 |
| 5 | PNIRR-05VF | PNIRR-05V | 8.0 | 12.0 | 12.4 | 15.7 | 500 |
| 6 | PNIRR-06VF | PNIRR-06V | 10.0 | 14.0 | 14.4 | 17.7 | 500 |
| 8 | PNIRR-08VF | PNIRR-08V | 14.0 | 18.0 | 18.4 | 21.7 | 500 |
| 10 | PNIRR-10VF | PNIRR-10V | 18.0 | 22.0 | 22.4 | 25.7 | 500 |
Note:
- Material and Finish: PA 66, UL94V-0, natural (white)
- C and D dimensions: Panel layout dimensions
- RoHS2 compliance

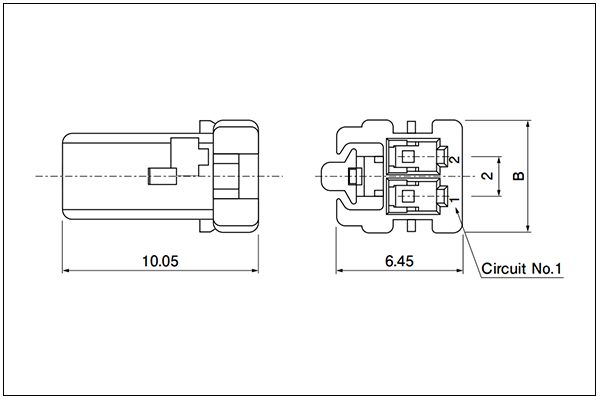

Socket housing (for socket contact)
2 Circuits

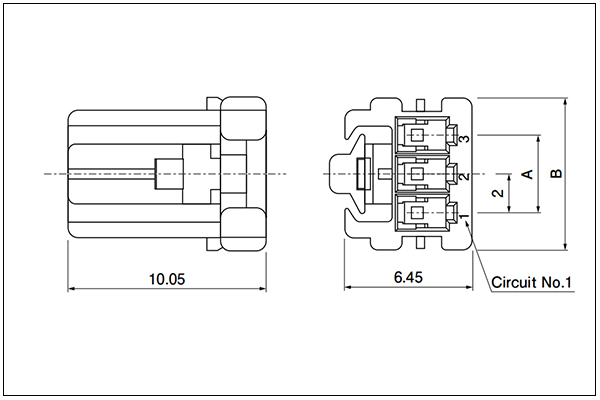

3 Circuits

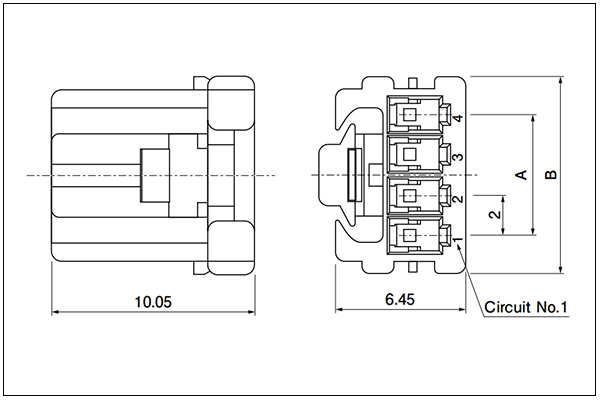

4 Circuits

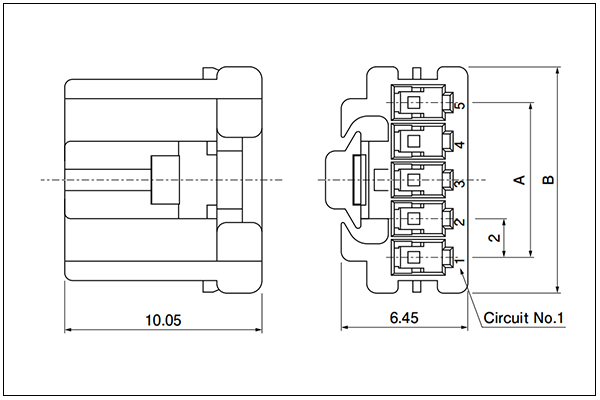

5, 6, 8, 10 Circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 2 | PNIRP-02V-S | 一 | 5.7 | 1000 |
| 3 | PNIRP-03V-S | 4.0 | 7.7 | 1000 |
| 4 | PNIRP-04V-S | 6.0 | 9.7 | 1000 |
| 5 | PNIRP-05V-S | 8.0 | 11.7 | 1000 |
| 6 | PNIRP-06V-S | 10.0 | 13.7 | 1000 |
| 8 | PNIRP-08V-S | 14.0 | 17.7 | 1000 |
| 10 | PNIRP-10V-S | 18.0 | 21.7 | 1000 |
Material and Finish: Glass-filled PBT, UL94V-0, natural (white)
Terminal

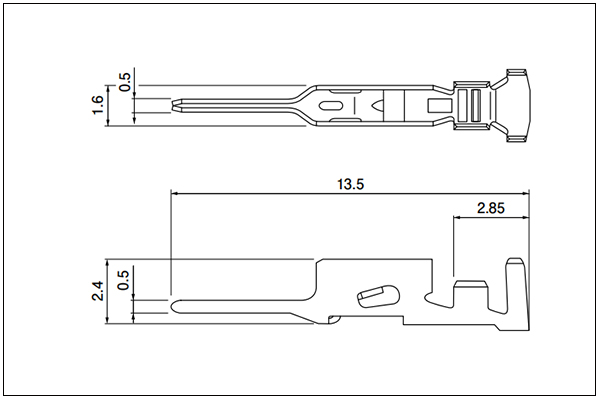

Pin Terminal

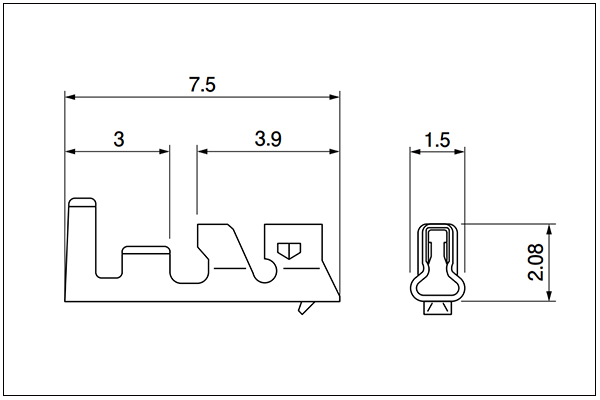

Socket Terminal
| Type | Model No. | Applicable wire | Insulation O.D.(mm) | Q'ty/reel | |
| mm² | AWG# | ||||
| Pin Terminal | SPNI-001T-P0.5 | 0.13～0.33 | 26~22 | 1.0~1.5 | 9000 |
| SPNI-002T-P0.5 | 0.08～0.21 | 28～24 | 0.9～1.5 | 9000 | |
| Socket Terminal | SPND-001T-C0.5 | 0.13~0.33 | 26~22 | 1.0~1.5 | 8000 |
| SPND-002T-C0.5 | 0.08～0.22 | 28~24 | 0.8~1.5 | 8000 | |
Material and Finish: Copper alloy, tin-plated (reflow treatment)

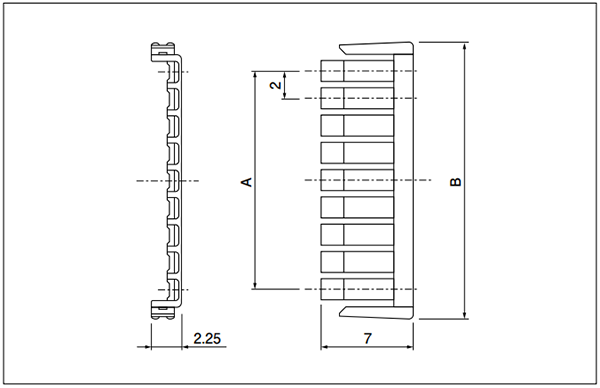

Retainer
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | PNIS-02V | 一 | 6.3 | 1000 |
| 3 | PNIS-03V | 4.0 | 8.3 | 1000 |
| 4 | PNIS-04V | 6.0 | 10.3 | 1000 |
| 5 | PNIS-05V | 8.0 | 12.3 | 1000 |
| 6 | PNIS-06V | 10.0 | 14.3 | 1000 |
| 8 | PNIS-08V | 14.0 | 18.3 | 1000 |
| 10 | PNIS-10V | 18.0 | 22.3 | 1000 |
Material and Finish: Glass-filled PA 66, UL94V-0, natural (ivory)
Support Custom Wiring Harness Assembly
- Connector: 2 - 10pin
- Wire gauge: 22 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
