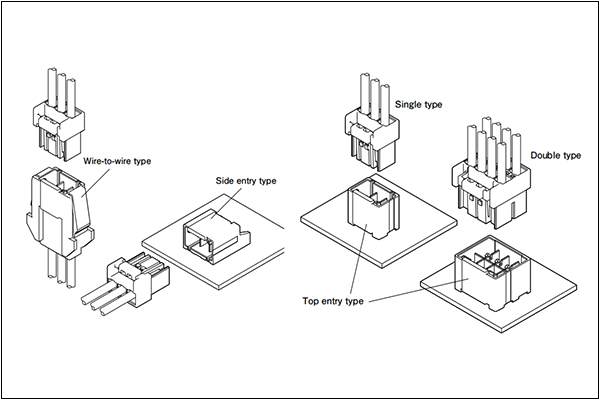

JST PSI Connector, Wire to Board Type
The JST PSI Connector is a versatile solution designed for wire-to-board and wire-to-wire applications with a 4.0 mm pitch, offering a balance of reliability and ease of use. Featuring low insertion force contacts, it ensures excellent operability and user-friendly handling. A secure locking mechanism prevents reverse insertion, enhancing safety and durability. The connector's housing is available in multiple colors and incorporates key shapes to prevent mismating, ensuring proper assembly even in complex wiring setups. With a finger-friendly design and the capacity to handle high electrical currents, the PSI Connector is a robust and efficient choice for demanding applications, supporting 2 to 4 circuits with three unique keying options.
Specifications
- Connector type: Wire to Wire, Wire to Board, Disconnectable Crimp style
- Current rating: 12 A AC, DC (Refer to the following table.)
- Voltage rating: 300 V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #26 to #16
Socket housing

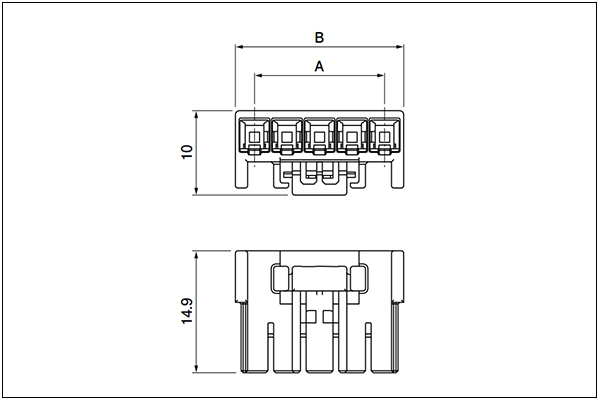

Top entry type - 2 to 5 Circuits

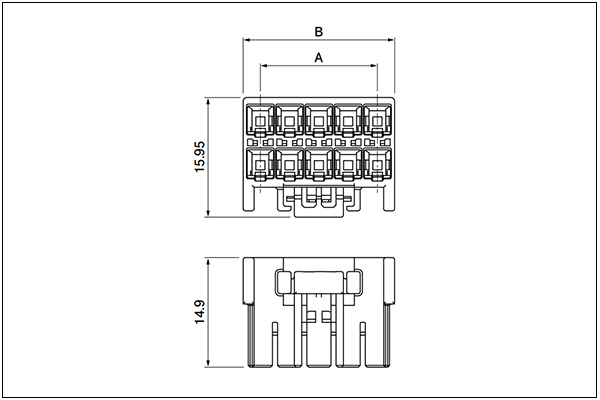

Top entry type - 6 to 14 Circuits
| Circuits | Keying | Model No. | Dimensions(mm) | Q'ty/box | |
| A | B | ||||
| 2 | A | PSIP-02V-LE-A | 4 | 8.7 | 500 |
| B | PSIP-02V-Y-B | 4 | 8.7 | 500 | |
| C | PSIP-02V-R-C | 4 | 8.7 | 500 | |
| 3 | A | PSIP-03V-LE-A | 8 | 12.7 | 300 |
| B | PSIP-03V-Y-B | 8 | 12.7 | 300 | |
| C | PSIP-03V-R-C | 8 | 12.7 | 300 | |
| 4 | A | PSIP-04V-LE-A | 12 | 16.7 | 200 |
| B | PSIP-04V-Y-B | 12 | 16.7 | 200 | |
| C | PSIP-04V-R-C | 12 | 16.7 | 200 | |
| 5 | 一 | PSIP-05V-LE | 16 | 20.7 | 200 |
| 6 | 一 | PSIP-06V-LE | 8 | 12.7 | 200 |
| 8 | 一 | PSIP-08V-LE | 12 | 16.7 | 200 |
| 10 | 一 | PSIP-10V-LE | 16 | 20.7 | 150 |
| 12 | 一 | PSIP-12V-LE | 20 | 24.7 | 150 |
| 14 | 一 | PSIP-14V-LE | 24 | 28.7 | 100 |
Material: Glass-filled PBT, UL94V-0

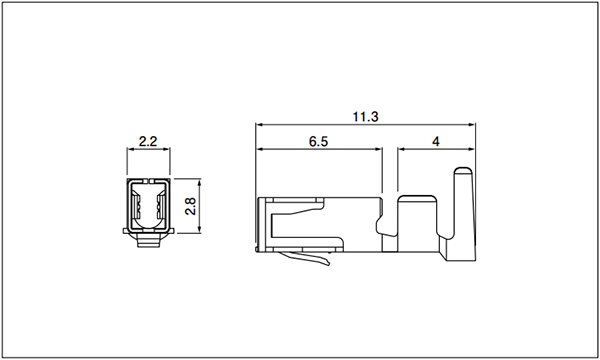

Socket Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SPSI-001T-M1.1 | 0.13 to 0.33 | 26 to 22 | 1.3 to 2.4 | 2600 |
| SPSI-41T-M1.1 | 0.5 to 1.25 | 20 to 16 | 1.7 to 3.2 | 2600 |
Material and Finish: Copper alloy, tin-plated
Header - Top entry type

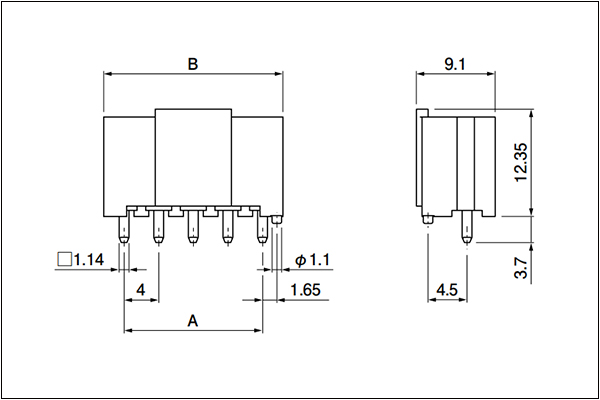

Top entry type - 2 to 5 Circuits

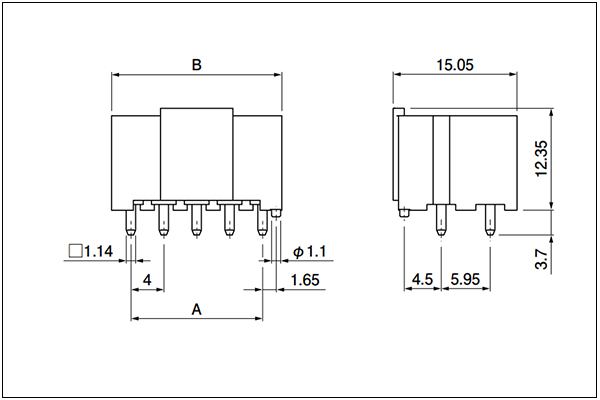

Top entry type - 6 to 14 Circuits
| Circuits | Keying | Model No. | Dimensions(mm) | Q'ty/box | |
| A | B | ||||
| 2 | A | B02B-PSILE-A1 | 4 | 8.7 | 500 |
| B | B02B-PSIY-B1 | 4 | 8.7 | 500 | |
| C | B02B-PSIR-C1 | 4 | 8.7 | 500 | |
| 3 | A | B03B-PSILE-A1 | 8 | 12.7 | 300 |
| B | B03B-PSIY-B1 | 8 | 12.7 | 300 | |
| C | B03B-PSIR-C1 | 8 | 12.7 | 300 | |
| 4 | A | B04B-PSILE-A1 | 12 | 16.7 | 200 |
| B | B04B-PSIY-B1 | 12 | 16.7 | 200 | |
| C | B04B-PSIR-C1 | 12 | 16.7 | 200 | |
| 5 | 一 | B05B-PSILE-1 | 16 | 20.7 | 200 |
| 6 | 一 | B06B-PSILE-1 | 8 | 12.7 | 200 |
| 8 | 一 | B08B-PSILE-1 | 12 | 16.7 | 200 |
| 10 | 一 | B10B-PSILE-1 | 16 | 20.7 | 150 |
| 12 | 一 | B12B-PSILE-1 | 20 | 24.7 | 125 |
| 14 | 一 | B14B-PSILE-1 | 24 | 28.7 | 100 |
Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatmnent)
- Header: Glass-filled PBT, UL94V-0

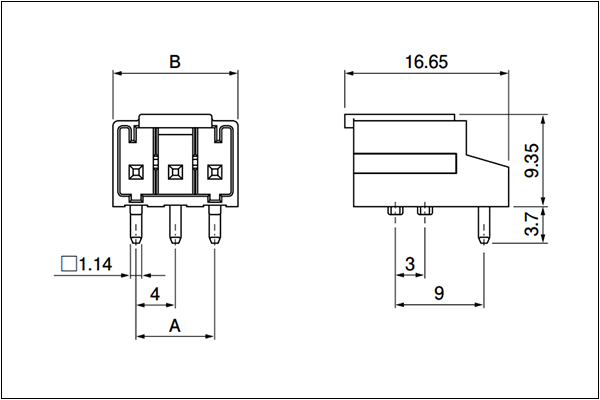

Header - Side entry type
| Circuits | Keying | Model No. | Dimensions(mm) | Q'ty/box | |
| A | B | ||||
| 2 | A | SO2B-PSILE-A1 | 4 | 8.7 | 350 |
| B | SO2B-PSIY-B1 | 4 | 8.7 | 350 | |
| C | SO2B-PSIR-C2 | 4 | 8.7 | 350 | |
| 3 | A | S03B-PSILE-A1 | 8 | 12.7 | 200 |
| B | S03B-PSIY-B1 | 8 | 12.7 | 200 | |
| C | S03B-PSIR-C2 | 8 | 12.7 | 200 | |
| 4 | A | S04B-PSILE-A1 | 12 | 16.7 | 150 |
| B | S04B-PSIY-B1 | 12 | 16.7 | 150 | |
| C | S04B-PSIR-C2 | 12 | 16.7 | 150 | |
Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatmnent)
- Header: Glass-filled PBT, UL94V-0

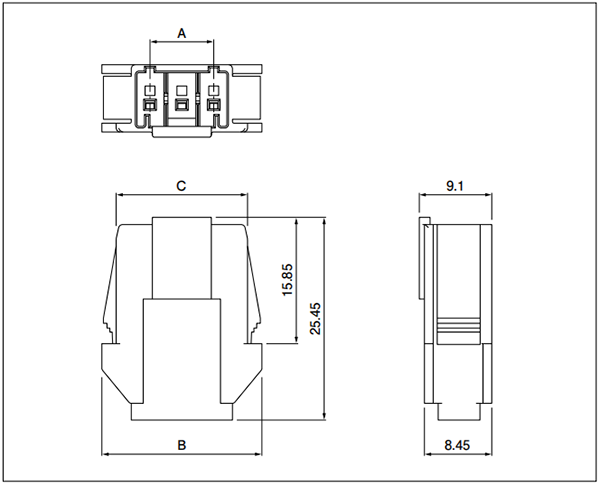

Receptacle housing
| Circuits | Keying | Model No. | Dimensions(mm) | Q'ty/bag | ||
| A | B | C | ||||
| 2 | A | PSIR-02V-LE-A | 4 | 16.1 | 12.5 | 200 |
| B | PSIR-02V-Y-B | 4 | 16.1 | 12.5 | 200 | |
| 3 | A | PSIR-03V-LE-A | 8 | 20.1 | 16.5 | 150 |
| B | PSIR-03V-Y-B | 8 | 20.1 | 16.5 | 150 | |
Material: Glass-filled PBT, UL94V-0

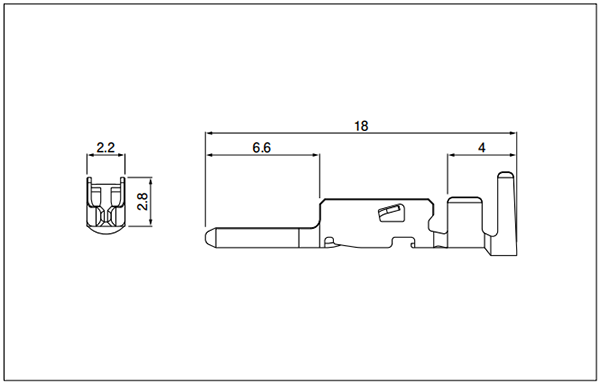

Pin Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SPSM-001T-M1.1 | 0.13 to 0.33 | 26 to 22 | 1.3 to 2.4 | 2600 |
| SPSM-41T-M1.1 | 0.5 to 1.25 | 20 to 16 | 1.7 to 3.2 | 2600 |
Material and Finish: Copper alloy, tin-plated

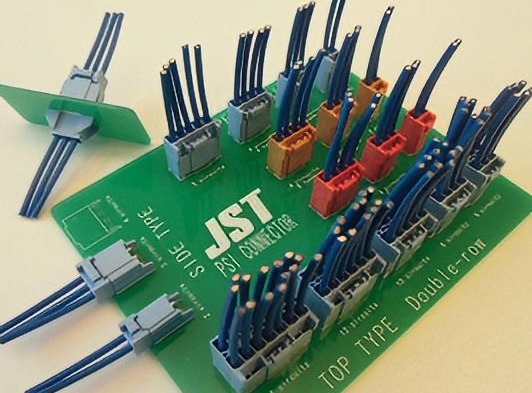

Support Custom Wiring Harness Assembly
- Connector: 2 - 14pin
- Wire gauge: 16 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
