JST PUD Connector

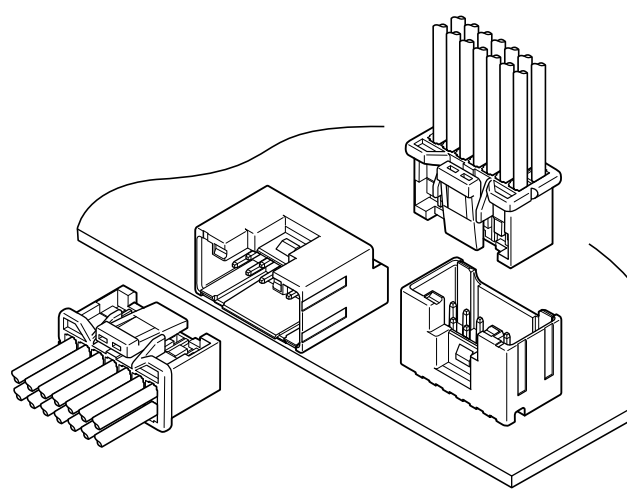

The JST PUD Connector is a high-performance board-to-wire connector designed to provide a secure and reliable connection in compact spaces. Featuring a 2.0 mm pitch, crimping-style contacts, and a double-row configuration, it offers enhanced versatility for a wide range of applications. Despite its low insertion force, the connector maintains stable electrical connectivity even under challenging conditions like vibration, pinching, and dry circuits. Its secure locking structure ensures firm retention, while the unique design allows for easy unlocking, even when the header is enclosed by a case wall. The receptacle's locking device stays within its boundary, preventing protrusion and enabling efficient assembly. Additional key features include high-reliability contacts, user-friendly operability, a secure locking mechanism, and a polarizing key to prevent misalignment during PCB mounting.
Specifications
- Connector Type: Wire to Board, Disconnectable Crimp style
- Connector Pitch: 2.0mm
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/ DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 800 VAC/minute
- Applicable wire: Conductor size/ AWG #28 to #22, Insulation O.D./ 0.76 to 1.5 mm

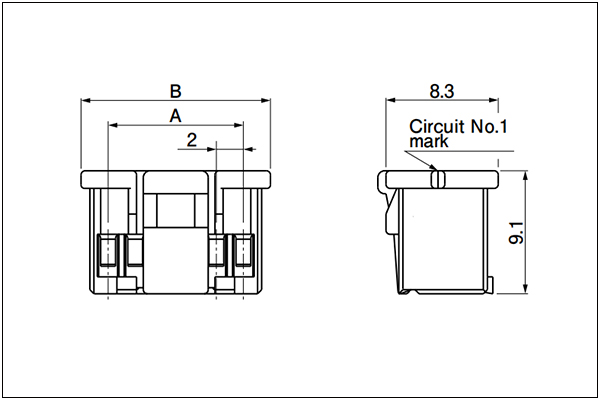

Housing

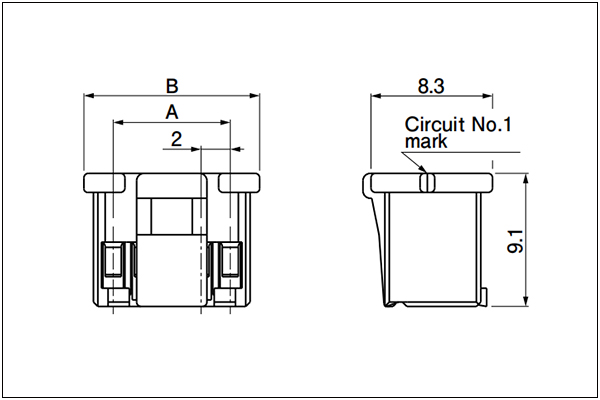

8, 10 Circuits
12, 14 Circuits

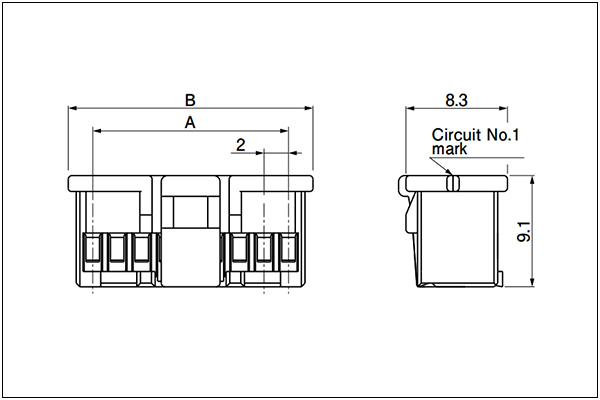

16, 18 Circuits

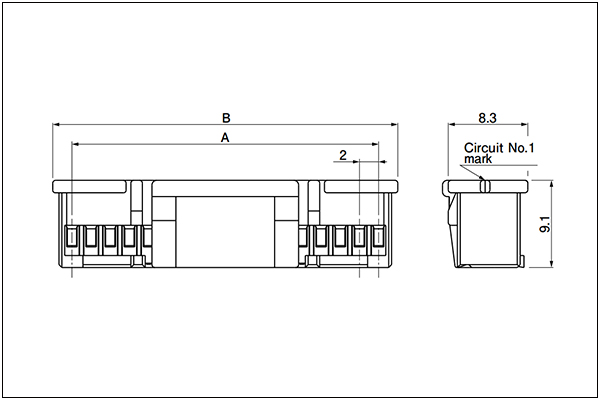

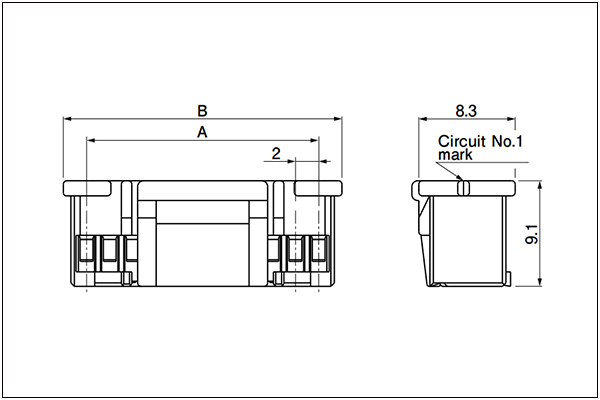

20, 22 Circuits

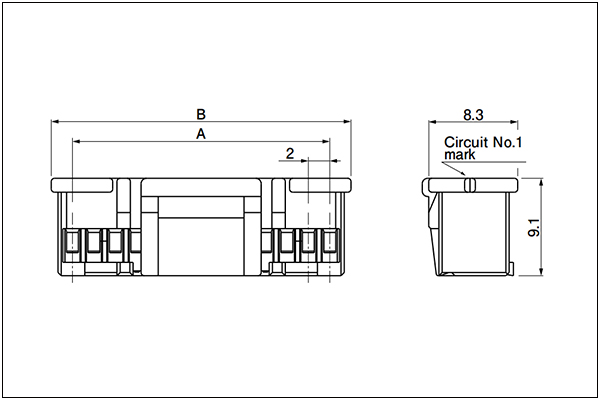

24 to 28 Circuits
30 to 40 Circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 8 | PUDP-08V-S | 6.0 | 10.0 | 1000 |
| 10 | PUDP-10V-S | 8.0 | 12.0 | 1000 |
| 12 | PUDP-12V-S | 10.0 | 14.0 | 1000 |
| 14 | PUDP-14V-S | 12.0 | 16.0 | 1000 |
| 16 | PUDP-16V-S | 14.0 | 18.0 | 1000 |
| 18 | PUDP-18V-S | 16.0 | 20.0 | 1000 |
| 20 | PUDP-20V-S | 18.0 | 22.0 | 1000 |
| 22 | PUDP-22V-S | 20.0 | 24.0 | 1000 |
| 24 | PUDP-24V-S | 22.0 | 26.0 | 1000 |
| 26 | PUDP-26V-S | 24.0 | 28.0 | 1000 |
| 28 | PUDP-28V-S | 26.0 | 30.0 | 500 |
| 30 | PUDP-30V-S | 28.0 | 32.0 | 500 |
| 32 | PUDP-32V-S | 30.0 | 34.0 | 500 |
| 34 | PUDP-34V-S | 32.0 | 36.0 | 500 |
| 36 | PUDP-36V-S | 34.0 | 38.0 | 500 |
| 38 | PUDP-38V-S | 36.0 | 40.0 | 500 |
| 40 | PUDP-40V-S | 38.0 | 42.0 | 500 |
Material and Finish: PBT, UL94V-0, natural

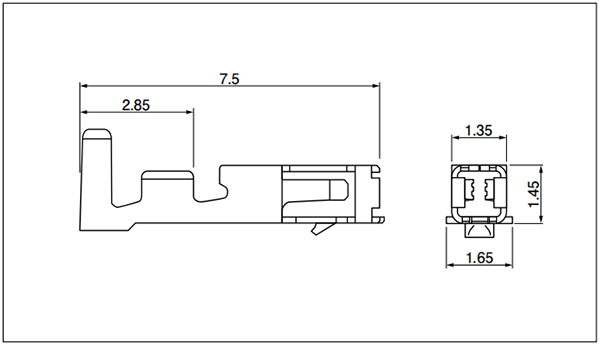

Terminal
| Model No. | Applicable wire | Insulation O.D (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SPUD-001T-P0.5 | 0.13 to 0.33 | 26 to 22 | 0.95 to 1.5 | 8000 |
| SPUD-002T-P0.5 | 0.08 to 0.22 | 28 to 24 | 0.76 to 1.5 | |
Material and Finish: Copper alloy, tin-plated (reflow treatment)
Header (DIP Type)

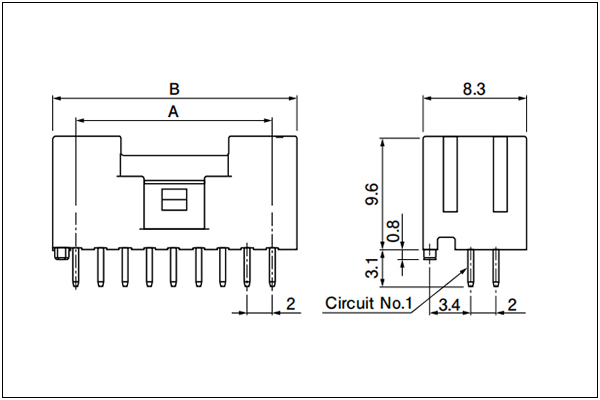

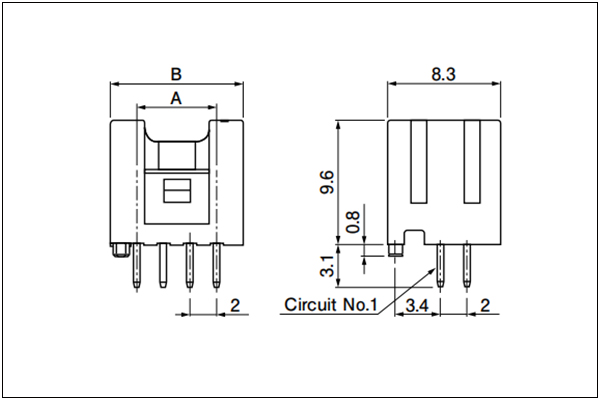

Top entry type
8, 10 Circuits
12 to 18 Circuits

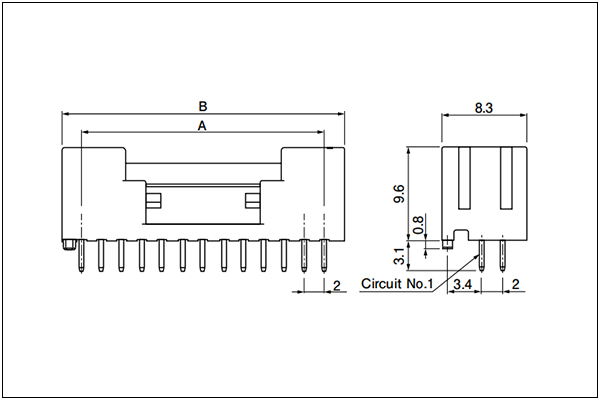

20 to 40 Circuits

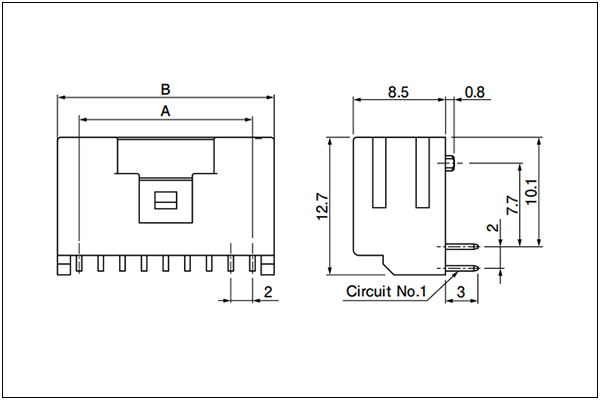

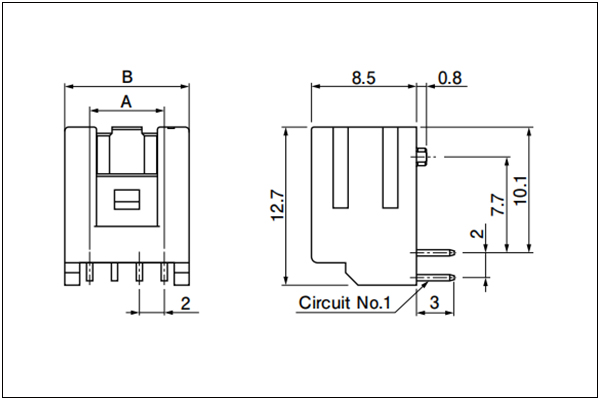

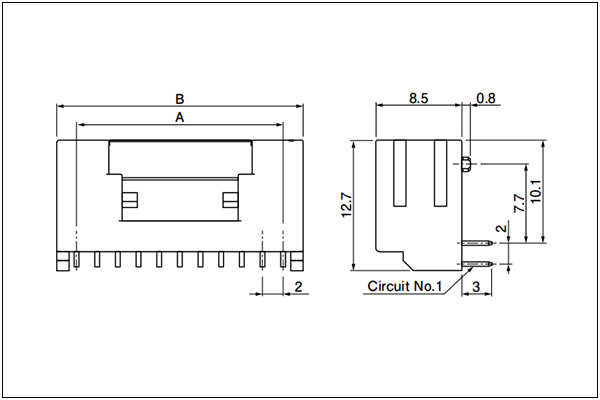

Side entry type
8, 10 Circuits
12 to 18 Circuits
20 to 40 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |||
| Top entry type | Side entry type | |||||
| Without boss | With boss | With boss | A | B | ||
| 8 | B08B-PUDSS | B08B-PUDSS-1 | S₀8B-PUDSS-1 | 6.0 | 10.0 | 3300 |
| 10 | B10B-PUDSS | B10B-PUDSS-1 | S10B-PUDSS-1 | 8.0 | 12.0 | 2750 |
| 12 | B12B-PUDSS | B12B-PUDSS-1 | S12B-PUDSS-1 | 10.0 | 14.0 | 2310 |
| 14 | B14B-PUDSS | B14B-PUDSS-1 | S14B-PUDSS-1 | 12.0 | 16.0 | 1980 |
| 16 | B16B-PUDSS | B16B-PUDSS-1 | S16B-PUDSS-1 | 14.0 | 18.0 | 1760 |
| 18 | B18B-PUDSS | B18B-PUDSS-1 | S18B-PUDSS-1 | 16.0 | 20.0 | 1650 |
| 20 | B20B-PUDSS | B20B-PUDSS-1 | S20B-PUDSS-1 | 18.0 | 22.0 | 1430 |
| 22 | B22B-PUDSS | B22B-PUDSS-1 | S22B-PUDSS-1 | 20.0 | 24.0 | 1320 |
| 24 | B24B-PUDSS | B24B-PUDSS-1 | S24B-PUDSS-1 | 22.0 | 26.0 | 1210 |
| 26 | B26B-PUDSS | B26B-PUDSS-1 | S26B-PUDSS-1 | 24.0 | 28.0 | 1100 |
| 28 | B28B-PUDSS | B28B-PUDSS-1 | S28B-PUDSS-1 | 26.0 | 30.0 | 1100 |
| 30 | B30B-PUDSS | B30B-PUDSS-1 | S30B-PUDSS-1 | 28.0 | 32.0 | 990 |
| 32 | B32B-PUDSS | B32B-PUDSS-1 | S32B-PUDSS-1 | 30.0 | 34.0 | 880 |
| 34 | B34B-PUDSS | B34B-PUDSS-1 | S34B-PUDSS-1 | 32.0 | 36.0 | 880 |
| 36 | B36B-PUDSS | B36B-PUDSS-1 | S36B-PUDSS-1 | 34.0 | 38.0 | 770 |
| 38 | B38B-PUDSS | B38B-PUDSS-1 | S38B-PUDSS-1 | 36.0 | 40.0 | 770 |
| 40 | B40B-PUDSS | B40B-PUDSS-1 | S40B-PUDSS-1 | 38.0 | 42.0 | 770 |
Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural

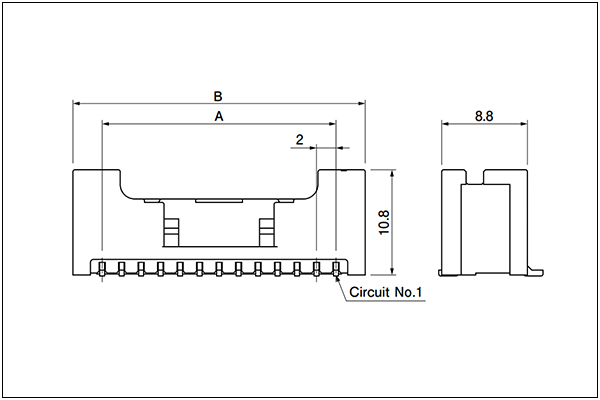

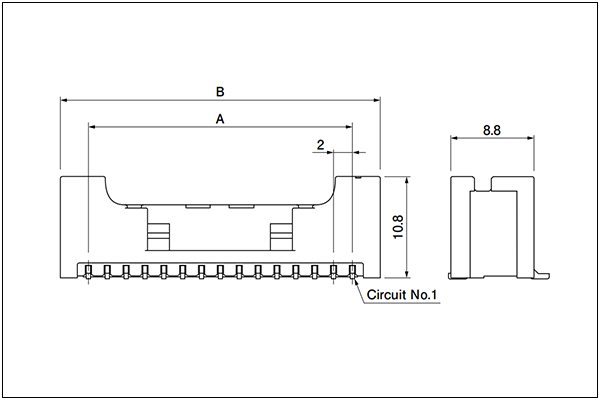

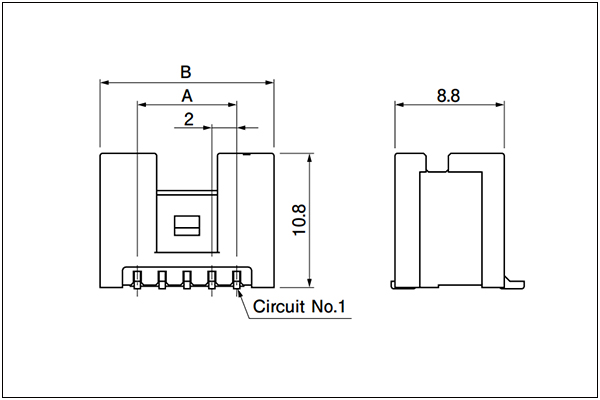

Header (SMT type)
10 Circuits

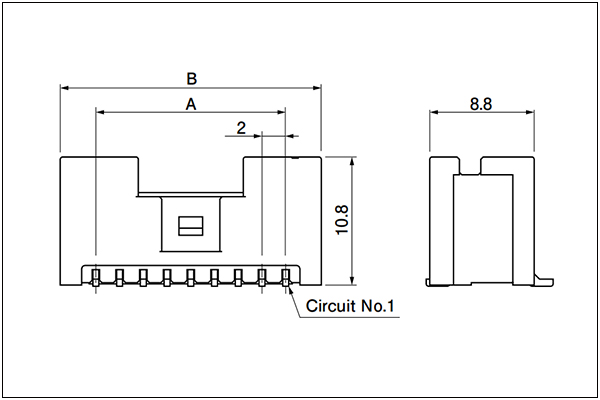

12 to 18 Circuits

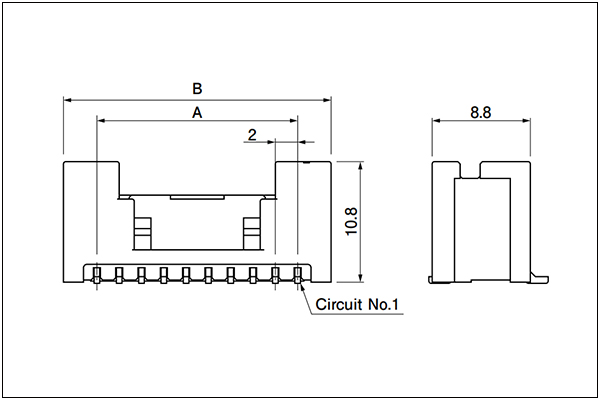

20, 22 Circuits
24 to 28 Circuits
30 to 40 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | |||
| 10 | BM10B-PUDSS-TFC | 8.0 | 14.0 | 400 |
| 12 | BM12B-PUDSS-TFC | 10.0 | 16.0 | 400 |
| 14 | BM14B-PUDSS-TFC | 12.0 | 18.0 | 400 |
| 16 | BM16B-PUDSS-TFC | 14.0 | 20.0 | 400 |
| 18 | BM18B-PUDSS-TFC | 16.0 | 22.0 | 400 |
| 20 | BM20B-PUDSS-TFC | 18.0 | 24.0 | 400 |
| 22 | BM22B-PUDSS-TFC | 20.0 | 26.0 | 400 |
| 24 | BM24B-PUDSS-TFC | 22.0 | 28.0 | 400 |
| 26 | BM26B-PUDSS-TFC | 24.0 | 30.0 | 400 |
| 28 | BM28B-PUDSS-TFC | 26.0 | 32.0 | 400 |
| 30 | BM30B-PUDSS-TFC | 28.0 | 34.0 | 400 |
| 32 | BM32B-PUDSS-TFC | 30.0 | 36.0 | 400 |
| 34 | BM34B-PUDSS-TFC | 32.0 | 38.0 | 400 |
| 36 | BM36B-PUDSS-TFC | 34.0 | 40.0 | 400 |
| 38 | BM38B-PUDSS-TFC | 36.0 | 42.0 | 400 |
| 40 | BM40B-PUDSS-TFC | 38.0 | 44.0 | 400 |
Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Polyamide, UL94V-0, natural

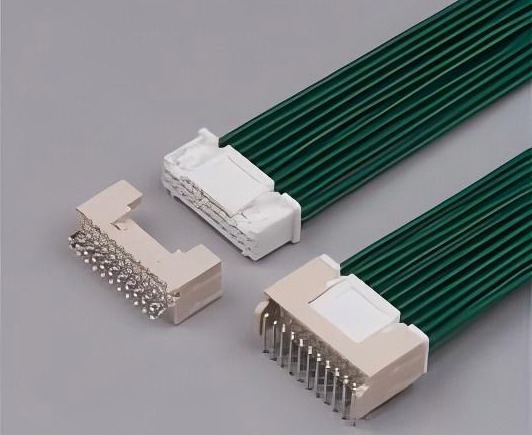

Support Custom Wiring Harness Assembly
- Connector: 8 - 40pin
- Wire gauge: 22 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
