JST PXA Connector
The JST PXA Connector is a versatile and reliable 2.5mm pitch high-box connector designed with a mounting height of 20.5mm, making it ideal for a range of applications. Its fully shrouded header incorporates walls between each circuit, enhancing its structural integrity and providing resistance to vibration and prying forces. A secure locking device ensures a firm and stable connection, while the design is optimized for use with resin-coated ("potted") PC boards, offering robust performance in demanding environments. Additionally, the PC board layout matches that of the XA connector, enabling easy integration and compatibility. The connector also supports a secondary retainer for added safety and reliability.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 2.5mm
- Current rating: 3A AC, DC (AWG #22)
- Voltage rating: 250V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10mΩ max, After environmental testing/20mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,000V AC/minute
- Applicable wire:AWG #26 to #22
- Applicable PC board thickness: 1.6mm

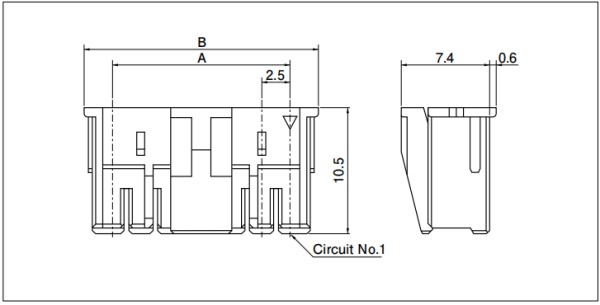

Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | PXARP-02V | 2.5 | 7.3 | 1000 |
| 3 | PXARP-03V | 5.0 | 9.8 | 1000 |
| 6 | PXARP-06V | 12.5 | 17.3 | 1000 |
Material: PA 66, UL94V-0, natural (white)

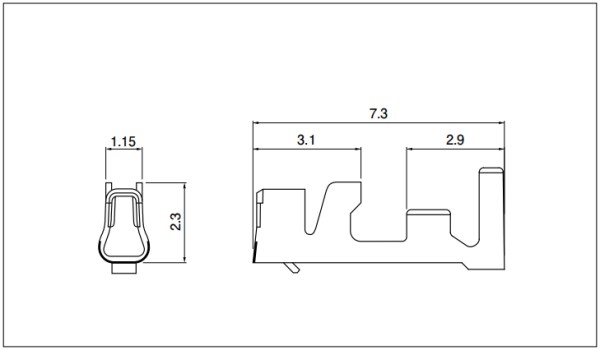

Terminal
Notes:
- Model No.: SPXA-001T-P0.6
- Applicable wire: 0.13-0.33mm²(26-22AWG)
- Insulation O.D. (mm): 1.2 - 1.9
- Q'ty/reel: 7000pcs
- Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS Compliance

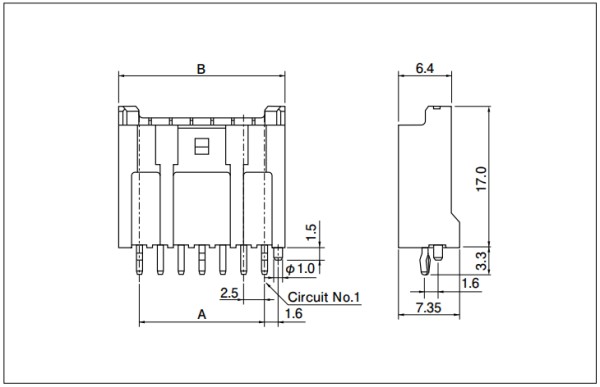

Header
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | |
| A | B | |||
| 2 | BH02B-PXASK | 2.5 | 7.5 | 400 |
| 3 | BH03B-PXASK | 5.0 | 10.0 | 400 |
| 6 | BH06B-PXASK | 12.5 | 17.5 | 200 |

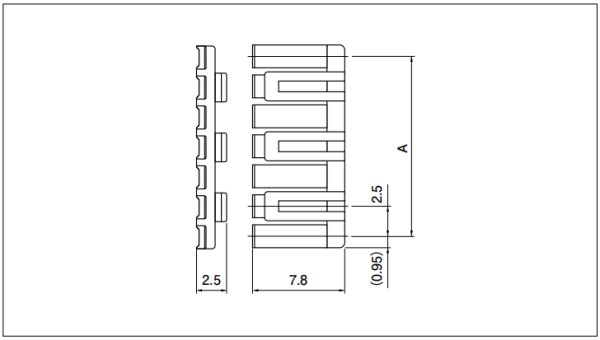

Retainer
| No. of circuits | Model No. | A | Q'ty/bag |
| 2 | XMS-02V | 2.5 | 1000 |
| 3 | XMS-03V | 5.0 | 1000 |
| 6 | XMS-06V | 12.5 | 1000 |
Material: Glass-filled PA 66, UL94V-0, natural (ivory)

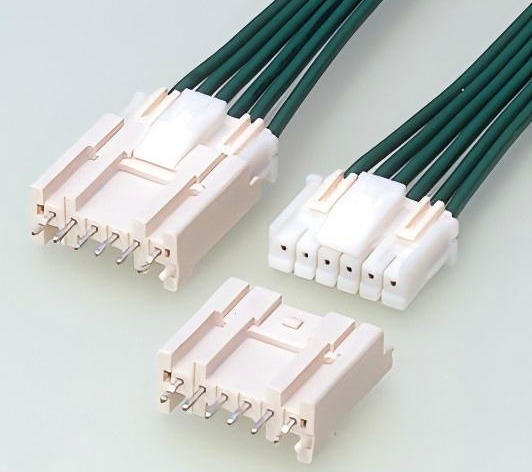

Support Custom Wiring Harness Assembly
- Connector: 2, 3, 6pin
- Wire gauge: 22 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
