JST RA Connector, Wire to Board, Custom Wire Assembly

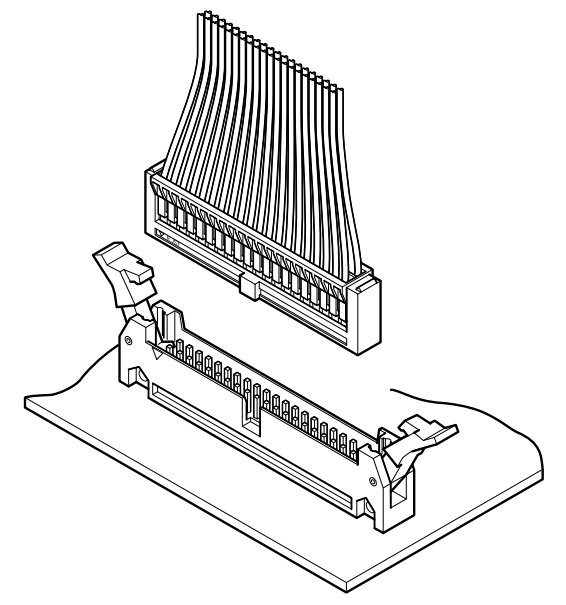

JST RA Connector, Wire to Board Type
The JST RA Connector series offers crimp-style receptacles designed to mate seamlessly with headers that conform to MIL-C-83503 standards. These connectors feature low insertion force contacts, minimizing surface wear and effectively resisting stress relaxation for enhanced reliability. A secure locking device ensures firm connections by engaging the locking levers when the receptacle is inserted into the header, providing strong resistance to impact and vibration. The resilient housing includes built-in lances for contact retention, allowing visual confirmation of proper lock-in for effortless and secure assembly. Additionally, anti-misinsertion guide mechanisms on both the housing and header prevent reverse insertion, ensuring correct and reliable connections.
Features
- Secure lock device
- The locking levers are engaged by inserting the receptacle into the header. This ensures a firm connection that's highly resistant to impact and vibration.
- Housing lances
- The contact retention lances on the resilient housing allow visual confirmation of contact lock-in for easy and secure insertion.
- Low insertion force contact
- The low insertion force contacts reduce surface finish wear and reduce the effects of stress relaxation.
- Anti-misinsertion feature
- The guide devices of both housing and header prevent reverse connector insertion.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 2.54mm
- Current rating: 1.0 A AC/DC (AWG #22)
- Voltage rating: 300 V AC/DC
- Temperature range: -55℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 15 mΩ max, After environmental tests/ 30 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #26 to #22
- Applicable PC board thickness: 1.6 mm

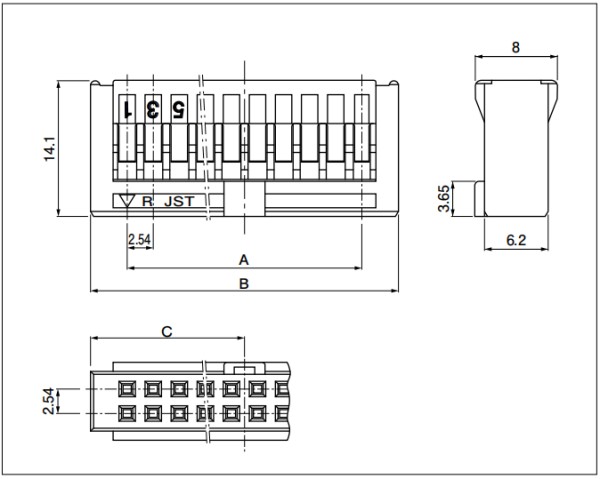

Housing
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | ||
| A | B | C | |||
| 10 | RA-1011 | 10.2 | 17.5 | 8.8 | 500 |
| 16 | RA-1611 | 17.8 | 25.1 | 12.6 | 500 |
| 20 | RA-2011 | 22.9 | 30.2 | 15.1 | 500 |
| 26 | RA-2611 | 30.5 | 37.8 | 18.9 | 500 |
| 30 | RA-3011 | 35.6 | 42.9 | 21.5 | 200 |
| 34 | RA-3411 | 40.6 | 48.0 | 24.0 | 500 |
| 40 | RA-4011 | 48.3 | 55.6 | 27.8 | 200 |
| 50 | RA-5011 | 61.0 | 68.3 | 34.2 | 200 |
| 60 | RA-6011 | 73.7 | 81.0 | 40.5 | 200 |
Material and Finish: Glass-filled PBT, UL94V-0, black

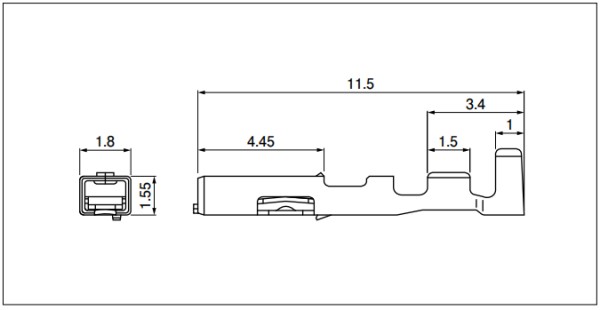

Terminal
Spcs:
- Model No.: RA-SC1290
- Applicable Wire: 0.13 - 0.33mm² (22 - 26AWG)
- Insolations O.D. (mm): 1.3 - 1.7
- Q'ty/reel: 8000pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS2 Compliance
Header
| No.of circuits | Top entry type | Side entry type |
| 10 | RA-H101TD-1190 | RA-H101SD-1190 |
| 16 | RA-H161TD-1190 | RA-H161SD-1190 |
| 20 | RA-H201TD-1190 | RA-H201SD-1190 |
| 26 | RA-H261TD-1190 | RA-H261SD-1190 |
| 30 | RA-H301TD-1190 | - |
| 34 | RA-H341TD-1190 | RA-H341SD-1190 |
| 40 | RA-H401TD-1190 | RA-H401SD-1190 |
| 50 | RA-H501TD-1190 | RA-H501SD-1190 |
| 60 | RA-H601TD-1190 | RA-H601SD-1190 |

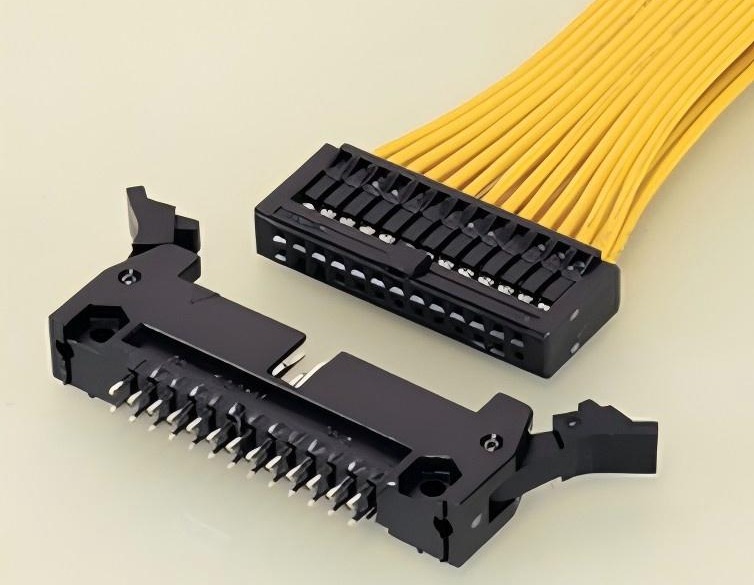

Support Custom Wiring Harness Assembly
- Connector: 10 - 60pin
- Wire gauge: 22 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
