JST RCY Connector, Wire to Wire, Custom Wire Assembly

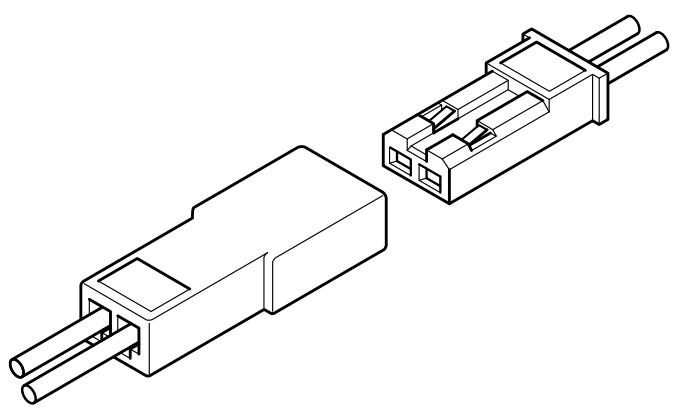

JST RCY Connector, Wire to Wire Type
The JST RCY Connector is a low-profile wire-to-wire solution with a 2.5 mm pitch, designed to save space while delivering reliable performance. Its innovative free spring structure in the socket contact ensures smooth insertion and withdrawal, reducing insertion force and enhancing creep characteristics by minimizing stress concentration on the spring. This design provides stable and durable contact reliability. Measuring only 23.3 mm in length and 4.0 mm in height when mated, the RCY Connector offers a thin, space-efficient profile ideal for modern electronic devices. Despite its small size, it supports a current capacity of up to 3 A with AWG #22 wires, making it suitable for a wide range of applications, including sensors, actuators, and other compact electronic systems.
Specifications
- Connector type: Wire to Wire
- Connector pitch: 2.5mm
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 500 MΩ min
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #28 to #22, 0.08 to 0.33 mm²
Unit: A
| No. of Circuits | Wire Size (AWG) | |||
| #22 | #24 | #26 | #28 | |
| 2 | 3 | 2 | 1 | 0.5 |
Note: The table above shows the maximum current that can be applied to each size of wire used in combination.
Housing

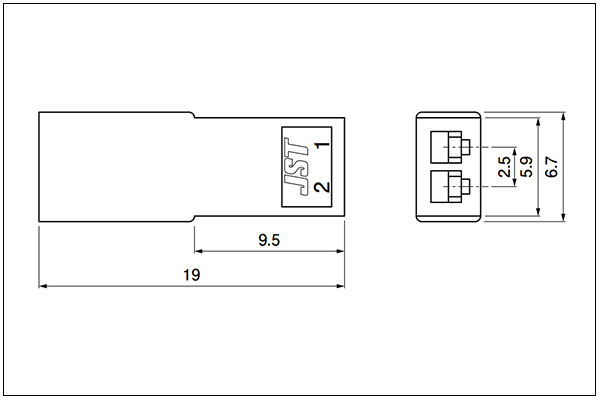

Receptacle Housing - For Pin Terminal

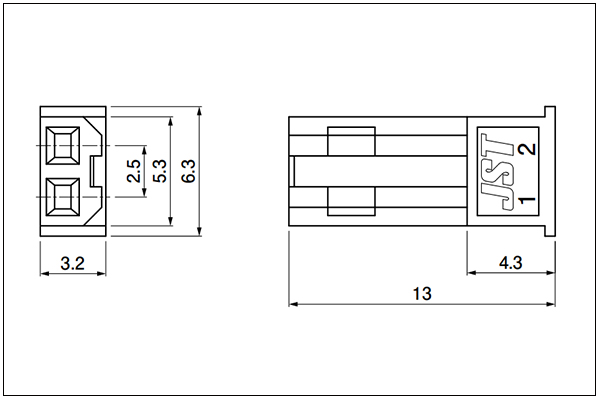

Plug Housing - For Socket Terminal
| No. of circuits | Model No. | Q'ty/bag | |
| Receptacle housing | Plug housing | ||
| 2 | SYR-02T | SYP-02T-1 | 1000 |
| SYR-02TV Note) | SYP-02TV-1Note) | 1000 | |
Material and Finish
- SYR-02T, SYP-02T-1: PA 66, UL94V-2, red
- SYR-02TV, SYP-02TV-1: PA 66, UL94V-0, white (natural)
Terminal

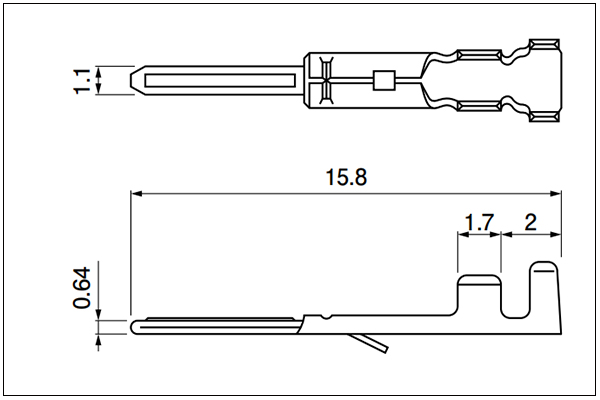

Pin Terminal

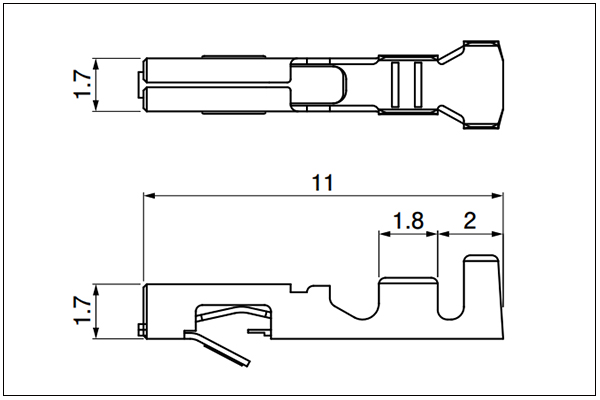

Socket Terminal
Spcs:
- Model No.: SYM-001T-P0.6(Pin Terminal), SYF-001T-P0.6(Socket terminal)
- Applicable Wire: 0.08 - 0.33mm² (22 - 28AWG)
- Insolations O.D. (mm): 1.2 - 1.8
- Q'ty/reel: 8500pcs(pin terminal), 7500pcs (socket terminal)
- Materials and Finish:
- Pin contact: Phosphor bronze, tin-plated
- Socket contact: Phosphor bronze, tin-plated
- SYF-001T-P0.6 displays (LF)(SN) on a label.
- RoHS2 compliance

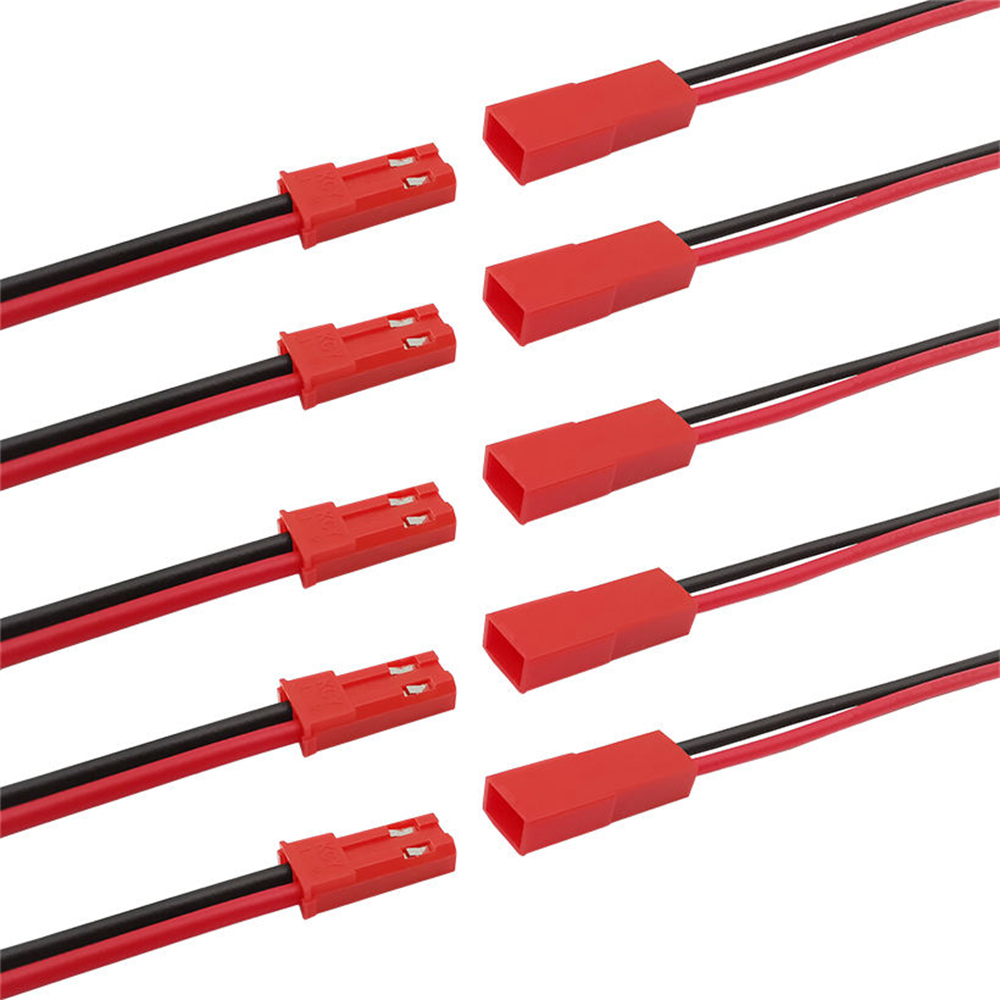

Support Custom Wiring Harness Assembly
- Connector: 2pin
- Wire gauge: 28 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
