JST RE Connector, Wire to Board Type

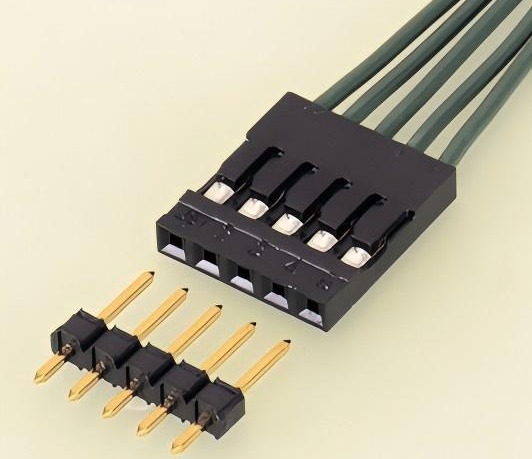

The JST RE Connector is designed as a cost-effective, highly reliable crimp-style solution for connecting wires to printed circuit boards (PCBs). Engineered for versatility and performance, it provides secure and efficient internal connections for a wide range of office automation equipment. These include personal computers, office computers, and their peripheral devices, where dependable connectivity is critical. Its robust design ensures optimal functionality while maintaining affordability, making it an ideal choice for streamlining electronic assemblies in professional and industrial environments. With its high reliability and ease of use, the RE Connector stands out as a trusted component for modern electronic systems.

Features

• Reliable, yet low in cost
  • Our unique, double-leaf spring contact withstands the stresses caused by repeated mating and unmating and ensures a stable high-pressure connection. The contacts and headers are selectively gold-plated to reduce costs. Depending on the application, fully tin-plated contacts and headers are available to further reduce costs.
• Space-saving, high-density design
  • Measuring only 16.54mm in height and 2.54mm thick when mounted on a printed circuit board, the RE connector and header require less mounting space and facilitate highdensity circuit design.
• Easy contact insertion
  • A slight force is all that is needed to insert the contacts into the housing, because the housing has lances. The position of the contacts in the housing can be visually checked. This facilitates insertion of the contacts in the housing.
• It can be cut to any length to provide a header with any number of circuits
  • Notches are provided on the insulator that allow it to be cut to any length without using special tools.

Specifications

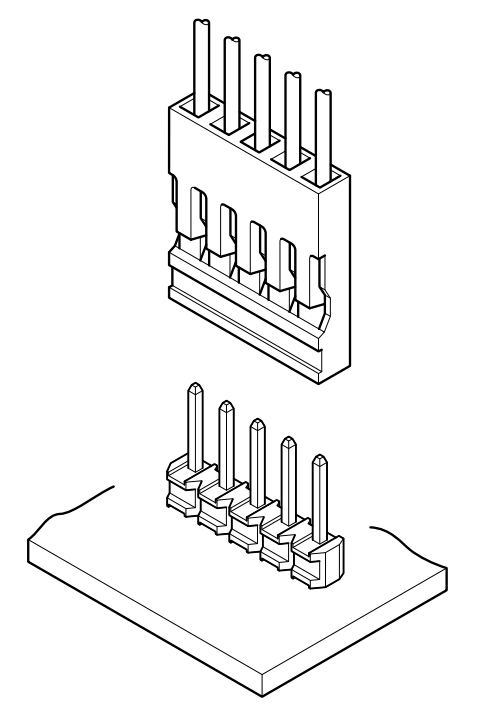

• Connector type: Wire to Board, Disconnectable Crimp style
• Connector pitch: 2.54mm
• Current rating: 2 A AC, DC (5 circuits/AWG #24)
• Voltage rating: 250 V AC, DC
• Temperature range: (including temperature rise in applying electrical current), -55℃ to +105℃ (gold plated), -55℃ to +85℃ (tin-plated)
• Contact resistance: Initial value/ 15 mΩ max, After environmental tests/ 30 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,500 VAC/minute
• Applicable wire: AWG #30 to #24
• Applicable PC board thickness: 1.2 to 1.6 mm

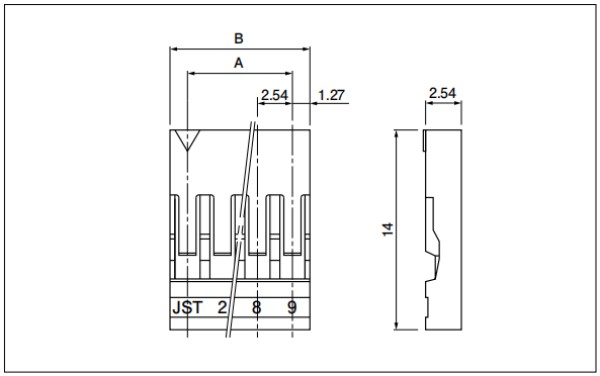

Housing

Material: PBT, UL94V-0, black

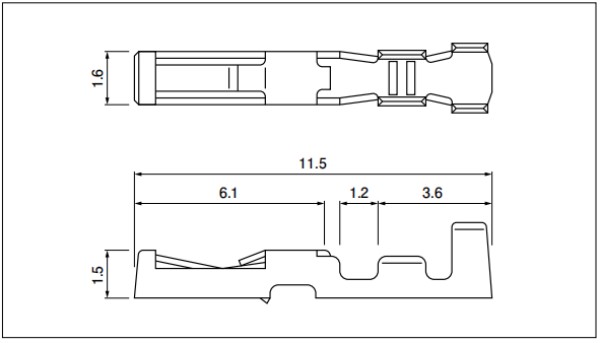

Terminal

Material: Phosphor bronze

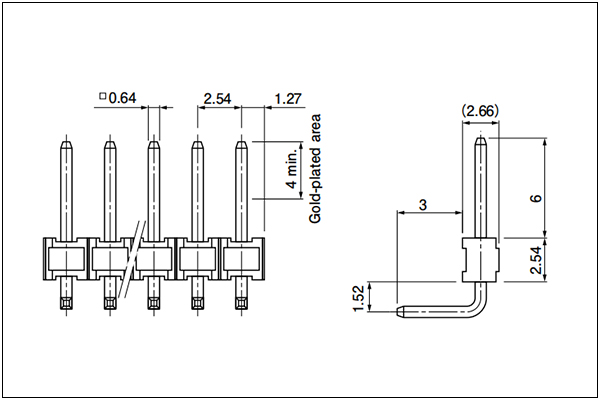

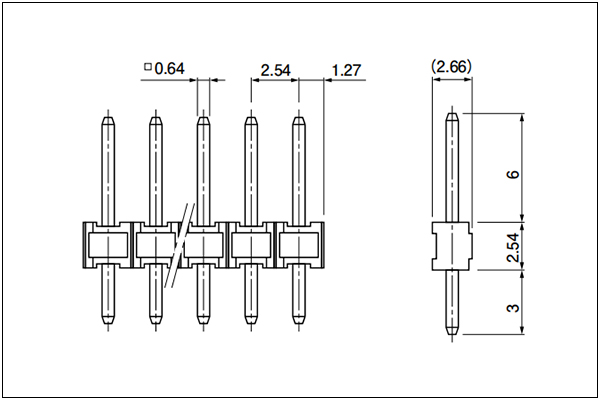

Header

Note: A two-digit number (02 to 09) representing the number of circuits should be inserted in (* ). Determine the number depending on the number of circuits of the housing or header.

Support Custom Wiring Harness Assembly

• Connector: 2 - 9pin
• Wire gauge: 30 - 24AWG
• Wire length: as long as your needs
• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
• Custom type:
  • wire to wire
  • wire to tinned end
  • wire to open end
  • wire to any suitable connectors
• Minimum Order: 100 pieces per order.
