JST RF Connector, Wire to Board, Custom Wire Assembly

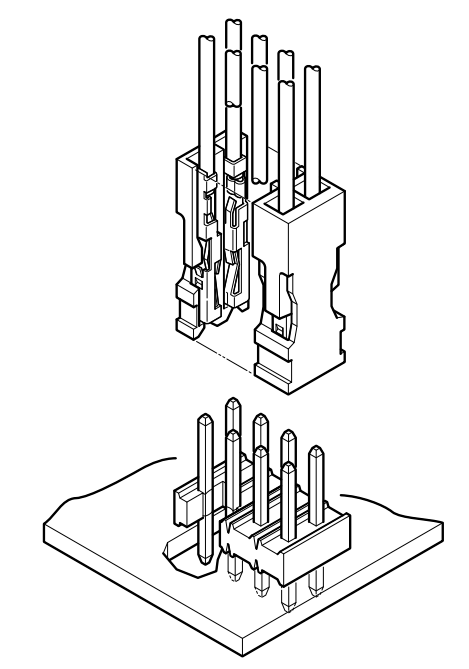

JST RF Connector, Wire to Board Type
The JST RF Connector is a highly reliable and cost-effective crimp-style solution specifically designed for connecting wires to printed circuit boards. Engineered to deliver dependable performance, it is an ideal choice for internal connections within a wide range of office automation equipment. This includes applications in personal computers, office computers, and their associated peripheral devices. Its efficient design ensures robust connections while maintaining affordability, making it a trusted option for manufacturers seeking reliable wiring solutions for their electronic systems.
Features
- Highly reliable, yet low in cost
- Our original double-leaf spring construction withstands the stresses caused by repeated insertions and withdrawals and ensures reliable contact performance. Depending on the application, the socket contacts and header posts can be selectively gold-plated or fully tin-plated to minimize costs.
- Space-saving, high-density design
- The 2.54mm pitch contacts are arranged in two rows. The mated connectors can be placed side by side or end to end without a loss in pitch. This facilitates space-saving, high-density circuit designs.
- Easy connection
- A slight force is all that is required for contact insertion because the housing has resilient lances. Furthermore, the positions of the contacts in the housing can be visually checked. This facilitates insertion of the contacts in the housing.
- It can be cut to any length to provide a header with any number of circuits
- Notches are provided on the insulator that allow it to be cut to any length without using special tools.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 2.54mm
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: 250V AC, DC
- Temperature range: (including temperature rise in applying electrical current) -55℃ to +105℃ (gold-plated), -55℃ to +85℃ (tin-plated)
- Contact resistance: Initial value/15mΩ max, After environmental testing/30mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #30 to #24
- Applicable PC board thickness: 1.2 to 1.6mm

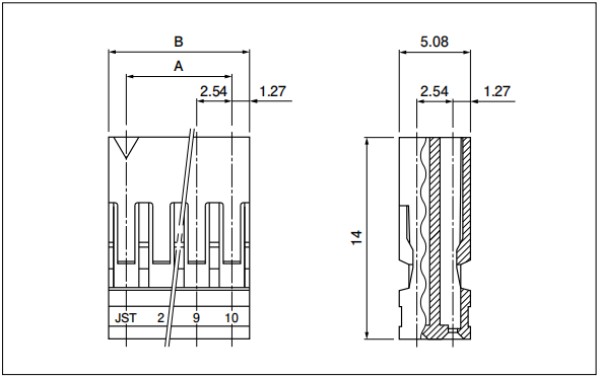

Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/\box | |
| A | B | |||
| 6 | RF-06 | 5.08 | 7.62 | 500 |
| 8 | RF-08 | 7.62 | 10.16 | 500 |
| 10 | RF-10 | 10.16 | 12.70 | 500 |
| 12 | RF-12 | 12.70 | 15.24 | 500 |
| 14 | RF-14 | 15.24 | 17.78 | 300 |
| 16 | RF-16 | 17.78 | 20.32 | 300 |
| 20 | RF-20 | 22.86 | 25.40 | 200 |
| 28 | RF-28 | 33.02 | 35.56 | 200 |
Material: PBT, UL94V-0, black

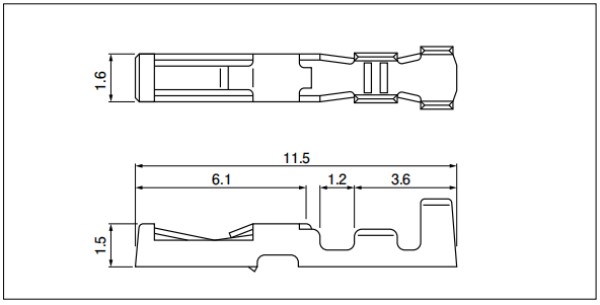

Terminal
| Model No. | Applicable wire | Insulation 0.D. (mm) | Finish | Q'ty/reel | |
| mm² | AWG# | ||||
| RF-SC2210 | 0.05 to 0.22 | 30 to 24 | 0.9 to 1.5 | Nickel-undercoated, Mating part gold-plated Ciping pat: tin-plated (refow teatment) |
10000 |
| RF-SC2290 | Tin-plated (reflow treatment) | ||||
Material: Phosphor bronze
Header

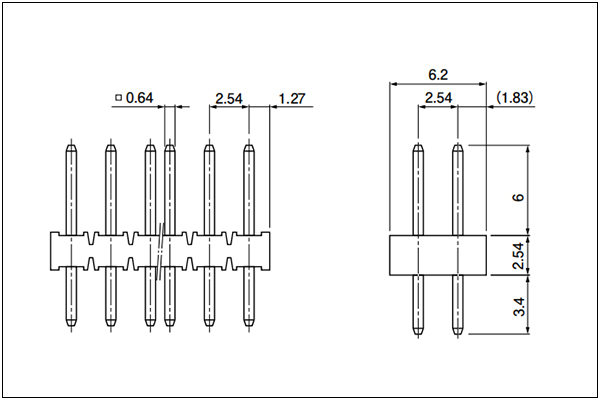

Top entry type

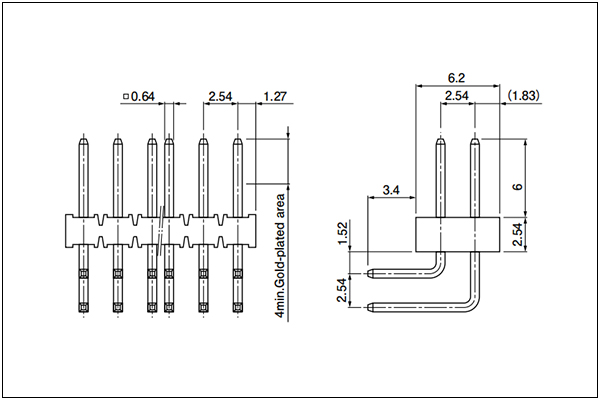

Side entry type
| Type | Model No. | Material | Finish | |
| Wafer | Post | |||
| Top entry type | RF-H(*)2TD-1130 | PBT, UL94V-0, black | Brass | Nickel-undercoated, gold-plated |
| RF-H(*)2TD-1190 | Copper-undercoated, tin-plated (reflow treatment) | |||
| Side entry type | RF-H(*)2SD-1110 | PBT, UL94V-0, black | Brass | Nickel-undercoated,Mating part: gold-plated, Solder tail: tin-plated (reflow treatment) |
| RF-H(*)2SD-1190 | Copper-undercoated, tin-plated (reflow treatment) | |||
Note: A two-digit number (02 to 60 even numbers only) representing the number of circuits should be inserted in ( * ). Determine the number depending on the number of circuits of the housing or header.

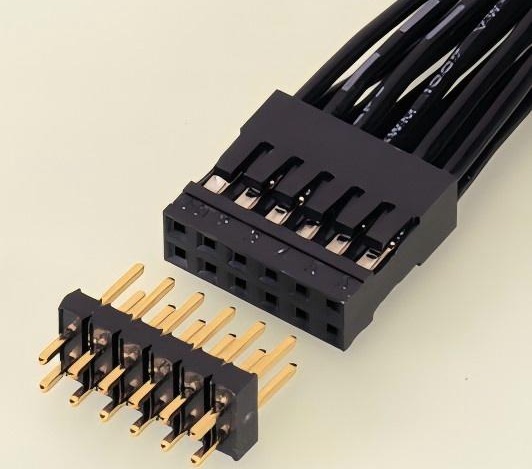

Support Custom Wiring Harness Assembly
- Connector: 6 - 28pin
- Wire gauge: 30 - 24AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
