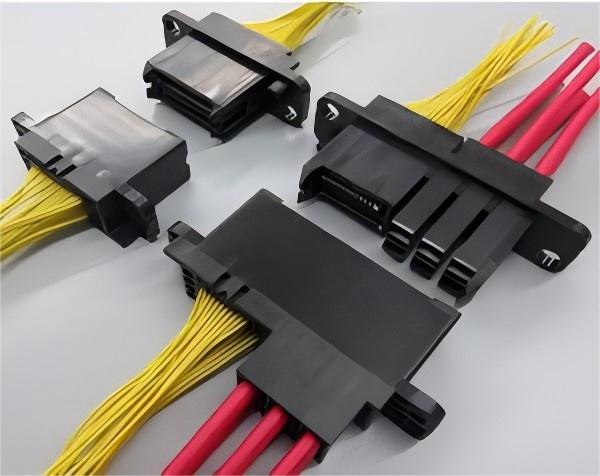

JST RGX Connector, Wire to Wire, Custom Wire Assembly
JST RGX Connector, Wire to Wire

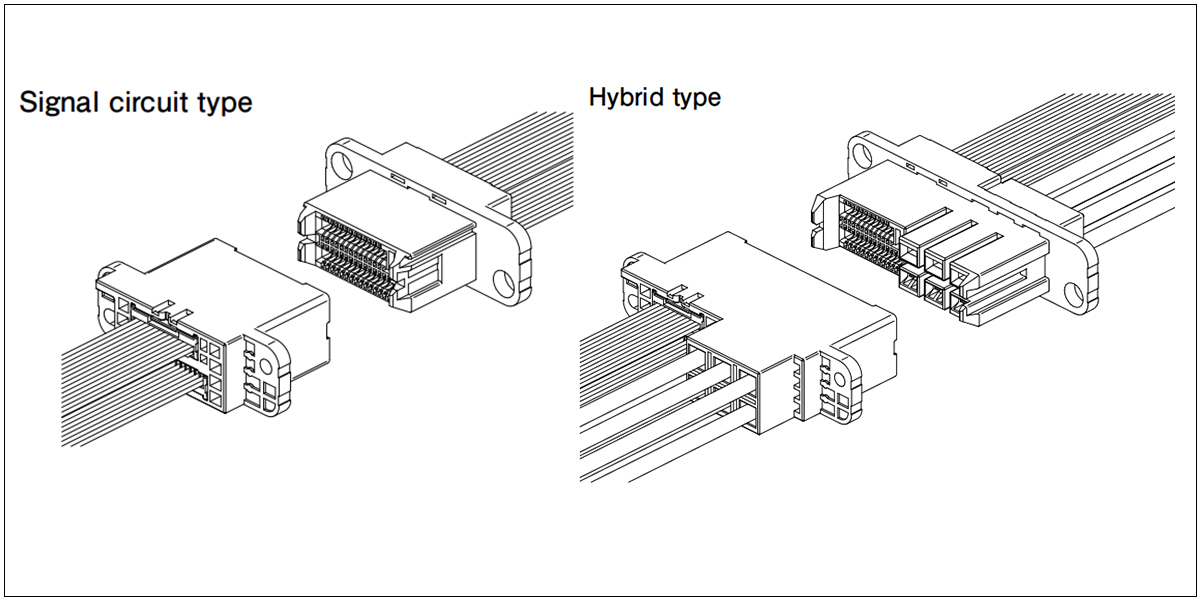

The JST RGX Series is a versatile connector designed for both signal and hybrid applications, featuring a unique drawer-style configuration that integrates signal and power lines within a single unit. Engineered to absorb misalignment between connected units, the RGX series excels in durability, effectively withstanding high insertion and withdrawal forces. The advanced contact structure of the RGX connector ensures superior contact reliability, making it ideal for demanding environments where both robust performance and long-term reliability are crucial. This series combines innovative design with enhanced electrical performance, offering a solution for a wide range of applications.
Specifications
- Current rating:
- Signal line/ 1.0 A AC/DC(AWG#26）
- Power line/ 15 A AC/DC(AWG#14）
- Voltage rating：
- Signal line/ 50 V AC/DC
- Power line/ 250 V AC/DC
- Temperature range: ー 25℃ to ＋ 85℃（Including temperature rise in applying electrical current）
- Contact resistance：
- Signal line: Initial value/ 40 mΩ max, After environmental tests/ 60 mΩ max.
- Power line: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance：500 MΩ min.
- Withstanding voltage：
- Signal line/ There shall be no breakdown or flashover while applying 500 VAC for one minute.
- Power line/ There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
- Applicable wire range：
- Power line: Conductor size/AWG#18 to #14, Insulation O.D./φ2.0 mm to φ3.6 mm
- Plug signal line: Conductor size/AWG#28 to #26, Insulation O.D./φ0.7 mm to φ0.8 mm
- Receptacle signal line: Applicable socket /GX connector
- Guaranteed mating cycles: 6,000 times
Plug housing

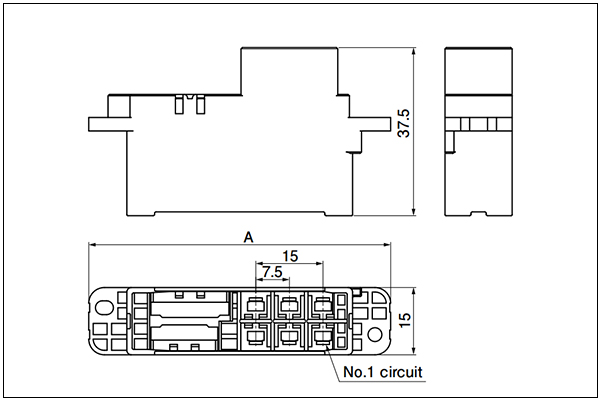

Hybrid type

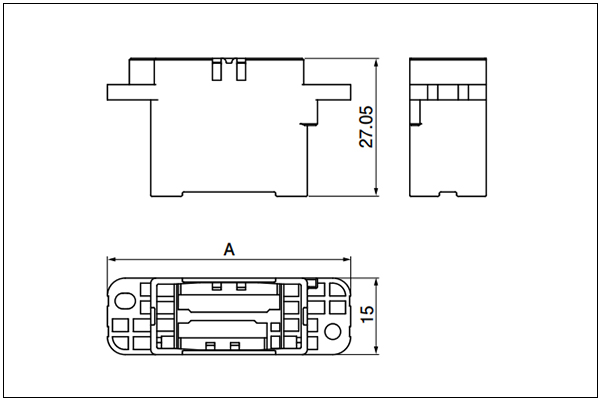

Signal circuit type
| Type | No.of circuits | Model No. | Dimension(mm) | Q'ty/box | ||||
| Power supply | Signal | A | B | C | D | |||
| Hybrid | 6 | 24 | 24P-RGX-K-6 | 67.4 | 60.4 | 50.0 | 51.4 | 300 |
| 6 | 36 | 36P-RGX-K-6 | 79.4 | 67.9 | 57.5 | 58.9 | 240 | |
| Signal circuit | - | 28 | 28P-RGX-K | 47.7 | 40.7 | 30.3 | 31.7 | 540 |

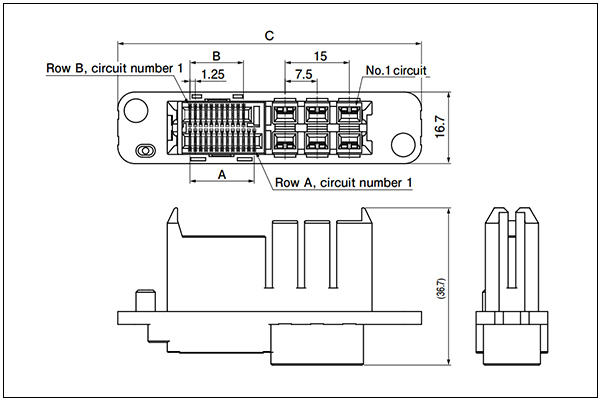

Receptacle
Hybrid type

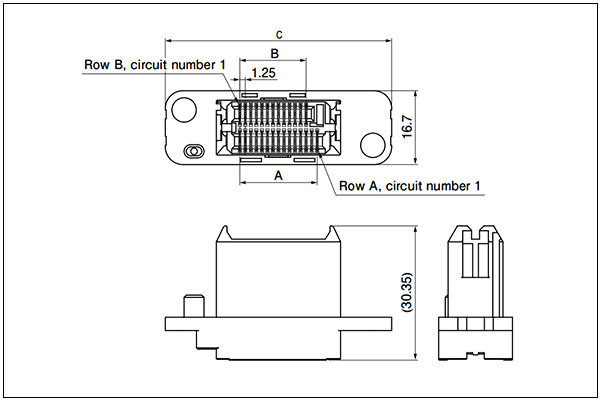

Signal circuit type
| Type | No.of circuits | Model No. | Dimension(mm) | Q'ty/box | ||||||
| Power supply | Signal | A | B | C | D | E | F | |||
| Hybrid | 6 | 24 | 24R-RGX-K5GG-6 | 15 | 12.5 | 70.9 | 62.4 | 53.4 | 50.8 | 300 |
| 6 | 36 | 36R-RGX-K5GG-6 | 22.5 | 20 | 78.4 | 69.9 | 60.9 | 58.3 | 240 | |
| Single Circuit | - | 28 | 28R-RGX-K5GG | 17.5 | 15.0 | 51.2 | 42.7 | 33.7 | 31.1 | 420 |

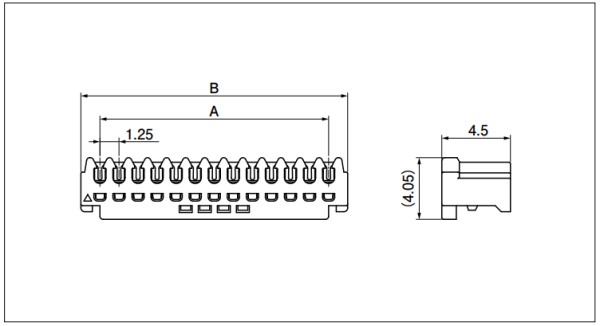

GX Conector socket
| No.of circuits | Model No. | Dimension(mm) | Q'ty/box | |
| A | B | |||
| 11 | 11GX-6S | 12.5 | 15 | 500 |
| 13 | 13GX-6S | 15 | 17.5 | 500 |
| 15 | 15GX-6S | 17.5 | 20 | 500 |
| 17 | 17GX-6S | 20 | 22.5 | 400 |
| 19 | 19GX-6S | 22.5 | 25 | 400 |
Terminal

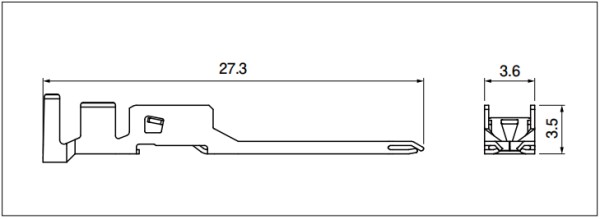

Plug contact for power line

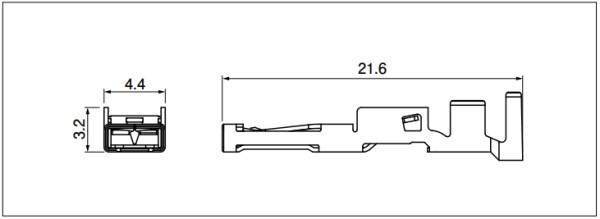

Receptacle contact for power line
Specs:
- Model No.: SRFF-61GG-S0.9(Receptacle), SRFM-61GG-S0.9(Plug Terminal)
- Applicable Wire: 18 to 14AWG（0.75 to 2.0mm²）
- Insolations O.D. (mm): 2.0 to 3.6mm
- Q'ty/reel: 3500pcs
- Materials and Finish: Copper alloy, Gold-plated(Contact part), Tin-plated(Crimping part)

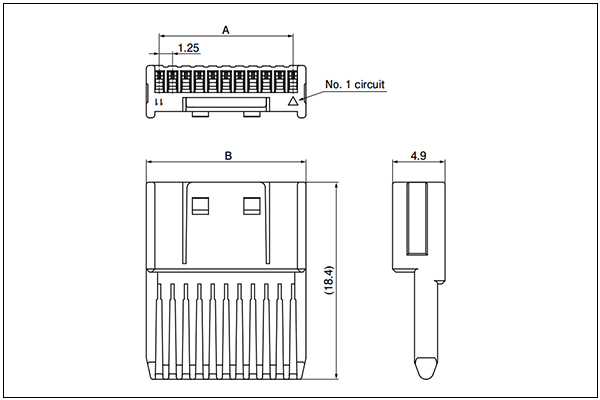

Plug signal unit
| No. of circuits | Model No. | Dimension(mm) | Q'ty/box | |
| A | B | |||
| 11 | RGXYP-11-K | 12.5 | 14.9 | 1000 |
| 13 | RGXYP-13-K | 15.0 | 17.4 | 1000 |
| 15 | RGXYP-15-K | 17.5 | 19.9 | 500 |
| 17 | RGXYP-17-K | 20.0 | 22.4 | 500 |
| 19 | RGXYP-19-K | 22.5 | 24.9 | 500 |

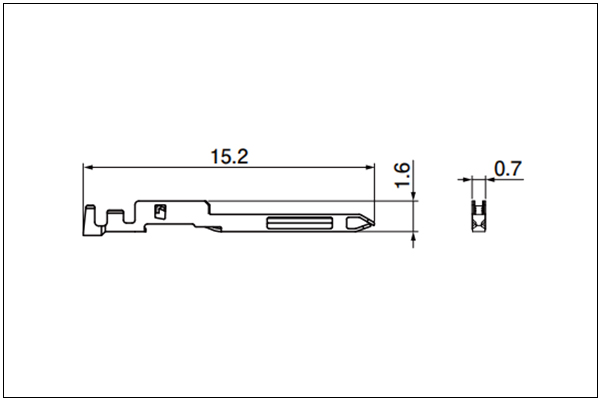

Plug contact for signal line
Specs:
- Model No.: SRFCP-002GG-S0.9
- Applicable Wire: 28 to 26AWG（0.08 to 0.13mm²）
- Insolations O.D. (mm): 0.7 to 0.8mm
- Q'ty/reel: 18000pcs
- Materials and Finish: Copper alloy, Gold-plated(Contact part), Tin-plated(Crimping part)
Support Custom Wiring Harness Assembly
- Connector: 6, 11, 13, 15, 17, 19, 24, 28, 36pin
- Wire gauge: 28 - 14AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
